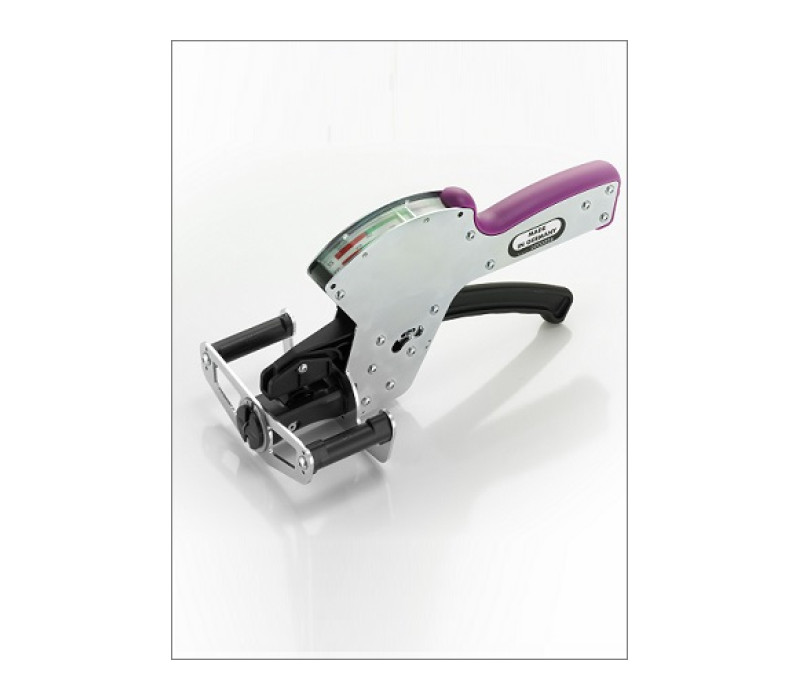

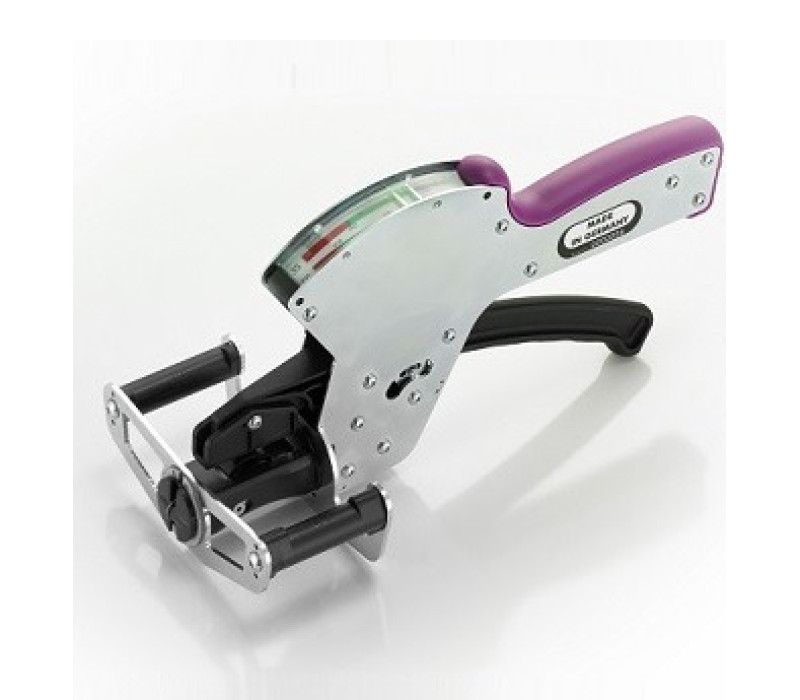

STF-3550 Strap Tension Meter


Made in GermanyStrap Tension Meter to measure the tension of 35 mm or 50 mm wide lashing straps.

It meets the requirements of:
VDI Guideline 2700
Securing cargo on road vehicles
DIN EN 12195-1
Calculating the lashing forces
DIN EN 12195-2
Lashing straps made from synthetic fibers
Certified by
TUL-LOG 01-2012


Features

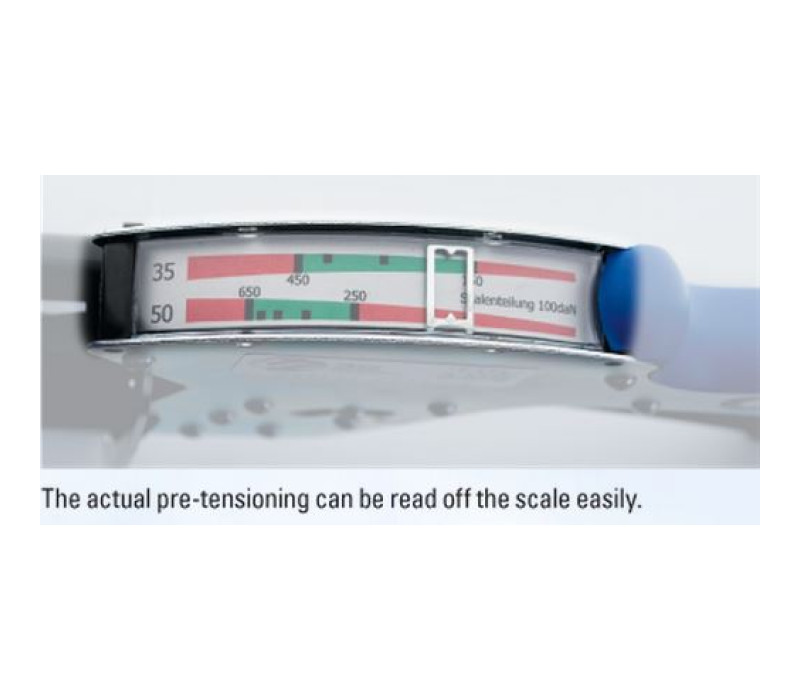

  • Scale values ​​at straps width 35 mm:
    150 daN, 250 daN, 350 daN, 450 daN
  • Scale values ​​at straps width 50 mm:
    250 daN, 350 daN, 450 daN,550 daN, 650 daN
  • Suitable for lashing with a strap width of 35 mm or 50 mm.
  • Easy handling, quick to use

Complete Kit

- STF-3550 Strap Tension Meter

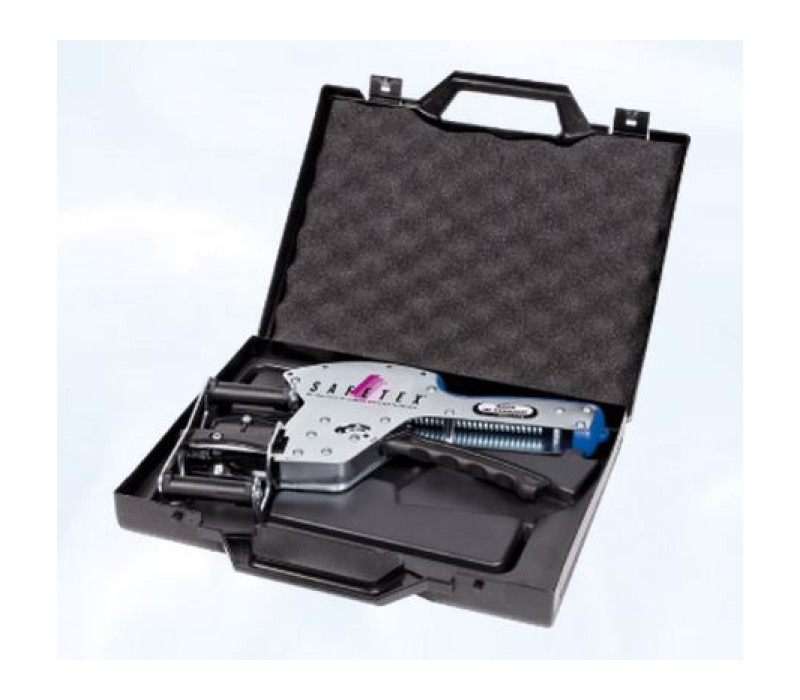

- Protection and storage case
- Manual

Specifications

For lashes with width:
35mm & 50mm
Meets requirements
VDI Guideline 2700, DIN EN 12195-1, DIN EN 12195-2
Certified by
TUL-LOG 01-2012
Scale values ​​at straps width 35 mm
150 daN, 250 daN, 350 daN, 450 daN
Scale values ​​at straps width 50 mm
250 daN, 350 daN, 450 daN,550 daN, 650 daN
Weight
1,43 kg

Buy Now

Product


Product name
Price
Quantity
STF-3550 Strap Tension Meter
€ 442,50

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
