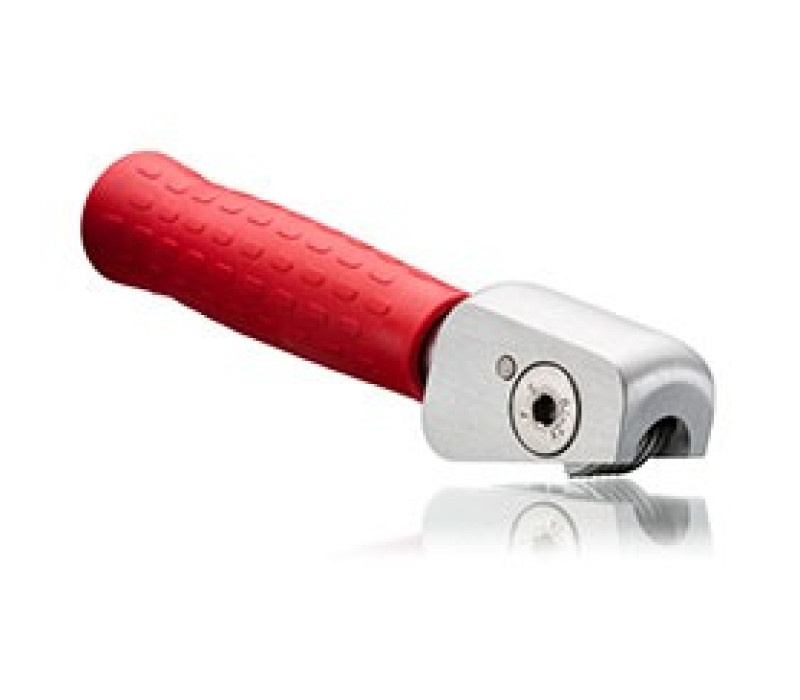

SecoTest Cross Hatch Cutter

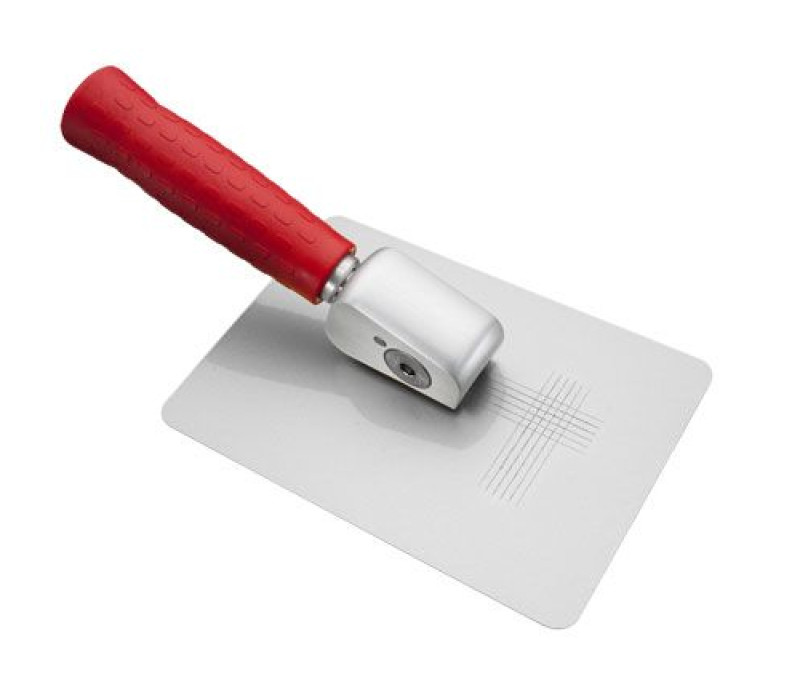

Exceptionally strong and handy cross hatch cutter made on the lines of DIN EN ISO 2409 and ASTM D3359-02 to conduct cross cut tests. The SecoTest is used for the assessment of adhesiveness of single or multiple coatings (varnishes, synthetic materials, etc.) on hard (steel) and soft (wood) substrates.

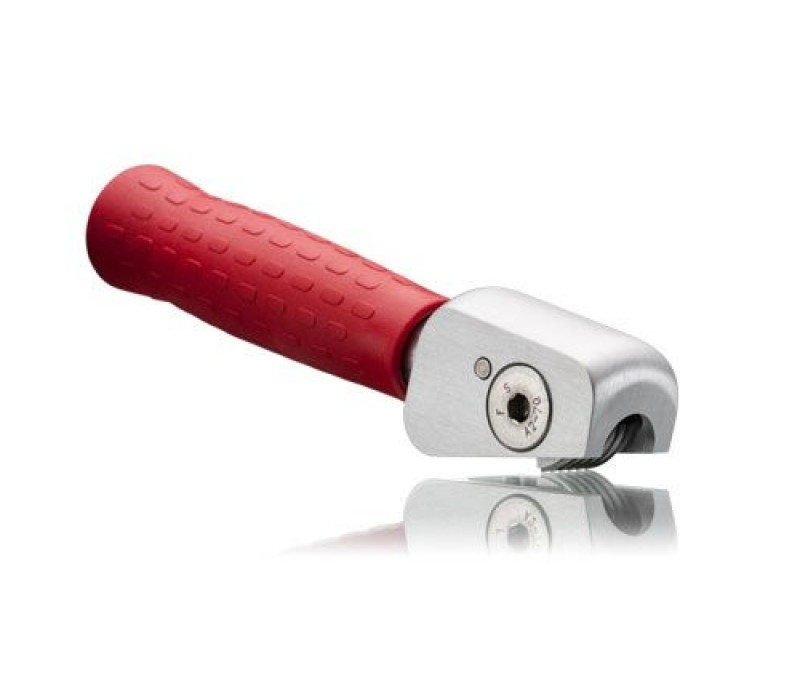

The cross cut testers of the SecoTest series consist of a sturdy holder for the six-edge multi cutting blade and a rotatable non-slip grip, which prevents the multi cutting blade from canting.

To ensure that this procedure is repeatable, put the test object through a suitable conditioning process (see DIN EN ISO 2409, section 6); while testing at construction sites make a note of the ambient conditions in the test report.

The procedure defined by ISO 4642 can be employed to measure adhesiveness.


Features

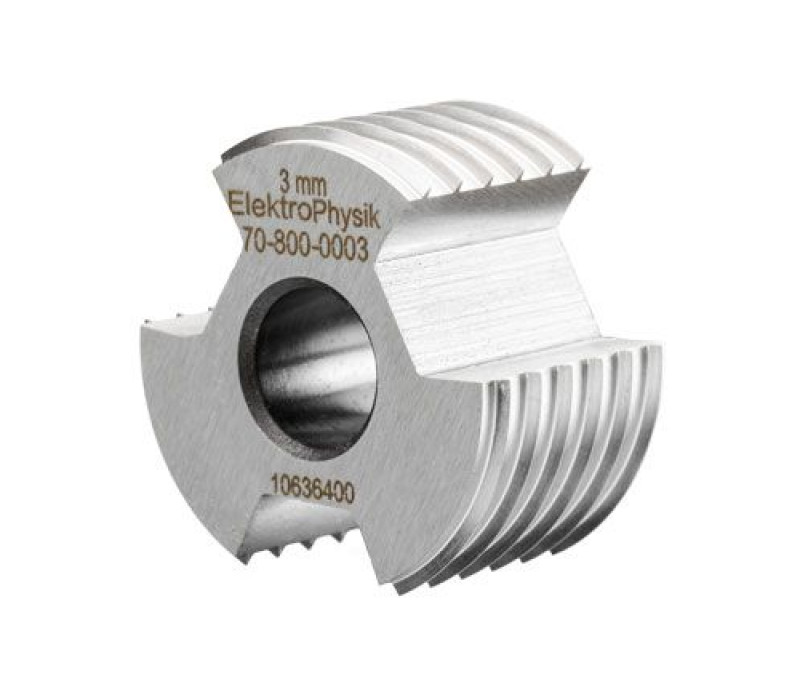

  • High-grade, tool-steel multi cutting blade in 4 different models with standard cutting-edge geometry
  • Movable cutter head
  • Multi cutting blade with 6 cutting edges
  • Versions for tests according to DIN EN ISO 2409 and ASTM D 3359
  • Cutting edges lie on the surface
  • With Magnifying glass for clear evaluation of the cut edges

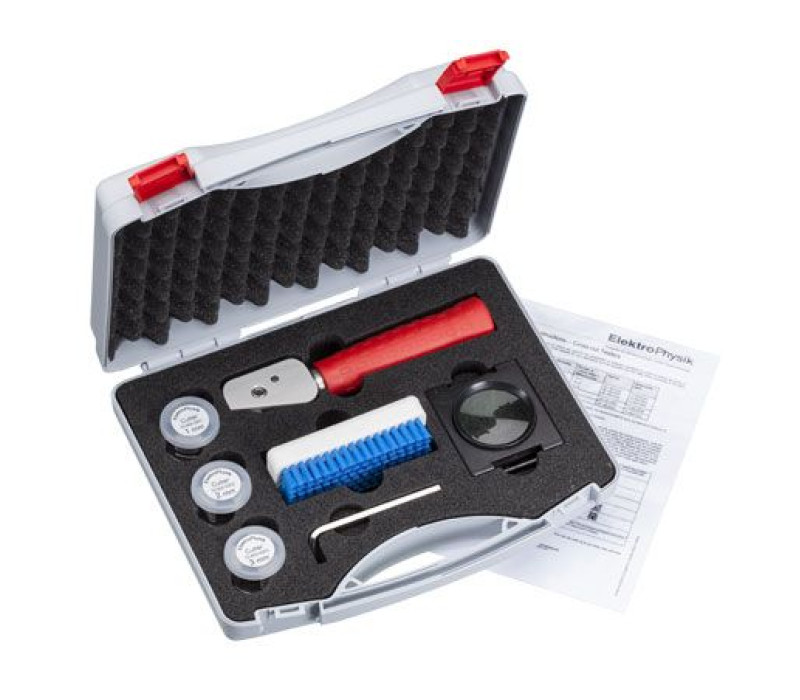

Complete Kit
The SecoTest is supplied as a complete kit, including:
  • SecoTest
  • Multi cutting blade
  • Allen key for changing the multi cutting blade
  • Magnifier
  • Brush
  • Short operating instructions
  • Works Certificate
  • Plastic carrying case


Specifications
SecoTest 1
Coating Thickness
up to 60 µm on hard substrates (e.g. metal, plastics)
6 x 1 mm
Number of cutting edges x distance (mm)
Norm
DIN EN ISO 2409
---
---
SecoTest 2
Coating Thickness
up to 60 µm on soft substrates (e.g. wood, render)
Coating Thickness
from 61 µm to 120 µm on hard and soft substrates
6 x 2 mm
Number of cutting edges x distance (mm)
Norm
DIN EN ISO 2409
---
---
SecoTest 2
Coating Thickness
from 51 µm to 125 µm
6 x 2 mm
Number of cutting edges x distance (mm)
Norm
ASTM D 3359
---
---
SecoTest 3
Coating Thickness
from 121 µm to 250 µm on hard and soft substrates
6 x 3 mm
Number of cutting edges x distance (mm)
Norm
DIN EN ISO 2409
---
---
SecoTest 4
Coating Thickness
up to 50 µm
11 x 1 mm
Number of cutting edges x distance (mm)
Norm
ASTM D 3359
---
---
Dimensions
18 x 3,8 x 3 cm
Weight
330 gram
Warranty
1 year

Buy Now
Products

Product name
Price
Quantity
SecoTest 1 - Cross Hatch Cutter with 6 cutters 1 mm distance
€ 349,50
SecoTest 2 - Cross Hatch Cutter with 6 cutters 2 mm distance
€ 349,50
SecoTest 3 - Cross Hatch Cutter with 6 cutters 3 mm distance
€ 349,50
SecoTest 4 - Cross Hatch Cutter with 11 cutters 1 mm distance
€ 349,50

Accessories

Product name
Price
Quantity
6 cutters 1mm - SecoTest replacement cutters - 6 cutters 1mm distance for SecoTest 1
€ 165,00
6 cutters 2mm - SecoTest replacement cutters - 6 cutters 2mm distance for SecoTest 2
€ 165,00
6 cutters 3mm - SecoTest replacement cutters - 6 cutters 3mm distance for SecoTest 3
€ 165,00
11 cutters 1mm - SecoTest replacement cutters - 11 cutters 1mm distance for SecoTest 4
€ 165,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
