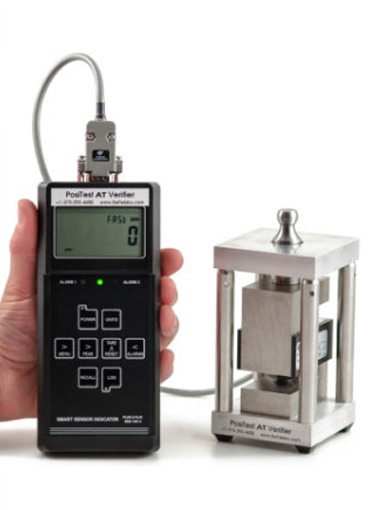

PosiTest AT-Verifier Adhesion Tester Accuracy Verification Kit


Made in the USAThe PosiTest AT Verifier is ideal for checking the accuracy and operation of PosiTest Adhesion Testers and is an important component in fulfilling both ISO and in-house quality control requirements.

The PosiTest AT Verifier and included documents allow the user to certify the accuracy of PosiTest Adhesion Testers.

The PosiTest AT Verifier Kit includes a high precision load cell and handheld smart sensor indicator, it can be used with all PosoTest Pull-Off Adhesion Testers, ideal for field or laboratory use. The kit is portable and requires no external power source. It's mounted with a permanent steel 20 mm loading fixture (dolly). A conversion factor is used to verify other sizes.

The SSI device comes pre-configured for verification of PosiTest AT-M and AT-A pull-off adhesion testers. No additional configuration is required or recommended.

The PosiTest AT Verifier is easy to use, connect the adhesion tester’s pull-off actuator to the PosiTest AT Verifier’s loading fixture. Apply pressure using the adhesion tester’s normal operating procedure. Compare values from the adhesion tester and the Verification Device.


Features
  • High precision load cell and handheld smart sensor indicator
  • Bonded foil strain gages are hermetically sealed for protection against industrial environments
  • Ideal for field or laboratory use
  • Portable — requires no external power source
  • NOTE:
    Device displays imperial units only. Conversion Factor: 1 megapascal (MPa) = 145 pounds/inch2 (psi).
  • Peak hold and real time reading display
  • Ready to use with all PosiTest Pull-Off Adhesion Testers
  • Comes with a Sample Certificate of Accuracy and Measurement Uncertainty Worksheet
  • Certificates of Calibration showing traceability to NIST are included for both the load cell and smart sensor indicator
  • One year warranty

Complete Kit
Kit includes:
  • Smart Sensor Indicator (SSI) Device
  • Load Cell with steel 20mm Loading Fixture (dolly)
  • Built-in rechargeable Lithium Ion Batteries
  • Universal AC power adaptor/charger
  • Instruction Manuals
  • Certificates of Calibration
  • Sample Certificate of Accuracy
  • Measurement Uncertainty Worksheet
  • Hard shell carrying case


Specifications
Range
0 - 5,000 psi (pound-force per square inch)
Device displays imperial units only:
Conversion Factor: 1 megapascal (MPa) = 145 pounds/inch2 (psi).
Resolution
1 psi
Accuracy*
±6.33 psi (±0.044 MPa)
* Worst case measurement system uncertainty. See included Measurement Uncertainty Worksheet for the actual uncertainty of your kit.
Case Size
31 x 23 x 10 cm
Case Weight
3.44 kg
Warranty
1 year

Related Products

PosiTest-Adhesion-Tester PosiTest Pull-Off Coating Adhesion Tester


  • Pull Rate Indicator – allows operator to easily monitor and adjust the rate of pull in accordance with international test methods.

More details

PosiTest-Adhesion-Tester PosiTest Pull-Off Coating Adhesion Tester

PosiTest AT-A PosiTest - Automatic Adhesion Tester


  • Environmentally sealed enclosure – weatherproof, dustproof and shockproof - meets or exceeds IP65
  • 10, 14, 20 or 50 mm dollies maximize capability and measurement resolution across a wide range of bond strengths
  • Rotating display for horizontal and vertical use

More details

PosiTest AT-A PosiTest - Automatic Adhesion Tester

Buy Now
Product

Product name
Price
Quantity
PosiTest-AT-Verifier Adhesion Tester Accuracy Verification Kit for PosiTest AT
€ 3.028,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
