ZT-LM Digital Compression Force Gauge with Button Sensor

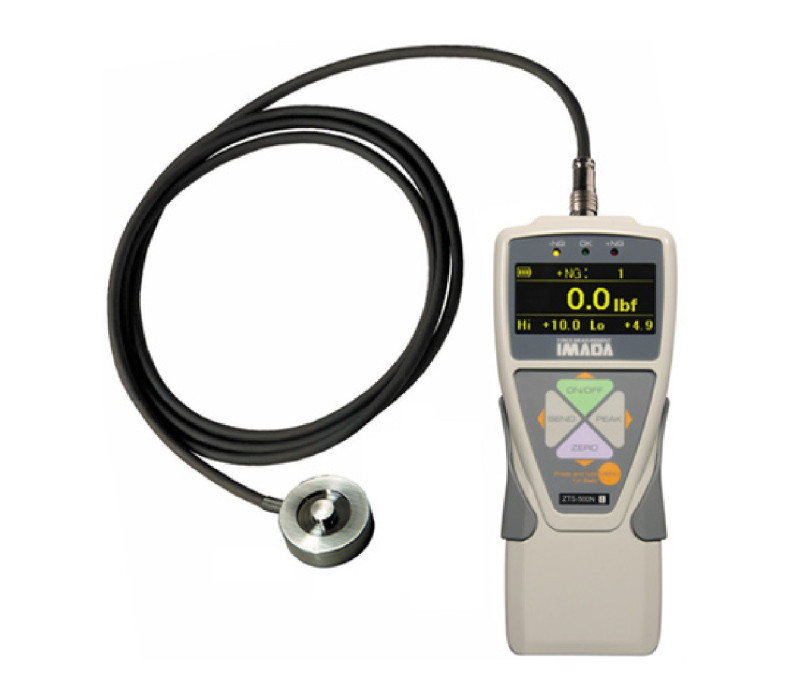

The ZT-LM series force gauge measures compression force with a remote button style sensor. It is ideal for use in limited access applications. The sensor is connected via an 2,5m cable allowing the display to positioned in a safe, convenient location.

The ZT-Series Force Gauge is equipped with an electro luminescent display, which is highly visible in dark locations. It is a very user friendly meter with his easy-to-use menus. It has multi-language program menus: English, Spanish, French, Chinese, German, Italian, Korean and Japanese.

10 Ranges from 10N up to 20kN

An easy-to-use menu allows the user to select units, measuring mode, set high/low setpoints, language, reverse display and adjust many other settings.

Electroluminescent display (ELD) shows force value, unit, and peak, and can be configured with additional user-selectable data including memory data, +NG count, high/low setpoints, 1st and 2nd peaks, displacement value (using a test stand with FA option), etc.

Color-coded LED indicators alert the user to Go/NoGo conditions. Orange lights for less than low setpoint, green lights between high and low, and red for over the high.

Process and transmit 2,000 actual data per second, not just the peak from a high sampling rate. Optional Force Recorder data acquisition software is designed to process up to 2,000 data per second.

The ZT-LM Series is available in 2 versions:
Series ZTS-LM (Standard) & Series ZTA-LM (Advanced) , the ZTA-LM (Advanced) has more useful functions:

Feature 1: Displacement I/O becomes possible, this means that you can input/output displacement as well as force when you combine with a test stand having a linear scale by a dedicated cable or DMK scale.

Feature 2: Continuous data (100data / sec) can be saved in USB flash drive, this means that You can save 100 data / sec at real time in USB flash drive in CSV format. You can also transfer internal memory data to USB flash drive.
Even in the case when you cannot connect PC during measurement, you can save data in USB flash drive, and later transfer data to PC via the USB drive. On PC you can draws the data into a graph with Excel.

Feature 3: Maximum/minimum value among internal memory data can be indicated.
- Average value among internal memory data can be indicated.
- You can set a certain load value (A), and it can capture 2 peak values right before the certain load value dropped.

Request price >>

Luminescent display is highly visible in dark locations
Ergonomic design with non-slip grips, heavy duty metal construction
Multi-language program menus: English, Spanish, French, Chinese, German, Italian, Korean, Japanese
Color-coded LED indicators (green, orange, red) and output signal for Go/No Go testing
Overload capacity 200% F.S.
1,000 data memory for recall or download
External switch display hold and clear
Internal Ni-MH batteries or AC adapter
Real time and peak mode (selectable)
kgf, lbf, and N units are selectable
Overload alarm and output signal
Easy-to-use menus: make programming simple in eight languages. Select units, reverse display, set high/low setpoints, and all other functions in plain language
Processes and transmits 2,000 data per second

Kit includes,

Full set of attachments,
Remote sensor with cable,
ZT Logger data acquisition software,
USB cable,
AC adapter/charger,
Calibration cert traceable to NIST
Carrying case

ZT-Series features

Electroluminescent display (ELD)
Functions	ZTA
Peak hold
OK/NG judgment
Reverse display
Sensitivity	4 steps
Multi display
Internal memory	1000 data
+/- Force
Auto zero timer
+NG alarm
Auto shut off
Calendar
1st/2nd peak drop
Displacement detection at force peak
Displacement Reset
Output	ZTA
Serial (RS232C)
Mitutoyo digimatic [*4]
Analog	+/- 2V F.S. approx.
USB
High/low set points
Overload warning
High/low output
Memory in USB flash drive [USB flash drive is not included]
Displacement

Force Ranges

Model	Ranges	Resolution
ZT-LM-2	2,200 lbf 1.000 gf 10,00 N	0,001 lbf 0,001 kgf 0,01 N
ZT-LM-4	4,400 lbf 2,000 kgf 20,00 N	0.001 lbf 0.001 kgf 0.01 N
ZT-LM-11	11,00 lbf 5,000 kgf 50,00 N	0,001 lbf 0,001 kgf 0,01 N
ZT-LM-44	44,00 lbf 20,00 kgf 200,0 N	0,01 lbf 0,01 kgf 0,01 N
ZT-LM-110	110,0 lbf 50,00 kgf 500,0 N	0,1 lbf 0,01 kgf 0,01 N
ZT-LM-220	220,0 lbf 100,0 kgf 1000 N	0,1 lbf 0,1 kgf 1 N
ZT-LM-550	550,0 lbf 250,0 kgf 2500 N	0,1 lbf 0,1 kgf 1 N
ZT-LM-1100	1100 lbf 500,0 kgf 5000 N	1 lbf 0,1 kgf 1 N
ZT-LM-2200	2200 lbf 1000 kgf 10,00 kN	1 lbf 1 kgf 0,1 kN
ZT-LM-4400	4400 lbf 2000 kgf 20,00 kN	1 lbf 1 kgf 0,01 kN

Accuracy	± 0,2% F.S., ± 1 LSD
Selectable Units	lbf(ozf), kgf(gf) or Newtons
Capacity	Up to 20kN (compression only)
Overload Capacity	200% of F.S. (Overload indicator flashes beyond 110% of F.S.)
Cable Length	appr. 2,5m
Battery Indicator	Indicates three charge states high, med and low
Power	Rechargeable Ni-MH battery pack or AC adapter
Memory	Non-volative, recall up to 1,000 data
Setpoints	Programmable high/low setpoints w/ color-coded LEDs & output signal
Outputs	Outputs USB (virtual COM port), RS-232C, Digimatic and ± 2 VDC analog output
Operating Temperature	0 to 40 °C
Warranty	2 Years
