YSL-2000HD Multi-function Speed & Length Meter

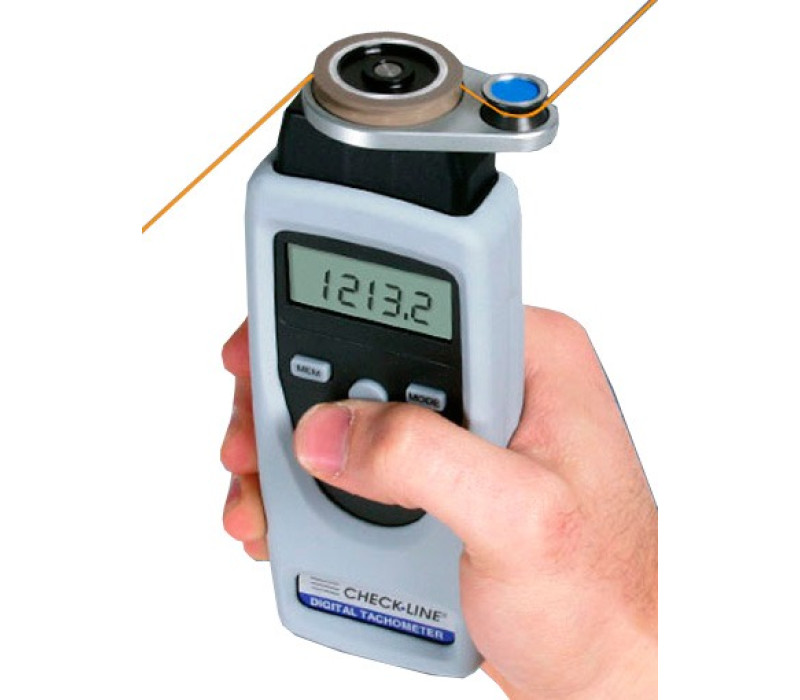

Name: YSL-2000HD Multi-function Speed & Length Meter
SKU: 126576
Price: 492.00 EUR
Availability: PreOrder

The CHECK-LINE YSL-2000HD combines the functions of three separate instruments in one, easy-to-use device.

It accurately measures the speed and length of yarns, and other filaments using a unique "wrapper" roller. This precision roller directs the filament onto the low-inertia, U-grooved measuring wheel to maximize contact and eliminate filament slip and breakage.

The YSL-2000HD can also be used as either a contact or non-contact tachometer to measure rotational speeds of shafts, motors, pulleys, etc. or linear speeds of moving surfaces such as conveyor belts, webs of paper or fabric, etc.

€ 492,00

Order now

Slide-on measuring heads make it simple to rapidly convert from one function to another
Accuracy of ± 0.02%
Built-in memory for last, maximum, minimum values
NIST-Traceable Certification Included
5 Year Warranty

User-selected engineering units

Linear Speed	Length	Revolutions
feet/min	feet	rpm
meters/min	meters
inches/min	inches

The YSL unit, two slide-on measuring heads (tachometer and yarn speed), cone tip, universal surface speed wheel with integrated funnel tip adapter, reflective tape, two AA batteries and operating instructions, all supplied in a foam-fitted, hard-plastic carrying case.

RPM	Non-Contact: 1.00 - 99,999 rpm Contact: 1.00 - 19,999 rpm
Surface Speed	0.30 - 6,500 feet/min 0.10 - 1,999 meters/min 4.0 - 78,000 inches/min
Length	0.01 - 99,999 feet 0.02 - 99,999 meters 1.0 - 99,999 inches
Resolution	01 from 0 - 100 .1 from 100 - 1,000 1 from 1000 - 99,999
Yarn/Wire Diameter (max.)	Yarn: 1mm Wire: 0.3mm
Accuracy	± 0.02% of reading or 1 digit
Display	5 - Digit LCD, 10mm high
Decimal Point	Automatic
Memory System	Maximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement System	Non-Contact: Visible LED light beam Contact: Contact adapter
Sensing Distance	Up to 14 inches (350mm)
Display Update Time	0.5 seconds or one measuring
Auto Power Off	After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life	20 hours continuous use
Weight	6 ounces (170 grams)
Housing Material	ABS Plastic
Operating Temperature	32 to 122º F (0 to 50º C)
Storage Temperature	-4 to 150º F (-20 to 70º C)
Optional Accessories	Shaft extension, 3.15 inches (80 mm)
Warranty	5 years

Products

Item	Product	Price	Quantity	Action
125799	YS-20 Yarn Speed & Length Meter	€ 492,00

Accessories

Item	Product	Price
134459	CDT-YSL-ADAP Yarn speed adapter	€ 306,00
126135	10009S - Reflective Tape 4 Sheets 35 1/2	€ 15,00
139547	Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable)	€ 25,00
126897	DT12 Rubber Measuring Wheel with a circumference of 12 inches / 30,48 cm	€ 62,00
126912	CDT-Wheel - 0.1 m Circumference Wheel	€ 36,00
126678	DT6 Rubber Measuring Wheel for Tachometers	€ 30,00

All mentioned prices are excluding VAT & excluding shipment costs.
