YS-20 Speed - and Length Meter as well as Tachometer for contact and non-contact measurement

YS-20 Speed - and Length Meter as well as Tachometer for contact and non-contact measurement

Name: YS-20 Speed - and Length Meter as well as Tachometer for contact and non-contact measurement
SKU: 125802
Price: 492.00 EUR
Availability: PreOrder

The YS-20 Combination Hand-Held Digital Tachometer combines the best features of both contact and non-contact models to accurately measure RPM, surface speed and length.

When using the non-contact mode, rotational speed (RPM) is measured using a visible beam of light. The YS-20 can be up to 14 inches away from the small piece of reflective tape that is affixed to the rotating element. In the contact operating mode, the speed is sensed by directly contacting rotating device using one of the contact adapters supplied with the instrument.

In other applications where surface or linear speeds are to be measured, the universal wheel is used for direct readout of feet/min, meters/min or inches/min, as selected by the end user. The YS-20 can also be used to measure the accumulated total of continuously running material such as paper, wire being wound on a spool, or to check the calibration of on-line counters and totalizers.

€ 492,00

Order now

Combines the function of three seperate instruments in one, easy-to-use decvice
Maximum diameter of material to be meausured: Yarns 0.5 mm, Wires 0.3 mm
Rugged plastic housing

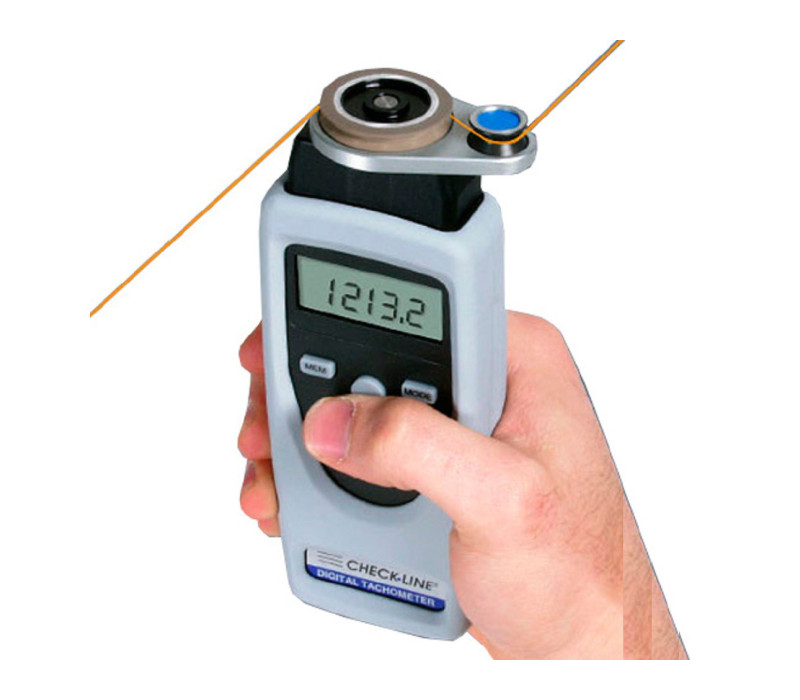

Yarn Measuring Adapter: Easy-run, rubber coated measuring wheel and guide roller
2 Slide in measuring adapters make it simple to convert from contact to non contact or to yarn speed measurement
Built-in memory for last, maximum, minimum values
NIST-Traceable Certification Included
5 Year Warranty

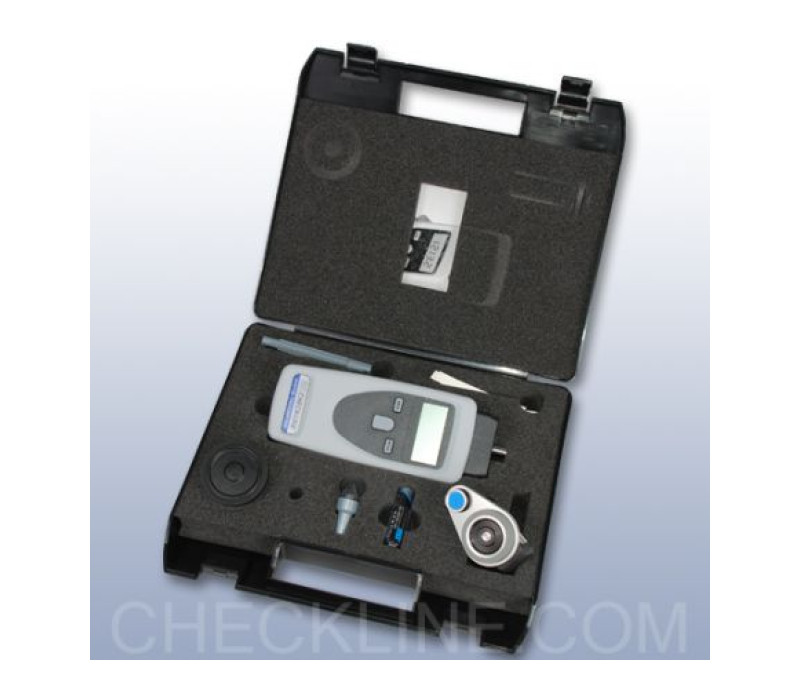

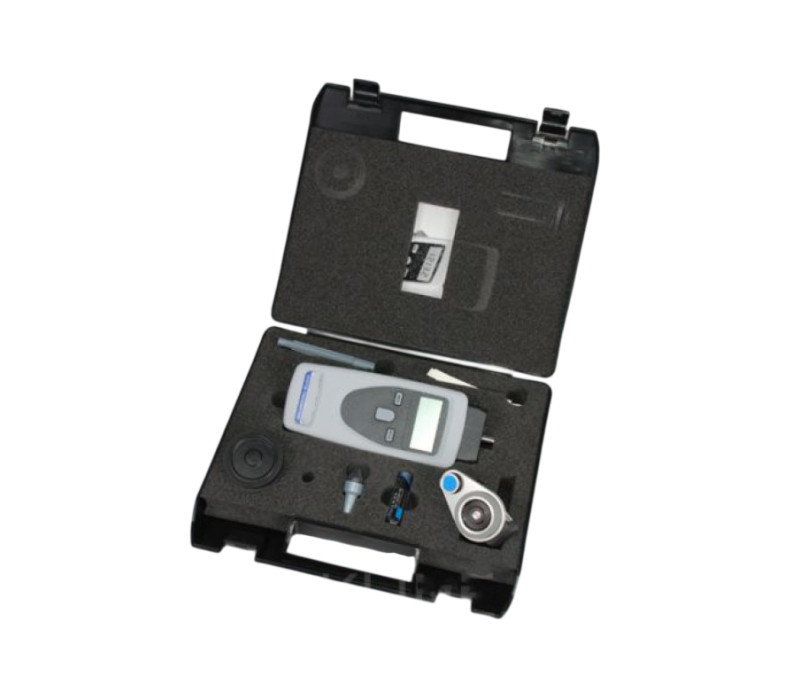

Delivery includes:

Tachometer in carrying case with standard accessories:
1 Adapter for yarn speed measurement (nr. YS-F)
1 Adapter for contact measurement (nr. YS-C)
1 Rubber Tip (nr. 99901R)
1 Measuring wheel 10 cm circumference (nr. 99902R)
1 Set of reflective tapes (nr. 10009S)
2 Batteries

User-selected engineering units

Linear Speed	Length	Revolutions
feet/min	feet	rpm
meters/min	meters
inches/min	inches

Units of Measure Indicators show the units of measure, selected by the user.

Contact Indicator shows if contact or non-contact operation is selected.

On-Target Indicator confirms that the measurements are reliable.

Low Battery Indicator alerts the operator if the batteries need replacement.

Memory Indicators are illuminated when the maximum, minimum, average and last readings are recalled to the display for viewing.

RPM:	Non-Contact: 1.00 - 99,999 rpm Contact: 1.00 - 19,999 rpm
Surface Speed:	0.30 - 6,500 feet/min 0.10 - 1,999 meters/min 4.0 - 78,000 inches/min
Length:	0.01 - 99,999 feet 0.02 - 99,999 meters 1.0 - 99,999 inches
Resolution:	01 from 0 - 100 .1 from 100 - 1,000 1 from 1000 - 99,999
Yarn/Wire Diameter (max.):	Yarn: 1mm Wire: 0.3mm
Accuracy:	± 0.02% of reading or 1 digit
Display:	5 - Digit LCD, 10mm high
Decimal Point:	Automatic
Memory System:	Maximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement System:	Non-Contact: Visible LED light beam Contact: Contact adapter
Sensing Distance:	Up to 14 inches (350mm)
Display Update Time:	0.5 seconds or one measuring
Auto Power Off:	After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life:	20 hours continuous use
Weight:	6 ounces (170 grams)
Housing Material:	ABS Plastic
Operating Temperature:	32 to 122º F (0 to 50º C)
Storage Temperature:	-4 to 150º F (-20 to 70º C)
Optional Accessories:	Shaft extension, 3.15 inches (80 mm)
Warranty:	5 years

Products

Item	Product	Price	Quantity	Action
125799	YS-20 Yarn Speed & Length Meter	€ 492,00

Accessories

Item	Product	Price
126135	10009S - Reflective Tape 4 Sheets 35 1/2	€ 15,00
134459	CDT-YSL-ADAP Yarn speed adapter	€ 306,00
139547	Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable)	€ 25,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

YS-20 Speed - and Length Meter as well as Tachometer for contact and non-contact measurement

Features

Dimensions

Specifications

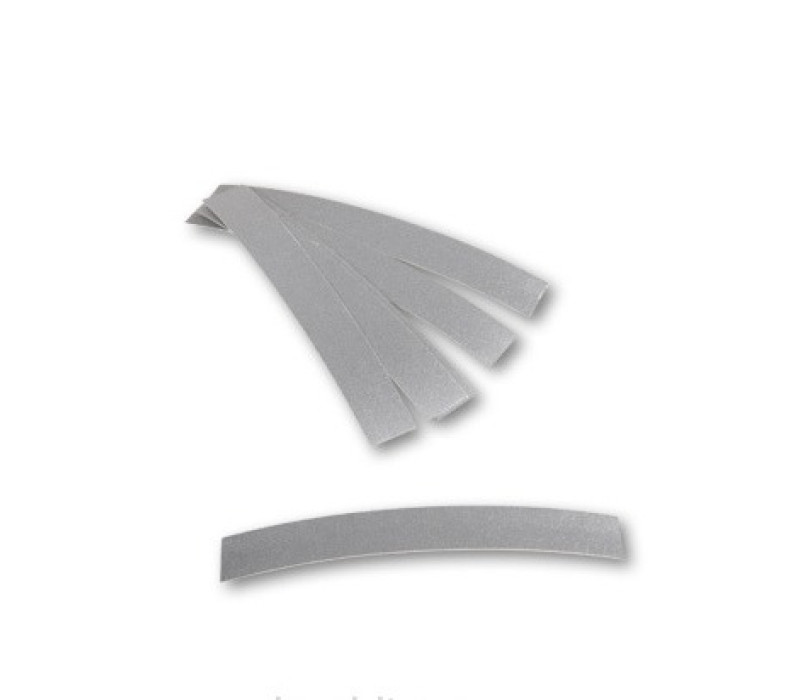

CDT-TAPE Reflective Tape

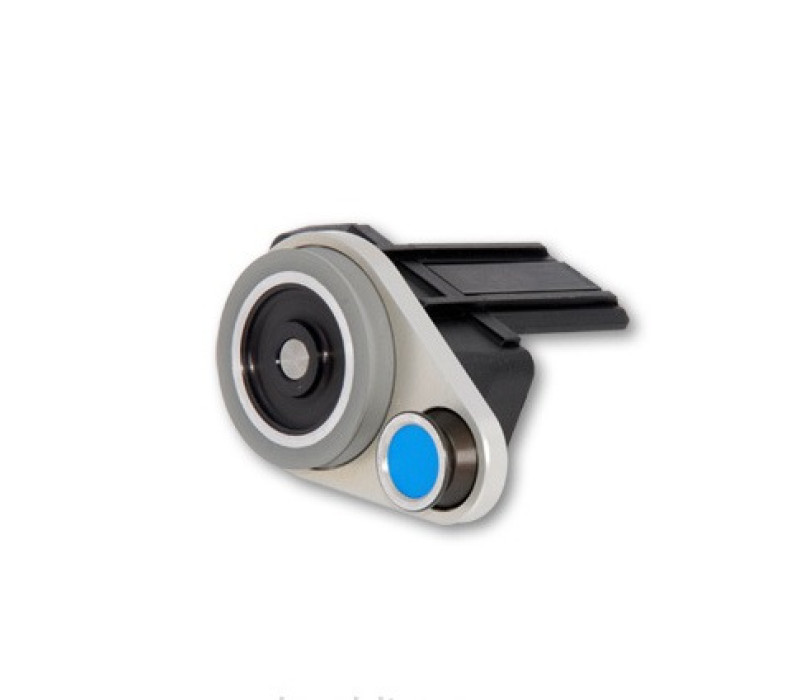

CDT-YSL-ADAP Contact Adapter
