X Series High Performance Durometer

The Durometer Asker Type A is suitable for general rubber with normal hardness as specified according to the standards of JIS K 6253, ASTM D 2240, ISO 7619, DIN 53505, etc.

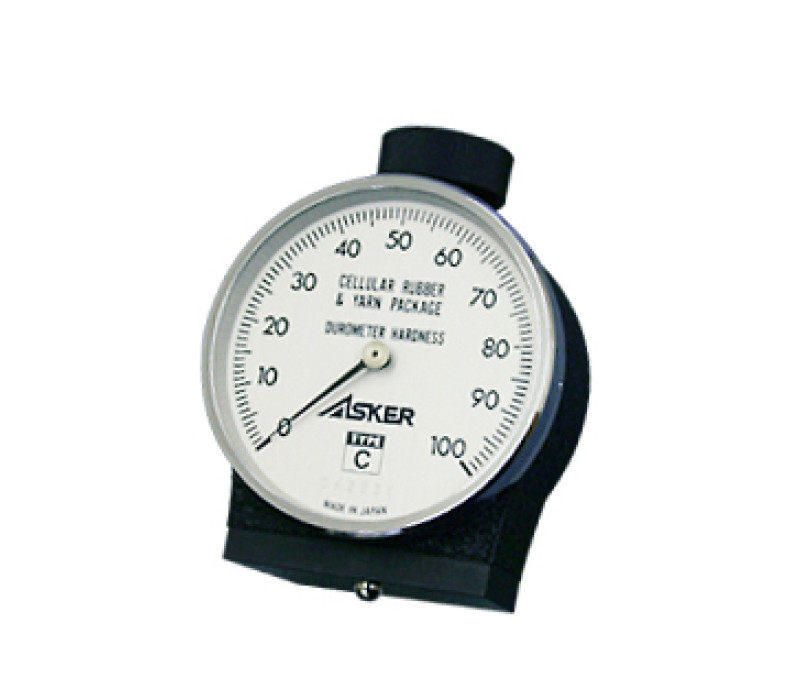

The Durometer Asker Type C measures soft rubber, sponges, foam elastomers, rolled wires, rolled sheets and textile rolls.

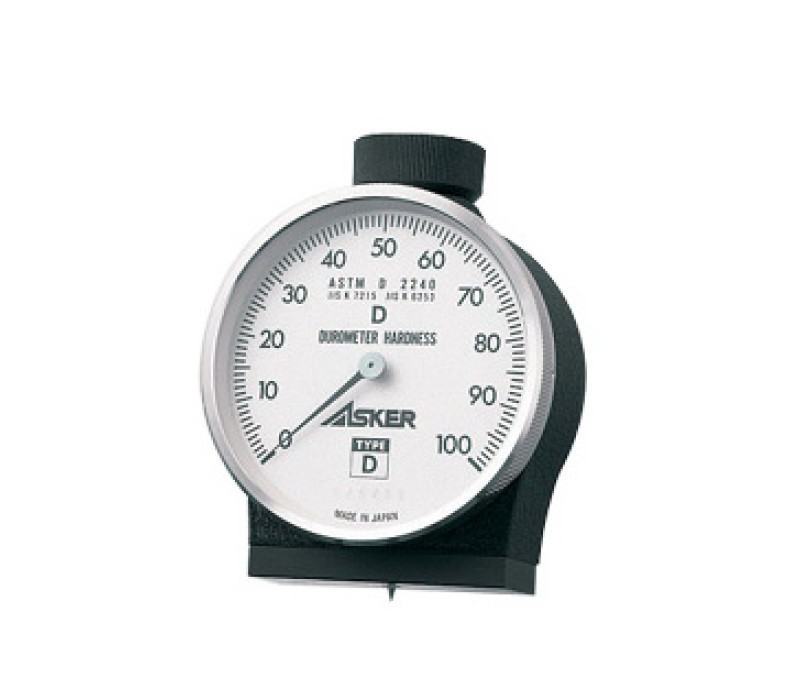

The Durometer Asker Type D is suitable for hard rubber and plastics, as specified according to the standards of JIS K 6253, ASTM D 2240, ISO 7619, DIN 53505, etc.

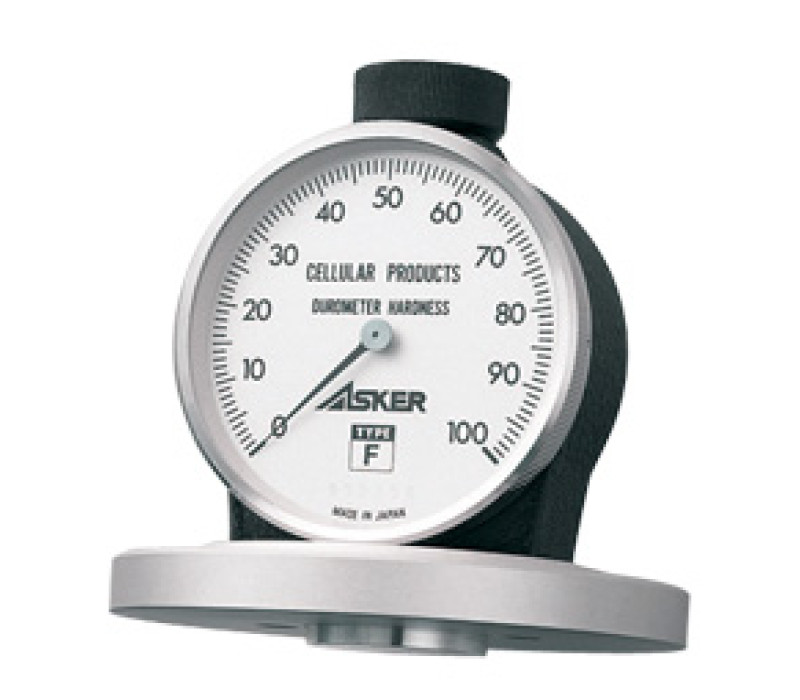

The Durometer Asker Type F for softer materials with low hardness. The large notch and pressure foot guarantee high accuracy.

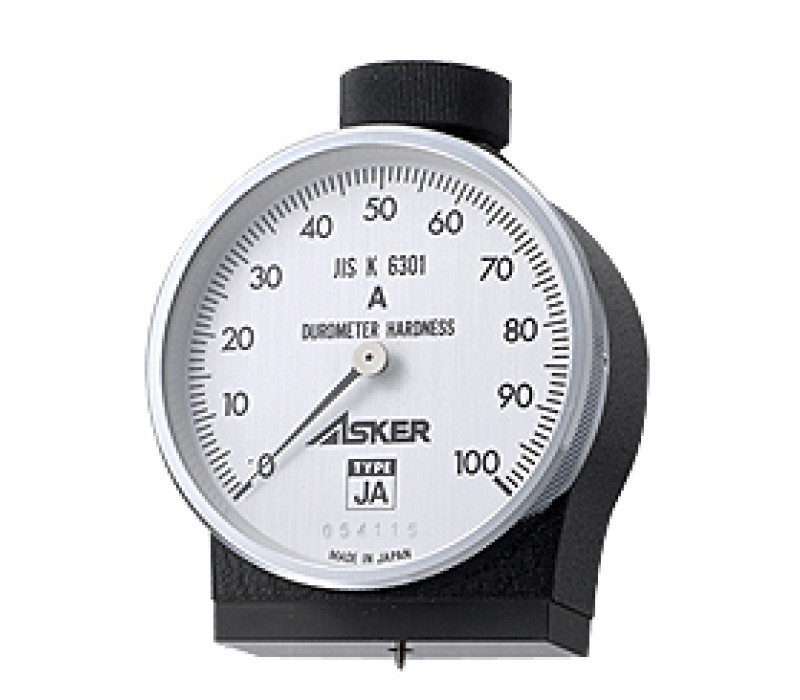

The Durometer Asker Type JA determines the hardness of rubber in general (JIS K 6301).

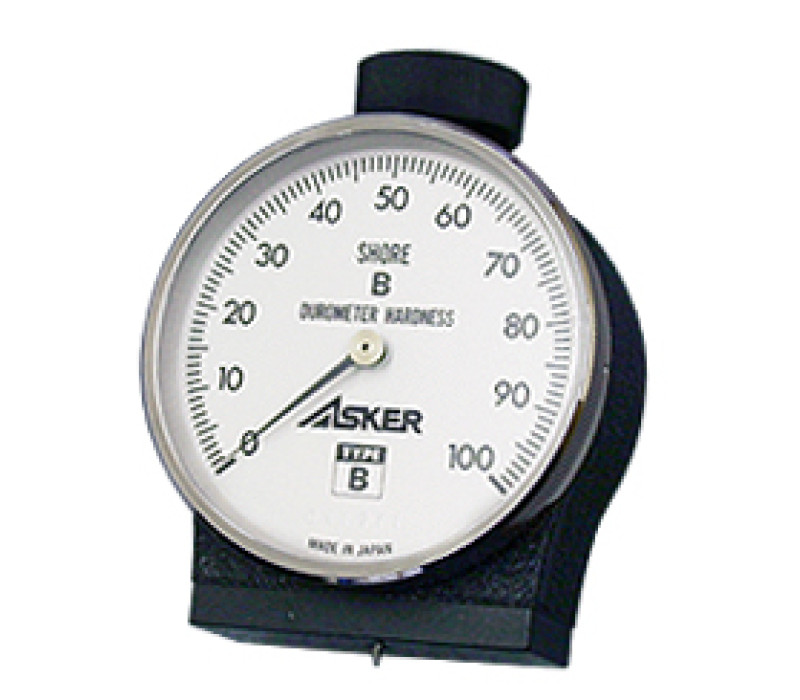

The Durometer Asker Type B is suitable for measuring semi-rigid rubber with normal to high hardness (ASTM D2240).

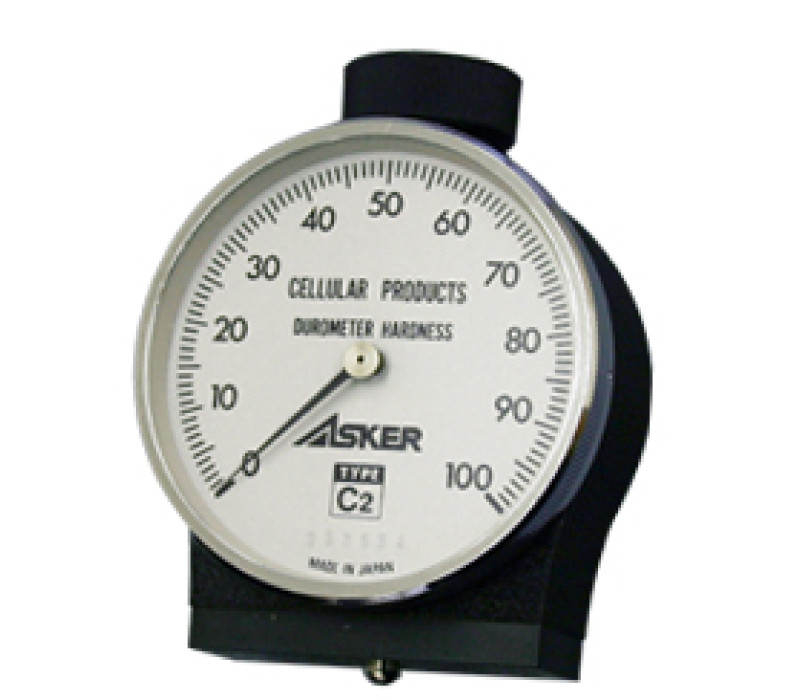

The Durometer Asker Type C2 is suitable for soft rubber, sponges, foam elastomers, coiled wires. This durometer is suitable for softer materials that are difficult to measure with the Durometer Asker Type C.

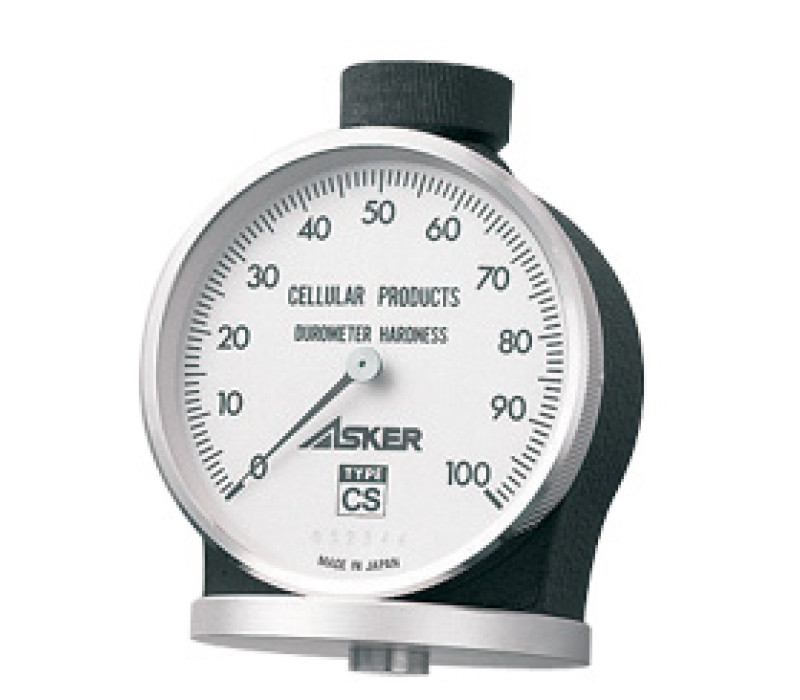

The Durometer Asker Type CS helps to reduce the number of erroneous polystyrene foam measurements.

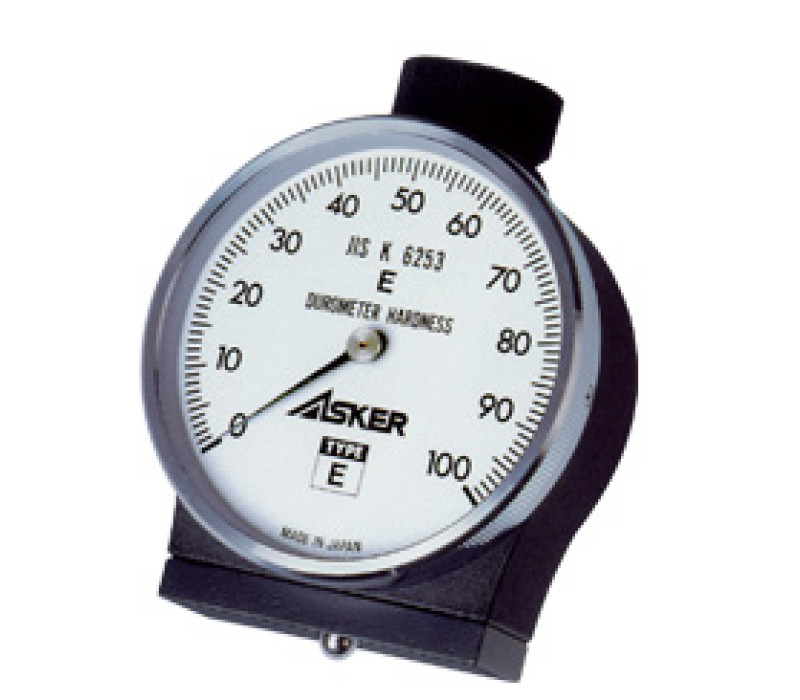

The Durometer Asker Type E is suitable for soft rubber with low hardness (JIS K 6253 & ISO 7619).

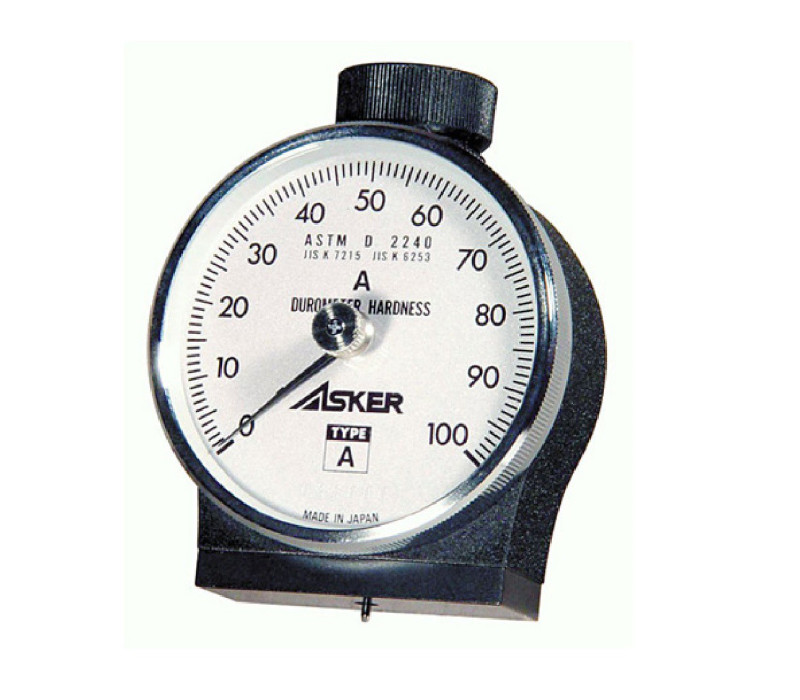

X Series High Performance Durometer

The X-Series Asker Hardness testers are portable, easy to use, make non-destructive measurements and can be equipped (optional) with peak indicators. The Asker High Performance series has an accuracy of ±.75 point and is available in Type F for soft materials like sponge rubber and urethane foam.

Common Hardness scales:

Model X-A Shore A Hardness - Normal Rubber
Model X-D Shore D Hardness - Hard Rubber and plastics
Model X-C Asker C Hardness - Soft rubber and sponge
Model X-F Asker F Hardness - Urethane foam, sponge and polystyrene foam

Special Hardness Scales:

Asker JA Normal rubber & softer plastics
Asker B semi rigid rubber & plastics
Asker C2 Soft rubber & sponge Asker
Asker CS Polystyrene foam
Asker E Soft & cellular rubber

Supplied with 3 point NIST traceable calibration cert.

Asker models are available in ASTM D 2240 durometer Types: Shore A Hardness, Shore D Hardness and Asker C Hardness durometer scales.

Conforms to:
JIS K 6253, JIS K 7215, ASTM D 2240, ISO 7619, ISO 868, DIN 53505

All X models are supplied with a NIST traceable calibration certificate.

Request price >>

Operation

As the hardness tester is pressed against the sample, the material resistance force and indenter spring load balance. The depth of the indenter is measured, which provides a measure of the material's hardness. Values are based upon a 100 point scale (accuracy ±.75 point). However, as time elapses the indicator will "creep" back so that a reading taken a few seconds after the tester makes contact with the sample will be less than the peak reading. The optional peak indicator helps to more closely monitor the difference between peak and "creep" in hardness tests.

Indication Range:	262 degree dial scale
Minimum indication:	1 point (Accuracy : ± 1 point)
Pressure foot Dimensions:	44 ×18 mm rectangular
Outer Dimensions:	Approx. Width 57 × Depth 30 × Height 76 mm
Mounting Thread:	M6 P1
Weight:	200 grams

Products

Item	Product
133430	X-A - Asker A Hardness for normal Rubber
133250	X-D - Shore D Hardness - Hard Rubber & Plastics
113250	X-C - Asker C Hardness for soft rubbers and sponges
133431	X-F - Asker Hardness - Urethane foam, sponge
133351	X-CS - Asker CS Durometer

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
