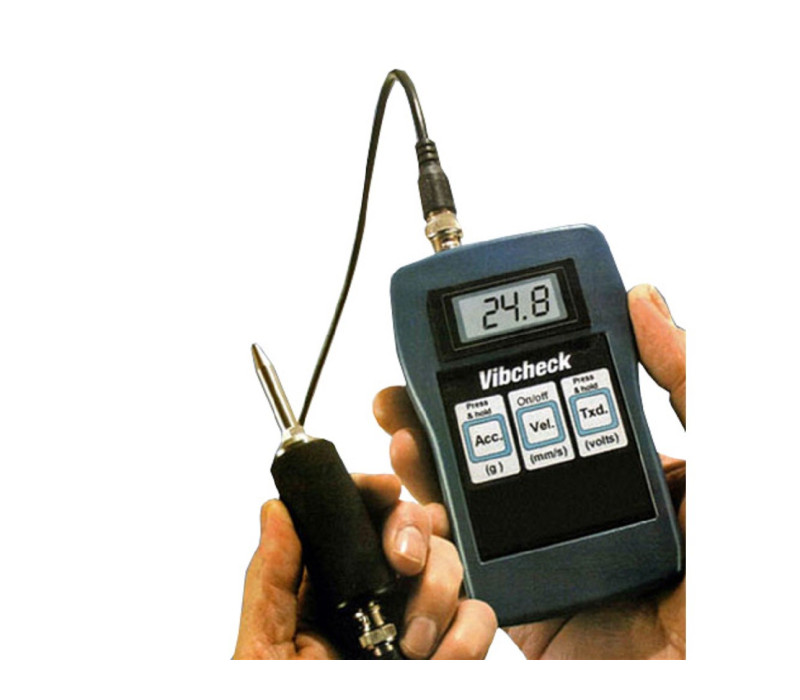

    VIBCHECK Vibration Meter

    The VIBCHECK is an entry level product which is an easy to use, versatile Vibration Meter which comes complete with transducer, Probe & interconnect cable & carry case. Ideal for the maintenance engineer, measurements can be taken quickly and easily in both Acceleration and Velocity units as required.

    Additional probes & Transducers are optionally available where regular checks need to be made from fixed Transducers attached to machine, this method provides more accurate & consistent results.

    Request price >>

    • Measures Vibration (velocity & Acceleration)
    • Lightweight & easy to use
    • Optional fixed Transducers & mounting devices
    • Vibration management to ISO 10816 (former ISO2372)
    • Low cost, entry level vibration monitoring
    • Check switchbox wiring
    Display3 1/2 digit LCD
    Measuring RangesVibration: Velocity 0-50mm/s True RMS
    Acceleration 0-20g
    Bias: Volts
    Frequency Range10 Hz - 1kHz (velocity)
    10Hz – 10kHz (acceleration)
    AccuracyVibration: ± 0.1mm/s (± 0.1g)
    Bias: 5%
    Sensor inputFor hand held or fixed transducers
    Power1x 9V Battery, 30 hour battery life
    Dimensions125mm x 80mm x 35mm
    Included AccessoriesMeter, Probe, Cable, Battery, Instructions, Vibration booklet and Carrycase
    Accelerometer Specs------------------------------------------------------
    Dimensionsø 32 mm x 80 mm
    Weight172 gms
    TypePiezo Electric
    Sensitivity100 mV/g
    ConnectionBNC socket
    Mounting Thread¼” UNF female
    Spike Specs------------------------------------------------------
    MaterialStainless Steel
    Mounting Thread¼” UNF male
    Length50 mm
    Weight24 grams

    Options
    • Stud length options: 25mm, 100mm, 200mm
    • Rechargeable battery and charger
    • Quicklock studs for repeatable results
    • Magnetic mounting base
    • Cable options: Coiled cable; Armored cable
    • Fixed accelerometers for inaccessible or inhospitable measurement points

    Order Now

    Products
    Item Product
    132159VibCheck - Vibcheck hand held vibration meter kit
    Accessories
    Item Product
    132573VibCheck - MTG MIM4 - Magnetic Mount Base
