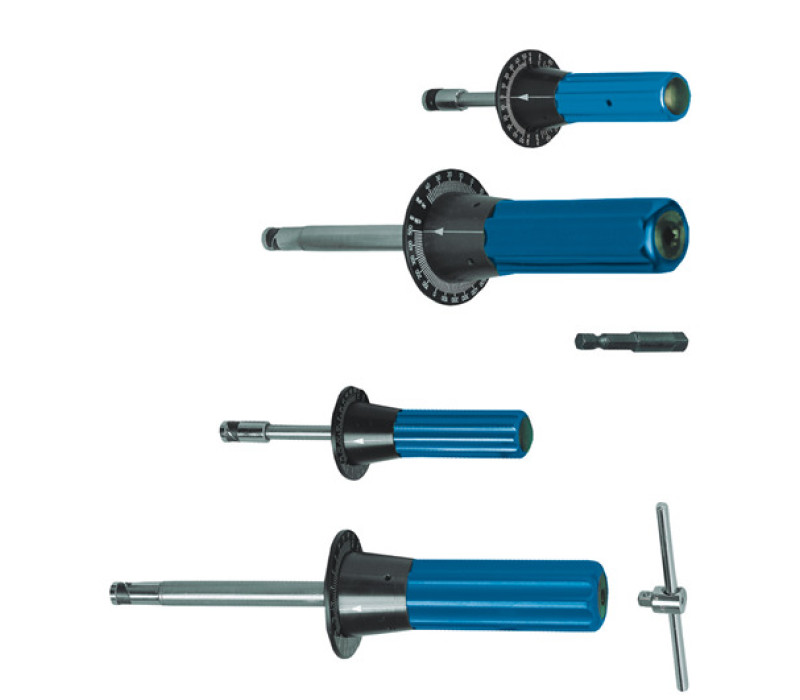

TT Dial Measuring Torque Screwdriver

TT Dial Measuring Torque Screwdriver

Name: TT Dial Measuring Torque Screwdriver
SKU: 126731

The TT Torque Screwdriver is designed for precision assembly and quality control applications.

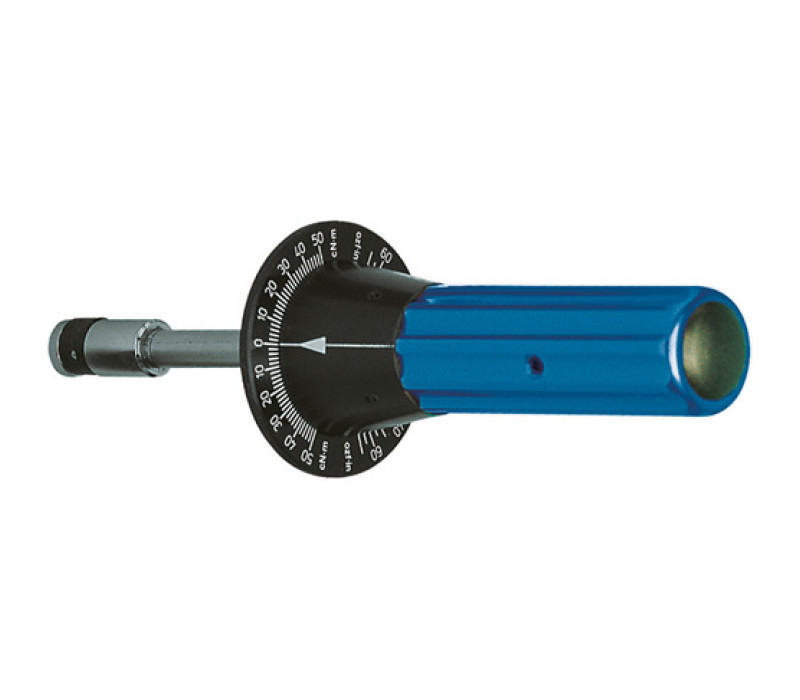

A dial indicator displays real time application and removal torque. Memory system holds maximum torque reached.

Price from € 340,00

Order now

The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789:2003 (+/- 6% of indicated reading).
Flat tension spring is used to give the best linear characteristics in both directions.
Quality constructed with stainless steel shafts, attractive colored aluminum handles and sturdy dials for maximum tool life.
Dual American and S.I. graduated scales.

Measuring Range

	Range		Graduation
Model	American	S.I.	American	S.I.	Drive
TT50	14 – 70 ozf.in	10 – 50 cN.m	2 ozf.in	2 cN.m	1/4” F/Hex
TT100	28 – 140 ozf.in	20 – 100 cN.m	5 ozf.in	5 cN.m	1/4” F/Hex
TT250	4 – 20 in.lbs	50 – 250 cN.m	0.5 lbf.in	10 cN.m	1/4” F/Hex
TT500	8 – 40 in.lbs	100 – 500 cN.m	1 lbf.in	20 cN.m	1/4” F/Hex

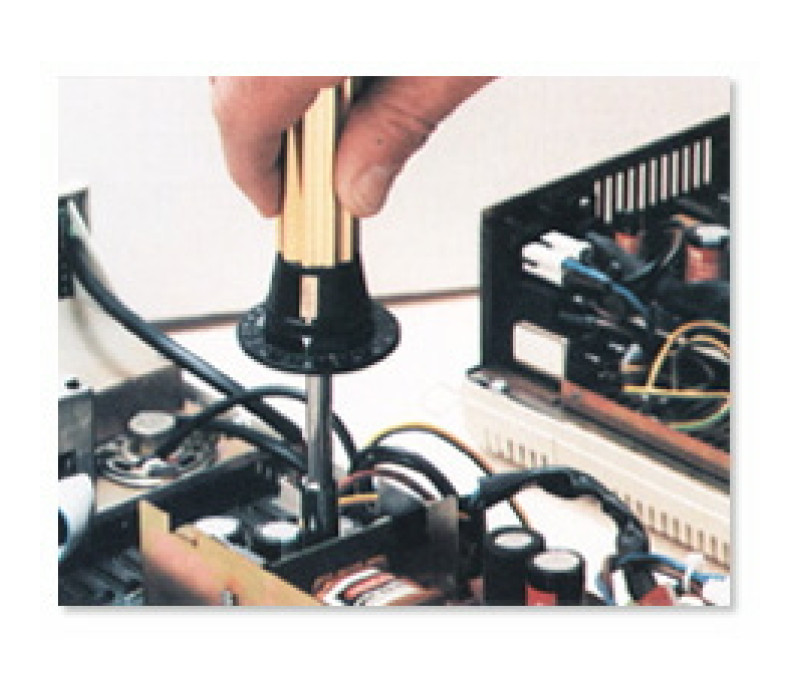

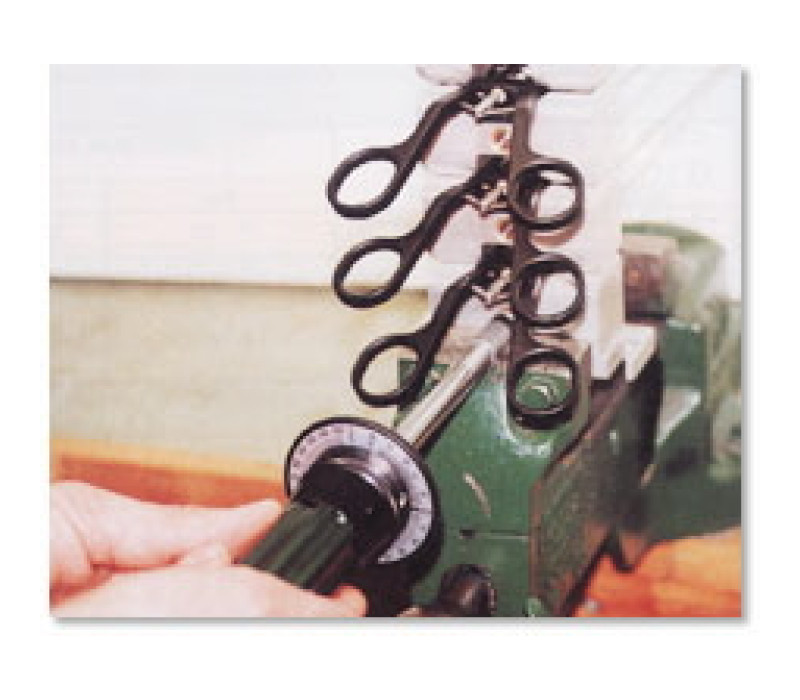

The precision torque demanded for assembling surgical instrument was critical for a medical manufacturer. The "TT" dial measuring screwdrivers provided the solution. Designed to handle critical electronics assembly tasks, the operator uses a "TT" dial measuring screwdriver to tighten the fastener.

Products

Item	Product	Price
132837	TT50FH Dial Screwdriver 10-50 cNm	€ 340,00
132838	TT100FH Dial Screwdriver 20-100 cNm	€ 340,00
132839	TT250FH Dial Screwdriver 50-250 cNm	€ 355,00
132840	TT500FH Dial Screwdriver 100-500 cNm	€ 355,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
