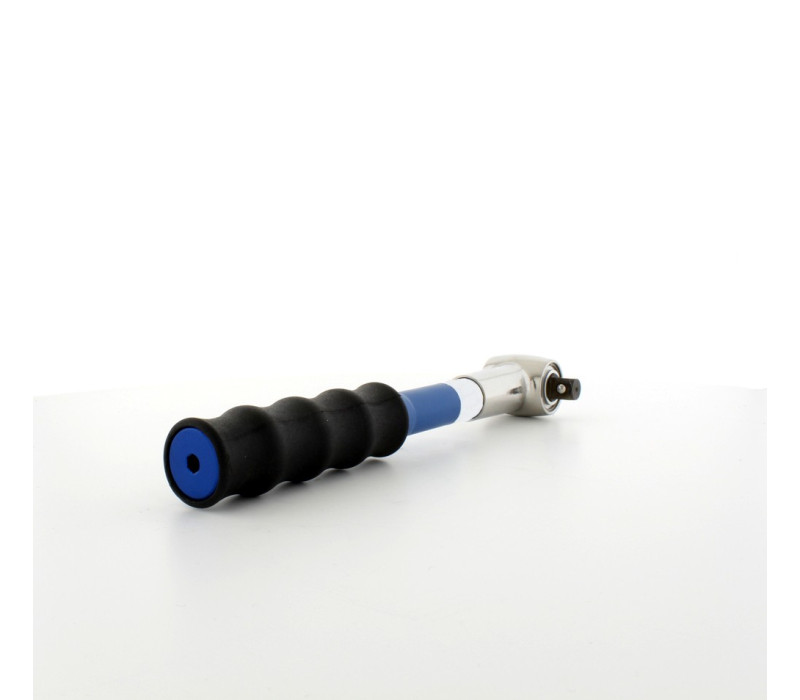

TSN Cam-Over Torque Wrench

Name: TSN Cam-Over Torque Wrench
SKU: 126993

TSN is a preset torque wrench that's ideal for maintenance and production applications where over-torque conditions are not tolerated. The use of cam-over wrenches takes the operator influence out of the torque equation and offers more accurate and repeatable results than a standard ‘click’ type wrench.

Price from € 340,00

Order now

A preset production torque wrench
Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer

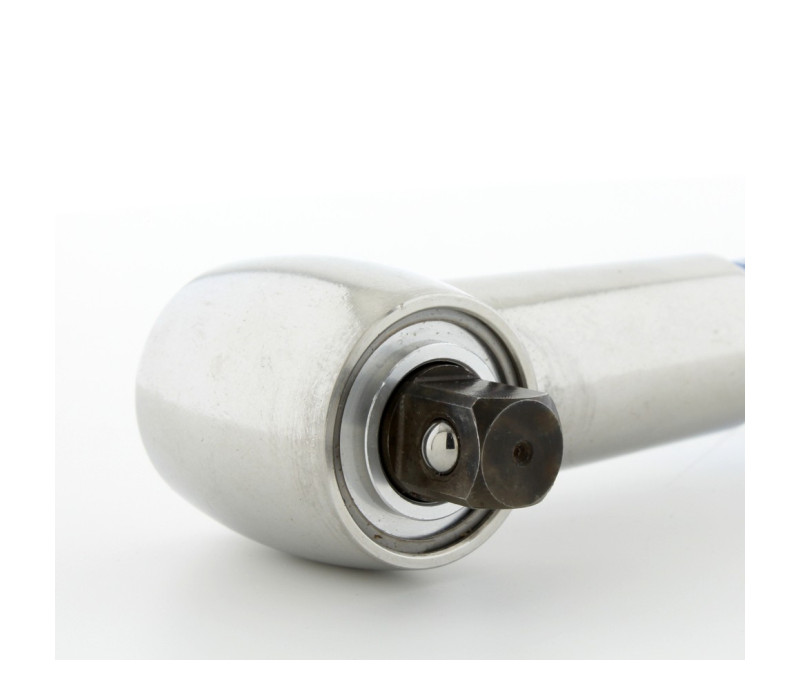

Fully-supported non-strip ratchet head
Features the new mechanical torque adjustment locking device (M-TALD). An auto locking single key operation prevents tampering
Non-length dependent
Strong corrosion-resistant stainless steel head, protective coated handle and non-slip rubber grip
ESD compliant (IEC 61340-5-1:1998)
The wrench slips free when preset torque is reached, thus eliminating overtorquing

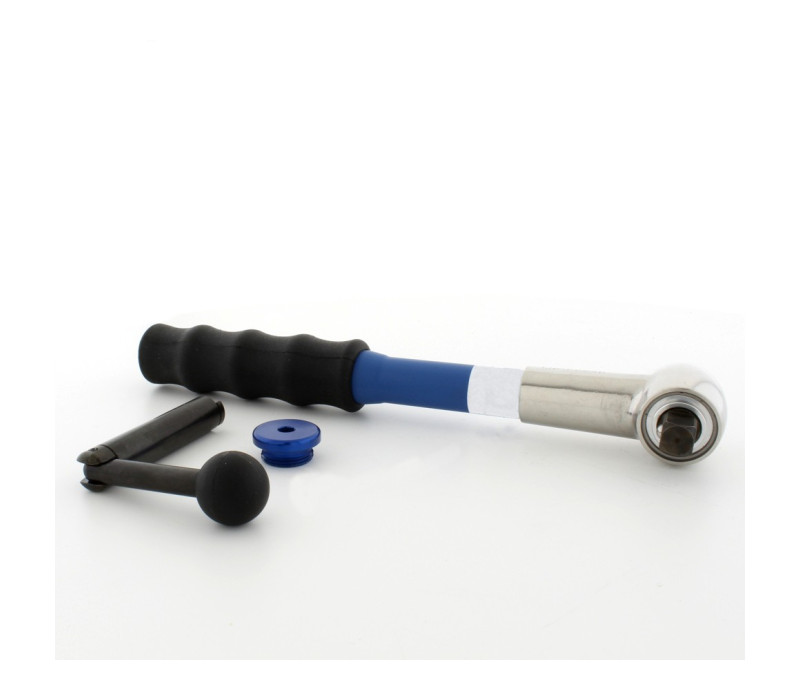

The complete kit includes:

Torque wrench

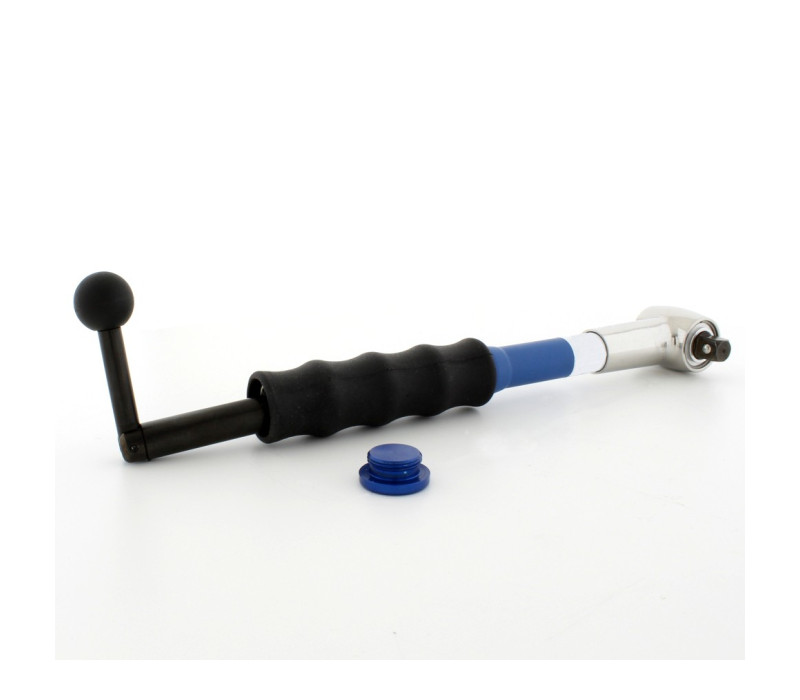

Pin for adjusting torque value
Certificate

Models

Model	Range	Drive	Length
TSN 5/45	1.5 - 5 Nm	1/4"	185 mm
TSN 10/90	2 - 10 Nm	1/4"	185 mm
TSN 25 D	5 - 25 Nm	1/4"	216 mm
TSN 25 A	5 - 25 Nm	3/8"	216 mm
TSN 55	15 - 55 Nm	3/8"	324 mm

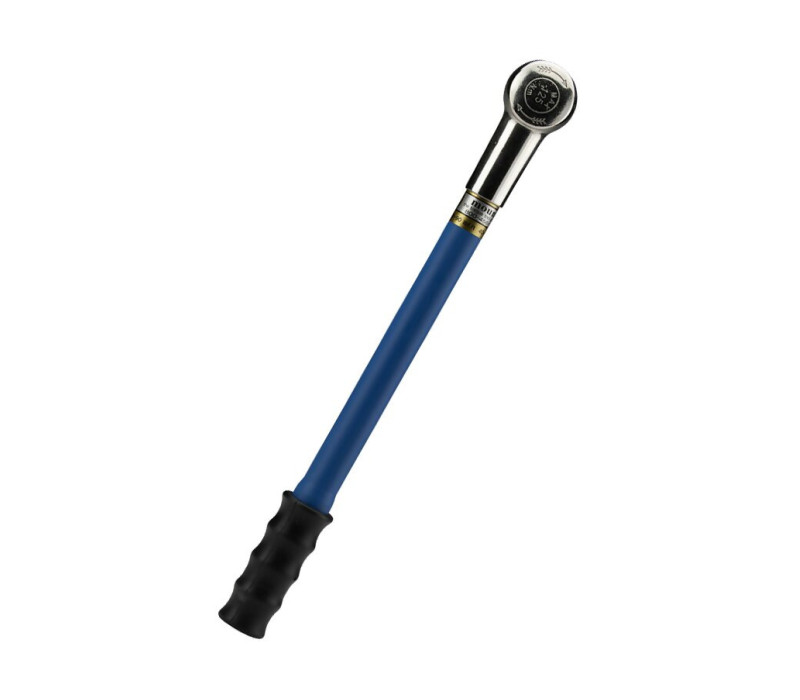

TSN 125	40 - 125 Nm	1/2"	460 mm

Accuracy	±6% for TSN 5/45, TSN 10/90, TSN 25 D ±4% for TSN 25 A, TSN 55, TSN 125
Warranty	2 year warranty
ISO 5789 Class	2C

Manual TSN

Products

Item	Product	Price
139055	TSN 5/45 Cam-Over Wrench - 5Nm	€ 340,00
139056	TSN 10/90 Cam-Over Wrench - 10 Nm	€ 355,00
139057	TSN25D Cam-Over Wrench - 25Nm	€ 435,00
135684	TSN25A Cam-Over Wrench - 25Nm	€ 435,00
137231	TSN55 Cam-Over Wrench - 55Nm	€ 540,00
139058	TSN125 Cam-Over Wrench - 125 Nm	€ 620,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
