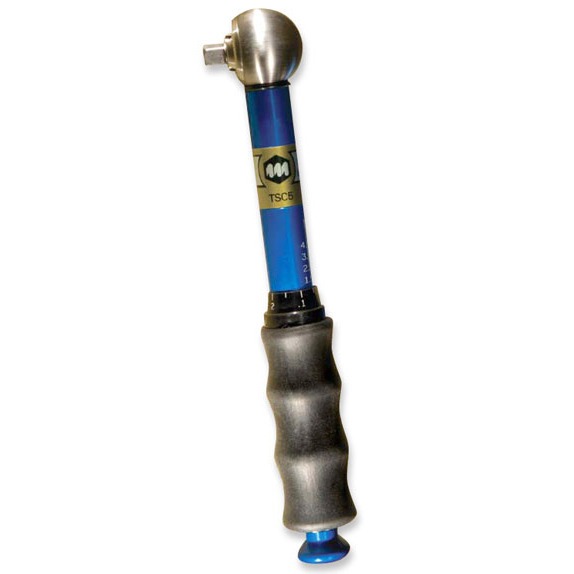

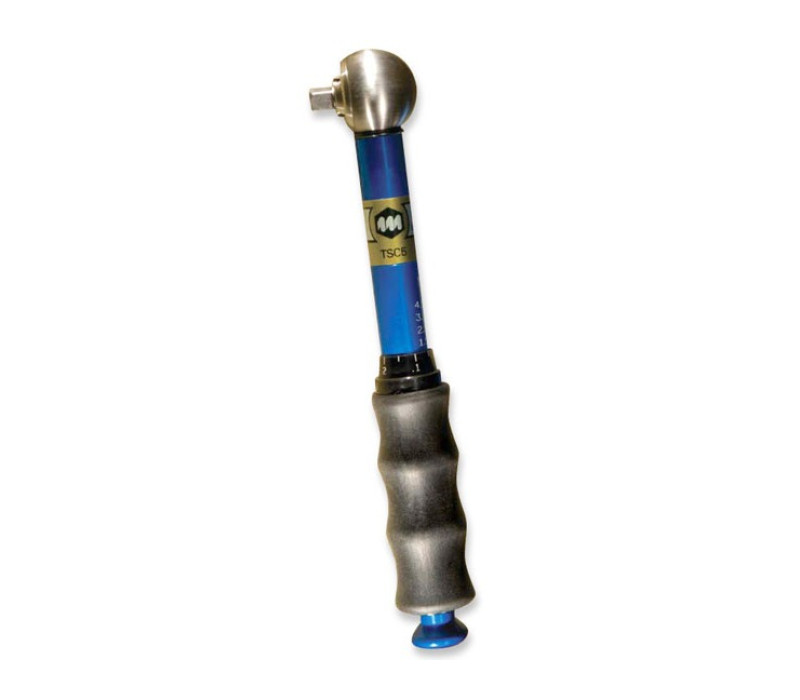

TSC-TW Cam-Over Torque Wrenches

Cam-Over Torque Wrenches

The TSC Cam-Over Torque Wrench is a precision production tool perfectly designed for the application of a set amount of torque.

The unique cam action of the TSC Cam-Over Torque Wrench prevents over-torquing when a user-set torque is reached and is designed and manufactured to meet or exceed the accuracy and repeatability requirements of ISO 6789.2003 (+/- 6% of setting).

TSC-TW features an externally adjustable micrometer scale and easy-to-use positive locking adjustment system.
Slim profile and lightweight.
Anodized quality finish with stainless steel head.
Comfortable rubber hand grip.
Non-length dependent.
ESD compliant (IEC 61340-5-1:1998).

Tension Ranges

Model	Ranges	Graduations	Sq. Drive
TSC5	1 - 5 N.m	0.05 N.m	1/4"
TSC10	2 - 10 N.m	0.01 N.m	1/4"
TSC45	10 - 45 lbf.in	0.5 lbf.in	1/4"
TSC90	20 - 90 lbf.in	1.0 lbf.in	1/4"
