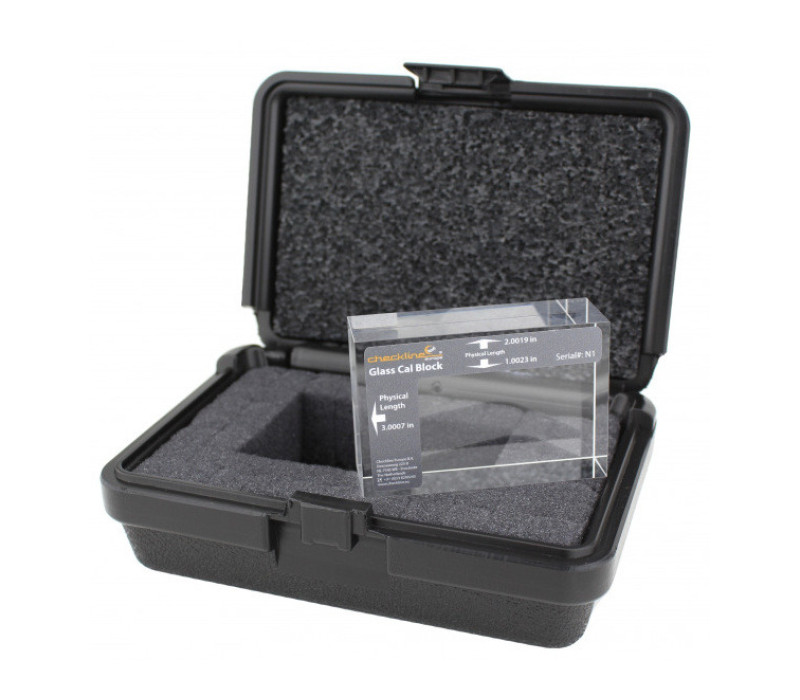

TPG Triple Path Glass Calibration Block

Name: TPG Triple Path Glass Calibration Block
SKU: 127371
Price: 1361.00 EUR
Availability: InStock

The TPG triple path glass calibration test block enables accurate and convenient zero calibration of ultrasonic bolt tension meters.
Due to the used aerospace grade glass material this test block is insensitive against temperature changes.

The TPG glass calibration block features 3 testing paths: 1", 2" and 3".

The blocks are precision made from ultrasonically tested glass and include a NIST traceable calibration certificate, as well as a foam fitted hard plastic carrying case.

€ 1.361,00

Order now

Temperature insensitive aerospace grade glass
Precision machined and finished
Highest accuracy and repeatability
Delivered with NIST traceable calibration report
Includes foam fitted carrying case

Values

Unit	Path 1	Path 2	Path 3
Inches	1"	2"	3"
mm	25,4 mm	50,8 mm	76,2 mm

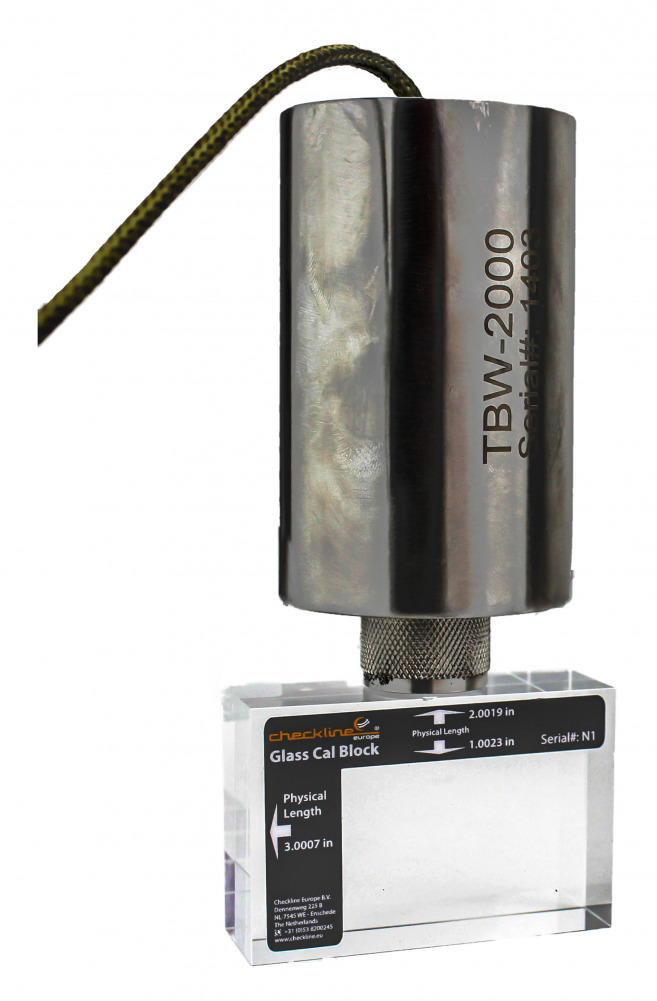

TBW-2000 Test block weight

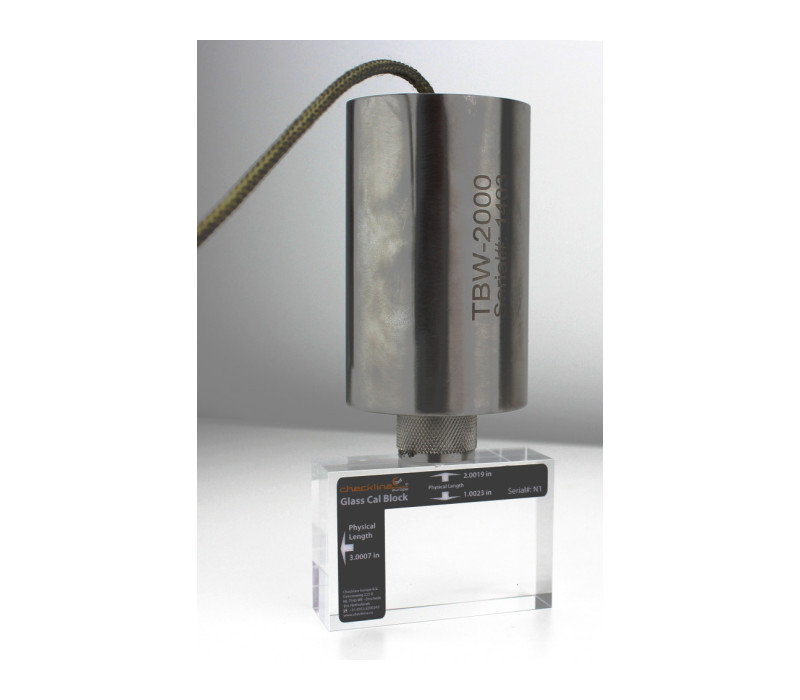

TBW-2000 load weight

The TBW-2000 stainless steel zero calibration weight is used to achieve a constant load on the ultrasonic probe.

Removing the operator and temperature influence it increases the repeatability of the measurement.

High quality stainless steel
Improves accuracy
Easy to use
Perfect repeatability
Recommend for zero procedure using triple path glass block or steel calibration bars

Products

Item	Product	Price	Quantity	Action
137188	TPG - Triple Path Glass Calibration Block - 3" x 2" x 1"	€ 1.361,00

Accessories

Item	Product	Price	Quantity	Action
137310	TBW-2000 Test block weights	€ 185,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
