TL-IT Inline Torque Limiter

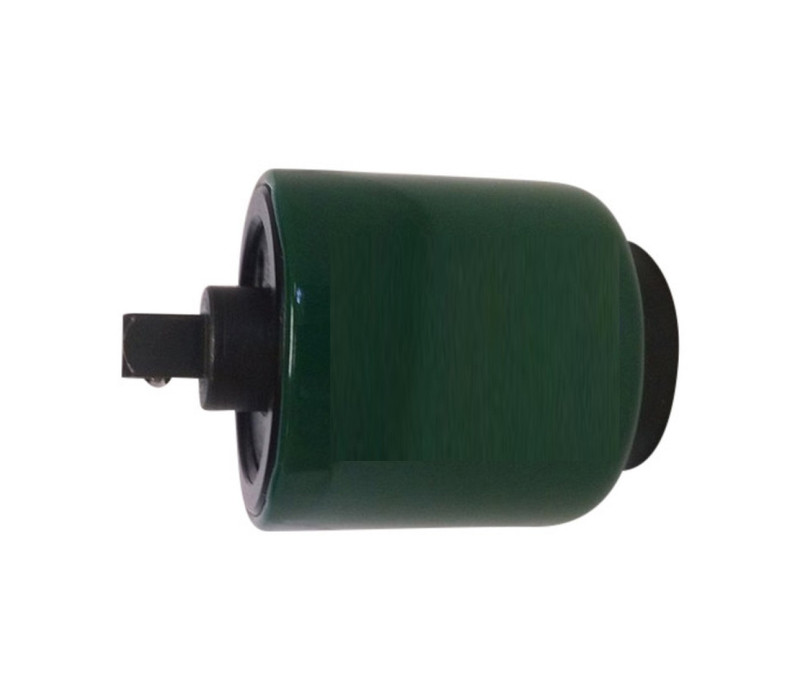

TL-IT-3-Checkline Europe - 0.33 - 11.29 Nm - Drive Size: 1/4"

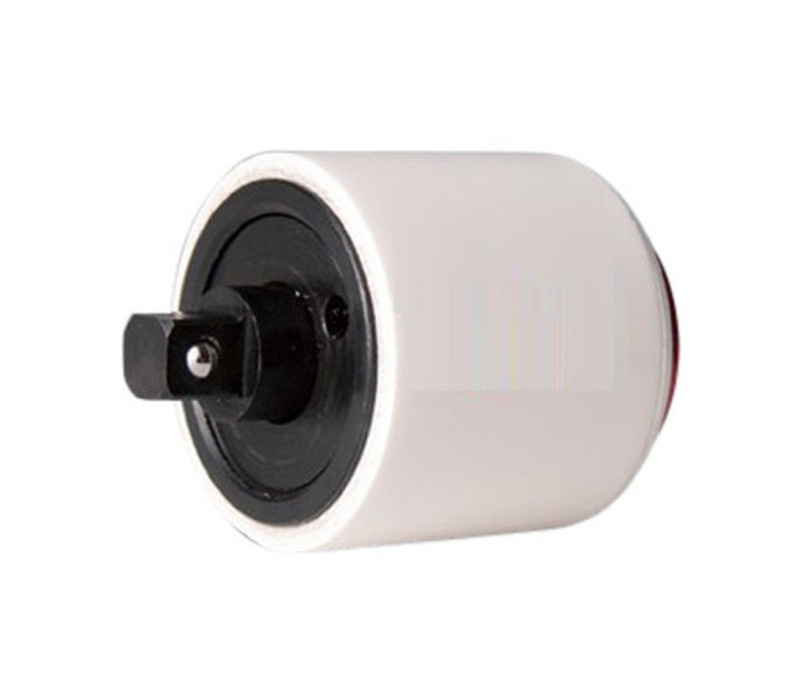

TL-IT-4-Checkline Europe - 6.7-33.9 Nm - Drive Size: 3/8"

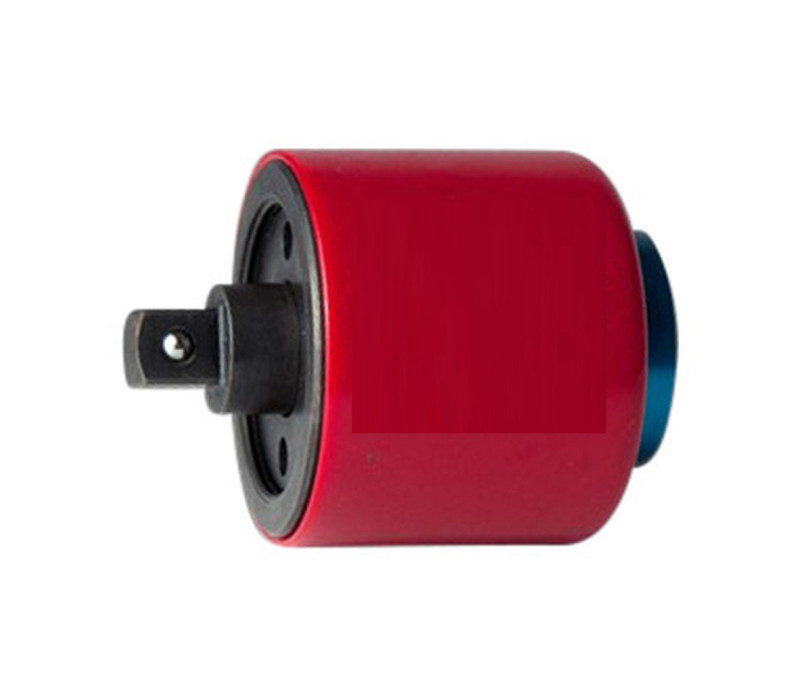

TL-IT-5-Checkline Europe - 33.9-169.4 Nm - Drive Size: 1/2"

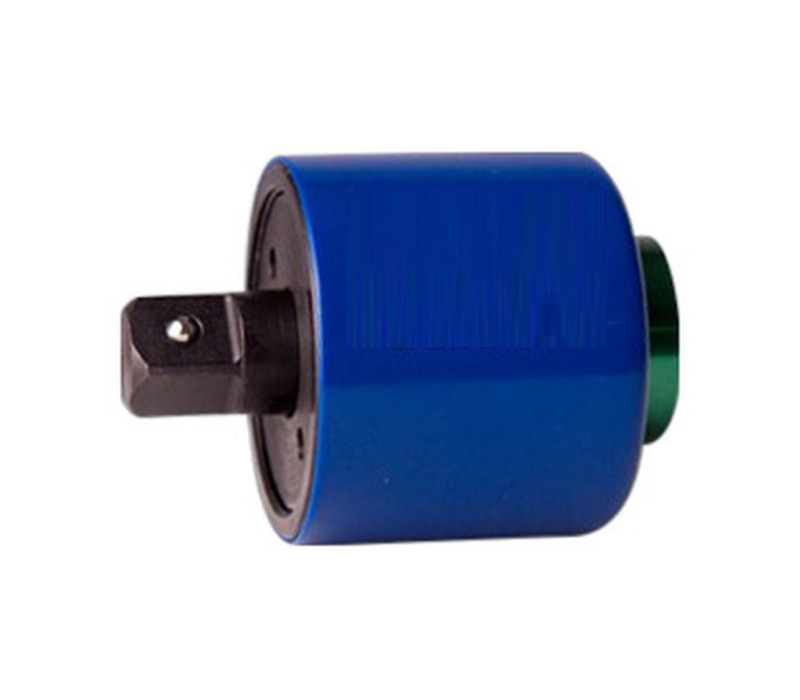

TL-IT-6-Checkline Europe - 135.5-338.9 Nm - Drive Size: 3/4"

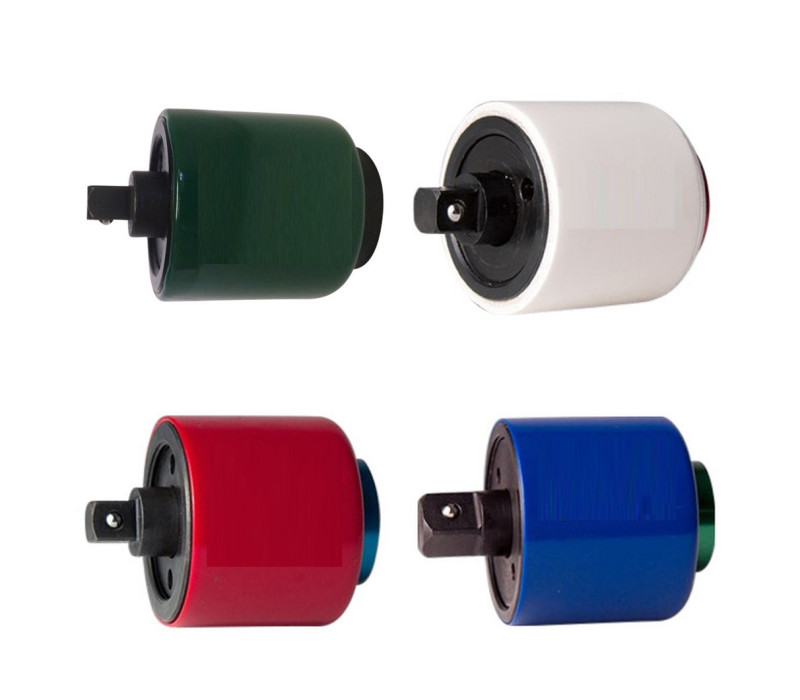

TL-IT Inline Torque Limiter

Name: TL-IT Inline Torque Limiter
SKU: 127232

The TL-IT Inline Torque Limiter is a automatic protective device that controls torquing through clutching action. For use with your Torque Wrench, Ratchet or Breaker bar. Not for use with power tools.

No chance for error because preset torquing action prevents over tightening, even with continued turning or differing adapters and tool lengths.

To prevent confusion when multiple tools are used, it comes with laser marked, color coded ID ring. Each model has a specific color the ID ring has this choice. Available ring colors: Gold, Blue, Green or Red

It torques right or left, but is certified to +/- 4% accuracy in one direction only. Field recalibration not recommended.

NOTE: Not for use with Impact or Impulse tools

When ordering: Please specify the Preset and ID Ring Color: Gold, Blue, Green or Red

Price from € 340,00

Order now

Torque Ranges: from 0.33 Nm up to 339 Nm
Specified Preset
Lifespan: 40.000 Cycles
Includes NIST Traceable Calibration Cert
Made in the USA

Accuracy	+/- 4% (in one direction only)
ID ring	Available colors: Red, Gold, Green or Blue
Lifespan	+/- 40.000 Cycles
For use with	Torque Wrenches, Ratchets or Breaker bars

Ranges

Model	Torque Range	Drive
TL-IT-3	0.33 - 11.3 Nm	1/4" M / F
TL-IT-4	6.77 - 34 Nm	3/8" M / F
TL-IT-5	34 - 170 Nm	1/2" M / F
TL-IT-6	135 - 339 Nm	3/4" M / F

When ordering: Please specify the Preset and ID Ring Color: Red, Gold, Green or Blue

Re-Calibration Procedure

Products

Item	Product	Price
135590	TL-IT-3 Inline Torque Limiter - 0,33 - 11,3 Nm	€ 340,00
135588	TL-IT-4 Inline Torque Limiter - 6.77 - 34 Nm	€ 426,00
135589	TL-IT-5 Inline Torque Limiter - 34 - 170 Nm	€ 740,00
135591	TL-IT-6 Inline Torque Limiter - 135 - 339 Nm	€ 989,00

Accessories

Item	Product	Price	Quantity	Action
135778	TL-IT-T2-CERTIFICATE - Upgrade	€ 140,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
