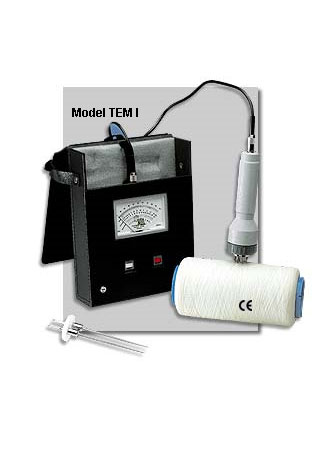

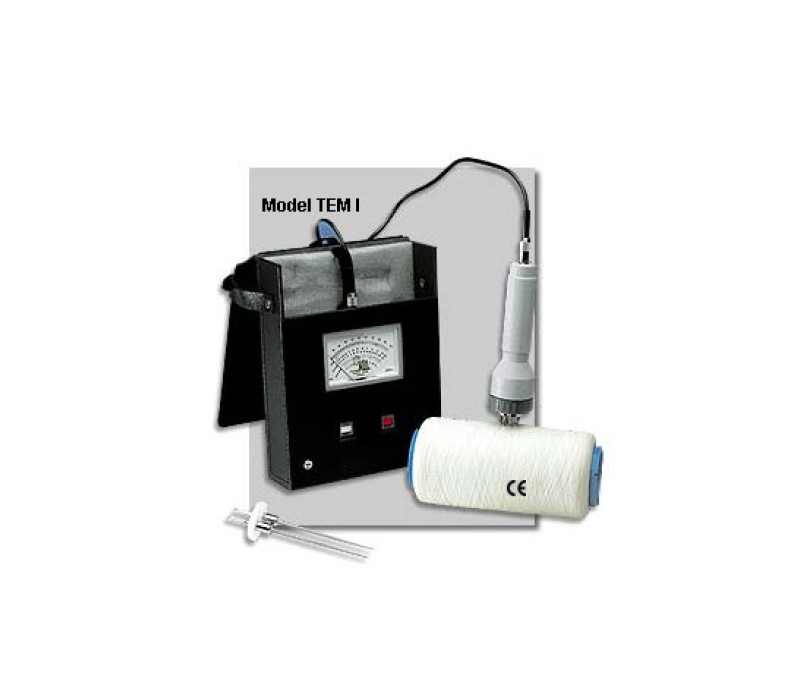

TEM-1 Textile Moisture Meter

Name: TEM-1 Textile Moisture Meter
SKU: 126282
Price: 1010.85 EUR
Availability: PreOrder

The Check-Line TEM-1 textile moisture meter determines the residual moisture in yarn bobbins, fabric rolls, filaments, fiber flocks, etc...

The measuring principle of the TEM-1 is based on the electrical conductivity of the material which always bears a fixed relation to the moisture. All changes in resistance inside the measuring ranges of interest are sufficiently pronounced to ensure a high degree of accuracy for the readings obtained with the TEM-1.

The electrical indicating accuracy of the TEM-1 is +/- 0.1% whilst the reproducibility is +/- 0.2% referred of the absolute readings on the meter dial.

TEM-1 Scales

€ 1.010,85

Order now

Easy to use for many applications

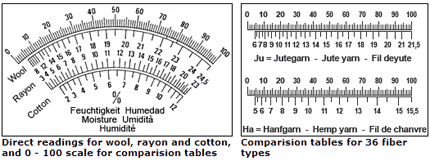

Multiple scale for direct readings for wool, rayon and cotton
Portable, battery-operated
0 -100 scale for comparison tables used for other materials like Polyester, Polyamid and many material mixtures
High accuracy and repeatability

Electrodes

Standard Electrodes
	205 Needle electrode for yarns, cross-wound bobbins and hanks (needle length 25 mm)
	207 Needle electrode for yarns, cross-wound bobbins and hanks (needle length 100 mm)
Optional Electrodes
	202 For cotton, Ø 140 x 36 mm, weight 55 g
	206 For measuring yarns, cross-wound bobbins and hanks, needle length 45 mm, weight 45 g
	209 BSM Cotton electrode, especially for measuring cotton and similar products in sacks or pressed bales; piercing point: app 75 mm (total length app. 250 mm)
	209 Stab electrode for textiles in sacks and rolls (needle length 325 mm)
	209 BSM Cotton electrode, especially for measuring cotton and similar products in sacks or pressed bales; piercing point: app 75 mm (total length app. 250 mm)
	210 Knife electrode for rolls or bales of textile fabric (knife length 110 mm)
	211 Roller electrode for running webs of textiles (roller 27 mm Ø)
	212 Continuous run electrode for yarn hanks and single filaments (roller 16 mm Ø)
	213 Surface electrode for fabrics (surface 23 mm Ø)
	299 Calibration electrode with a fixed calibration value

The TEM-1 is supplied with a leather carrying case.

Electrodes, holder and connecting cable must be ordered separately.

Measuring ranges	Wool: 8 to 24.5% moisture content Rayon: 3 to 23% moisture content Cotton: 2 to 12% moisture content Comparison measurement: 0 - 100 scale
Power	9V battery
Weight	400 g
Dimensions	200 x 250 x 70 mm (L x W x H)

Products

Item	Product	Price	Quantity	Action
130381	TEM-Textile Moisture Meter with carrying case, without attachments	€ 1.010,85

Accessories

Item	Product	Price
133394	TEM-202 - Cup Electrode for taking sample moisture measurements	€ 370,06
132506	TEM-205 - Needle Electrode 25mm	€ 62,14
133395	TEM-206 - Needle Electrode 45mm	€ 62,14
132507	TEM-207 - Needle Electrode 100mm	€ 62,14
137569	TEM-208 - Needle Electrode 17mm	€ 62,14
133388	TEM-209 - Stab Electrode 325mm	€ 128,41
132649	TEM-209-BSM Stabbing electrode for pressed bales	€ 142,22
133252	TEM-210 - Knife electrode 110mm	€ 99,41
130384	TEM-211 Roller Electrode	€ 84,24
133389	TEM-212 - Flow Electrode	€ 84,24
132848	TEM-213 - Surface electrode for textiles and fabrics	€ 63,52
133390	TEM-299 Calibration Module	€ 236,46
130383	TEM-204 Universal Electrode Holder	€ 57,75
130382	TEM-200 Cable connection cable 1m	€ 55,22
134260	TEM-RING Spare Ring Universal Electrode Holder 204	€ 7,74

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
