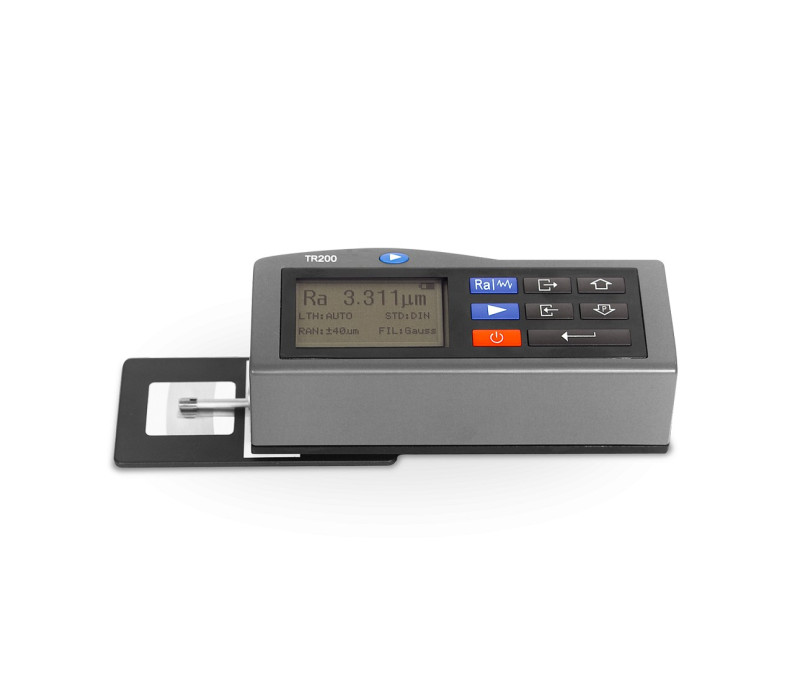

T-3200 Handheld Surface Roughness Tester With Graphic Display

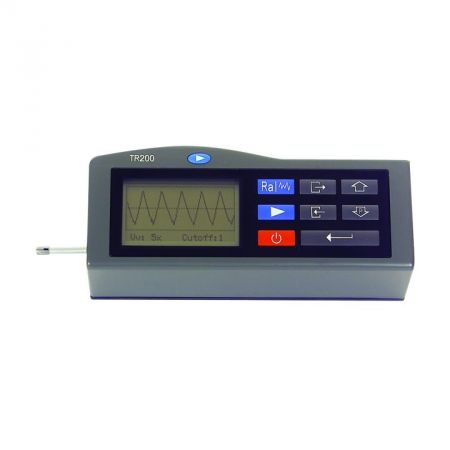

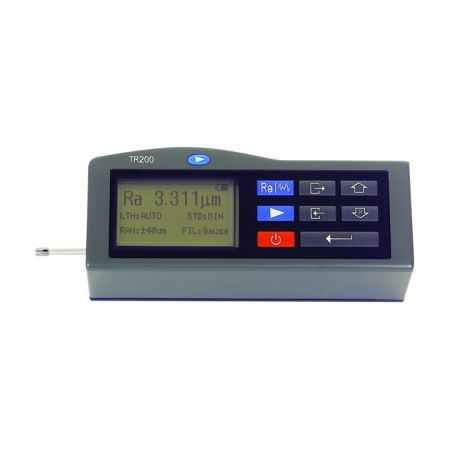

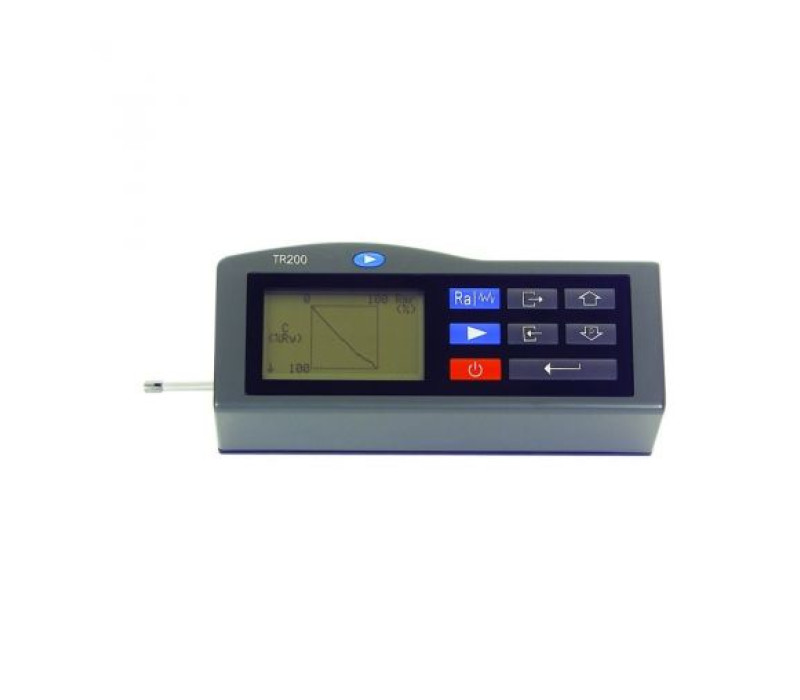

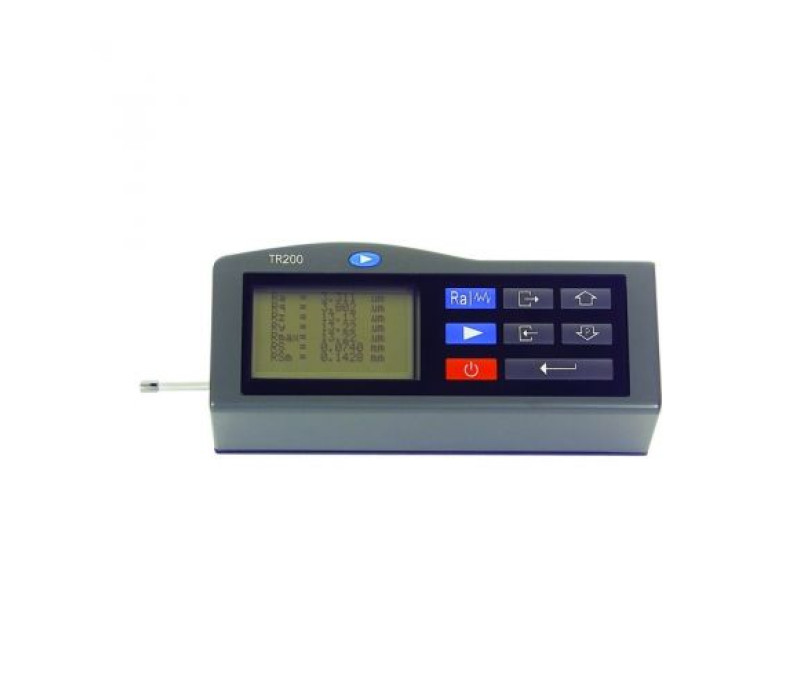

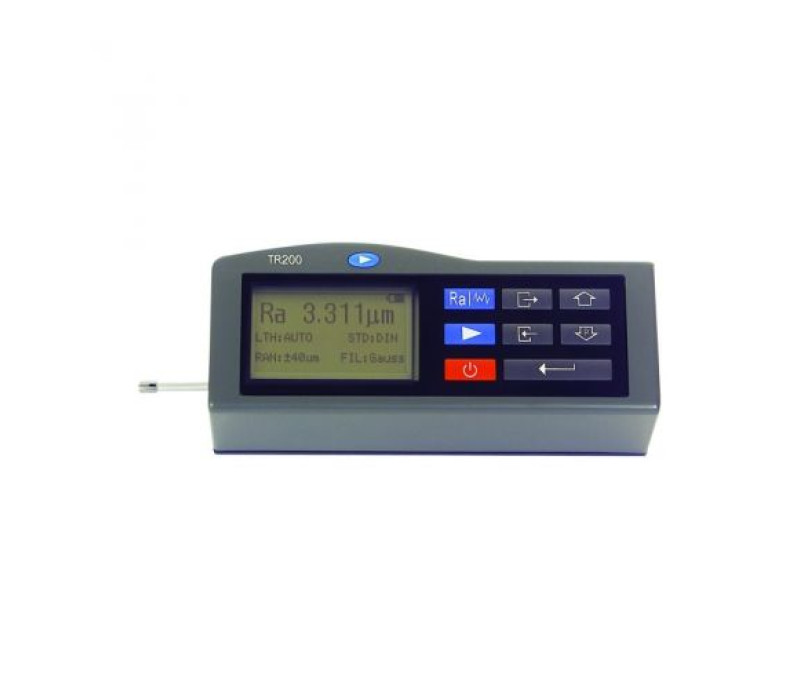

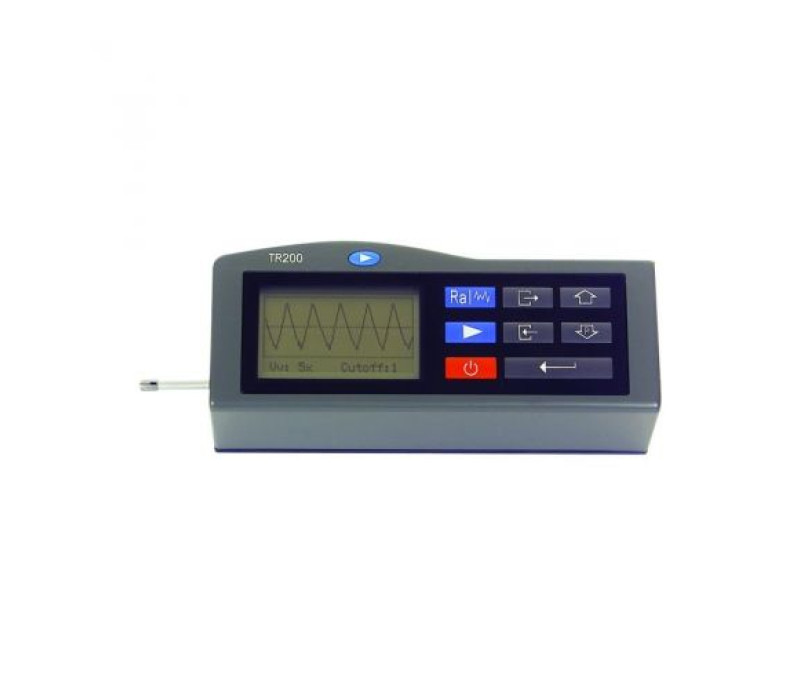

Various measurement screens

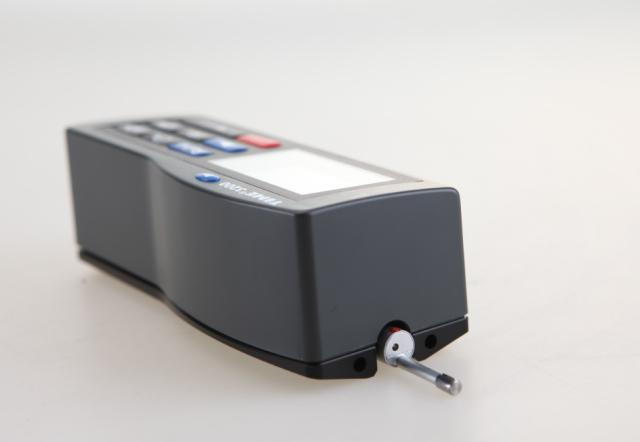

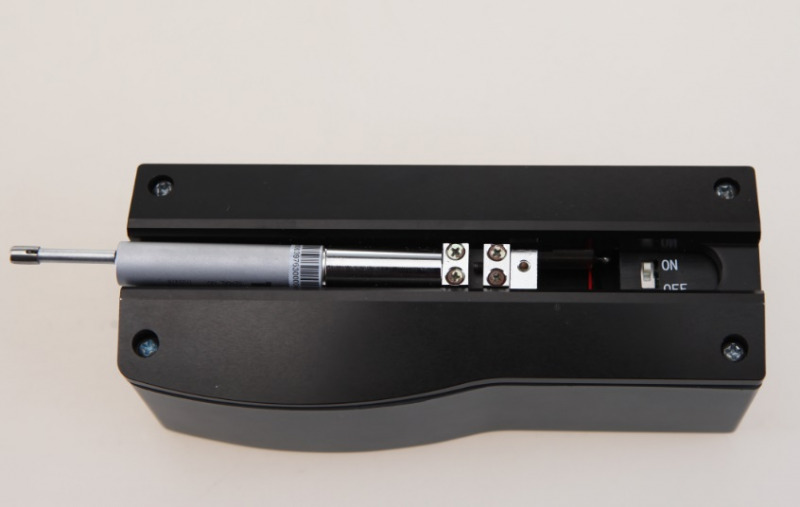

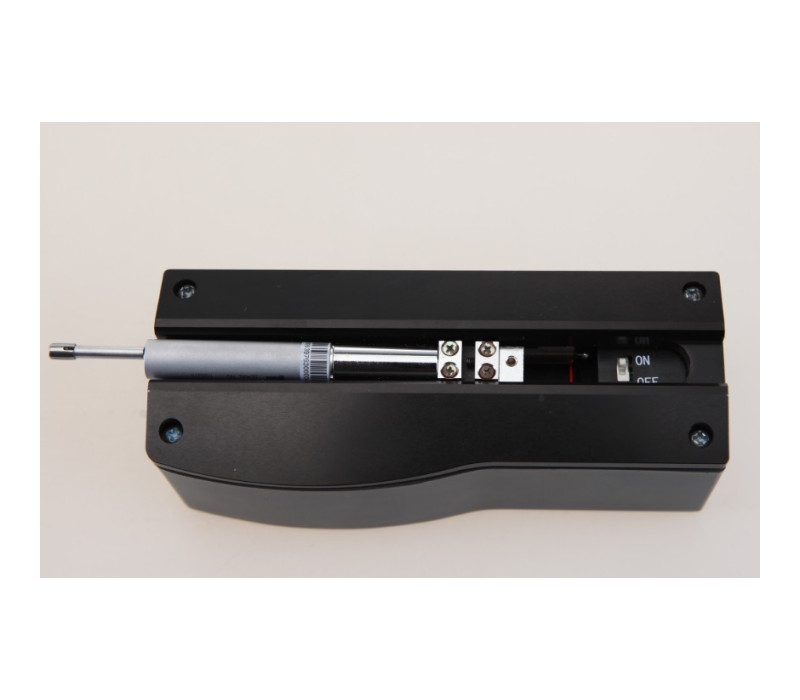

TIME 3200 bottom view with measurement arm

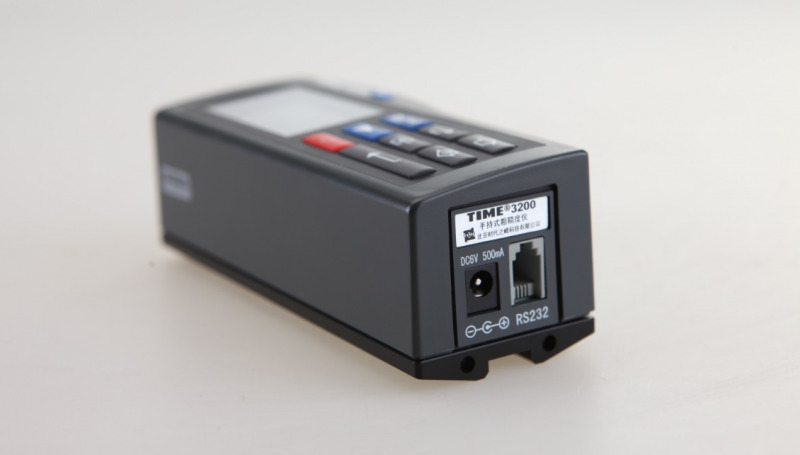

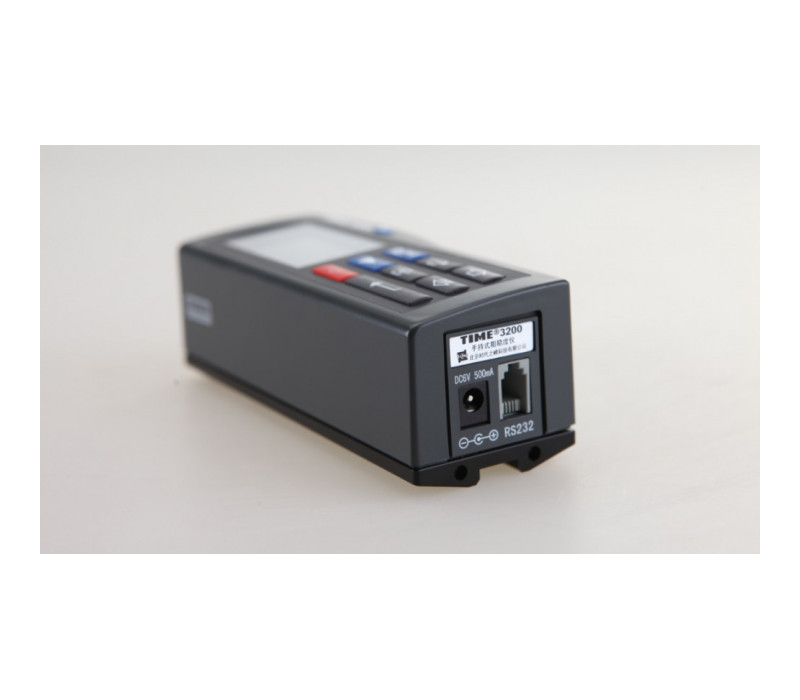

Charging and RS232 port

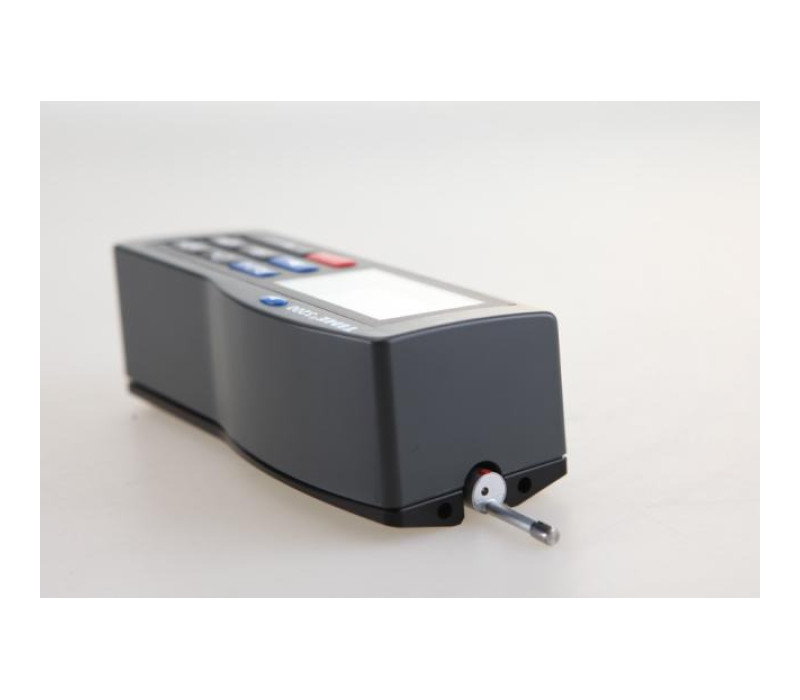

Measurement sensor

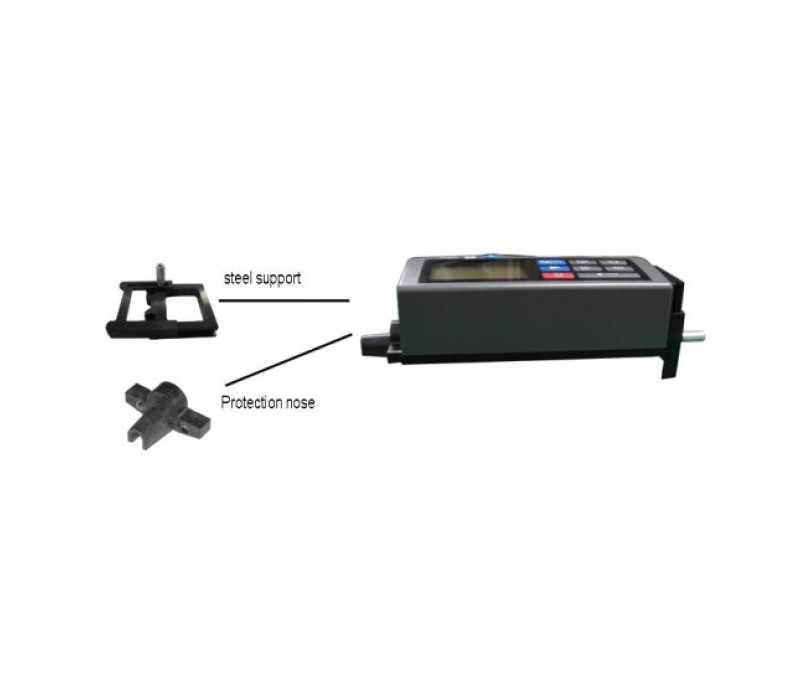

Time 3200/3202 with standard add on brackets

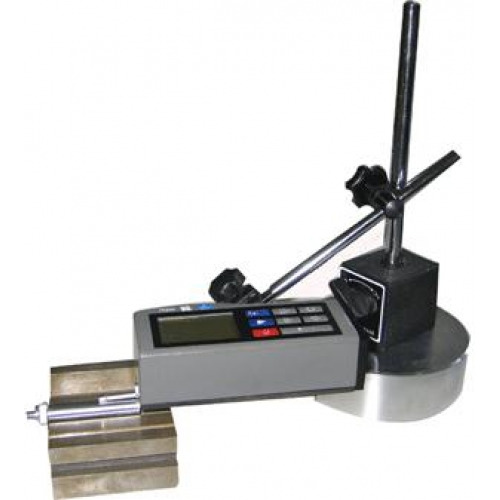

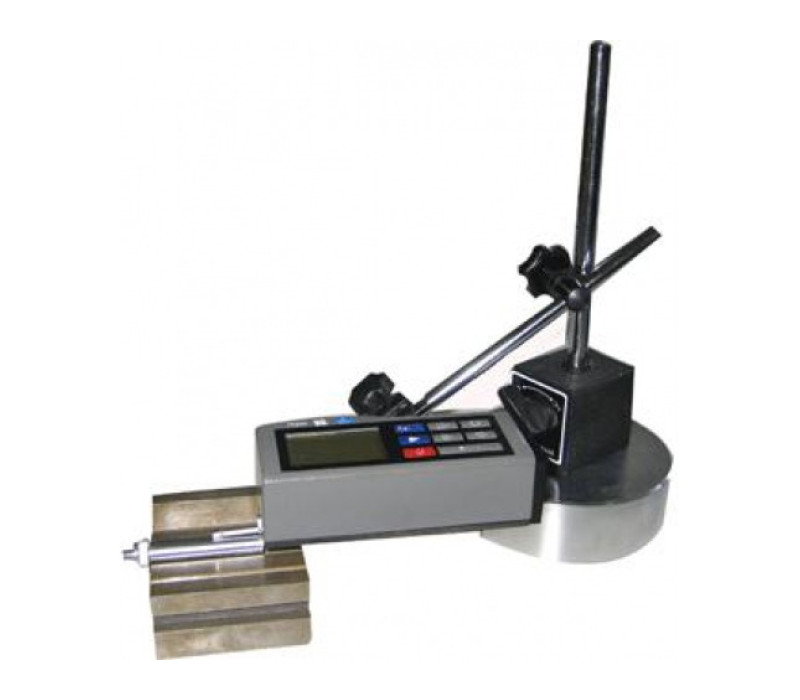

Elevated test setup

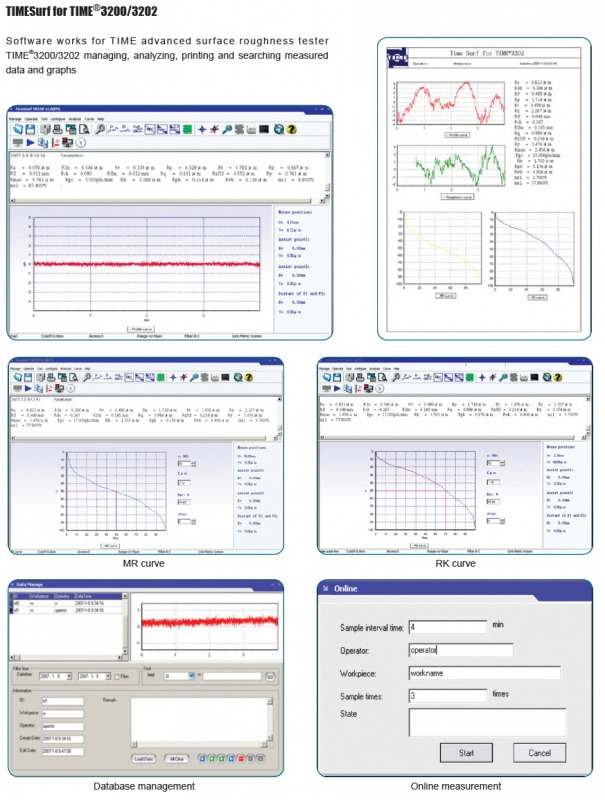

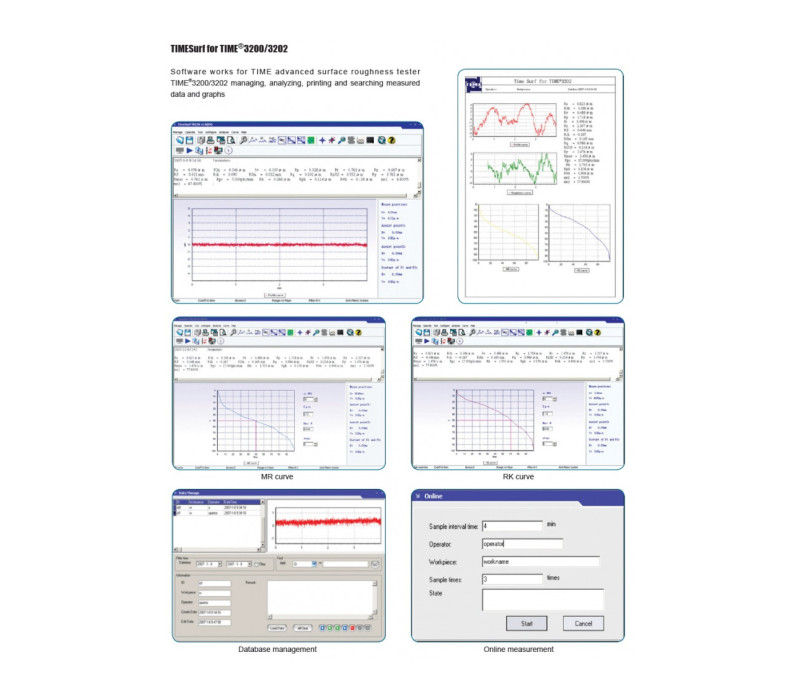

TimeSurf software for 3200/3202 surface roughness measurement device

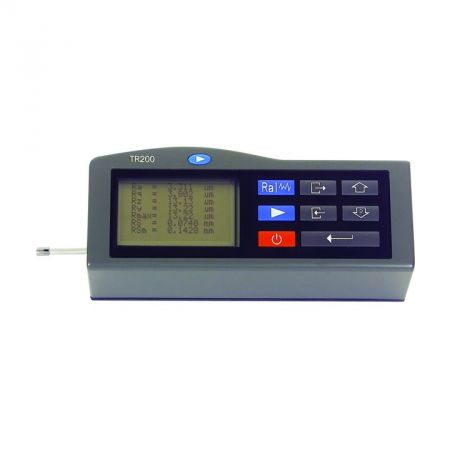

Time 3200/3202 Surface Roughness Tester

Name: Time 3200/3202 Surface Roughness Tester
SKU: 126258

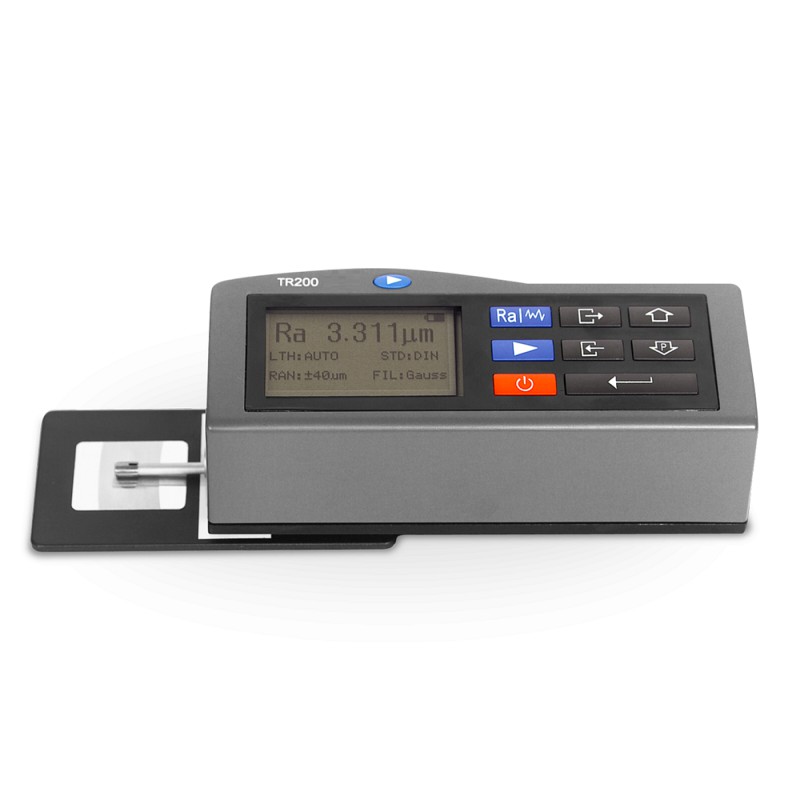

Designed as a multi-purpose surface roughness tester the TIME 3200/3202 is a versatile piece of equipment that can perform with high accuracy.

The TIME 3200/3202 comes as a complete kit but and can be extended for specific tasks like measuring in a deep groove, a small hole or in hard to reach places that have no room to position the complete device.
It is suitable for the more demanding test tasks due to its extensive range of functions. In addition to the basic functions, the device enables testing of many critical applications.

An inductive transducer with a diamond tip performs the physical measurements. Voltages are generated when the sensor is deflected, they are then converted into a roughness pattern by the instrument's electronic system.
The measured surface profiles can be presented on the display in addition to the different characteristics.
With a large spectrum of roughness measurement parameters, 13 for the 3200 and 17 for the TIME 3202, virtually every type of surface roughness measurement can be made using this device.

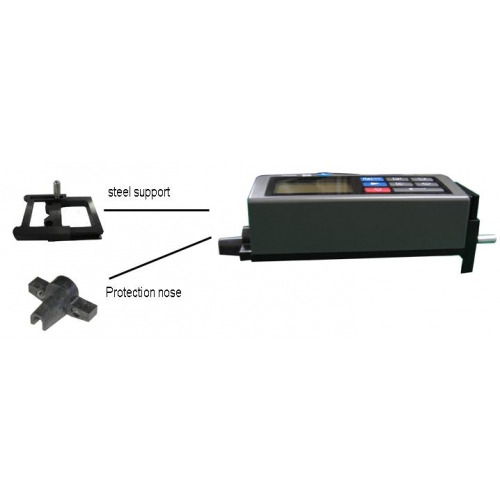

The TIME 3200/3202 surface roughness tester comes standard with a protective cover for the pickup and a steel support that is mounted to the back of the device. This enables the operator to elevate and level out the device when measuring above the plain surface. Plus there are several optional add-ons that enable specific measuring positions like a leveling table and a measuring platform.

The kit comes with a RS232 communication cable that can connect the TIME 3200/3202 with an optional printer or a PC that runs the software for TIME 3200/3202 surface roughness testers, or you can use the up to 15 groups data and graph internal storage that can be transferred at a later date, including all the measurement characteristics and surface profile.

The TIME 3200/3202 Surface Roughness Tester is designed for practical use in the workshop as well as for universal measurement tasks in the laboratory.

Price from € 1.997,00

Order now

High performance instrument
Graphical display on large LCD
Pick-up stylus position indicator
Data output RS-232 to printer TA-220 or PC
Excellent battery power with Li-ion technology
Easy to operate menu software
13 different roughness parameters
Auto-off after 5 minutes, with auto-store
Selectable language English, German, French, Italian, Spanish and Dutch

Surface roughness measurement

Surface roughness measurement,

Surface roughness is a variation in the material surface on a microscopic scale, it determines the visual effect of a surface, shiny or mat, and the friction of the material vs another surface sliding over it.
In a lot of cases the roughness determines the characteristics of the material or object. Things like the ability to form a seal when contacting another surface or the amount of heat and wear created from a bearing surface.
A smoother surface will also be less sensitive for dirt and bacteria growth and will therefore be easier to clean, this is important in food processing industries.
In other situation a minimum friction or higher adhesion is desired which requires a higher surface roughness.

To be able to compare the different surface roughness it is usually measured in Ra or Rz and will be calculated in µm or µin according to ISO 21920-2:2021
Measurements are usually made using a mechanical gauge or a laser scanner.

Ra provides the calculated average deviation of the surface from the mean value (value if the surface was perfectly flat) of the sampling area.
Rz provides the average of variation in height between the highs and lows of 5 lines within the sample surface area
Rt shows the maximum deviation between highs and lows within the sample surface area.
Sampling Length is the benchmark’s length used to determine its surface roughness.
Evaluation length is the total sample length required to determine the roughness of the material and may include more than one sample length.

Specifications

Model	TIME ® 3200	TIME ® 3202
Roughness parameters	Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv,R3z, RS, RSm, RSk, Rmr,	Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm,RSk, Rmr, Rpc, Rk, Rpk, Rvk, Mr1, Mr2
Assessed profiles	Roughness profile (R) Primary profile (P)	Roughness profile (R) Primary profile (P)
Measuring system	Metric, imperial	Metric, imperial
Display resolution	0.001 μm	0.001 μm
Data output	RS232	RS232
Pickup measuring range	±20μm, ±40μm, ±80μm	±20μm, ±40μm, ±80μm
Cutoff length (L)	0,25mm / 0,8mm / 2,5mm/Auto	0,25mm / 0,8mm / 2,5mm/Auto
Evaluation length	1~5L (selectable)	1~5L (selectable)
Tracing length	3-7L(selectable)	3-7L(selectable)
Digital filter	RC, PC-RC, Gauss, D-P	RC, PC-RC, Gauss, D-P
Max. tracing length	17,5mm/0.71inch	17,5mm/0.71inch
Min. tracing length	1,3mm/0.052inch	1,3mm/0.052inch
Pick-up	Standard pickup TS100, inductive, diamond stylus radius 5μm, angle of stylus 90°	Standard pickup TS100, inductive, diamond stylus radius 5μm, angle of stylus 90°
Accuracy	≤±10%	≤±10%
Repeatability	≤6%	≤6%
Power	Li-ion battery rechargeable	Li-ion battery rechargeable
Dimensions (mm)	140×52×48	140×52×48
Weight	440gr	440gr

Video

▶

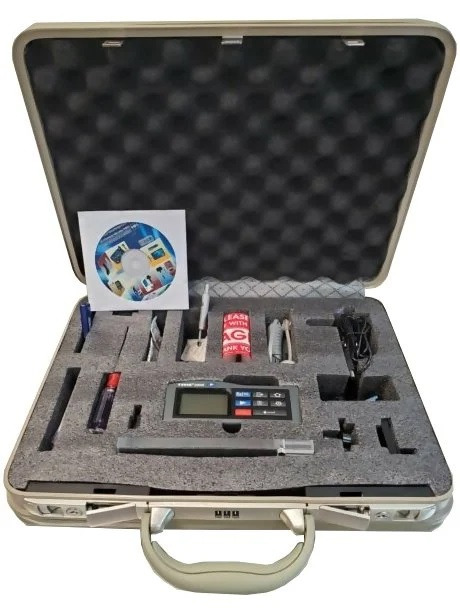

The TIME3200/3202 Surface Roughness Tester is delivered as a complete kit including:

Detector TS-100
Roughness test plate Ra
Protection nose
Steel support for rear leveling and stabilizing
Charger 220V, 50Hz
Screwdriver
Carrying case
Manual
Certificate

Optional accessories:

Special detector for Curved surface TS-110
Special detector for small holes TS-120
Special detector for deep grooves TS-130
Special detector right angled pickup TS-140
Extension TSE-A
Extension TSE-B 90°
UKAS certified reference standards
TA-610 test platform
Steel adapter (ø 8mm)
Steel adapter for connection to platform TA-610 (L-attachment)
TA-230 printer

Accesories on request

The TIME 3200/3202 surface roughness gauges can be equipped with a number of optional extra's that facilitate various measurement setups.

A measuring stand consisting of:

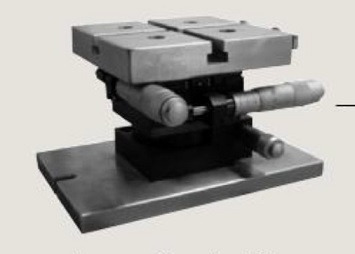

	Leveling table for high accuracy measuring The leveling table, TA630/TA631, can be used as part of the measuring table setup.

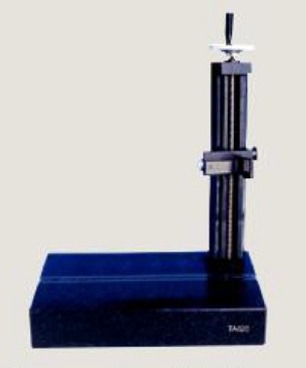

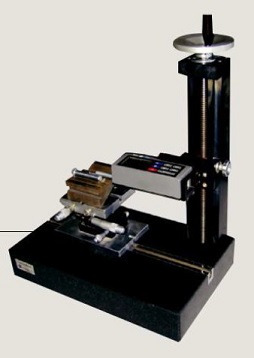

	Measuring platform The measuring platform, TA620, forms the basis of the complete stand with fixation rail for the leveling table and adjustable hight.

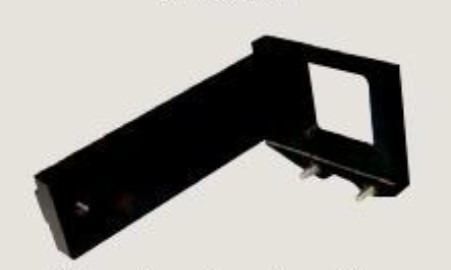

	L attachment The L attachment is used to mount the Time 3200 to the elevating tower.

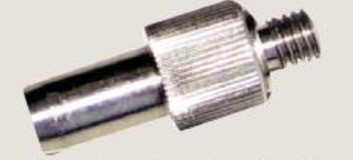

	8mm adapter The 8mm adapter mounts the device to the L bracket.
	Complete test stand This shows the complete test stand including the TIME 3200 surface roughness tester.

A Printer:

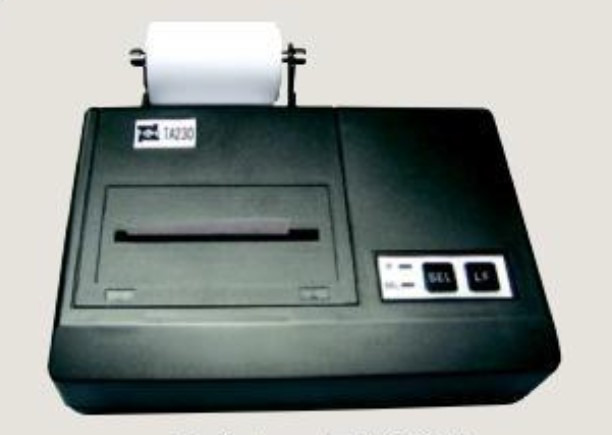

	Printer The TIME 3200/3202 can be connected to the TA230 printer to be able to produce the measurement results onsite.

Optional pickups:

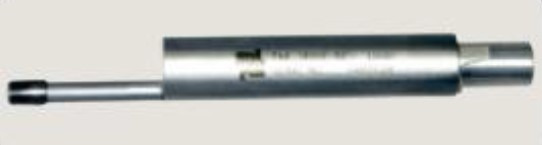

	Standard pickup TS100 TS100 standard pickup with skid for roughness test on plane surface, shaft and inner surface of holes with max. depth of 22mm, min diameter 5mm.

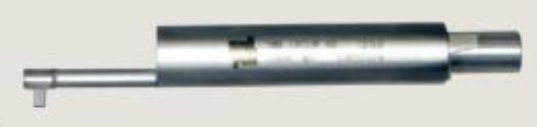

	Pickup for curved surfaces TS110 TS110 pickup for curved surface used for roughness testing of curved surface with min curvature radius 3mm, working with measuring platform TA620.

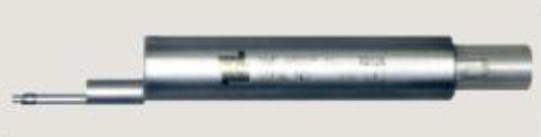

	Small hole pickup TS120 TS120 pickup for small holes used for roughness testing of small holes with min. 2mm diameter of inner surface, max. depth 9mm.

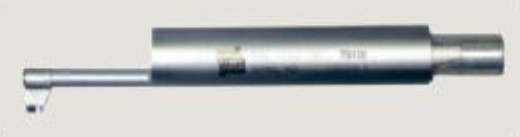

	Deep groove pickup TS130/131 TS130: Used for roughness testing of deep groove with min. width 2mm, max. depth 3mm or of step with max. height 3mm, TS131: Used for roughness testing of deep groove with min. width 3mm, max. depth 10mm or of step with max. height 10mm, working with measuring platform TA620.

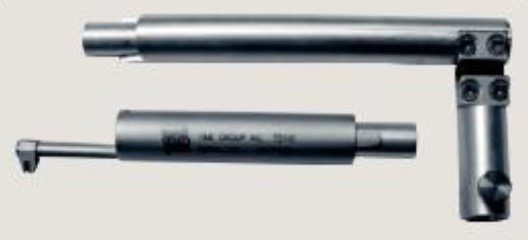

	right angled pickup TS140 TS140 right-angled pickup Comprising right-angled pickup and right-angled transmit rod, used for roughness testing of groove and crank with min. width 7,5mm~20mm, and of steps with max. height 2,5mm, working with TA620.

Roughness parameter	Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr, P
Assessed profiles	Primary profile (P), Roughness profile (R), Tp curve (material ratio Mr)
Profile recording magnification	Vv: 200x ~ 20000x , Vh: 20x, 50x, 200x
Standard	Conforms to ISO/DIN/JIS/ANSI (menu selectable)
Measuring system	Metric mm, imperial inch
Display resolution	0,001µm / 0.04 µinch
Display	LCD 128 x 64 dot-matrix, with back-light
Dimensions LCD	50mm x 30mm screen
Display features	Detector stylus position indicator, battery level indicator, direct display of parameters and profiles, direct printing, LCD brightness adjustment, auto-off after 5 minutes with auto-store, calibration through software (each cut-off)
Display languages	English, German, French, Italian, Spanish, Dutch
Data output	RS-232; direct to printer TA-220 or PC
Range	Ra, Rq : 0,005 - 16µmRz, Ry, Rp, Rt, R3z : 0,02 - 160µm, RSm, RS : 2 - 4000µm Tp : 1-100% (% Ry)
Cut-off length	0,25mm / 0,8mm / 2,5mm
Evaluation length Ln	1~5 cut-off
Tracing length Lt	(1~5 cut off) + 2 cut-off
Digital filter	RC, PC-RC, GAUSS, D-P
Detector	Standard model TS-100, Inductive, Diamond tip radius 5µm
Bores from diameter	6,0mm, depth 15mm (TS-100)
Power	Li-ion battery rechargeable
Battery capacity	1000mAh (>3000 measurements)
Charger	220V, 50Hz
Operating temperature	0°C ~ 40°C
Dimensions unit	141mm x 56mm x 48mm
Weight	480gr
