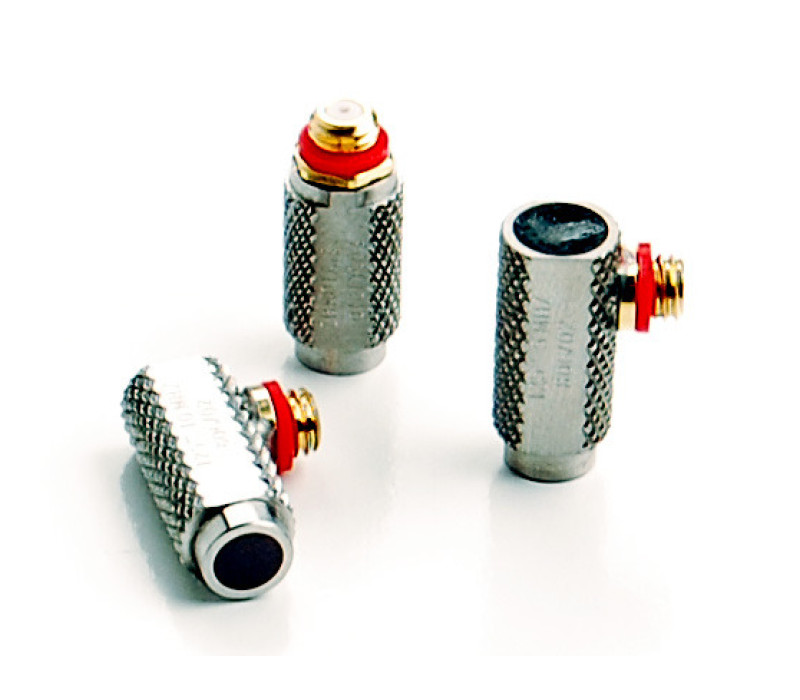

SINGLE ELEMENT CONTACT TRANSDUCERS

Robust and Versatile Tools for Non-Destructive Inspection

The Single Element Contact Transducers are ideal for applications that require direct contact with the material being inspected. These transducers use longitudinal waves to measure and detect faults in a wide range of materials, including metals, glass, and ceramics, thanks to their design that allows safe and effective handling even on difficult surfaces.

Key Features:

Robust Design: Constructed with durable materials to withstand wear and tear, making them long-lasting and reliable for industrial use.
High Acoustic Impedance: Compatible with most metals, these transducers ensure accurate measurements due to their acoustic impedance close to that of metallic materials.
Application Versatility: Suitable for a variety of settings, from defect detection to thickness measurement, especially in industries such as automotive and aerospace.

Benefits of Single Element Contact Transducers:

Adaptability: Available in multiple configurations, including models with high durability and specialized tips for hard-to-reach areas.
Precise Measurements: Offer excellent surface-near resolution, crucial for defect detection and quality assurance.
Easy Integration: Compatible with the PZX and PVX ultrasonic gauges, facilitating their use in various measurement applications.

Contact us for more information or to place an order. Our team is ready to advise you on selecting the right transducer for your inspection needs, ensuring maximum effectiveness in your measurement and quality control operations.

Price from € 457,00

Order now

Measurement Ranges

Diameter	Frequency	Mode	Range
1/8"	5 MHz	P-E	0.040" - 3.0" ST
1/8"	5 MHz	E-E	0.020" - 3.0" ST
1/8"	5 MHz	P-E	0.020" - 0.500" PL
1/8"	10 MHz	P-E	0.040" - 3.0" ST
1/8"	10 MHz	E-E	0.010" - 3.0" ST
1/8"	10 MHz	P-E	0.020" - 0.400" PL
1/4"	2.25 MHz	P-E	0.050" - 3.0" ST
1/4"	2.25 MHz	E-E	0.040" - 3.0" ST
1/4"	2.25 MHz	P-E	0.040" - 0.650" PL
1/4"	5 MHz	P-E	0.040" - 6.0" ST
1/4"	5 MHz	E-E	0.020" - 3.0" ST
1/4"	5 MHz	P-E	0.025" - 0.600" PL
1/4"	10 MHz	P-E	0.025" - 6.0" ST
1/4"	10 MHz	E-E	0.010" - 3.0" ST
1/4"	10 MHz	P-E	0.020" - 0.500" PL
1/2"	2.25 MHz	P-E	0.075" - 10.0" ST
1/2"	2.25 MHz	E-E	0.100" - 3.0" ST
1/2"	2.25 MHz	P-E	0.065" - 0.750" PL
Ranges were determined using standard 4340 steel calibration standards, and common plastic samples . These ranges may vary according to material type differences and surface conditions.

Products

Item	Product	Price
137012	T-4903-2875 1/8" 5 MHz Probe Non-Magnetic, Side Entry	€ 527,00
137029	T-5903-2875 1/8" 5 MHz Probe Non-Magnetic, Top Entry	€ 527,00
138255	T-4903-4875 1/8" 10 MHz Probe Non-Magnetic, Side Entry	€ 727,00
137030	T-5903-4875 1/8" 10 MHz Probe Non-Magnetic, Top Entry	€ 562,00
138031	T-5023-1855 1/4" 2.25 MHz Probe Non-Magnetic, Top Entry	€ 457,00
137011	T-4023-2855 1/4" 5 MHz Probe Non-Magnetic	€ 457,00
137031	T-5023-2855 1/4" 5 MHz Probe Non-Magnetic, Top Entry	€ 457,00
133712	T-4043-1855 FCR5025 Contact Probe 2.25 mHz 1/2"	€ 457,00
138032	T-5043-1855 1/2" 2.25 MHz Probe Non-Magnetic, Top Entry	€ 457,00
137795	T-5043-2855 1/2" 5 MHz Probe Non-Magnetic, Top Entry	€ 457,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
