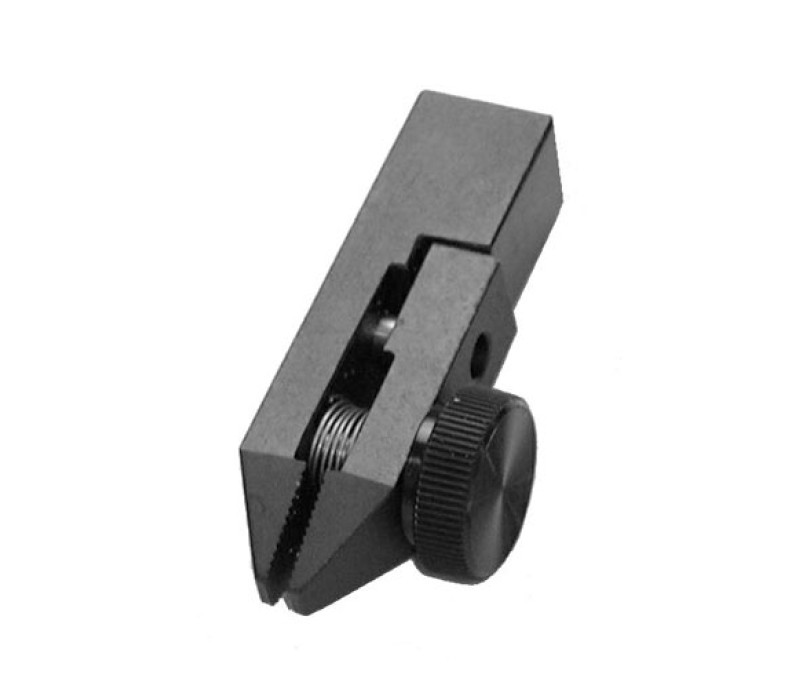

SC Small Chucks

Name: SC Small Chucks
SKU: 126665

Available in 2 Models
SC-3 (3mm wide) 100N Capacity
SC-8 (8mm wide) 150N Capacity

The SC small chucks are Ideal for measuring of small diameter test pieces in a small area

These fine point grips are used for gripping test pieces like small diameter wires, pins, etc.
They are light grips suitable for measuring minute force. In combination with a test stand stable measurements with low force are possible.

Recommended force gauges are IMADA PS/FB/DS2/ZTS/ZTA series up to 500 N

€ 118,00

Order now

Capacity	SC-3:100N SC-8:150N
Sample Range	SC-3: 3mm SC-8: 8mm
Thread Size	M6, P1

Products

Item	Product	Price	Quantity	Action
132110	SC-3 Small grip max. 100 N, 3 mm opening, M6	€ 118,00
132111	SC-8 Small grip max. 150 N, 8 mm opening, M6	€ 118,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

SC Small Chucks

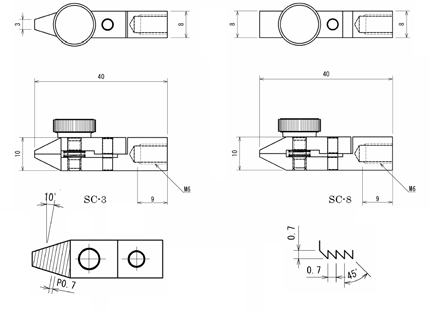

Dimensions
