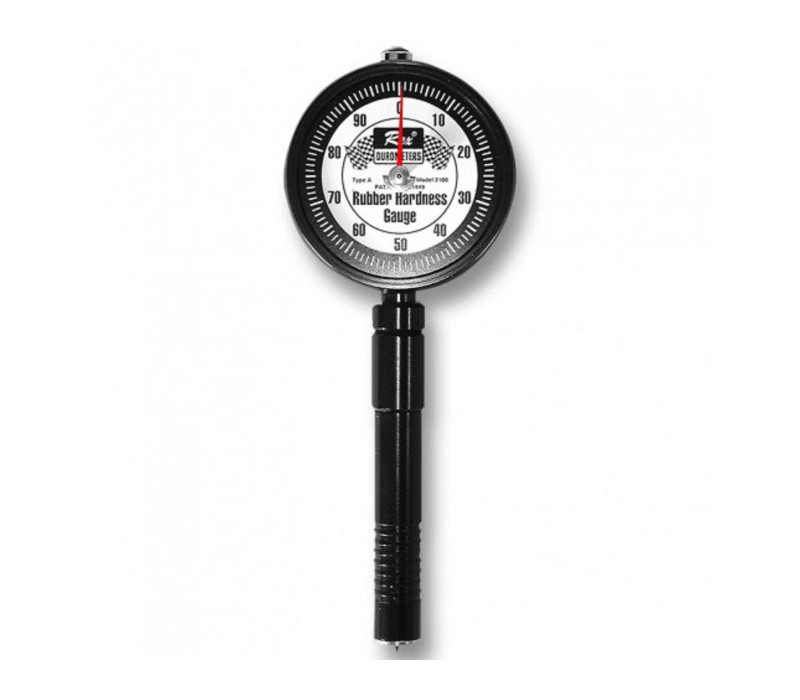

    RX-2100 Tire Hardness Gauge / Tire Durometer

    The RX-2100 Type A durometer as specified by ASTM D-2240 is the gauge used by tire manufacturers to measure hardness of tire rubber. The gauge gives readings of hardness in durometer points on a scale of 0-100, with 100 being the hardest reading. Some race tires come from the factory with the durometer hardness noted on the side wall, but factors such as ambient temperature, track temperature, usage, and age of the tire can change the actual hardness of the tire from the factory hardness.

    Tire hardness can be a critical factor in setting up a race car. A tire that's too hard may sacrifice traction, while a tire that's too soft may give great traction but wear too quickly, and an unmatched set of tires may result in an ill-handling car. To properly set up a car, a measure of tire hardness is necessary, and the easiest and most cost-effective way to obtain such a measure is to use a durometer.

    The RX-2100 Tire Durometer allows racers to quickly and accurately make checks of tire hardness. Unlike other "racing durometers" (which are just relative hardness gauges), the RX-2100 is calibrated to the ASTM D-2240 standard for durometer hardness and is traceable to N.I.S.T. Thus, the RX-2100 allows comparison with the factory tire specifications.

    The RX-2100 is a handheld gauge weighing only 4.2 oz. The indicator case, bezel, and barrel are all billet machined aluminum. The gauge is furnished with a carrying case and a one year warranty.
    € 437,50
    Order now
    • Includes NIST-Traceable Calibration Certificate
    • Gives readings of hardness in durometer points on a scale of 0-100
    • Calibrated to the ASTM D-2240 standard for durometer hardness
    • Made of billet machined aluminum

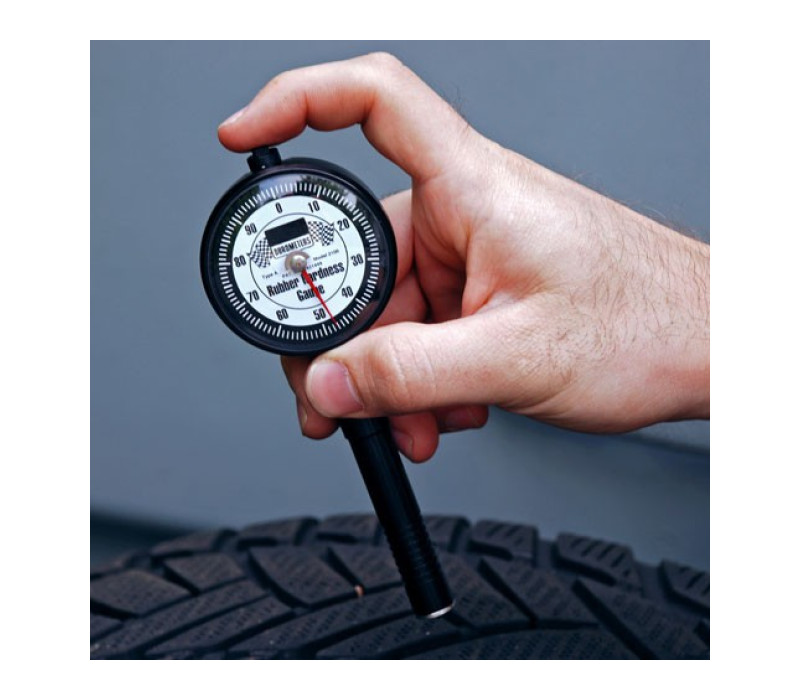

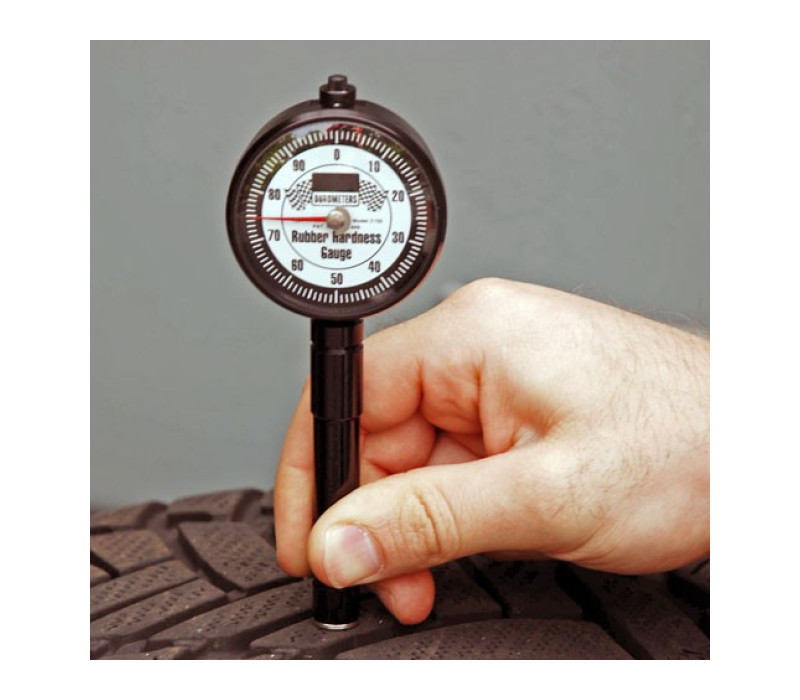

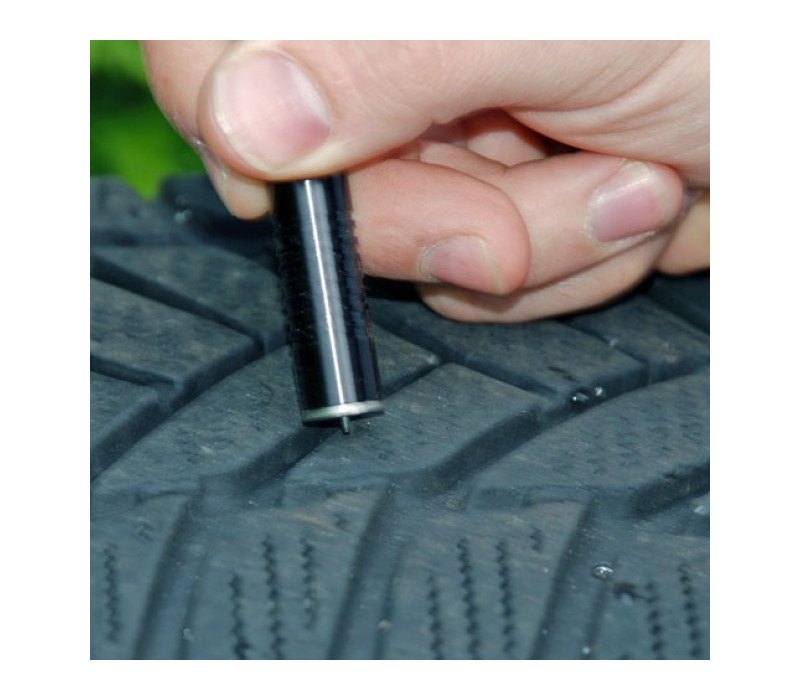

    • Quickly and accurately make checks of tire hardness
    Complete Kit
    The RX-2100 is supplied as a complete kit including, gauge and protective carrying case with belt clip.
    RX Series Data Sheet

    Related Products

    Browse Related Products

    RX-TBK-A Type A Durometer Test Block Kit

    RX-TBK-A Type A Durometer Test Block Kit

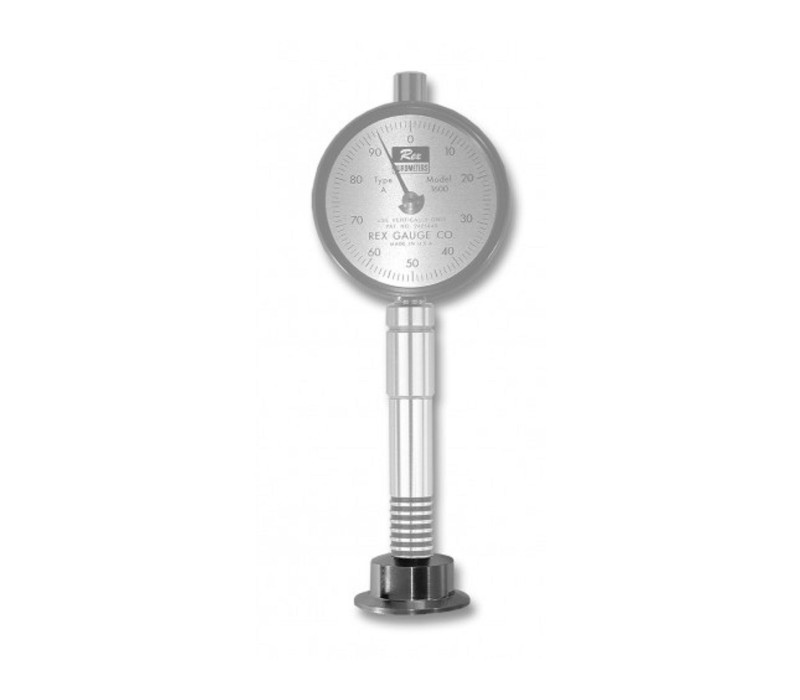

    RX-BF 'Big Foot' Durometer Foot Adapter

    RX-BF 'Big Foot' Durometer Foot Adapter

    Cic-Duro Durometer Calibration

    Cic-Duro Durometer Calibration

    Order Now

    Products
    Item Product Price  Quantity Action
    130172RX-2100 Tire Hardness Gauge € 437,50

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
