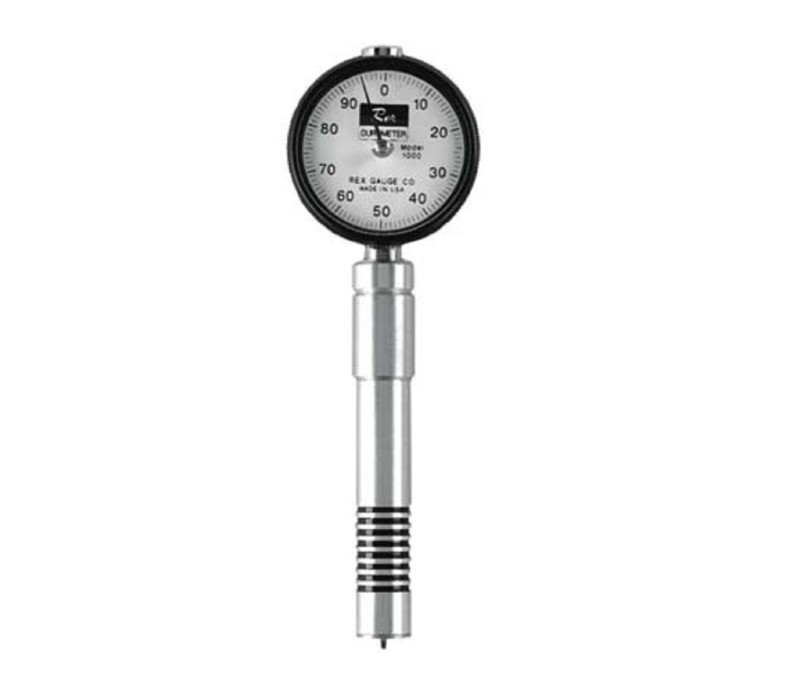

    RX-1000 Mini-Dial Durometer

    The RX-1000 Mini-Dial Durometer is both compact and easy to use. Its small dial face and included leather clip-on carrying case make it easy for an inspector to carry the gauge- for work around the shop, or out in the field. The RX-1000 durometer holds the maximum reading until reset by pressing the button at the top of the gauge.
    The max-hold feature and small dial size make the RX-1000 a good choice for hard to reach places, or for out of sight testing.

    All RX-1000 models are supplied with a NIST traceable calibration certificate.

    MODEL:
    • RX-1000-A
    • RX-1000-B
    • RX-1000-C
    • RX-1000-D
    • RX-1000-DO
    • RX-1000-O

    Order now
    • Includes NIST-Traceable Calibration Certificate
    • Increments of 1 from 0-100
    • Furnished with a leather carrying case
    • Easily fits into your pocket or clipped on belt
    • One year warranty
    • Conforms to ASTM D-2240
    • Small face
      (42.5 mm / 1.675" Diameter)
    RX Series Data Sheet
    Available Models
    Type Indenter Shape Force
    A



    		 Flat cone point, 35º Included Angle
    Soft rubber, plastics, and elastomers, printer's rolls.    		 822 Gr
    B



    		 Sharp cone point, 30º Included Angle
    Harder elastomers and plastics. Paper and fibrous materials, Use above 93 Duro A.    		 822 Gr
    C



    		 Flat cone point, 35º Included Angle
    Medium hard elastomers and plastics. Also useful to avoid surface marks.    		 4536 Gr
    D



    		 Sharp cone point, 30º Included Angle
    Hard rubber and plastics such as thermoplastics, flooring and bowling balls.    		 4536 Gr
    DO



    		 3/32" Spherical
    Dense granular material, textile windings.    		 4536 Gr
    O



    		 3/32" Spherical
    Very soft elastomers, textile windings, soft granular materials. Use below 20 Duro A.    		 822 Gr

    Related Products

    Browse Related Products

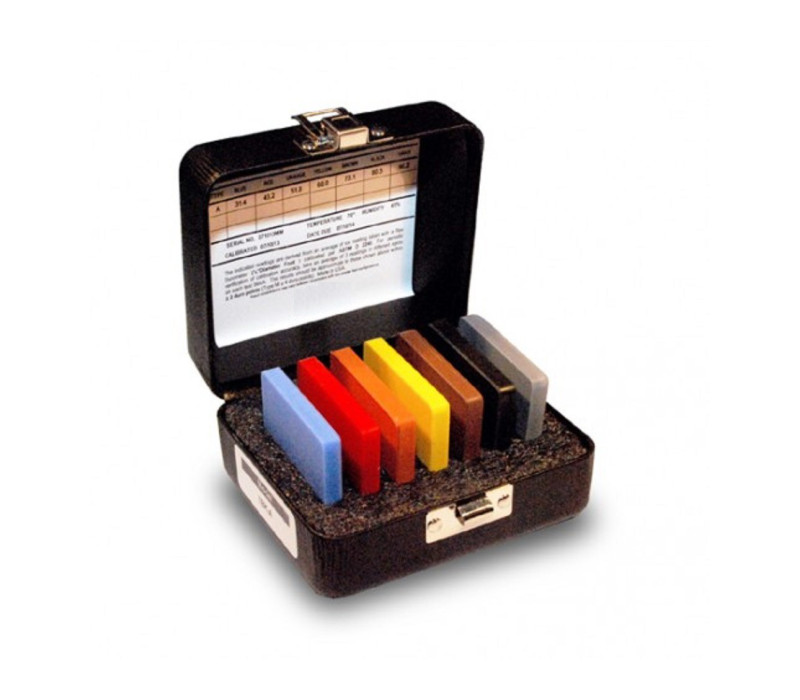

    RX-TBK-A Type A Durometer Test Block Kit

    RX-TBK-A Type A Durometer Test Block Kit

    Cic-Duro Durometer Calibration

    Cic-Duro Durometer Calibration

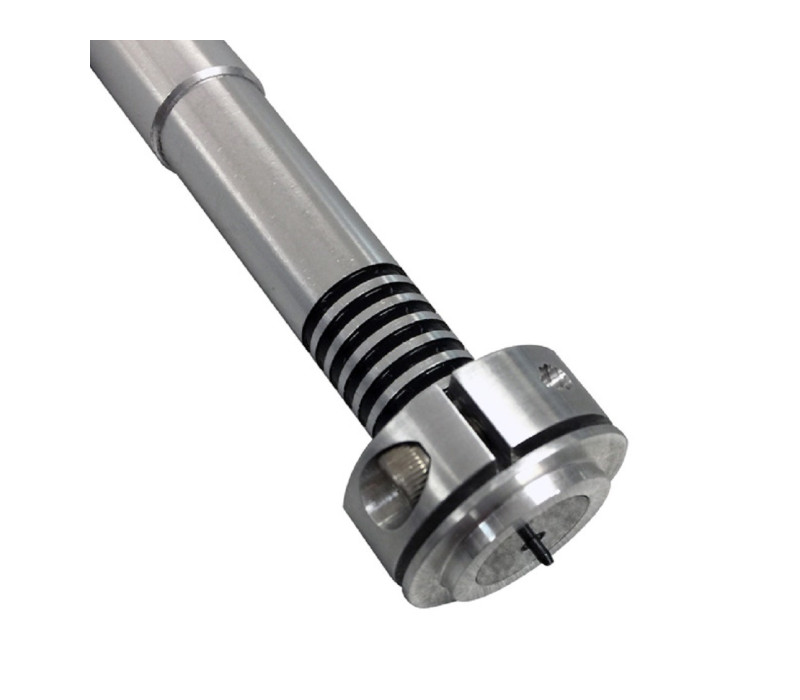

    RX-DIN-FA ASTM to DIN 53505 Adapter for RX durometers

    RX-DIN-FA ASTM to DIN 53505 Adapter for RX durometers

    Accessories

    Browse Accessories

    Order Now

    Products
    Item Product Price  Quantity Action
    131941RX-1000-A Mini Dial Durometer € 412,50
    131943RX-1000-B Mini Dial Durometer € 455,00
    131944RX-1000-C Mini Dial Durometer € 455,00
    131942RX-1000-D Mini Dial Durometer € 412,50
    131945RX-1000-DO Mini Dial Durometer € 455,00
    131946RX-1000-O Mini Dial Durometer € 455,00
    Accessories
    Item Product Price  Quantity Action
    126633RX-DIN-FA adapter DIN Durometer € 137,50

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
