RMS-TD-W Digital Humidity & Temperature Transmitter for Wood with external sensor

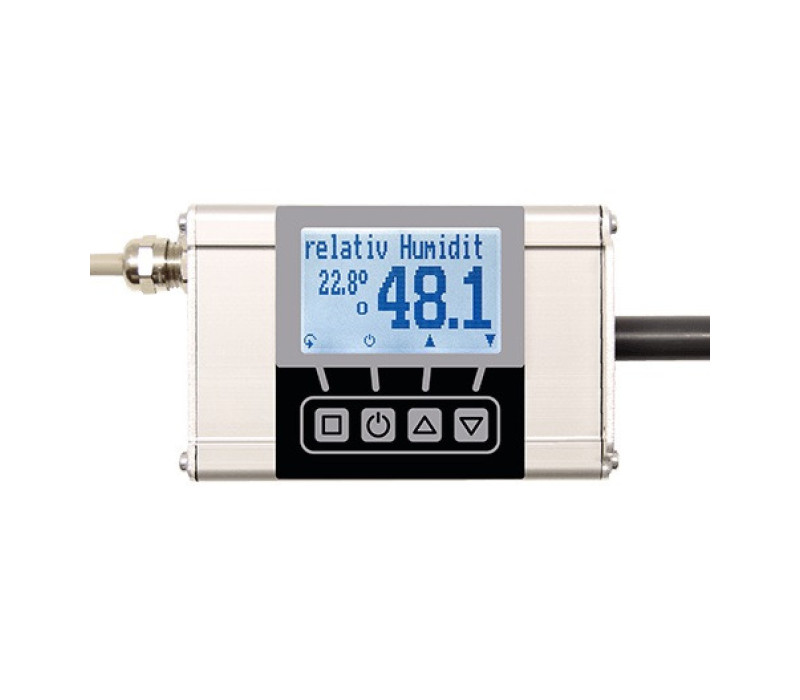

139303 - Optional Display with keyboard for RMS-TD

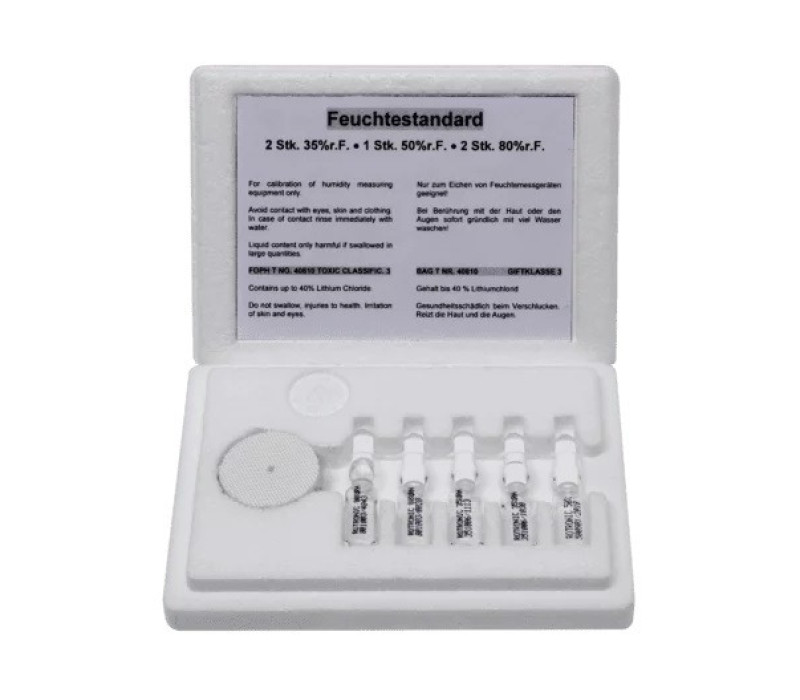

138112 - RH-CAL-AMPVAR - Certified calibration ampoules 2x35%, 1x50%, 2x80%

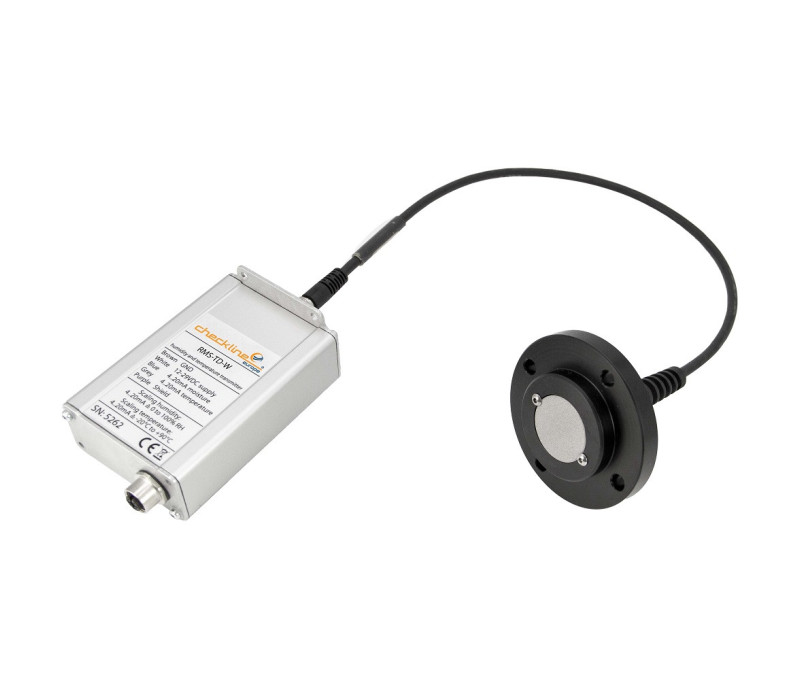

RMS-TD-W Digital Humidity & Temperature Transmitter for Wood with external sensor

Name: RMS-TD-W Digital Humidity & Temperature Transmitter for Wood with external sensor
SKU: 127530
Price: 840.00 EUR
Availability: PreOrder

The RMS-TD-W Wood Online Moisture Transmitter is optimized for wood gasification systems with 4-20 mA analog output for water content and temperature.
For installation in closed systems like for example screw conveyors or storage containers. The measuring range for wood chips is 2 to 20 % water content. The RMS-TD-W can be used in a temperature range from 0 to +40 °C.

€ 840,00

Order now

Temperature range: max. 40 °C
Analog outputs
External sensor
Sensor - Ø78 x 33mm

RMS-TD-W
Connecting cable of 1.9 m length
Operating manual

Output	Analog
Humidity	2 to 20 % water content
Resolution Moisture	0,1 %
Output Moisture	4 to 20mA (2 to 20%)
Temperature Range	0 to +40 °C
Resolution Temperature	0,1°C
Output Temperature	4 to 20 mA (-20 to +180 °C)
Power Supply	24 VDC (15 to 29 VDC)
Temperature Electronics	70 x 32 x 120 mm
Dimensions Sensor	78 x 33 mm
Warranty	1 year

RMS-TD-DISPLAY Option

Products

Item	Product	Price	Quantity	Action
139290	RMS-TD-W - Humidity & Temperature Transmitter for Wood	€ 840,00

Accessories

Item	Product	Price	Quantity	Action
139303	RMS-TD-DISPLAY - Optional display with keyboard for RMS-TD Transmitters	€ 223,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
