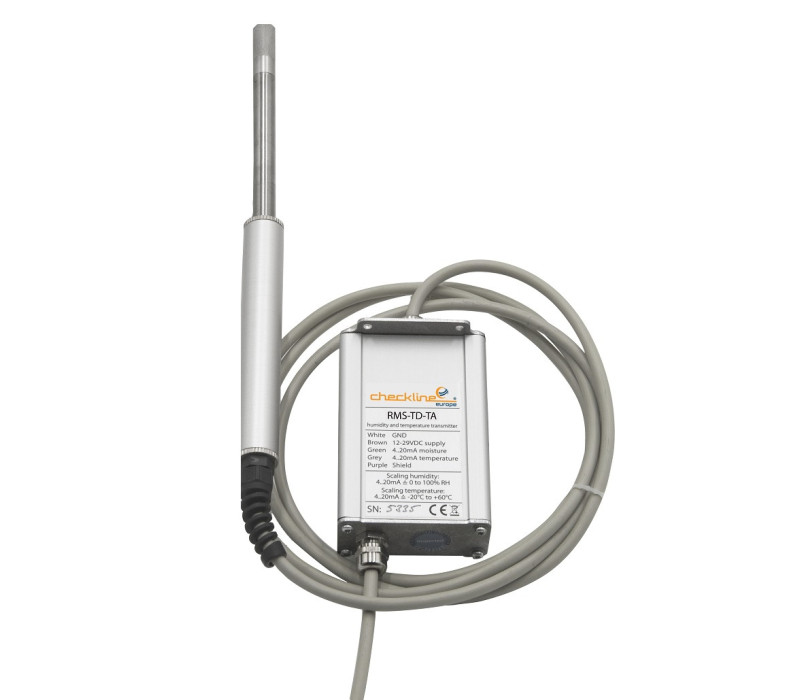

RMS-TD-TA Humidity & Temperature Transmitter with external sensor

The RMS-TD-TA Industrial measuring transducer with with external stainless steel sensor is designed for monitoring relative moisture and temperature for applications were a fixed sensor can't be used.
The RMS-TD-TA Humidity &Temperature Transmitter can be used in all kind of applications in in laboratory and industries for temperatures up till max 60°C.
The RMS-TD sensors make it possible to detect even small fluctuations in humidity and their tendencies quickly and reliably so that preventive actions can be taken.

In the manufacturing processes, subsequent processing, storage, and transportation where precise determination of moisture and temperature becomes increasingly crucial.

The RMS-TD-TA comes with a connecting cable of 1.9 m length, optional available:

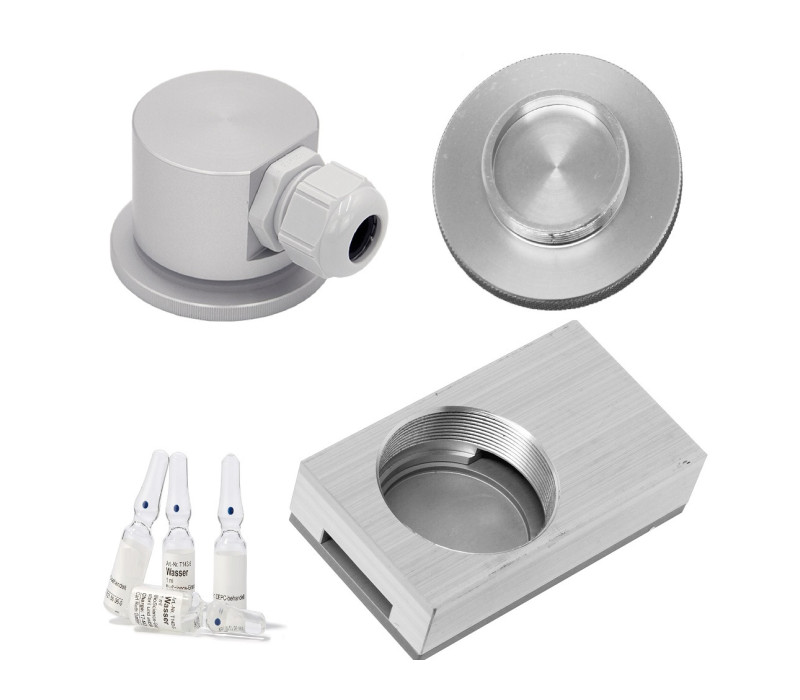

Calibration equipment for tube sensor

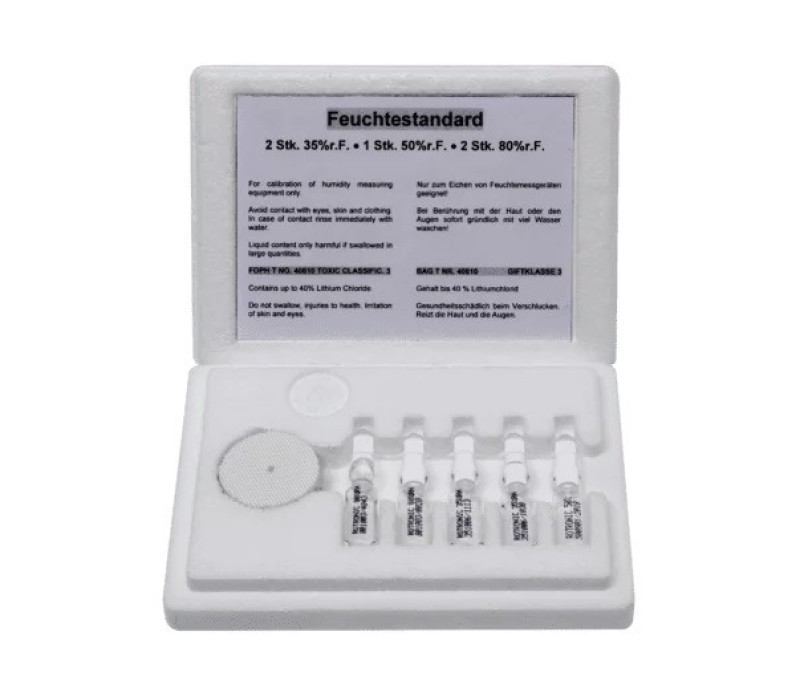

Certified calibration ampoules - set of 5: 2 units with 35 % RH, 1 unit with 50 % RH, 2 units with 80 % RH

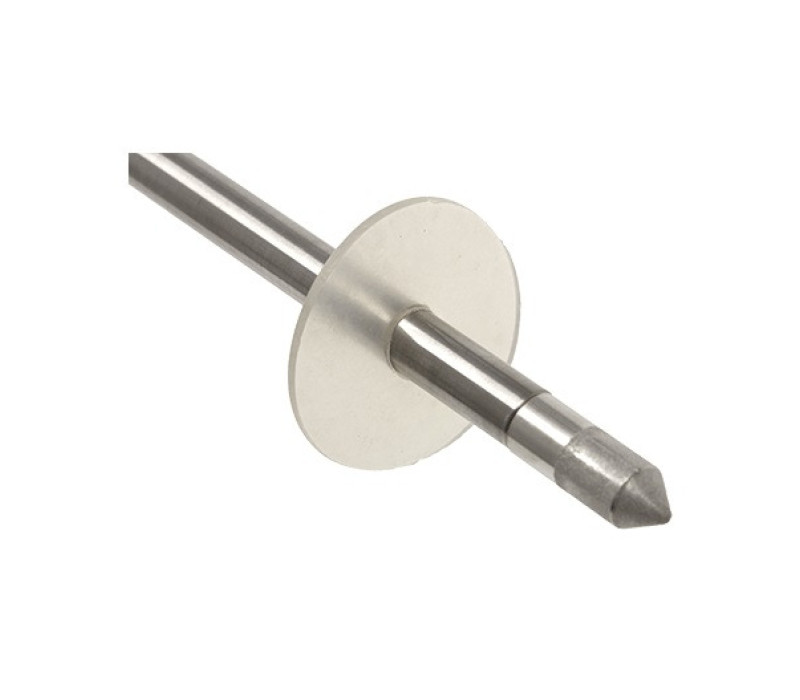

Drip-protection for RMS-TD transmitters

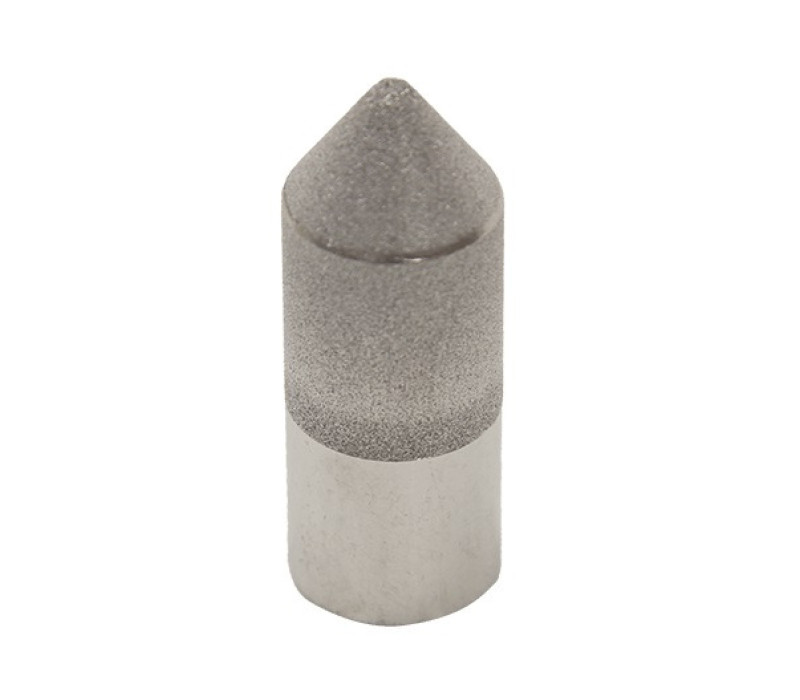

Stainless steel sinter sensor cap, stainless steel sinter filter: for applications at high temperatures and harsh operating conditions

€ 365,00

Order now

Temperature range: max. 60 °C
Analog outputs
External sensor
Stainless steel sensor tube - Ø12 x 125 mm

RMS-TD-TA
Connecting cable of 1.9 m length
Operating manual

Output	Analog output
Relative Humidity	0 to 100%
Accuracy Moisture	+/- 3% (10 to 90%)
Output Moisture	4 to 20mA (0 to 100%)
Temperature Range	-20 to +60 °C
Accuracy Temperature	+/- 0,6 °C (+10 to +60 °C)
Output Temperature	4 to 20 mA (-20 to +60 °C)
Power Supply	12 to 24VDC
Temperature electronics	-20 to +60 °C
Dimensions Electronics Housing	70 x 32 x 120 mm
Dimensions Sensor	Stainless steel sensor tube / Ø12 x 125 mm (1,9 mtr cable)

Products

Item	Product	Price	Quantity	Action
139116	RMS-TD-TA - Humidity & Temperature Transmitter	€ 365,00

Accessories

Item	Product	Price
132003	AP-CAL-UNIT-TUBE - Calibration adapter for tube sensor	€ 198,00
138112	RH-CAL-AMPVAR - Certified calibration ampoules 2x35%, 1x50%, 2x80%	€ 114,00
138113	RH-CAL-AMP50 - Certified calibration ampoules 5 x50%	€ 114,00
139298	Drip-protection for RMS-TD transmitter	€ 16,00
132002	Humi-Sensor-Cap Stainless Steel Sinter Sensor Cap	€ 45,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
