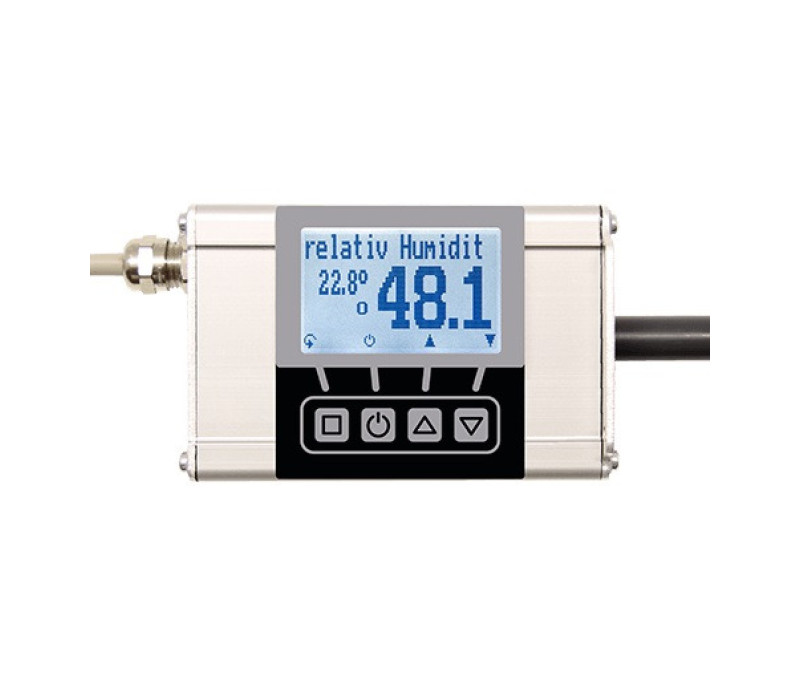

139303 - Optional Display with keyboard for RMS-TD

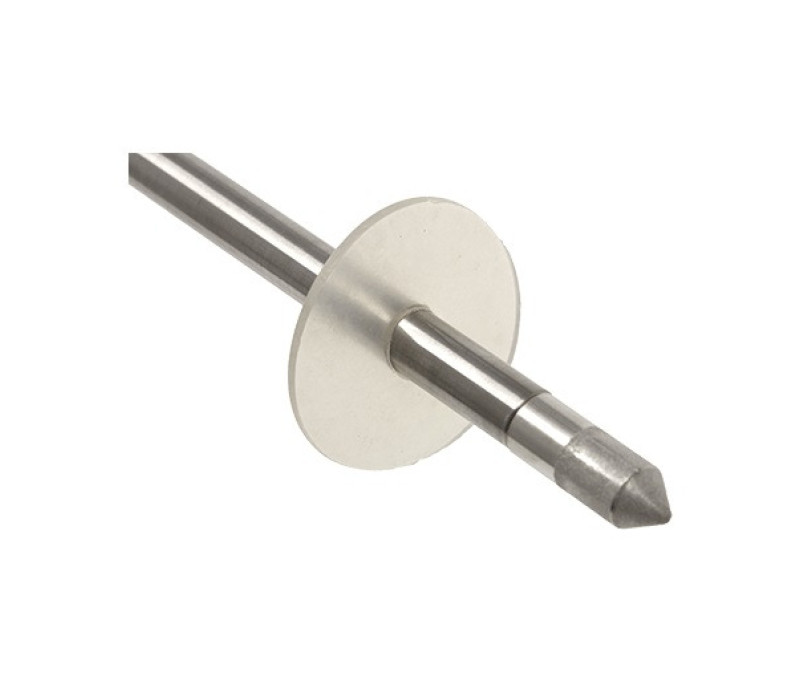

139298 - Drip-protector

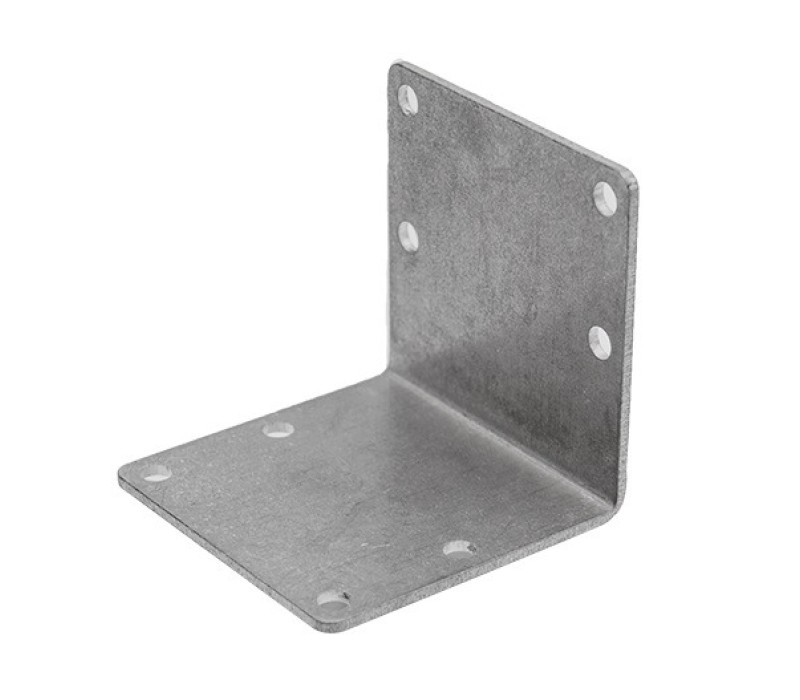

139299 - Angle bracket

132003 - CAL-UNIT-TUBE - Calibration equipment for tube sensor

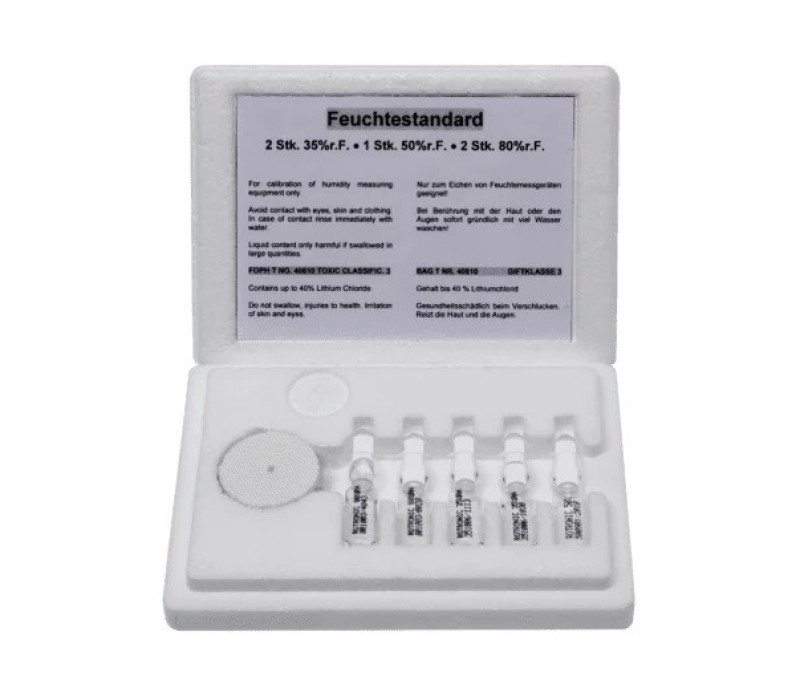

138112 - RH-CAL-AMPVAR - Certified calibration ampoules 2x35%, 1x50%, 2x80%

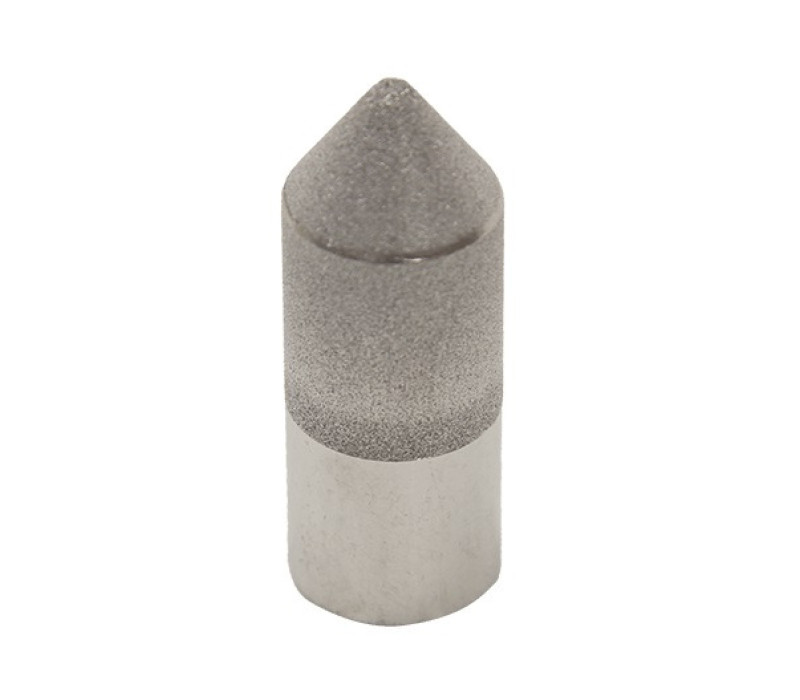

132002-Stainless Steel Sinter Sensor Cap

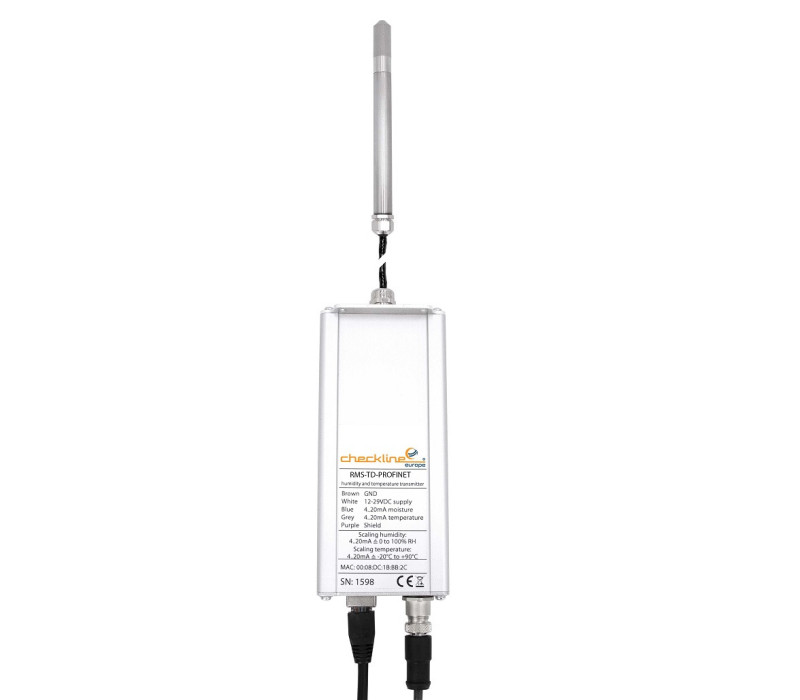

RMS-TD-PROFINET Digital Humidity & Temperature Transmitter with Profinet Interface

The Checkline RMS-TD-PROFINET Temperature & Humidity Transmitter with Profinet Interface comes with a cabled sensor for Humidity and Temperature, designed for maximum temperatures of 90°C
For recording and transmitting relative humidity and temperature in permanent installations. The cabled sensor used make it possible to quickly and reliably detect even small fluctuations in humidity and their tendencies and to carry out preventative actions.
The remote sensor head enables flexible installation options even in installation locations that are difficult to access.

The RMS-TD Transmitter Series from Checkline Europe are optimally suited for this purpose.
A 100mm long robust sensor tube (Ø 12mm) made of stainless steel with a screwed-on sensor cap, offset on a 0.25-meter-long cable, expands the applications of the RMS-TD-PROFINET temperature and humidity transducer.
Various sensor caps (steel sinter, bronze sinter, plastic with or without filter paper, etc.) are available as optional accessories.

Humidity and temperature values are output by default via analog 4-20mA current output.

An additional enhancement of capabilities is provided by an optional display, where current humidity and temperature values can be read.

Two optional relay outputs enable the direct control of, for example, alarms or ventilation directly from the humidity and temperature transducer. These switching outputs can be freely configured directly on the RMS-TD-PROFINET humidity transducer (switching points, hysteresis).

Effortless integration into an existing system is guaranteed by the supplied 190 cm long connection cable, including molded, robust sensor connector (on the sensor side).
The second side of the cable is provided with cable lugs for easy connection, for example, in a control cabinet.

The capacitive humidity sensor used ensures long-term stable and accurate measurement results and is resistant to normal contamination and many chemicals. The sensors built into the humidity transducers also stand out for their very rapid response behavior.

The high measurement accuracy of the Checkline's RMS-TD series is ensured through factory calibration at six humidity points.

Optional accessories:

Display for RMS-TD
Display with keypad
Relay output for moisture
Mounting bracket
Brass sinter sensor cap
Drip-catcher
Stainless steel lattice filter
Custom-made design - flat rate for air humidity transmitter series per order
Factory calibration certificate, calibration equipment, certified calibration ampoules and reference devices - for continuous monitoring

€ 1.670,00

Shop now

Temperature range: max. 90 °C
Output Profinet / RJ45 plug
Cabled sensor
Stainless steel sensor tube - Ø12 x 125mm

RMS-TD Profinet
Connecting cable of 1.9 m length
Operating manual

Output	Profinet / RJ45 plug
Relative Humidity	0 to 100%
Accuracy Moisture	+/- 2% (10 to 90%)
Output Moisture	4 to 20 mA (0 to 100%)
Temperature Range	-20 to +90 °C
Accuracy Temperature	+/- 0,3 °C (+10 to +60 °C)
Output Temperature	4 to 20 mA (-20 to +90 °C)
Power Supply	12 to 29VDC
Temperature electronics	-20 to +85 °C
Dimensions Electronics Housing	70x52x216 mm
Dimensions Sensor	Ø12 x 125 mm made of stainless steel
Warranty	1 year

RMS-TD-PROFINET

Products

Item	Product	Price	Quantity	Action
138041	RMS-TD-PROFINET - Humidity & Temperature Transmitter with Profinet Interface	€ 1.670,00

Accessories

Item	Product	Price
132003	CAL-UNIT-TUBE - Calibration adapter for tube sensor	€ 198,00
138112	RH-CAL-AMPVAR - Certified calibration ampoules 2x35%, 1x50%, 2x80%	€ 114,00
138113	RH-CAL-AMP50 - Certified calibration ampoules 5 x50%	€ 114,00
139298	Drip-protection for RMS-TD transmitter	€ 16,00
139299	Angle bracket for RMS-TD	€ 37,00

All mentioned prices are excluding VAT & excluding shipment costs.
