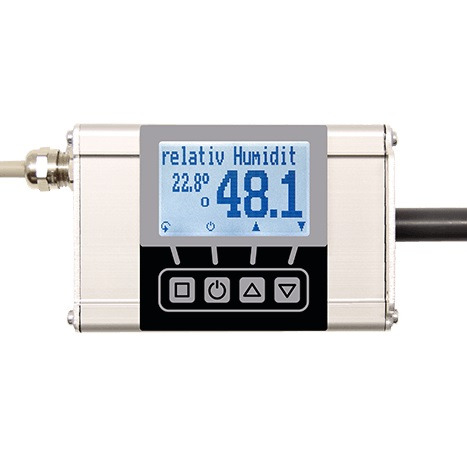

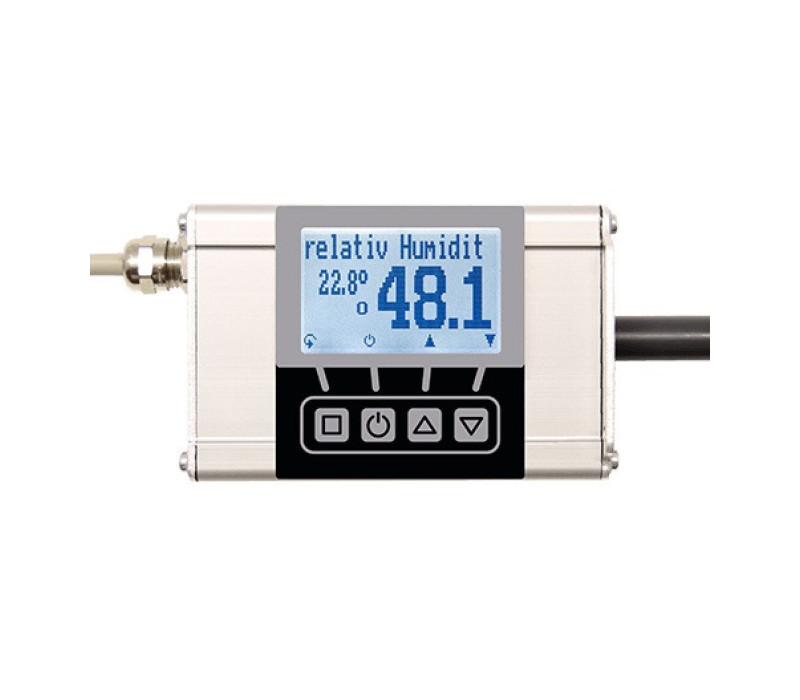

139303 - Optional Display with keyboard for RMS-TD

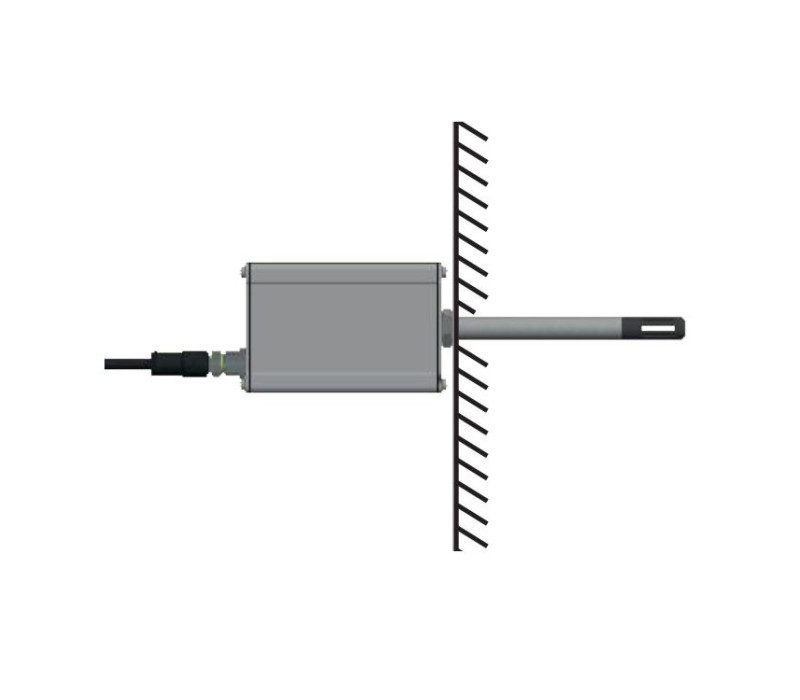

Mounting of RMS-TD-90

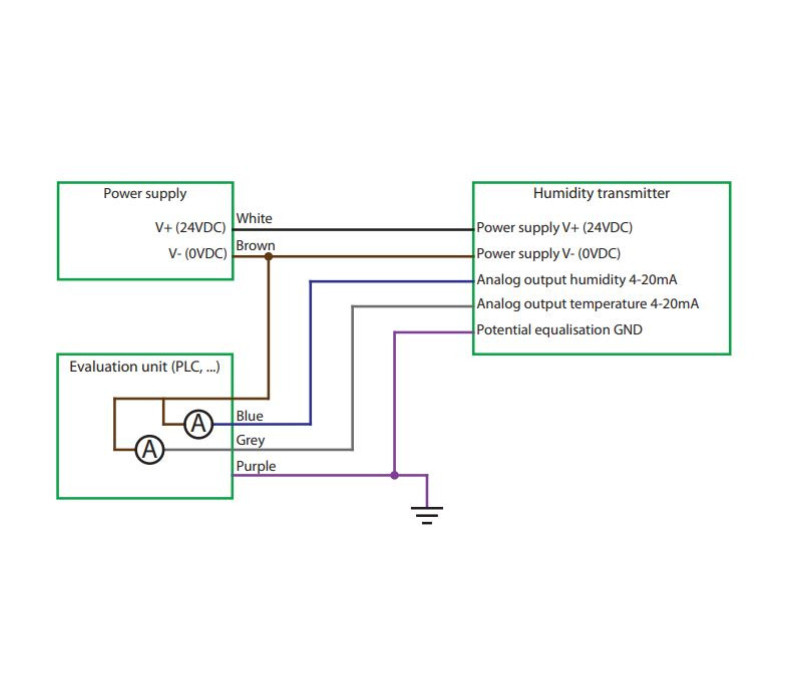

Wiring Diagram

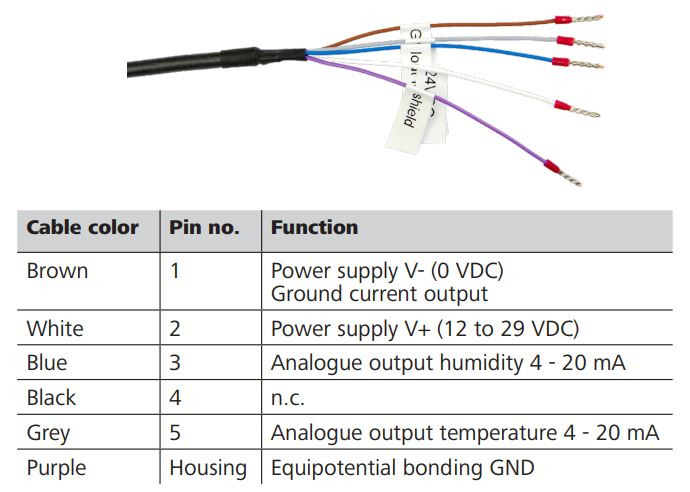

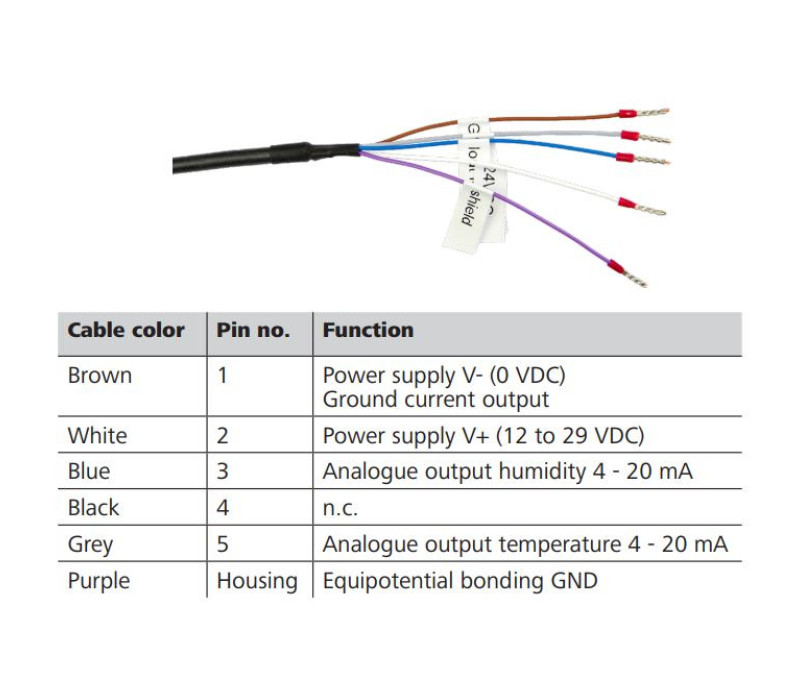

Pin Assignment

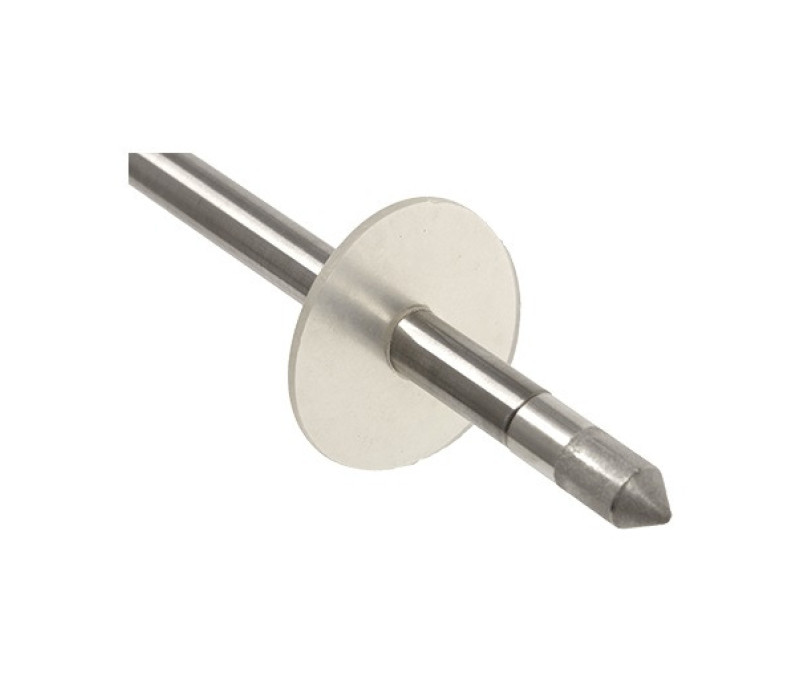

139298 - Drip-protector

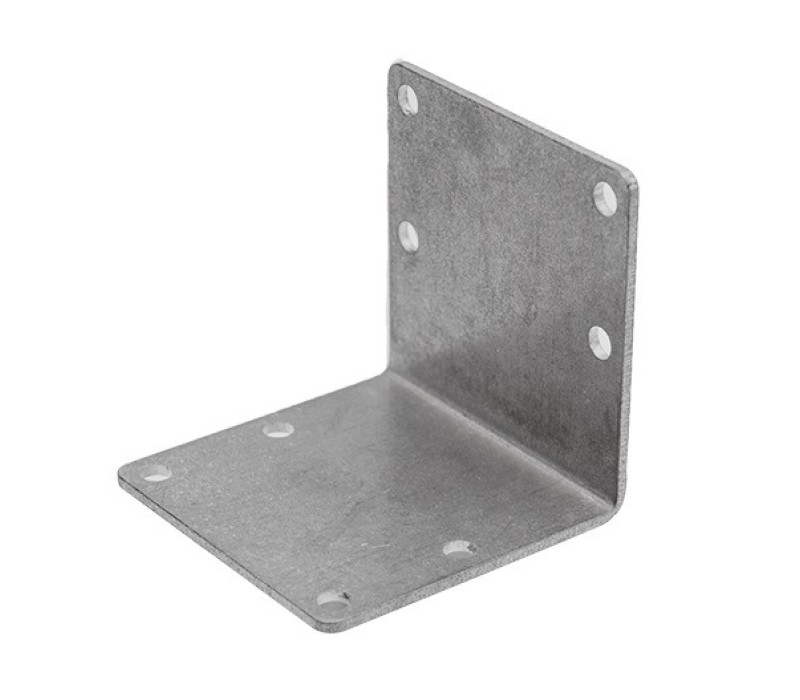

139299 - Angle bracket

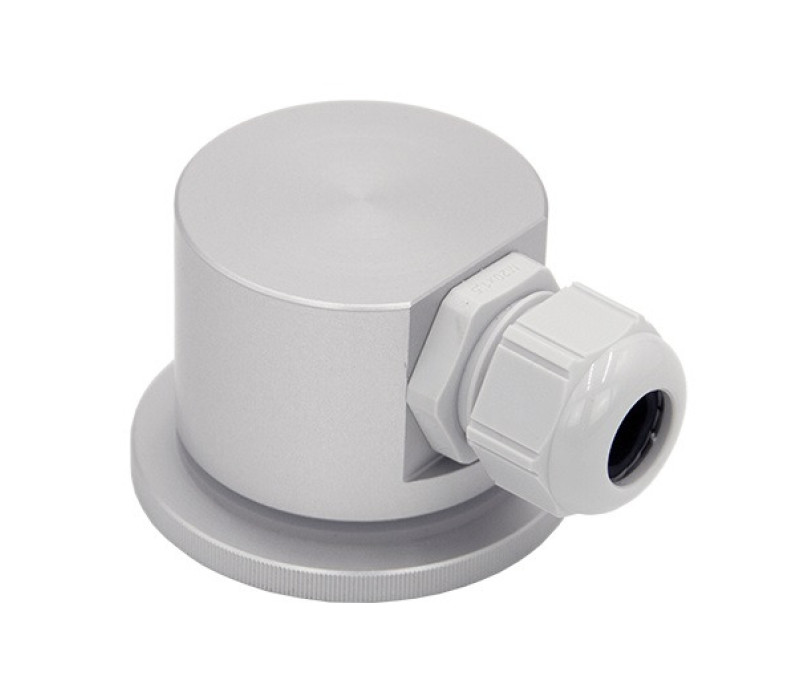

132003 - CAL-UNIT-TUBE - Calibration equipment for tube sensor

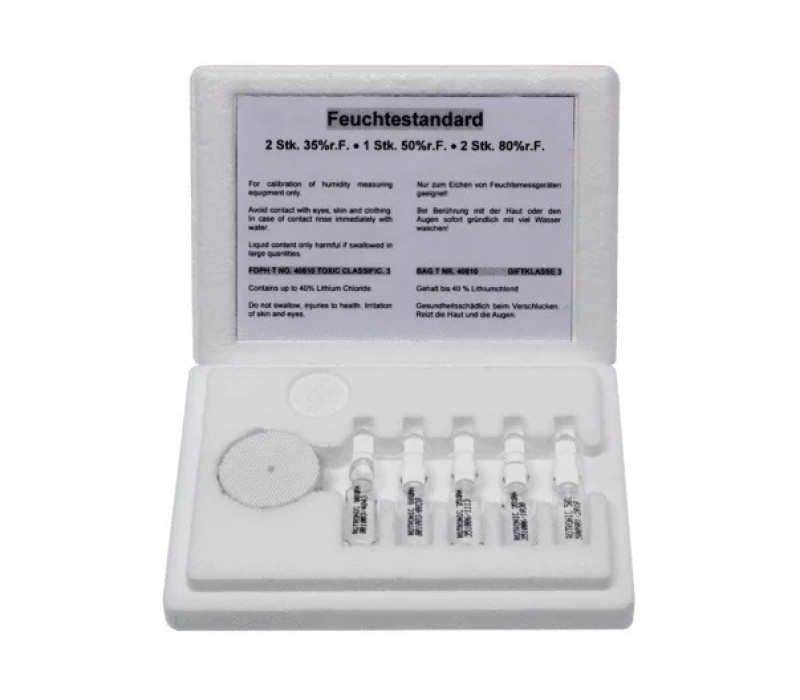

138112 - RH-CAL-AMPVAR - Certified calibration ampoules 2x35%, 1x50%, 2x80%

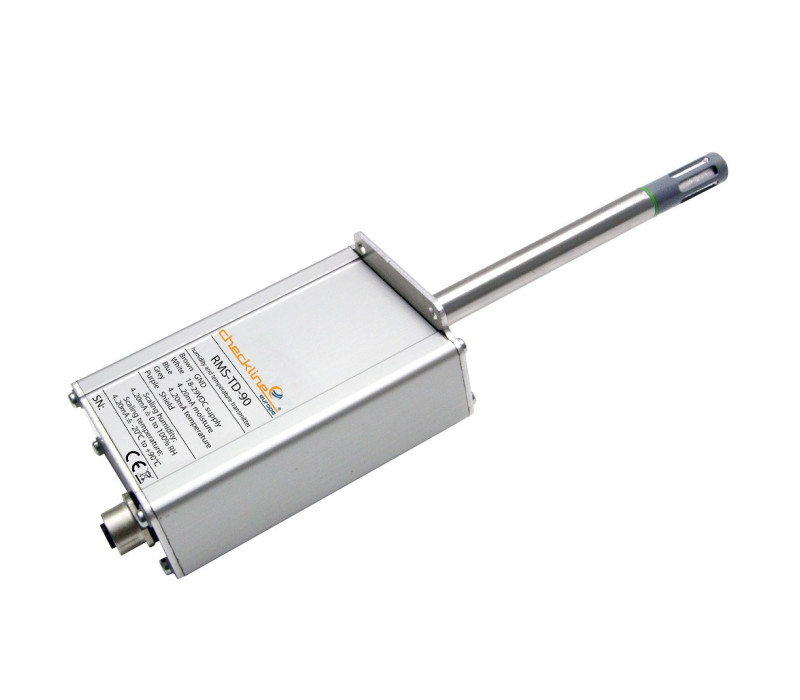

RMS-TD-90 Digital Humidity & Temperature Transmitter

The Checkline RMS-TD-90 Digital Humidity-Temperature Transmitter designed for monitoring relative moisture and temperature. The RMS-TD-90 Industrial measuring transducer can be used for temperatures for up till max. 90°C, The RMS-TD transmitter series from Checkline Europe have a robust and easy-to-install aluminum housing. They make it possible to detect even small fluctuations in humidity and their tendencies quickly and reliably so that preventive actions can be taken.

The RMS-TD-90 has a 125mm long robust sensor tube (Ø 12mm) made of stainless steel with a screwed-on sensor cap. Various sensor caps (steel sinter, bronze sinter, plastic with or without filter paper and much more) are available as optional accessories.

For applications for laboratory, climate control and drying technology, wood processing industry, food and animal feed industry, building industry, printing and paper industry, agriculture, biotechnology and pharmaceutical industry

In the manufacturing process, subsequent processing, storage, and transportation, precise determination of moisture and temperature becomes increasingly crucial. Only accurate moisture monitoring can ensure high product quality.

By default, the humidity and temperature values are output via an analog 4-20mA current output.
Optionally available:

Other interfaces such as RS232, Profinet, Modbus or USB.
Relay outputs (max: 2) enable direct control of, for example, alarms or ventilation. These switching outputs can be connected directly to the RMS-TD humidity sensors can be freely configured. (switching points, hysteresis)

€ 557,00

Order now

Temperature range: max. 90 °C
Analog output (optional: interfaces such as RS232, Ethernet or USB)
Stainless steel sensor tube - Ø12 x 125 mm

RMS-TD 90
Connecting cable of 1.9 m length
Operating manual

Output	Analog output
Relative Humidity	0 to 100%
Accuracy Moisture	+/- 2% (10 to 90%)
Output Moisture	4 to 20mA (0 to 100%)
Temperature Range	-20 to +90 °C
Accuracy Temperature	+/- 0,3 °C (+10 to +60 °C)
Output Temperature	4 to 20 mA (-20 to +90 °C)
Power supply	12 to 29VDC
Temperature electronics	-20 to +85 °C
Dimensions Electronics Housing	70 x 32 x 120 mm
Dimensions Sensor	Stainless steel sensor tube / Ø12 x 125 mm
Optional interfaces	RS232, USB, Ethernet
Warranty	1 year

Products

Item	Product	Price	Quantity	Action
133563	RMS-TD-90 - Humidity & Temperature Transmitter	€ 557,00

Accessories

Item	Product	Price
132003	AP-CAL-UNIT-TUBE - Calibration adapter for tube sensor	€ 198,00
138112	RH-CAL-AMPVAR - Certified calibration ampoules 2x35%, 1x50%, 2x80%	€ 114,00
138113	RH-CAL-AMP50 - Certified calibration ampoules 5 x50%	€ 114,00
139298	Drip-protection for RMS-TD transmitter	€ 16,00
139299	AP-Angle bracket	€ 37,00
139300	RS232 interface for RMS-TD	€ 223,00
139301	USB interface for RMS-TD	€ 186,00
139302	Ethernet interface for RMS-TD	€ 434,00
139303	RMS-TD-DISPLAY - Optional display with keyboard for RMS-TD Transmitters	€ 223,00
139304	Relay output for moisture for RMS-TD	€ 242,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
