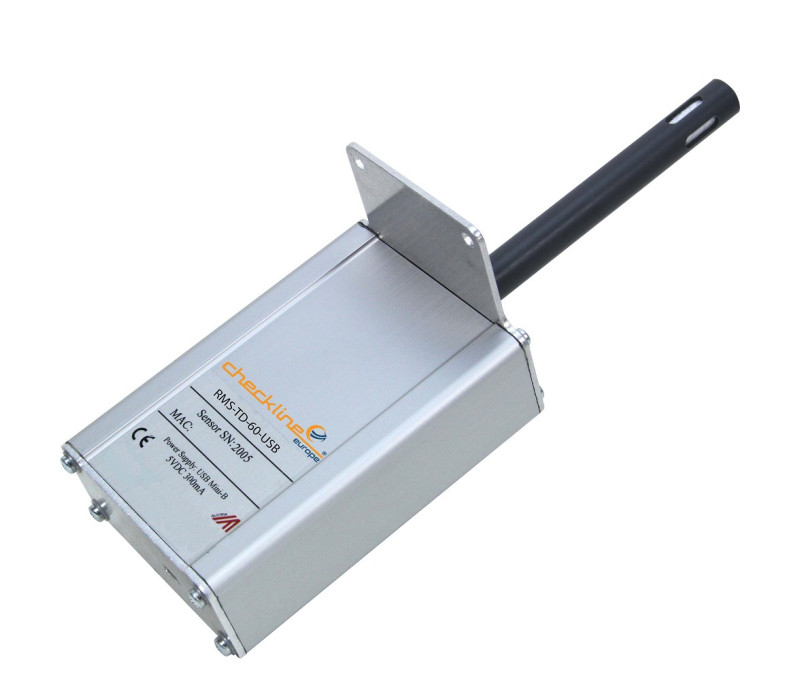

RMS-TD-60-USB Digital Humidity & Temperature Transmitter with USB Interface

The Checkline RMS-TD-60-USB with a Mini USB-B output for moisture & temperature, is designed for monitoring relative moisture and temperature.
The RMS-TD-60-USB with a robust stainless steel sensor tube (Ø12 x 100 mm) Digital Humidity-Temperature Transmitter for maximum temperatures of 60°C, makes it possible to detect even small fluctuations in humidity and their tendencies quickly and reliably so that preventive actions can be taken.

The connection can be easily established via the supplied USB mini-B cable.

For applications in:

Laboratories, climate control, drying technology
Wood processing Industrie
Food Industrie
Construction,
Paper industry
Printing,
Agriculture
Biotechnology

In the manufacturing process, subsequent processing, storage, and transportation, precise determination of moisture and temperature becomes increasingly crucial. Only accurate moisture monitoring can ensure high product quality.

Optional available are several accessories & possible add-ons:

Calibration equipment for tube sensor
Certified calibration ampoules - set of 5: 2 units with 35 % RH, 1 unit with 50 % RH, 2 units with 80 % RH
Drip-protection for RMS-TD transmitter
Angle bracket for RMS-TD
HumiSenseWare RMS-TD Standard-Licence Live Trend
HumiSenseWare RMS-TD Option Data Management and Recording
HumiSenseWare optional package for integration of 3 additional sensors

€ 322,00

Order now

Temperature range: max. 60 °C
Output via USB
Stainless steel sensor tube - Ø12 x 100 mm

RMS-TD-60-USB
(without cable and power supply unit)

Output of moisture and temperature	USB mini-B socket
Relative Humidity	0 to 100%
Accuracy Moisture	+/- 2% (10 to 90%)
Temperature Range	-20 to +60 °C
Accuracy Temperature	+/- 0,3 °C (+10 to +60 °C)
Dimensions Sensor	Stainless steel sensor tube / Ø12 x 100 mm
Power supply	5VDC 20mA (via USB-mini B)

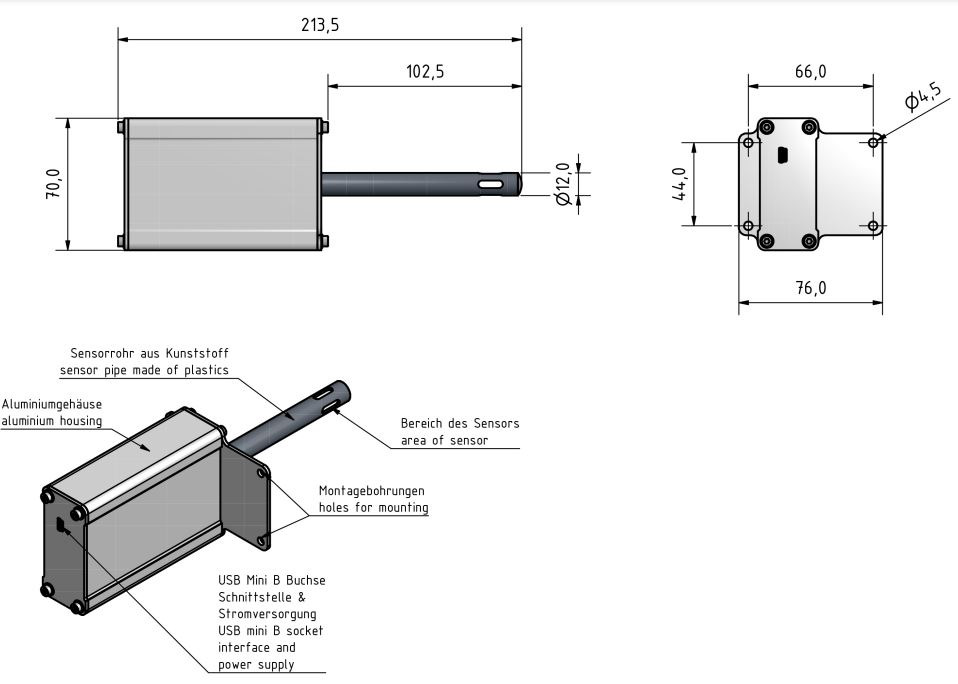

Dimensions	214 x 76 x 70 mm
Degree of protection electronics housing	IP40
Warranty	1 year

Products

Item	Product	Price	Quantity	Action
139289	RMS-TD-60-USB - Humidity & Temperature Transmitter with USB Interface	€ 322,00

Accessories

Item	Product	Price
133664	Factory calibration certificate adjustment report at delivery for new humidity meters - 10403	€ 136,00

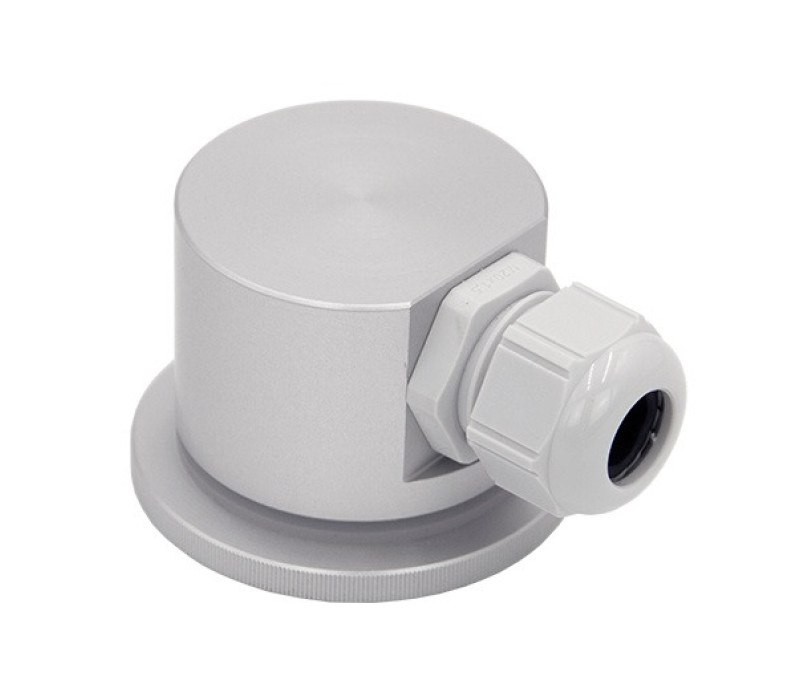

132003	AP-CAL-UNIT-TUBE - Calibration adapter for tube sensor	€ 198,00

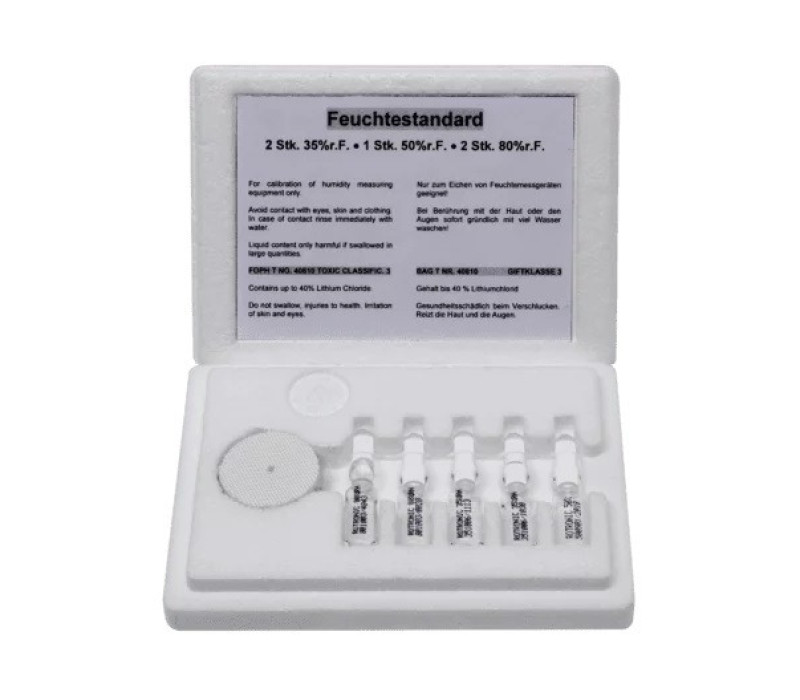

138112	RH-CAL-AMPVAR - Certified calibration ampoules 2x35%, 1x50%, 2x80%	€ 114,00
138113	RH-CAL-AMP50 - Certified calibration ampoules 5 x50%	€ 114,00

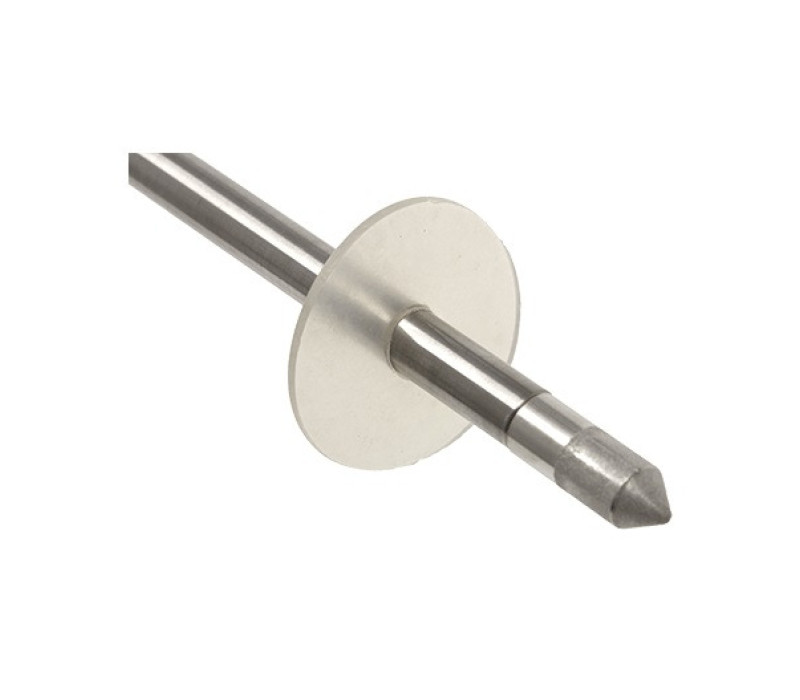

139298	Drip-protection for RMS-TD transmitter	€ 16,00

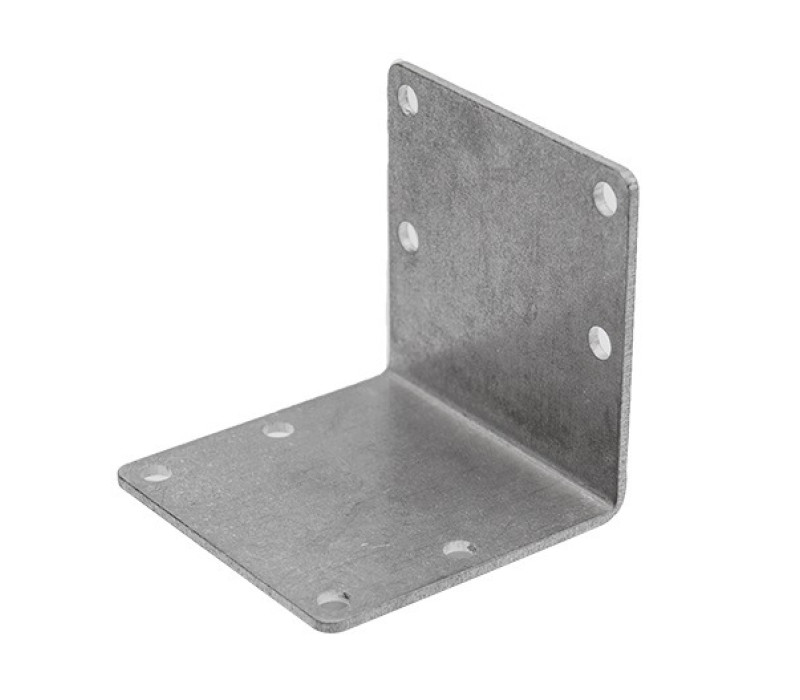

139299	AP-Angle bracket	€ 37,00
137073	USB - Power Supply Adapter 1A/5W/1 Port - EU version	€ 4,00
137435	CB-209-5M USB Data Output Cable (for DID, DIW) 5m	€ 7,50
133759	USB Data Output Cable - A to Mini USB - 1,0 m	€ 15,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
