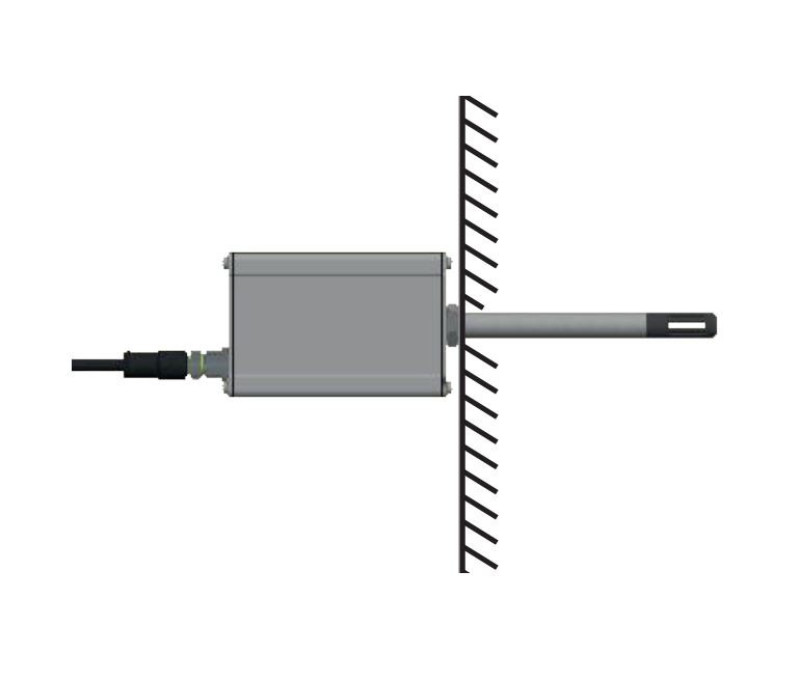

Mounting of RMS-TD-60

132003 - CAL-UNIT-TUBE - Calibration equipment for tube sensor

138112 - RH-CAL-AMPVAR - Certified calibration ampoules 2x35%, 1x50%, 2x80%

139298 - Drip-protector

139299 - Angle bracket

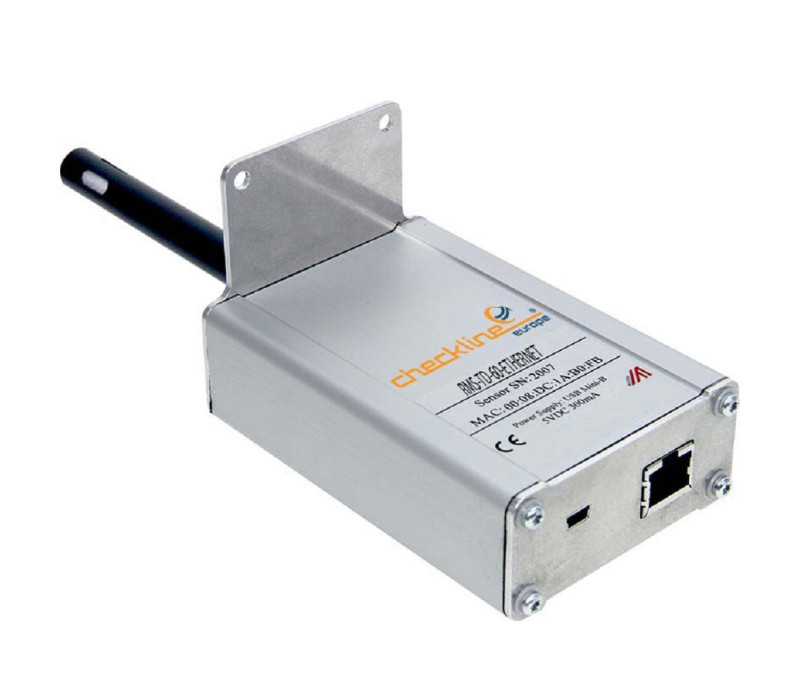

RMS-TD-60-ETHERNET Digital Humidity & Temperature Transmitter with Ethernet Interface

The Checkline RMS-TD-60-ETHERNET Industrial measuring transducer with a output of moisture & temperature via an Ethernet connection ,is designed for monitoring relative moisture and temperature.
The RMS-TD-60-ETHERNET with a robust stainless steel sensor tube (Ø12 x 100 mm) Digital Humidity-Temperature Transmitter for maximum temperatures of 60°C, makes it possible to detect even small fluctuations in humidity and their tendencies quickly and reliably so that preventive actions can be taken.

For applications for laboratory, climate control and drying technology, wood processing industry, food and animal feed industry, building industry, printing and paper industry, agriculture, biotechnology and pharmaceutical industry

In the manufacturing process, subsequent processing, storage, and transportation, precise determination of moisture and temperature becomes increasingly crucial. Only accurate moisture monitoring can ensure high product quality.

Optional available are several accessories & possible add-ons:

Calibration equipment for tube sensor

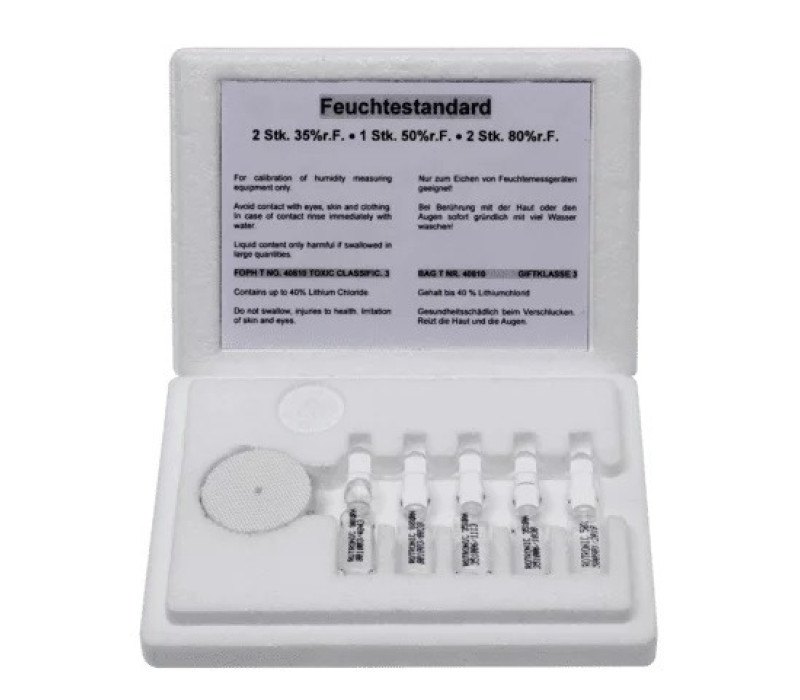

Certified calibration ampoules - set of 5: 2 units with 35 % RH, 1 unit with 50 % RH, 2 units with 80 % RH
Drip-protection for RMS-TD transmitter

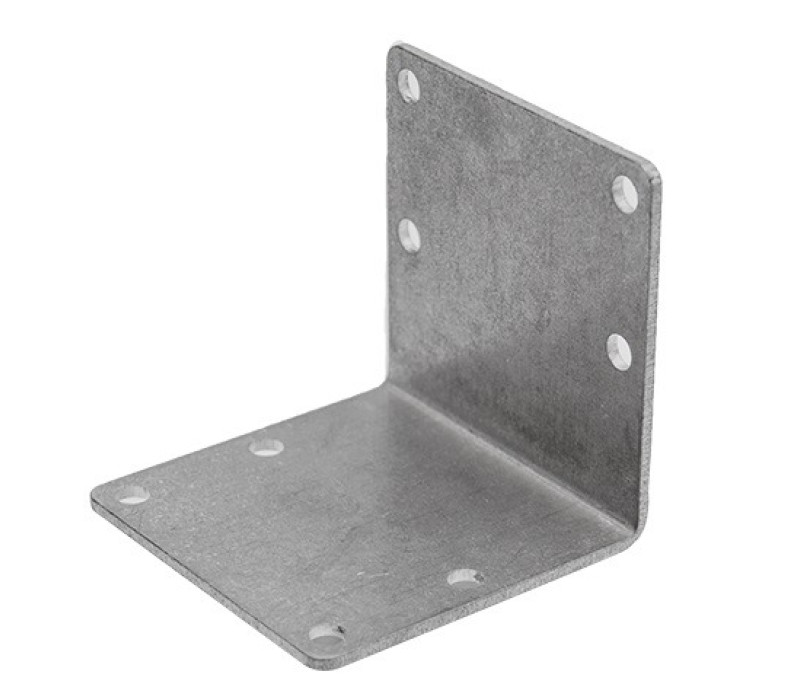

Angle bracket for RMS-TD
HumiSenseWare RMS-TD Standard-Licence Live Trend
HumiSenseWare RMS-TD Option Data Management and Recording
HumiSenseWare optional package for integration of 3 additional sensors

€ 355,00

Order now

Temperature range: max. 60 °C
Output via Ethernet
Stainless steel sensor tube - Ø12 x 100 mm

RMS-TD-60-ETHERNET
(without cable and power supply unit)

Output	Ethernet (RJ45 connector)
Relative Humidity	0 to 100%
Accuracy Moisture	+/- 2% (10 to 90%)
Temperature Range	-20 to +60 °C
Accuracy Temperature	+/- 0,3 °C (+10 to +60 °C)
Dimensions Sensor	Stainless steel sensor tube / Ø12 x 100 mm
Power supply	5VDC 300 mA (via USB Mini B socket)
Dimensions	214 x 76 x 70 mm
Degree of protection electronics housing	IP40
Warranty	1 year

Products

Item	Product	Price	Quantity	Action
139287	RMS-TD-ETHERNET - Humidity & Temperature Transmitter with Ethernet Interface	€ 355,00

Accessories

Item	Product	Price
132003	AP-CAL-UNIT-TUBE - Calibration adapter for tube sensor	€ 198,00
138112	RH-CAL-AMPVAR - Certified calibration ampoules 2x35%, 1x50%, 2x80%	€ 114,00
138113	RH-CAL-AMP50 - Certified calibration ampoules 5 x50%	€ 114,00
139298	Drip-protection for RMS-TD transmitter	€ 16,00
139299	AP-Angle bracket	€ 37,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
