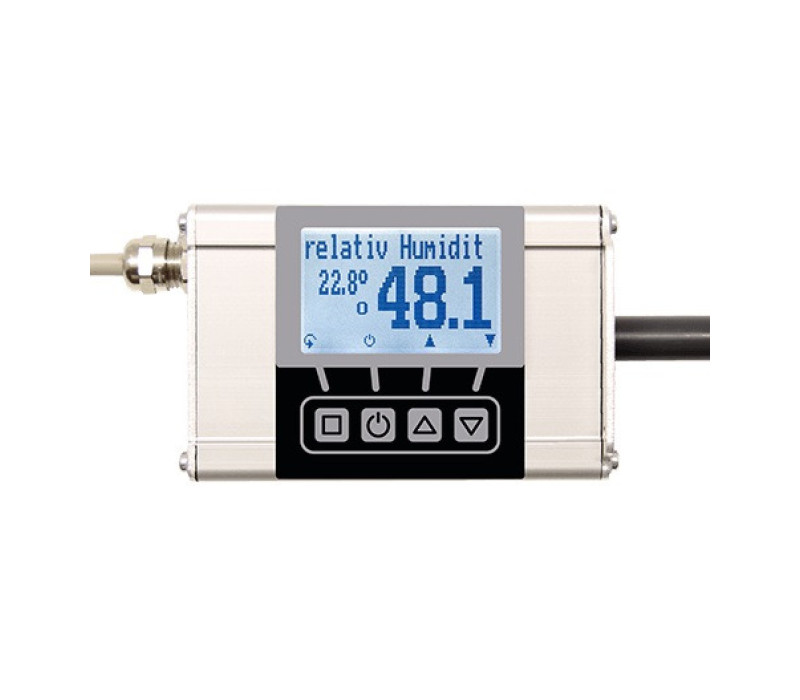

139303 - Display with keyboard for RMS-TD

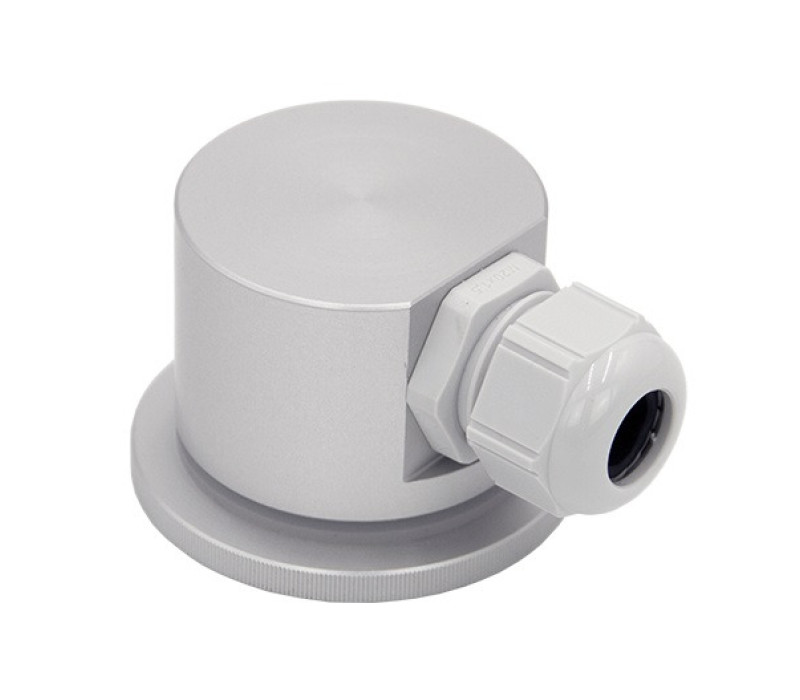

132003 - CAL-UNIT-TUBE - Calibration equipment for tube sensor

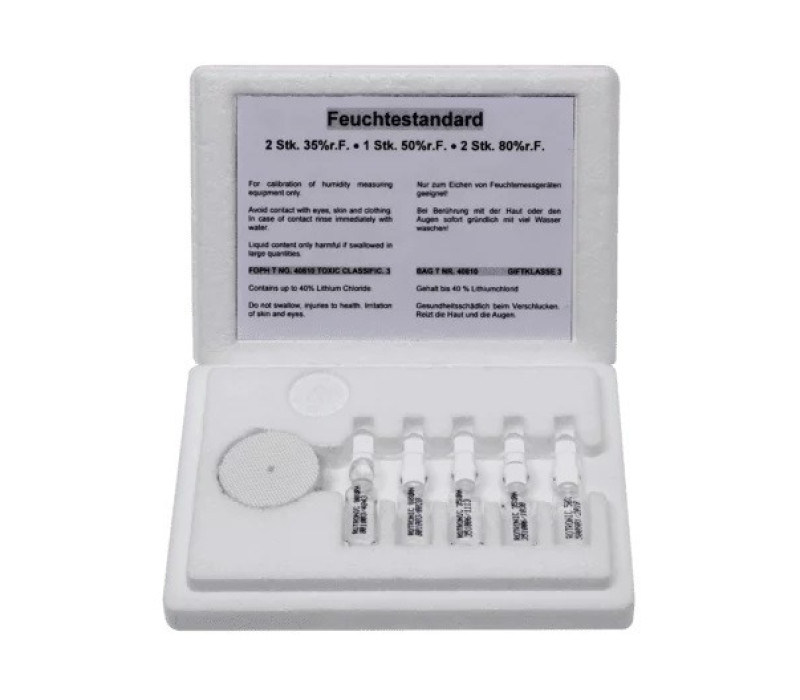

138112 - RH-CAL-AMPVAR - Certified calibration ampoules 2x35%, 1x50%, 2x80%

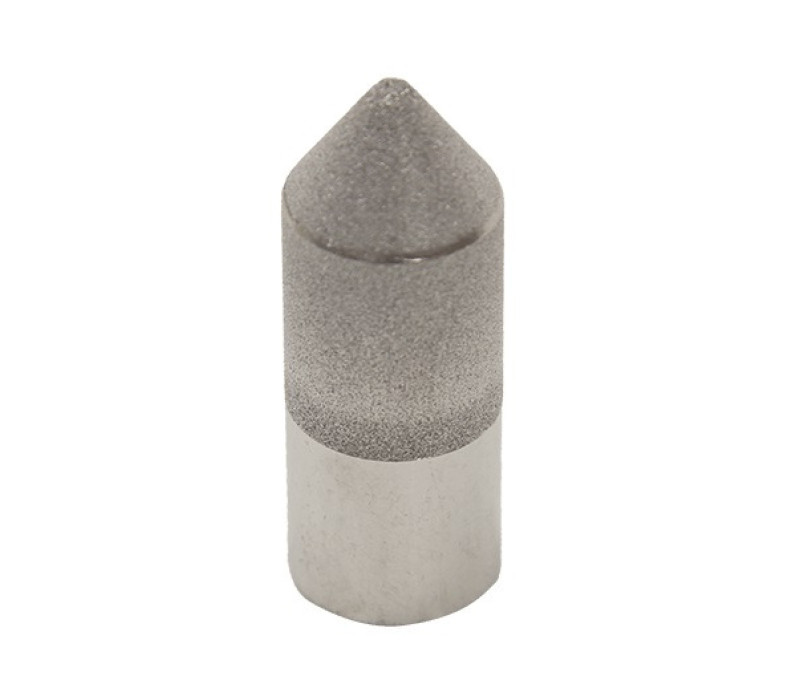

132002-Stainless Steel Sinter Sensor Cap

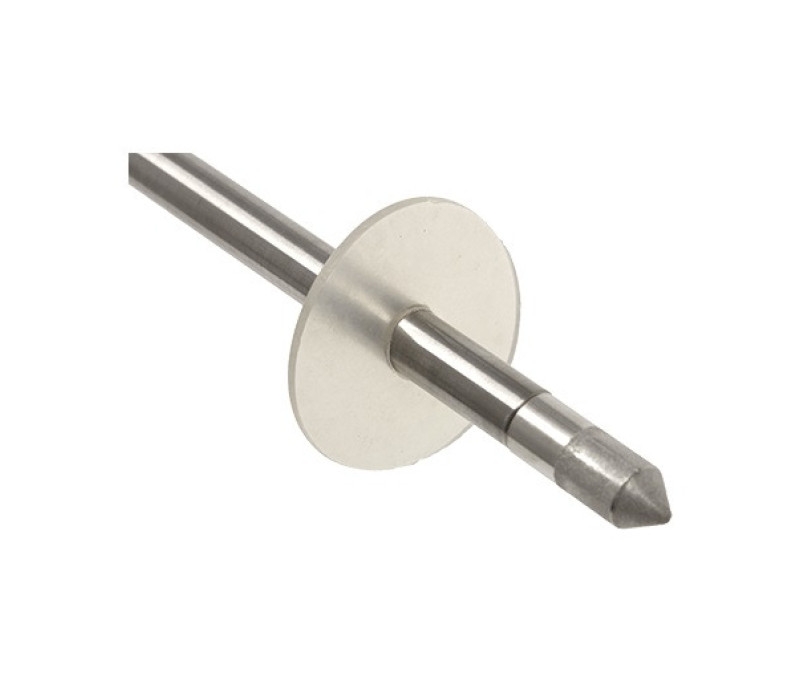

139298 - Drip-protector

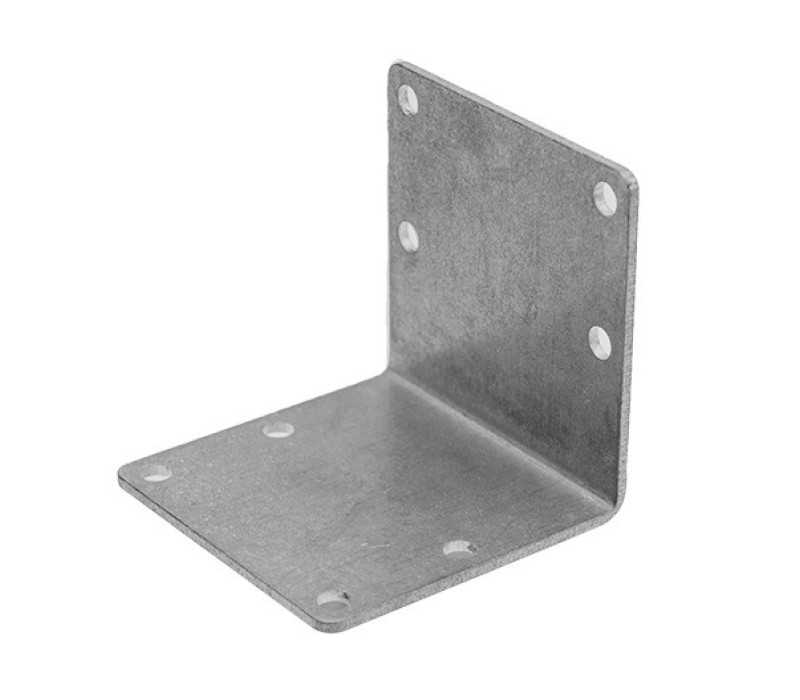

139299 - Angle bracket

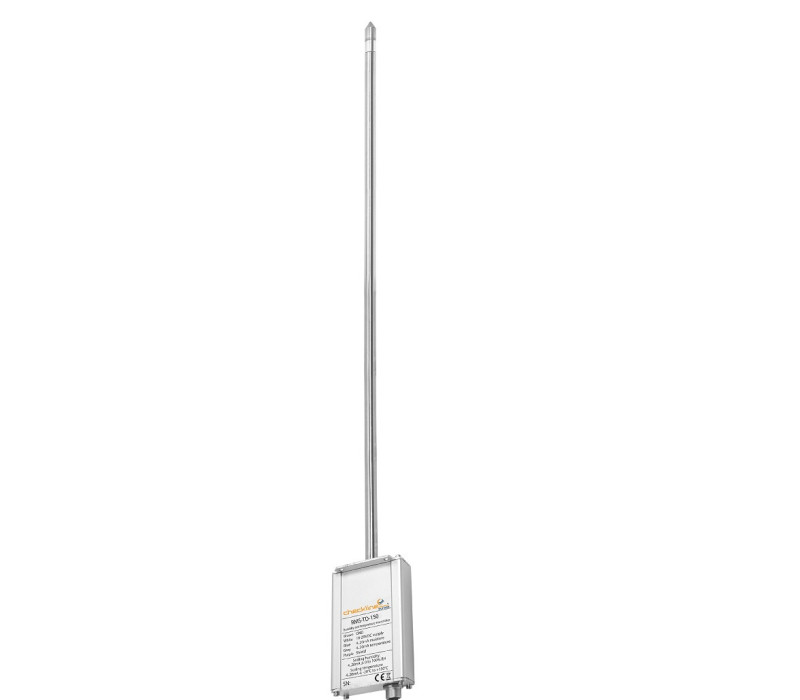

RMS-TD-150 Digital Humidity & Temperature Transmitter

Checkline's series RMS-TD Industrial Transducer for Humidity and Temperature

The Checkline RMS-TD-150 Humidity transmitter designed for maximum temperatures of 150°C, The RMS-TD series is housed in a robust and easy-to-mount aluminum casing.
Especially for use in

Laboratories, climate control, drying technology
Wood processing industrie
Food industrie
Construction,
Paper industry,
Printing,
Agriculture,
Biotechnology

In manufacturing processes, during further processing, storage, and transportation, the precise measurement of humidity and temperature plays an increasingly crucial role. Only through accurate humidity monitoring can high product quality be ensured.

It has a 750mm long robust sensor tube (Ø 12mm) made of stainless steel with a screwed-on sensor cap, this expands the applications of the RMS-TD-150 temperature and humidity transducer.
Various sensor caps (steel sinter, bronze sinter, plastic with or without filter paper, etc.) are available as optional accessories.

The humidity and temperature values are output via analog 4-20mA current output.
Optionally, other interfaces such as RS232, Profinet, Modbus, or USB can be chosen for the temperature and humidity transducers.

An additional enhancement of capabilities is provided by an optional display, where current humidity and temperature values can be read.

Max. 2 optional relay outputs enable the direct control of, for example, alarms or ventilation directly from the humidity and temperature transducer. These switching outputs can be freely configured directly on the RMS-TD 150 humidity transducer (switching points, hysteresis).

The high measurement accuracy of the RMS-TD series is ensured through factory calibration at six humidity points. A calibration certificate is available upon request.

€ 893,00

Order now

Temperature range: max. 150 °C
Analog output (optional: interfaces such as RS232, Ethernet or USB)
Stainless steel sensor tube - Ø12 x 750 mm

RMS-TD-150
Connecting cable of 1.9 m length
Operating manual

Output	Analog output
Relative Humidity	0 to 100%
Accuracy Moisture	+/- 2% (10 to 90%)
Output Moisture	4 to 20mA (0 to 100%)
Temperature Range	-20 to +150 °C
Accuracy Temperature	+/- 0,3 °C (+10 to +60 °C)
Output Temperature	4 to 20 mA (-20 to +150 °C)
Power supply	12 to 29VDC
Temperature electronics	-20 to +85 °C
Dimensions Electronics Housing	70 x 32 x 120 mm
Dimensions Sensor	Stainless steel sensor tube / Ø12 x 750 mm
Optional interfaces	RS232, USB, Ethernet
Warranty	1 year

Products

Item	Product	Price	Quantity	Action
134908	RMS-TD-150 - Humidity & Temperature Transmitter	€ 893,00

Accessories

Item	Product	Price
132003	AP-CAL-UNIT-TUBE - Calibration adapter for tube sensor	€ 198,00
138112	RH-CAL-AMPVAR - Certified calibration ampoules 2x35%, 1x50%, 2x80%	€ 114,00
138113	RH-CAL-AMP50 - Certified calibration ampoules 5 x50%	€ 114,00
139298	Drip-protection for RMS-TD transmitter	€ 16,00
139299	AP-Angle bracket	€ 37,00
139300	RS232 interface for RMS-TD	€ 223,00
139301	USB interface for RMS-TD	€ 186,00
139302	Ethernet interface for RMS-TD	€ 434,00
139303	RMS-TD-DISPLAY - Optional display with keyboard for RMS-TD Transmitters	€ 223,00
139304	Relay output for moisture for RMS-TD	€ 242,00
132002	Humi-Sensor-Cap Stainless Steel Sinter Sensor Cap	€ 45,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
