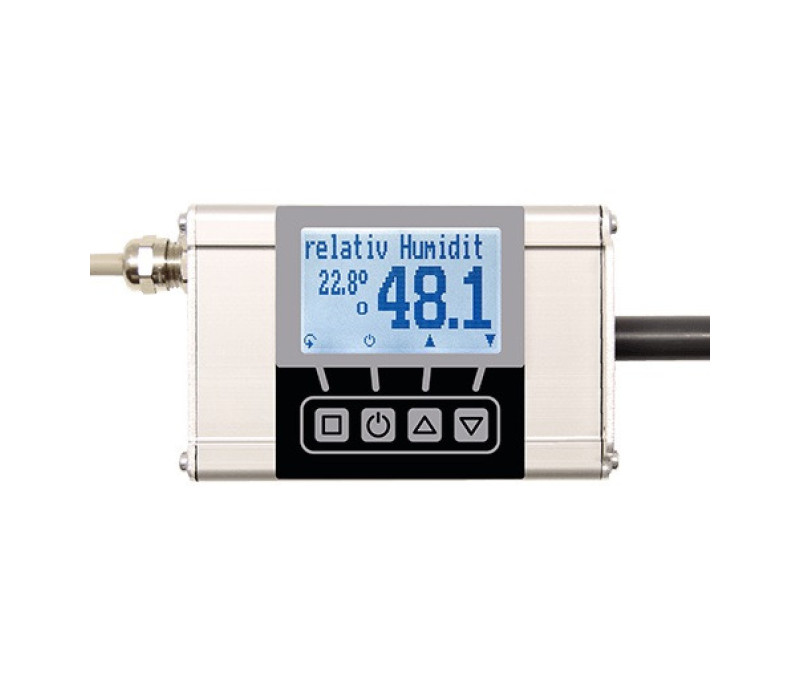

139303 - Optional Display with keyboard for RMS-TD

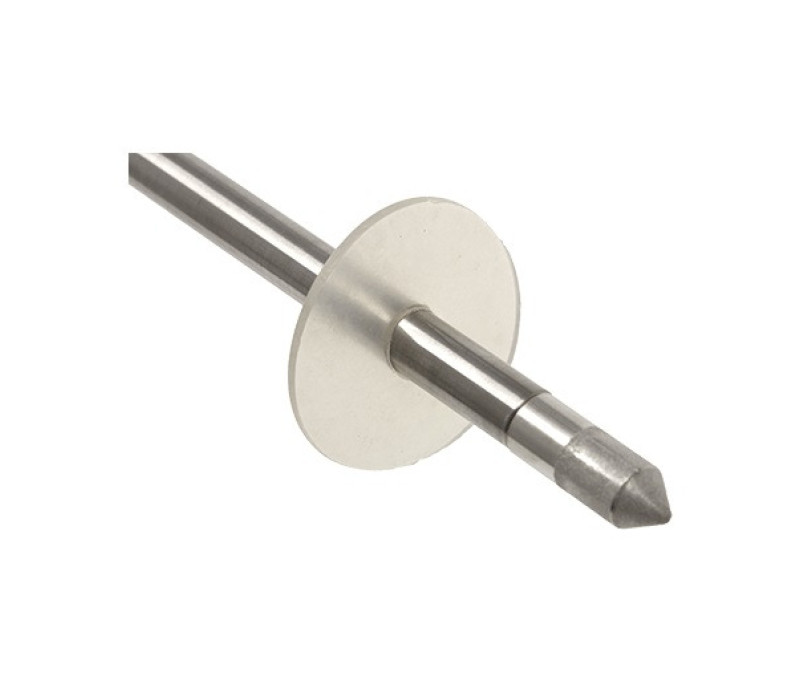

139298 - Drip-protector

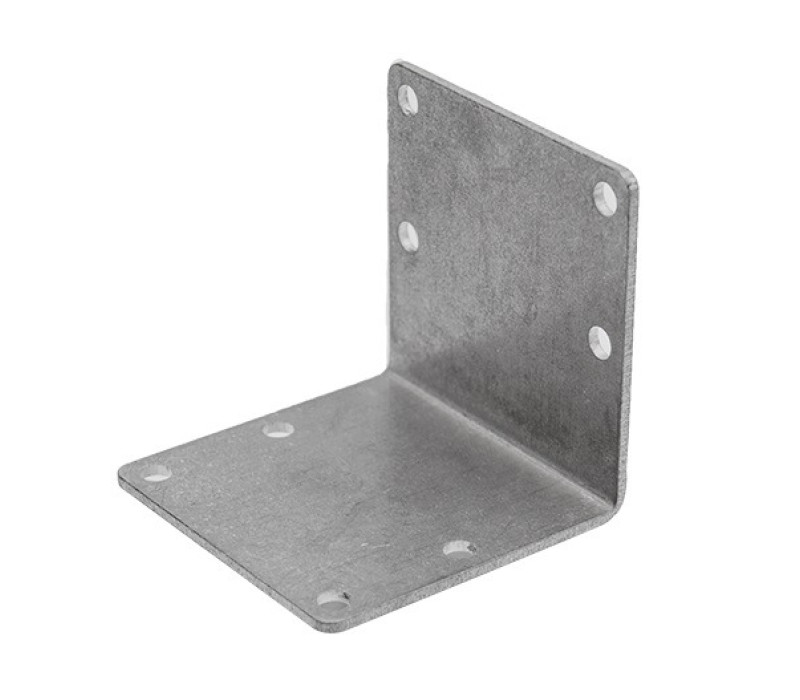

139299 - Angle bracket

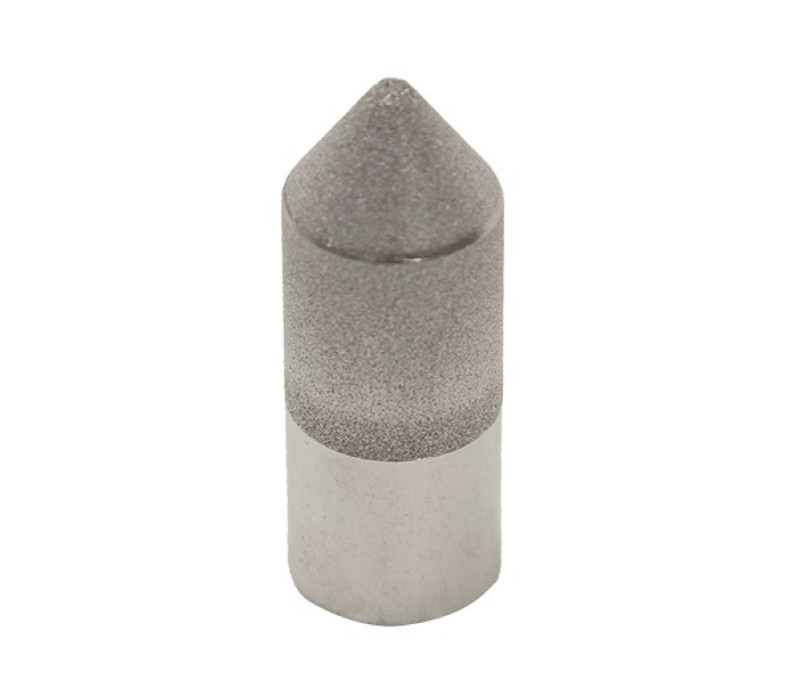

132002-Stainless Steel Sinter Sensor Cap

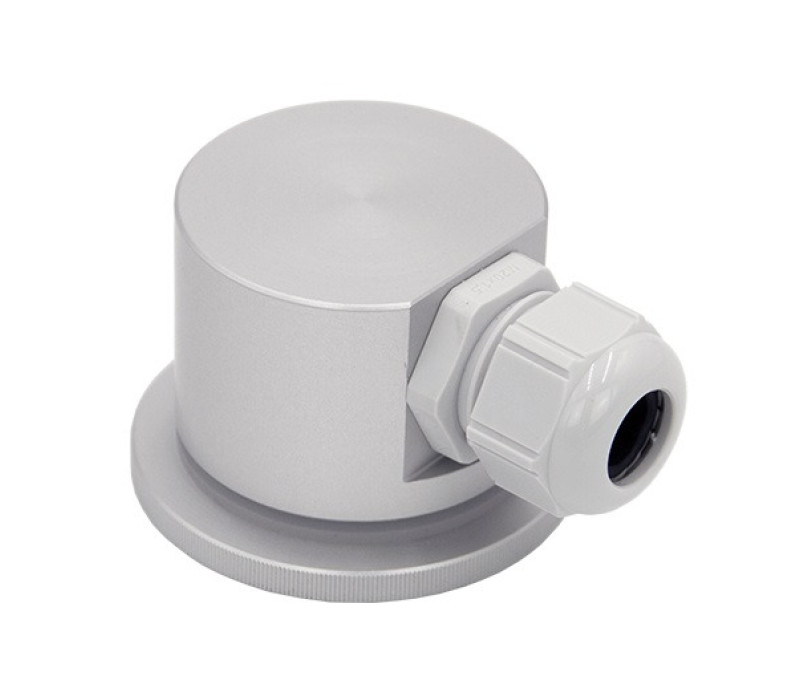

132003 - CAL-UNIT-TUBE - Calibration equipment for tube sensor

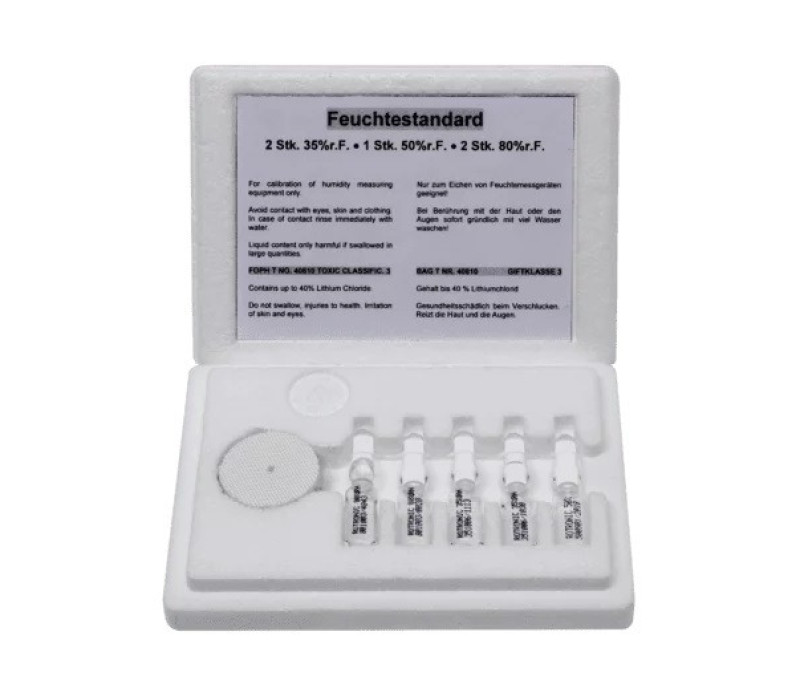

138112 - RH-CAL-AMPVAR - Certified calibration ampoules 2x35%, 1x50%, 2x80%

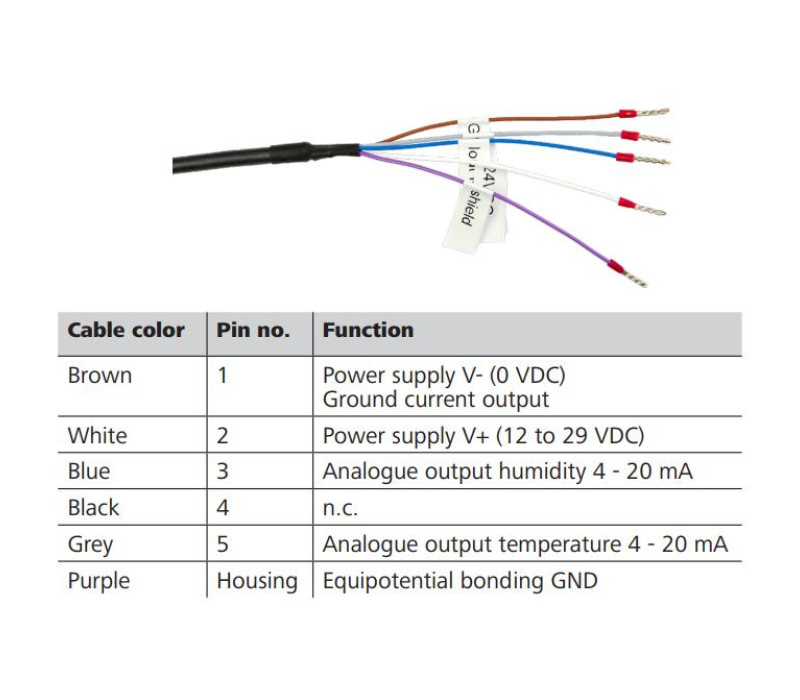

Pin assigment

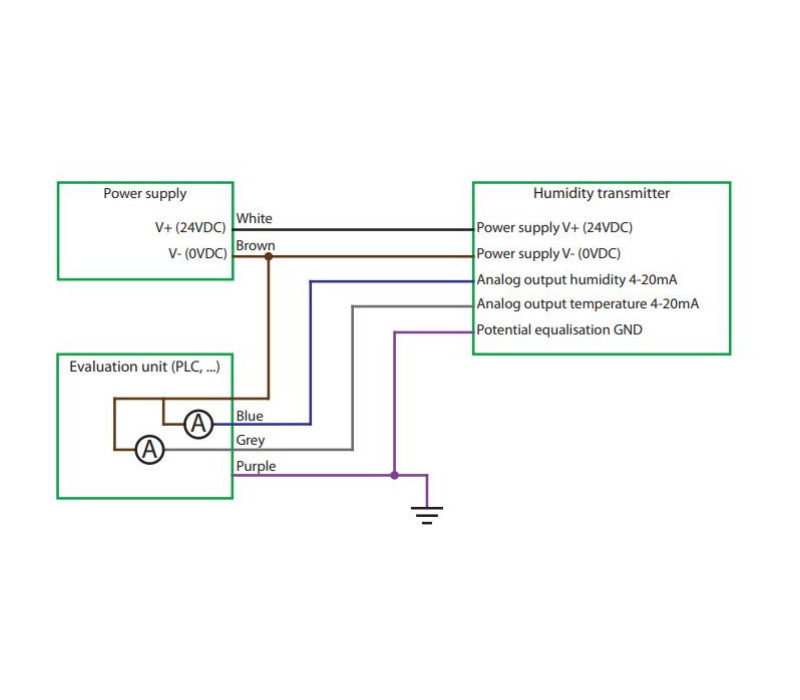

Wiring diagram

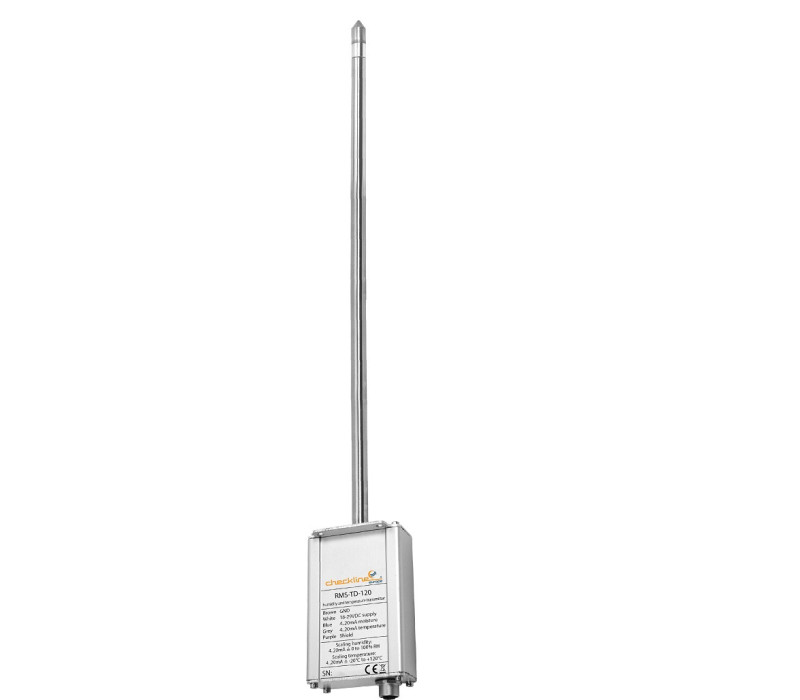

RMS-TD-120 Digital Humidity & Temperature Transmitter

Name: RMS-TD-120 Digital Humidity & Temperature Transmitter
SKU: 127523
Price: 826.00 EUR
Availability: PreOrder

The RMS-TD-120 Industrial Transmitter for Humidity and Temperature

This Humidity transducer is designed for maximum temperatures of 120°C, suitable for laboratory, climate control, drying technology, wood processing, food, feed, construction, paper industry, printing, agriculture, biotechnology, and medicine.

In manufacturing processes, during further processing, storage, and transportation, the precise measurement of humidity and temperature plays an increasingly crucial role. Only through accurate humidity monitoring can high product quality be ensured.

The RMS-TD-120 transmitter series from Checkline, is designed in a robust and easy-to-mount aluminum casing, is ideally suited for this purpose. The expands the applications. Various sensor caps (steel sinter, bronze sinter, plastic with or without filter paper, etc.) are available as optional accessories.

The humidity and temperature values are output via analog 4-20mA current output. Optionally, other interfaces such as RS232, Profinet, Modbus, or USB can be chosen for the temperature and humidity transmitters.

An additional enhancement of capabilities is provided by an optional display, where current humidity and temperature values can be read.

Two optional relay outputs enable the direct control of, for example, alarms or ventilation. These switching outputs can be freely configured directly on the RMS-TD humidity transmitter (switching points, hysteresis).

The capacitive humidity sensor used ensures long-term stable and accurate measurement results and is resistant to normal contamination and many chemicals.
The sensors built into the humidity transmitters also stand out for their very rapid response behavior.

The high measurement accuracy of the RMS-TD series is ensured through factory calibration at six humidity points. A calibration certificate is optional available upon request.

€ 826,00

Order now

Temperature range: max. 120 °C
Analog output (optional: interfaces such as RS232, Ethernet or USB)
Stainless steel sensor tube - Ø12 x 500 mm

RMS-TD-120
Connecting cable of 1.9 m length
Operating manual

Output	Analog output
Relative Humidity	0 to 100%
Accuracy Moisture	+/- 2% (10 to 90%)
Output Moisture	4 to 20mA (0 to 100%)
Temperature Range	-20 to +120 °C
Accuracy Temperature	+/- 0,3 °C (+10 to +60 °C)
Output Temperature	4 to 20 mA (-20 to +120 °C)
Power supply	12 to 29VDC
Temperature electronics	-20 to +85 °C
Dimensions Electronics Housing	70 x 32 x 120 mm
Dimensions Sensor	Stainless steel sensor tube / Ø12 x 500 mm
Optional interfaces	RS232, USB, Ethernet
Warranty	1 year

RMS-TD-120 Manual

RMS-TD-DISPLAY Option

Products

Item	Product	Price	Quantity	Action
132014	RMS-TD-120 - Humidity & Temperature Transmitter	€ 826,00

Accessories

Item	Product	Price
132003	AP-CAL-UNIT-TUBE - Calibration adapter for tube sensor	€ 198,00
138112	RH-CAL-AMPVAR - Certified calibration ampoules 2x35%, 1x50%, 2x80%	€ 114,00
138113	RH-CAL-AMP50 - Certified calibration ampoules 5 x50%	€ 114,00
139298	Drip-protection for RMS-TD transmitter	€ 16,00
139299	AP-Angle bracket	€ 37,00
139300	RS232 interface for RMS-TD	€ 223,00
139301	USB interface for RMS-TD	€ 186,00
139302	Ethernet interface for RMS-TD	€ 434,00
139303	RMS-TD-DISPLAY - Optional display with keyboard for RMS-TD Transmitters	€ 223,00
132002	Humi-Sensor-Cap Stainless Steel Sinter Sensor Cap	€ 45,00

All mentioned prices are excluding VAT & excluding shipment costs.
