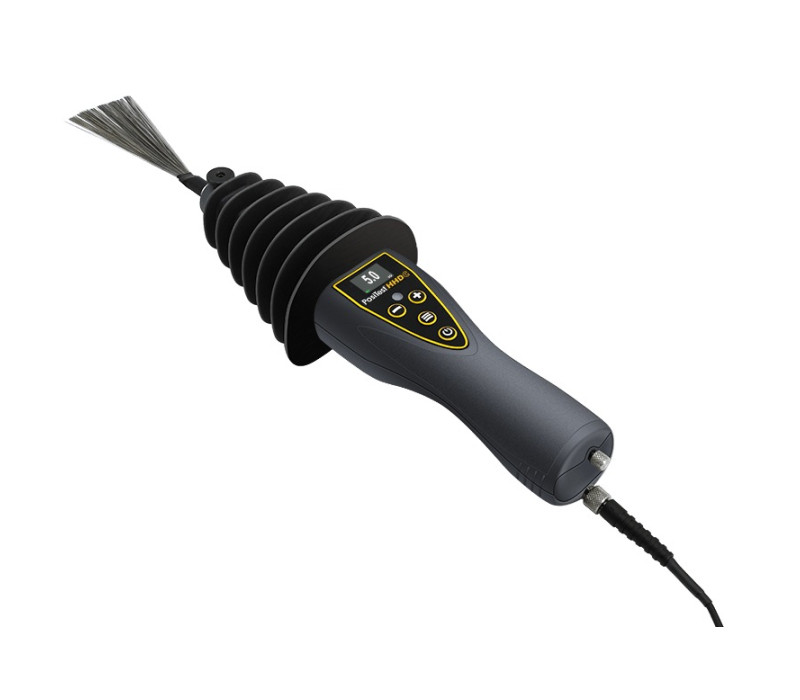

PosiTest HHD-C High Voltage Holiday Detector

Name: PosiTest HHD-C High Voltage Holiday Detector
SKU: 127631
Price: 2911.00 EUR

Compact continuous DC holiday detector for inspecting protective coatings and linings

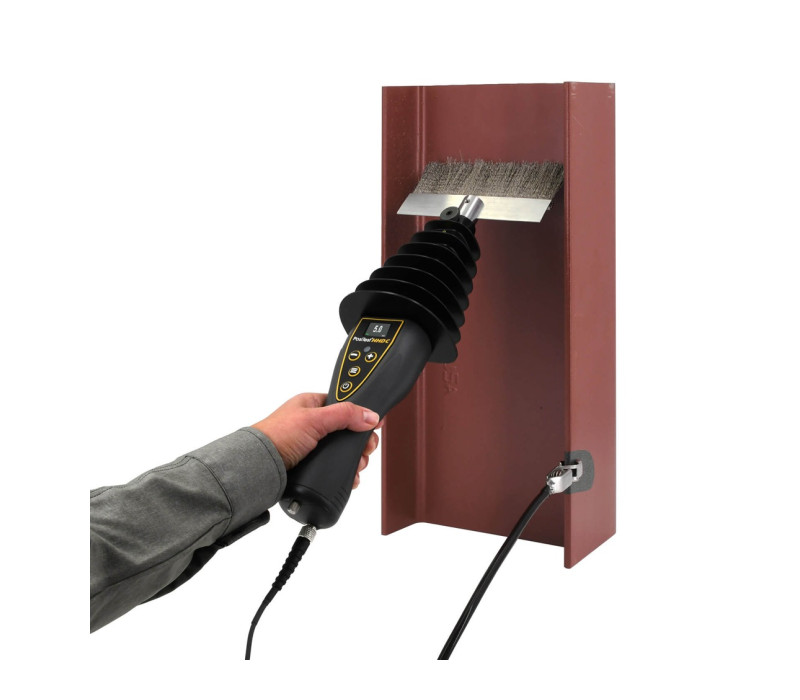

The PosiTest HHD C is a compact, high voltage holiday detector designed to locate pinholes, porosity, cracks and other discontinuities in non-conductive coatings applied to conductive substrates. It uses continuous DC output with an adjustable test voltage from 0.5 to 30 kV to identify defects that may compromise a protective coating.

Its one-piece wand design incorporates the rechargeable batteries and electronics into the handle, eliminating the need for a separate battery pack. The instrument features a colour LCD, an integrated voltmeter that displays the electrode voltage during testing, and audible and visual alarms when a holiday is detected.

The test voltage can be set manually or calculated by entering the coating thickness. A range of optional brush and rolling spring electrodes supports inspection of different coated surfaces and pipe diameters, while an optional 43 cm extension rod helps reach floors and difficult-to-access areas.

For applications requiring pulsed DC output, see the PosiTest HHD stick-type holiday detector.

€ 2.911,00

Order now

Continuous DC output with adjustable test voltage from 0.5 to 30 kV
Detects pinholes, porosity and other discontinuities in non-conductive coatings on conductive substrates
Compact, one-piece wand design with batteries and electronics integrated into the handle
Regulated voltage output with ±5% accuracy and an integrated voltmeter
Coating thickness-based voltage calculator for selecting the test voltage
Bright colour LCD with audible and strobe alarms when coating defects are detected
Adjustable detection sensitivity and press-and-hold high voltage trigger
Compatible with optional rolling spring and brush electrodes for different inspection applications

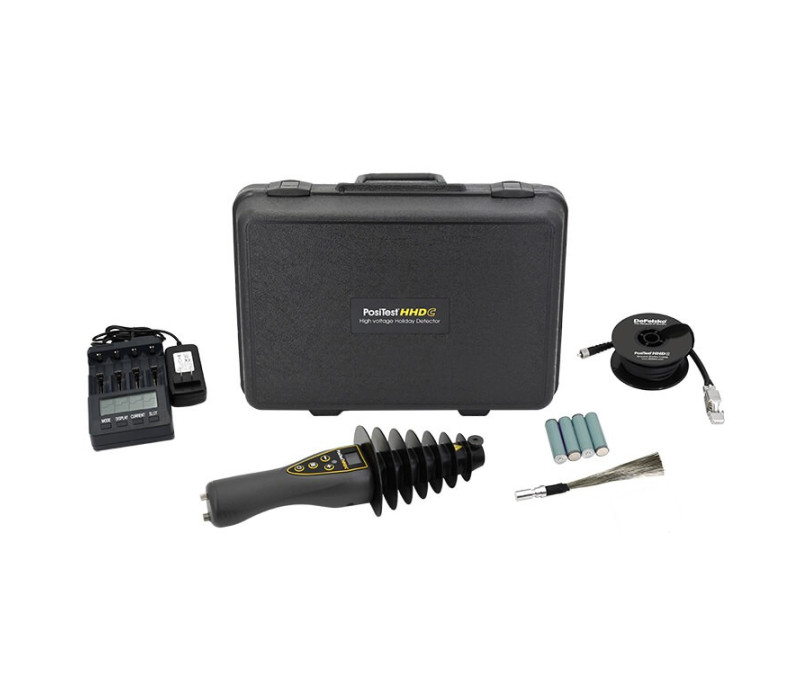

PosiTest HHD C high voltage holiday detector
Stainless steel fan brush electrode
7.6 m ground (earth) cable with ground clip
Four rechargeable 18650 Li-ion batteries
Smart battery charger with universal AC voltage input
Hard shell carrying case

DC Output	Continuous DC
Output Voltage Range	0.5–30 kV (500–30,000 V)
Output Accuracy	±5%
Voltage Adjustment	500–1,000 V: 10 V steps Above 1,000 V to 30,000 V: 100 V steps
Voltage Measurement	Integrated voltmeter displaying actual electrode voltage during testing
Test Voltage Calculator	Automatic test voltage calculation based on entered coating thickness (µm or mils)
Detection	Audible alarm and visual strobe alert
Power Supply	4 removable, rechargeable 18650 Li-ion batteries
Operating Temperature	−20 to 60 °C
Unit Dimensions	33 × 10.8 × 8 cm
Unit Weight	0.74 kg (with batteries, without electrode)
Ground Cable	7.6 m with ground clip
Electrode Compatibility	Optional rolling spring and brush electrodes; third-party electrodes via compatible connectors or adaptors

Products

Item	Product	Price	Quantity	Action
140895	HHDCKIT PosiTest - HHDC Kit High voltage Holiday Detector	€ 2.911,00

Accessories

Item	Product	Price	Quantity	Action
140896	PosiTest HHD C Verifier for Holiday Detector	€ 766,00
140897	HHDCBATTERY - Replacement Battery for HHD C Holiday Detector	€ 90,00

All prices shown exclude VAT and shipping costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
