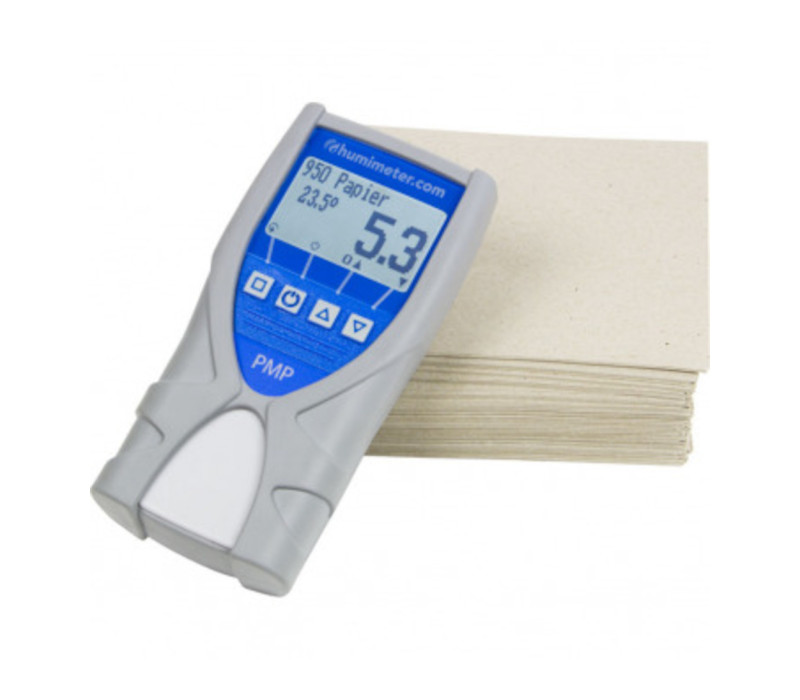

PFK Moisture meter for paper and solid cardboard at the pile

Name: PFK Moisture meter for paper and solid cardboard at the pile
SKU: 127343

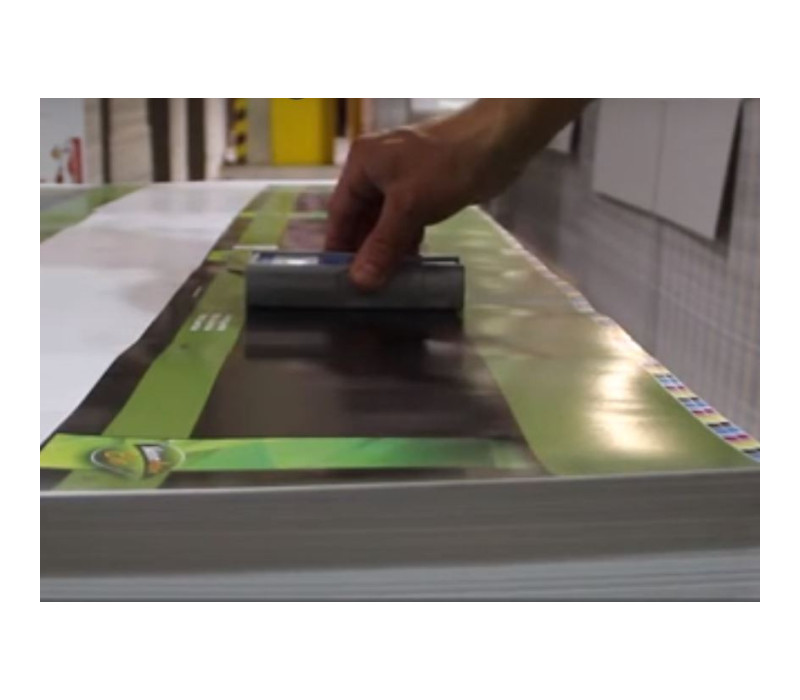

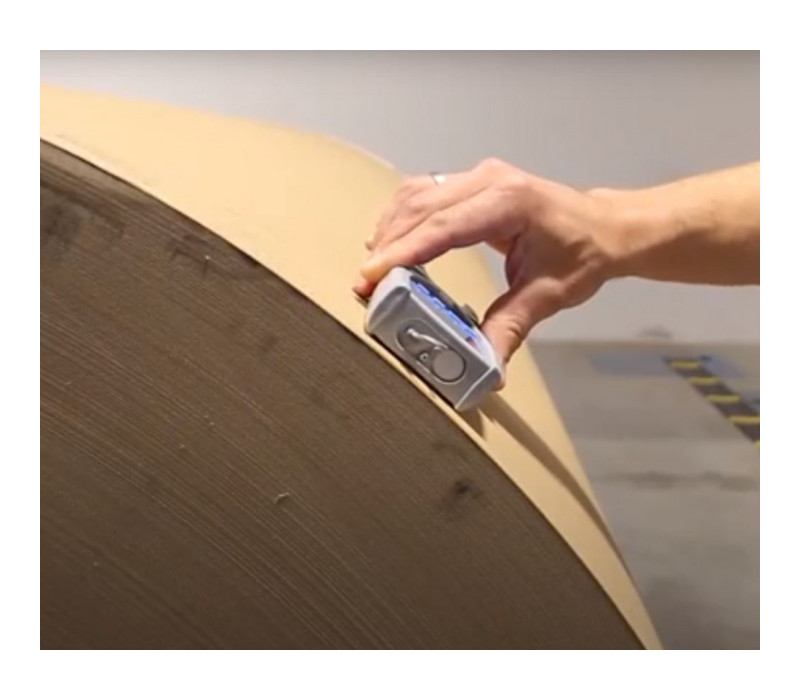

The Checkline PFK paper moisture meter quickly determines the absolute water content of paper, board and cellulose. The PFK measures non-destructively, directly on the stack or on a (stationary) roller with a measuring depth of 20 mm. The measuring range of the PFK paper moisture meter is 1% to 15% water content (depending on paper type) with a measurement resolution of 0, 1%.

With the help of the integrated data logger, you can record up to 10,000 measured values. Typical measurement applications include precise inbound inspections and process controls at print shops, as well as at paper traders and corrugated manufacturers.Furthermore, this paper moisture meter is easy to handle and due to its convenient size, the PFK can be deployed anywhere on site.

Measurement procedure:

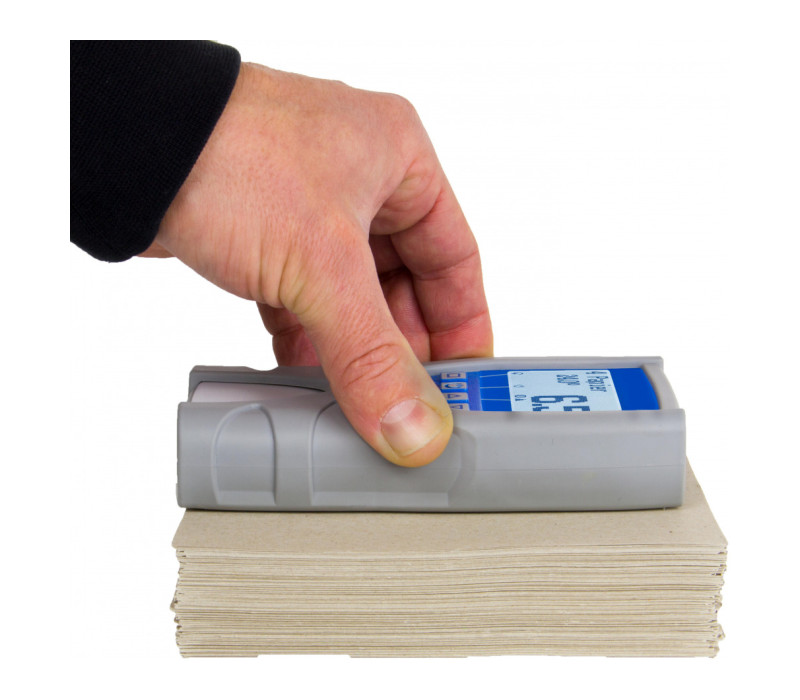

Turn on the instrument, select the correct calibration curve (based on the density of the paper) and press the instrument onto the material to be measured. The illuminated display immediately shows the measured value.

The Checkline PFK has a memory capacity for the storage of up to 10,000 measured values and offers also the possibility to enter additional data, such as the lot number.

For each series of measurements recorded, the PFK automatically calculates the average value.

Via the optional USB interface, the measured values can be transferred to a PC and via the PC software LogMemorizer® the data can be archived, exported, processed and printed.

Features:

Fast and non-destructive measurement

• Measuring range 1% to 15% absolute water content, depending on the type of paper

• Measuring depth: 20 mm

• 20 standard calibration curves (expandable)

• Resolution: 0.1% water content

• Paper temperature: 0 to + 50 ° C

• Temperature can be set to ° C or ° F as needed

• Automatic temperature compensation

• Hold function, automatic data recording function

• Scope of delivery: PFK moisture meter, wooden box with test plate, protective rubber cap and batteries

• Optional: USB moisture meter data interface module with LogMemorizer measurement data capture and analysis software on USB key, portable thermal printer

Price from € 970,00

Order now

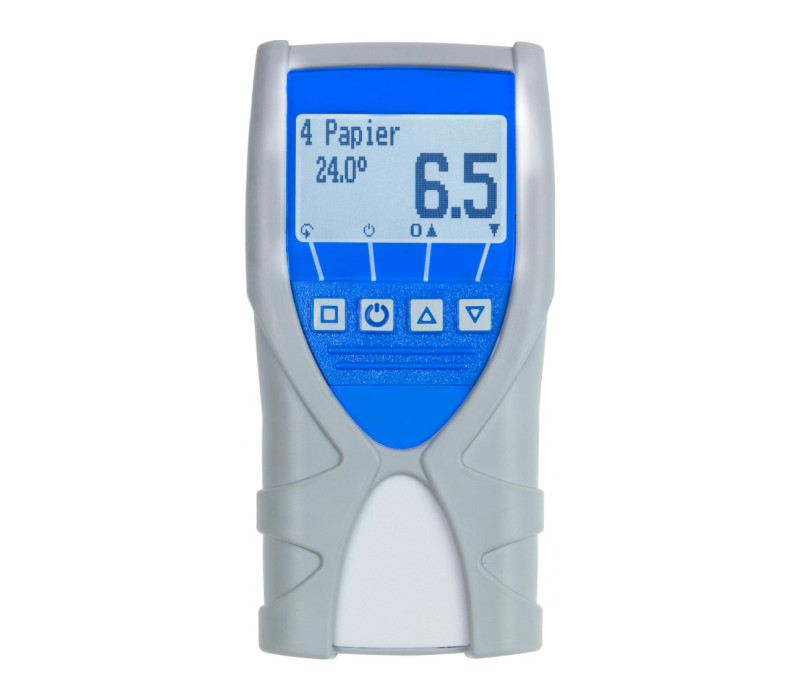

Supplied with a large, well-lit LCD display with built-in HOLD function
Integrated, automatic temperature compensation for maximum accuracy
Measuring range: 1 - 15% with 0.1% resolution
Automatic temperature compensation for the greatest accuracy
Built-in data storage for 10,000 values
Menu language in English, German, Italian, French, Spanish and Russian
PKF - USB model including USB output, supplied with data cable & PC software

The PFK paper moisture meter is supplied as a complete set, including:

PFK paper moisture meter
Wooden case
Calibration plate
Rubber protection
Batteries
Instructions for use

The PFK-USB is also supplied with:

LogMemorizer software
USB data cable
Portable thermal printer

Standard calibration curves:

Product type	Paper type	Density (kg / m³)
300 paper	Tissue, filter papier	300 kg/m³
350 paper	Tissue, filter papier	350 kg/m³
400 paper	Tissue, filter papier	400 kg/m³
450 paper	Tissue, filter papier	450 kg/m³
500 paper	Zeer lage dichtheid karton	500 kg/m³
550 paper	Low density carton	550 kg/m³
600 paper	Very low density paper/ newspaper	600 kg/m³
650 paper	Low density paper	650 kg/m³
700 paper	Low density paper/Kraftliner	700 kg/m³
750 paper	Copy paper, Liner	750 kg/m³
800 paper	Copy paper	800 kg/m³
850 paper	Copy paper	850 kg/m³
900 paper	Copy paper	900 kg/m³
950 paper	Brochure - Offsetpaper	950 kg/m³
1000 paper	Brochure - Offsetpaper	1000 kg/m³
1050 paper	Brochure - Offsetpaper	1050 kg/m³
1100 paper	Brochure - Offsetpaper	1100 kg/m³
1200 paper	Brochure - Offsetpaper	1200 kg/m³
1300 paper	Brochure - Offsetpaper	1300 kg/m³
1136/5000 Selection of the correct curve Due to the countless paper types, there are no standard curves. For the Checkline PFK paper moisture meter, the density of the paper stock or paper roll determines the different curves. The above overview of the curves contains suggestions for paper types and paper densities [kg / m³]. To achieve an exact measurement result, a one-time comparative measurement is required with your online moisture measurement or by performing the standardized oven method (DIN 287). 1. Measure your paper (on the roll or on the stack) with the available curves which give a realistic value and note the different measurement results with the corresponding characteristic curve names. 2. Now record the actual water content of your online moisture measurement or carry out a determination of the reference water content according to EN ISO 287. 3. Now compare the recorded measurement results of the different curves with the actual water content according to the reference measurement. Now you can select/determine the curve that is most accurate with the reference measurement.

Measuring Range:	1% to 15% water content
Resolution:	0.1% water content
Measuring depth:	20 mm
Paper temperature:	0 to +50°C
Temperature resolution:	0,1°C
Temperature Units:	°C or °F
Data Logger:	up to 10,000 logs with measuring point report
Data output (PFK-USB model only):	class = "fa fa-usb" aria-hidden = "true"> USB interface (delivery with data transfer cable & software)
Batteries:	4 x 1.5 volt AA batteries
Device weight:	265 g (incl. batteries)
Dimensions:	147 x 75 x 30 mm (incl. rubber protection)
Menu languages:	English, German, Italian, French, Spanish, Russian, Portuguese, Czech and Polish
Guarantee:	2 years

Products

Item	Product	Price	Quantity	Action
136459	PFK - Paper Moisture Meter	€ 970,00
136597	PFK-USB - Paper Moisture Meter with USB Output	€ 1.373,00

Accessories

Item	Product	Price	Quantity	Action
132022	Calibration Certificate - Factory calibration certificate protocol for material moisture meters	€ 136,00
139547	Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable)	€ 25,00

All mentioned prices are excluding VAT & excluding shipment costs.
