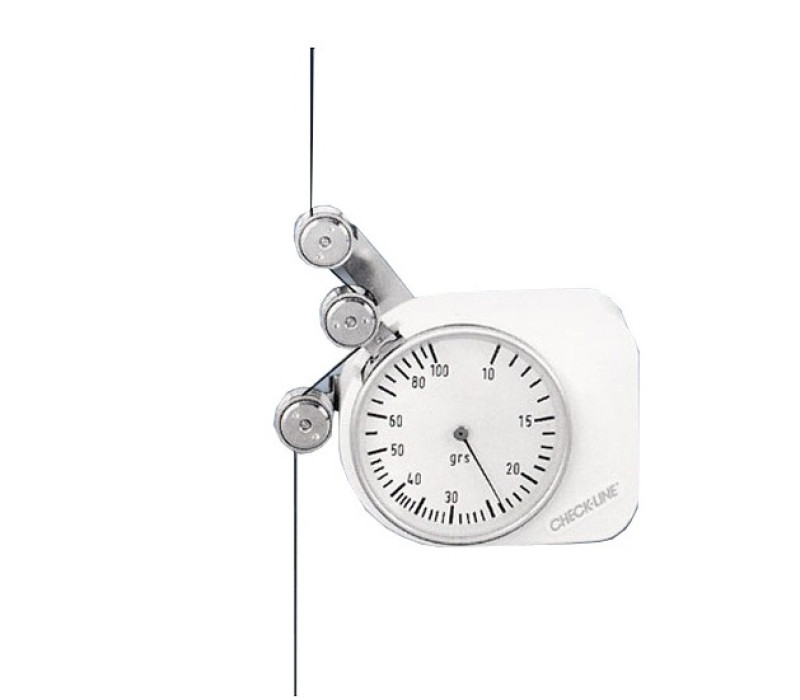

Q Stationary Tension Meter

Made in Germany The Q Tension Meter accurately measures running line tensions on a wide variety of yarns, fibers, wires, etc. It's designed for fixed mounting for continuous tension measurement.

Threaded mounting holes are provided on the back side and edge of the housing.

Features

Easy-to-read analog scale
Chromed steel, V-grooved guide rollers for speeds up to 1000 m/min or, optionally, 3000 m/min
Magnetic damping minimizes tensions fluctuations
Adjustable maximum tension detector can provide a low voltage signal when tensions exceed user-set limit

Dimensions

Tension Ranges

Model	Ranges
Q-10	2 - 10 cN
Q-20	2 - 20 cN
Q-30	3 - 30 cN
Q-50	5 - 50 cN
Q-100	10 - 100 cN
Q-200	20 - 200 cN
Q-300	20 - 300 cN
Q-500	50 - 500 cN
Q-1000	50 - 1000 cN

Specifications

Accuracy	±1% Full Scale (FS) or ±1 Graduation mark
Scale Diameter	58 mm
Roller Material	Chromed Steel - Standard Hard-coated aluminum (K) - Optional
Housing Material	Die-cast aluminum
Weight	0.7 pounds (300 g)
Dimensions	3.1" x 2.5" x 1.1" (78 x 62 x 27mm)
