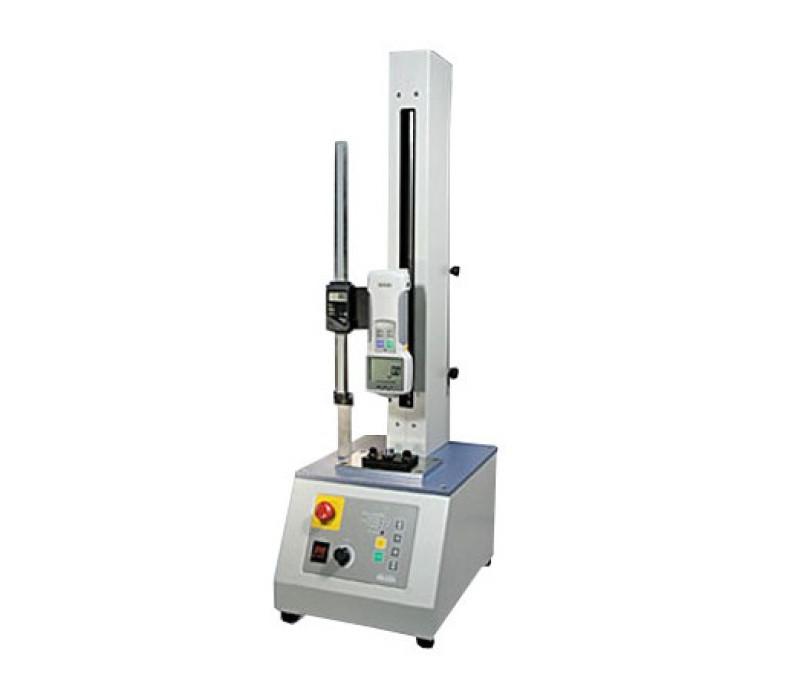

MV-275 Motorized Vertical Test Stand

Name: MV-275 Motorized Vertical Test Stand
SKU: 126711

Explore the MV-275 motorized test stand, designed to offer advanced force testing across a wide range of industrial applications. This device features a screw drive system and a brushless motor, ensuring smooth and powerful operation throughout the entire speed range.

Highlighted Features:

Robust Capacity: Capable of handling up to 1225 N (275 lbs), ideal for tension, compression, and friction testing.
Advanced Speed Control: Includes features such as adjustable speed control, quick return, and emergency stop to ensure precise and safe testing.

Special Features:

Digital Distance Meter (Optional): Enhances measurement accuracy and facilitates the setup of repetitive tests.
Compatibility with Force Gauges: Accepts various models of force gauges, with adapters available for specific brands.

Key Benefits:

Versatility in Applications: From destructive to non-destructive testing, this stand offers flexibility for a variety of tests.
Ease of Use: Designed to be intuitive and accessible, allowing users to conduct tests efficiently and without complications.

For more details on how the MV-275 test stand can enhance your force measurement processes, contact us.

Clearance 16"
One stand for both compression (push) and tension (pull) tests
Jog, Single Cycle, Continuous Cycle (72 hour max.), Force Control
Wide speed range: 0.4 – 9.4 in/min (optional speed ranges available)
Optional timer and digital distance meter
Combination of screw drive system and high performance brushless motor provides extremely smooth and powerful operation over the entire speed range.

Speed Configuration

Standard Speed	0.4 ~ 9.4"/min
Optional High Speed	0.7 ~ 23"/min
Optional Low Speed	0.15 ~ 4.2"/min

Capacity	125 Kg (275 lbs)
Travel Rate	Refer to Speed Configuration above
Dimensions	Refer to Dimensions above
Compatible Gauges	DS2 and Z2S-LM a
Warranty	2 years
*Note	Optional Distance Meter Max Sampling Rate Output - 2 Samples Per Second
