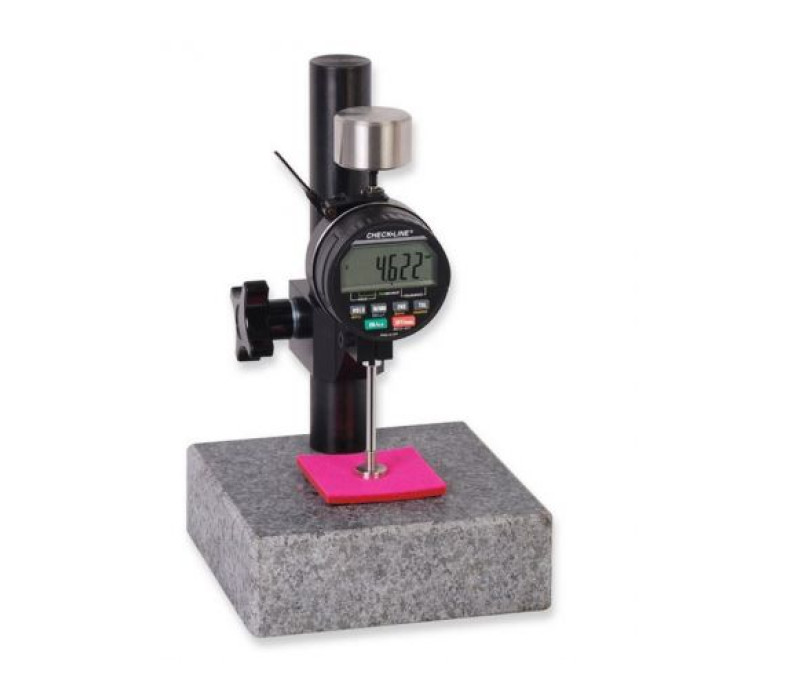

Material Thickness

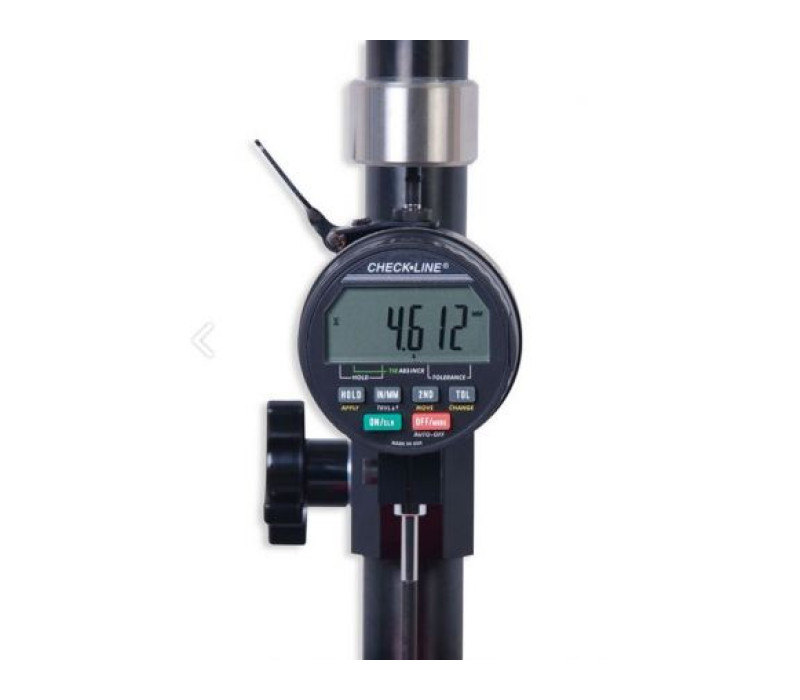

The MTG can use a range of weights

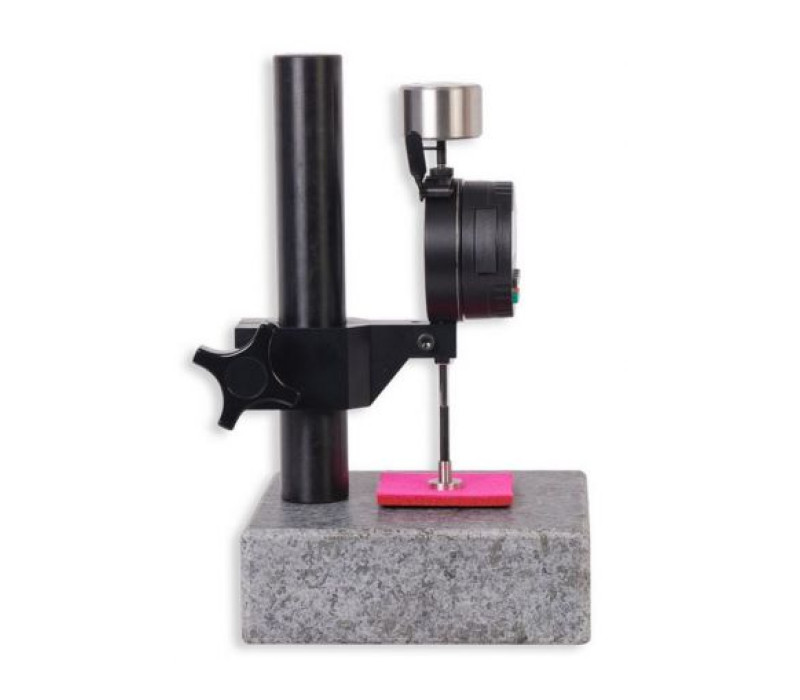

MTG-DX

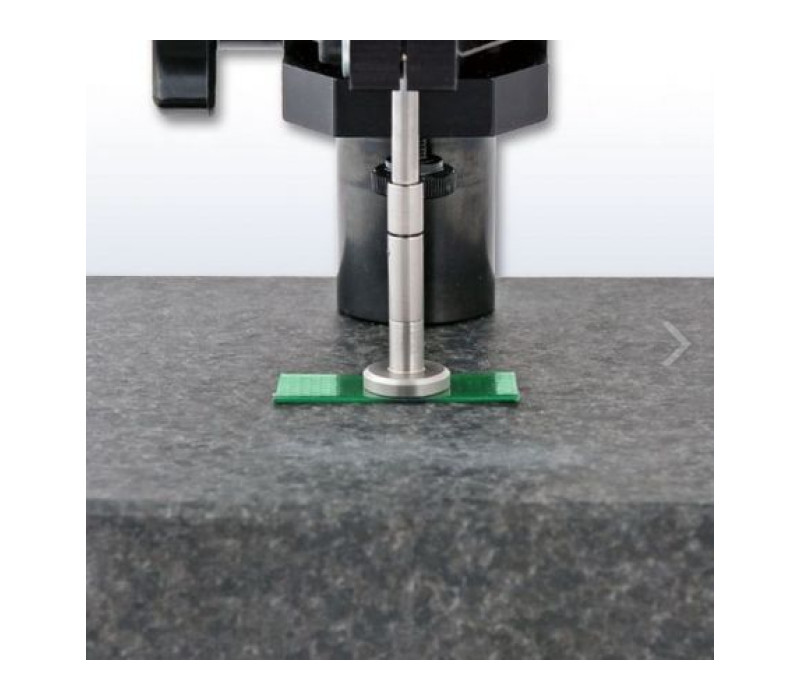

PCB Thickness

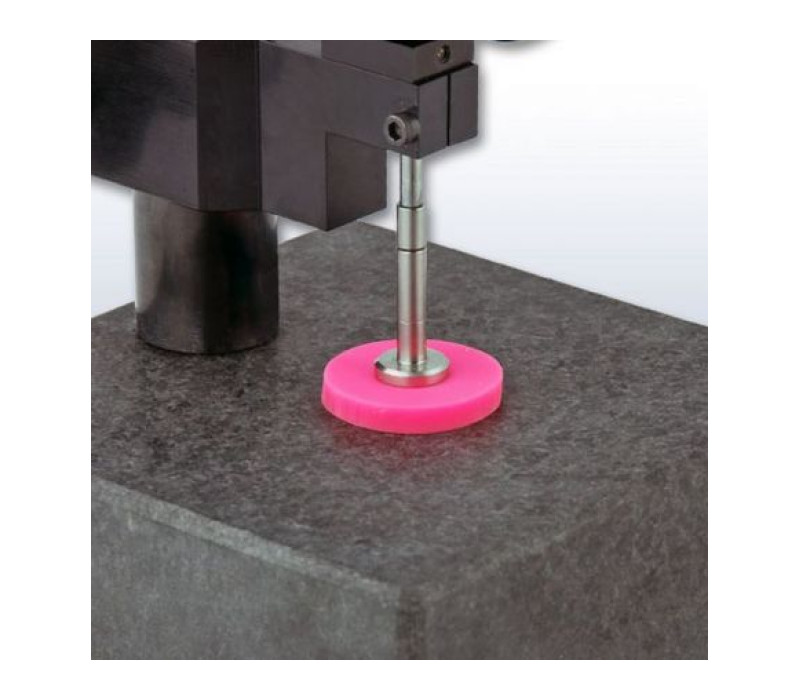

Rubber Thickness

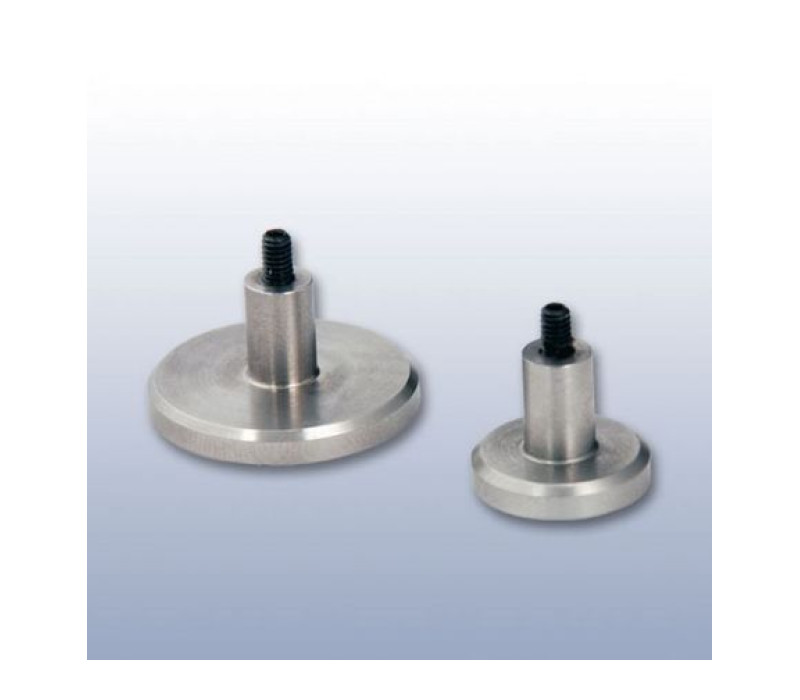

The MTG can use a range of foot sizes

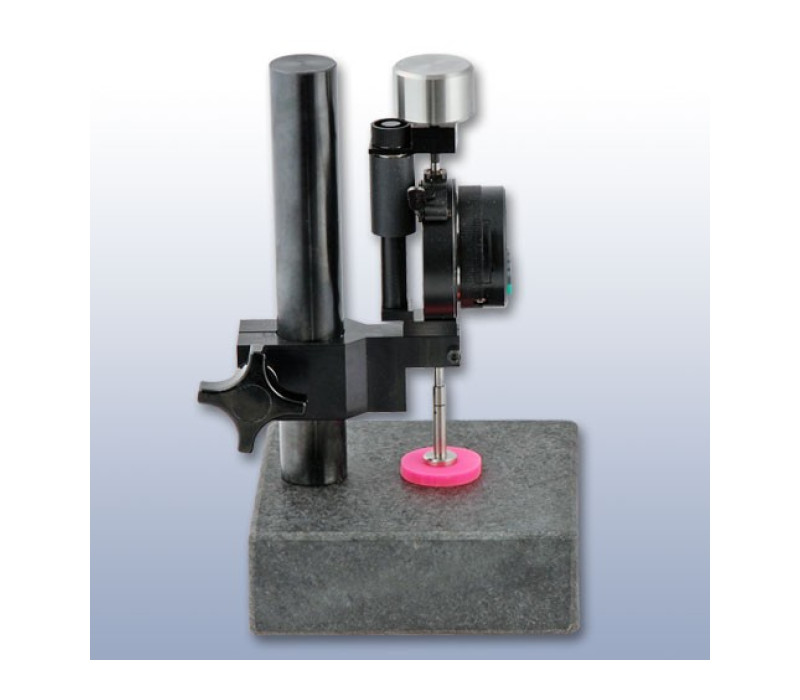

MTG System with dampener

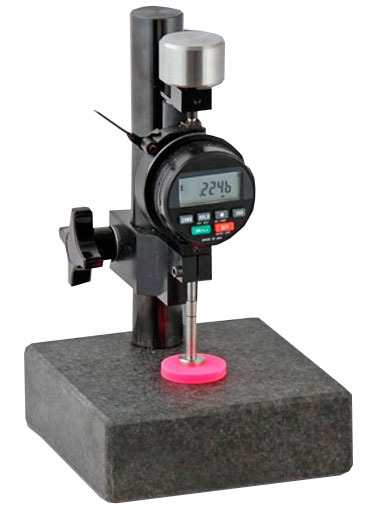

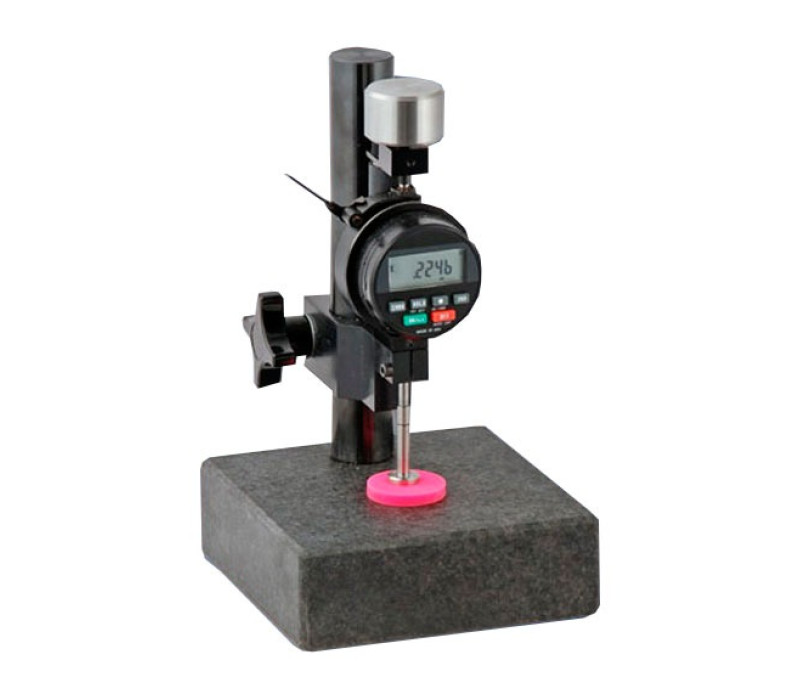

MTG - Contact Thickness Gauge

The MTG thickness gauge is specifically designed to perform accurate and easy measurements on a wide range of soft materials such as rubber, fabrics, and films. It uses a 16 mm diameter presser foot and a specific weight of 212 g to measure in accordance with ASTM D 3767, ensuring consistent and reliable results.

Key Features:

Accuracy and Compliance: Performs measurements in accordance with ASTM D 3767, ensuring precision and regulatory compliance.
Customisable Feet and Weights: Available with different presser foot diameters and weights to suit a variety of measurement specifications.
Manual Lifting System: Includes a left-hand lever and release cable for easy and precise handling.
Flexible Configuration: Measurement capability of up to 25 mm with a resolution of 0.002 mm.

Key Benefits:

Adaptability: Suitable for measuring a wide variety of soft materials in industrial and laboratory settings.
Ease of Use: Designed for simple and ergonomic handling, facilitating quick and effortless measurements.
Robust Construction: Made from high-quality materials that ensure durability and corrosion resistance.

Contact us to discover how the MTG thickness gauge can be the perfect solution for your precision measurement needs.

Price from € 1.575,00

Order now

Optional Certification: Available with a manufacturer's calibration certificate and/or DAkkS calibration for the dial indicator.
Advanced Features: Includes SPC data outputs and options for measuring in both English or metric systems, facilitating integration into quality control systems.

Optional Presser Foot (Feeler/Anvil) Offered

Presser Foot	"A" Dim. (mm)
PF-1	10.0
PF-2	8.0
PF-3	6.3
PF-4	6.0
PF-5	5.0
PF-6	4.0
PF-7	3.2
PF-8	16.0
PF-9	25.0

Presser Foot/Mass Combinations

For Materials Equal to or Above 35 IRHD

Foot Model	Foot Dia. (mm)	Mass (g)	Mass Model
MTG-01-1	10.0	176	MTG-03-1
MTG-01-2	8.0	113	MTG-03-2
MTG-01-3	6.3	70	MTG-03-3
MTG-01-4	6.0	63	MTG-03-4
MTG-01-5	5.0	44	MTG-03-5
MTG-01-6	4.0	28	MTG-03-6
MTG-01-7	3.2	18	MTG-03-7
MTG-01-8	16.0	452	MTG-03-8
MTG-01-9	25.0	1104	MTG-03-9

For Materials Below 35 IRHD

Foot Model	Foot Dia. (mm)	Mass (g)	Mass Model
MTG-01-1	10.0	80	MTG-04-1
MTG-01-2	8.0	52	MTG-04-2
MTG-01-3	6.3	32	MTG-04-3
MTG-01-4	6.0	29	MTG-04-4
MTG-01-5	5.0	20	MTG-04-5
MTG-01-6	4.0	13	MTG-04-6
MTG-01-7	3.2	8	MTG-04-7
MTG-01-8	16.0	212	MTG-04-8
MTG-01-9	25.0	518	MTG-04-9
Note: Custom Sized presser feet and weights (mass) to fit specific needs or applications are also available.

MTG - Granite Base Sample Calibration Cert

Measuring Range	0-25 mm, Custom ranges up to 100 mm available (on request)
Resolution	0.002 mm
Accuracy	0.005 mm
Presser Foot Material	303 Stainless Steel
Base Material	Labratory Grade Granite
Power	CR2450 Lithium Coin Battery or optional AC Adapter
Battery Chemistry	Lithium / Manganese Dioxide (Li/MnO2)
Warranty	1 Year
Country of Origin	USA
Spindle Thread	#4-48 UNF
System Pressure	MTG-DX, without Dampener: 20g ±3g (without Weight or Footer). This weight must be included when calculating test pressure MTG, with Dampener: This model is NOT recommended when testing requires specific test pressure
Weight	appr. 7 kg

Products

Item	Product	Price
134875	MTG-DX - Material Thickness Gauge System & Base and 16 mm footer with 212g weight	€ 1.575,00
135254	MTG-DX2 - Material Thickness Gauge System ASTM D1777-2	€ 1.575,00
131104	MTG-Material Thickness Gauge System with Air Dampener & Base and 16 mm footer with 212g weight	€ 2.175,00

Accessories

Item	Product	Price
133029	APS300 Power Adapter - Universal power supply unit 300mA	€ 25,00
137007	MTG-RINGS - Set Of Stackable Ring Weights for MTG Thickness Gauge	€ 545,00
134876	MTG-D1777-1 Weight & Footer for MTG-DX conform ASTM D-1777 Spec 1	€ 307,50
134836	MTG-D1777-2 Weight for MTG-DX conform ASTM D-1777 Spec 2	€ 307,50
134877	MTG-D1777-3 Weight for MTG-DX conform ASTM D-1777 Spec 3	€ 307,50
140403	MTG-D1777-5 Weight & Footer for MTG-DX conform ASTM D-1777 Spec 5	€ 300,00
133392	RX-G03-0018 RX-232 Data Output Cable	€ 110,00
133393	RX-G13-0048 (old version) USB Data Output Cable for DD/RX and MTG Series	€ 152,50
134398	EMS4 Remote Readout Data Collection Application	€ 1.527,50
134867	DD-DB1 Smart USB Cable for DD-100xx and RX-DDxx Models	€ 385,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

MTG - Contact Thickness Gauge

Features

Dimensions

Specifications

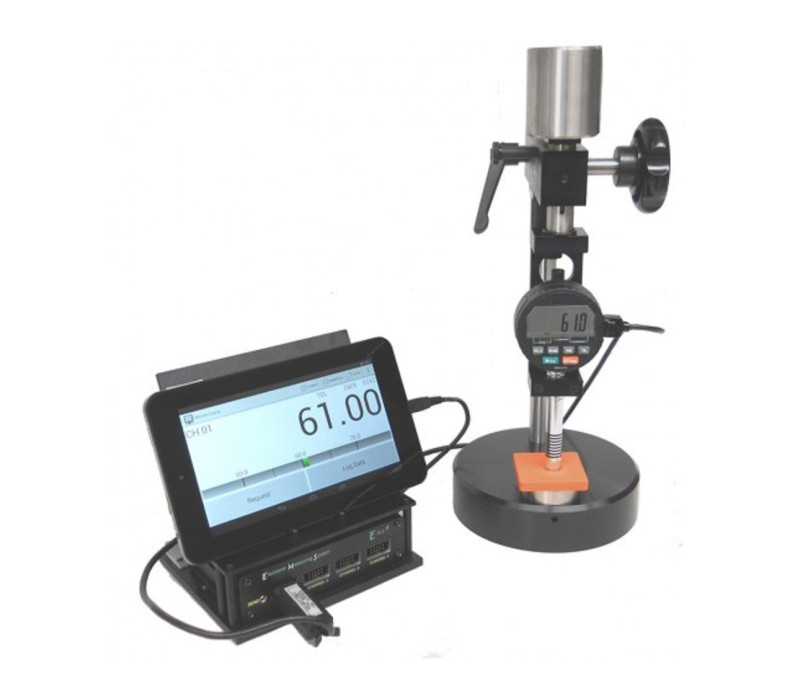

EMS4 Remote Readout Data Collection Application

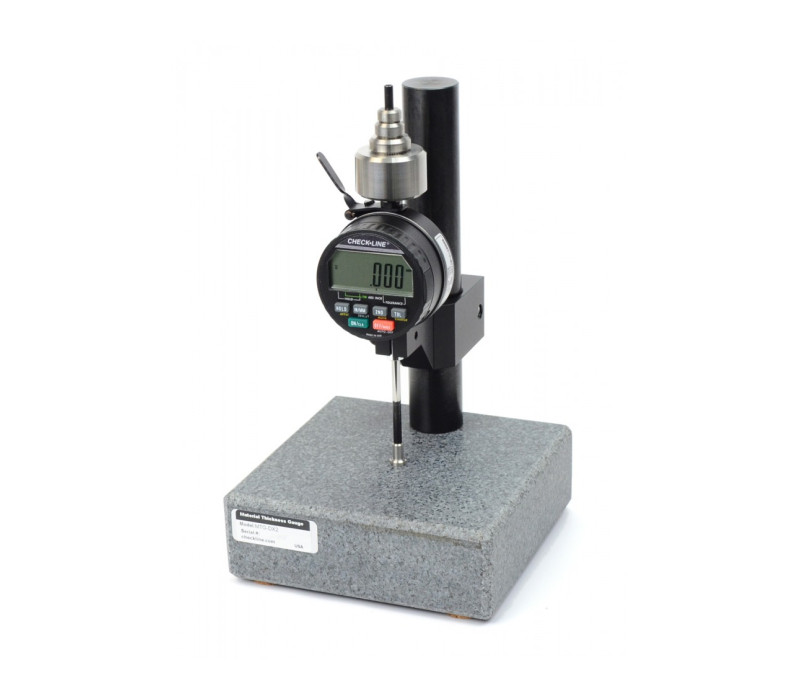

MTG-RINGS Stackable Ring Weights For MTG Thickness Gauge
