Optical Tachometer and Stroboscope Calibrator

Important Note:

The MT2013 has been discontinued and is being replaced by the MT25. Any details shown below refer to the current MT25 model.

The MT25 is an optical tachometer and stroboscope calibrator built for day-to-day checking and calibration of optical tachometers, optical speed sensors and stroboscopes. It follows the same operating approach as the earlier MT2013, but in a refreshed enclosure with updated low-voltage electronics and a universal external power supply (included)—so there’s no need for region-specific versions.

As well as supporting most brands of optical tachometer and sensor, the MT25 can also be used with pulse-driven instruments such as digital panel tachometers, ratemeters, batch counters and similar devices.

Please note: the MT25 is intended to confirm tachometer accuracy. If you need to verify that a tachometer will work reliably at a specified distance from a target, a separate test unit is required. This equipment is Class I and must be earthed.

Key Features:

Wide pulse-rate capability: supports very low to high input rates (using divider/scaling functions)
Clear 5-digit LED readout: designed for fast, confident checks on the bench
Flexible scaling and display options: scaling up to five digits with selectable revolution display modes
Low-speed performance: suitable for very slow rotational checks (down to thousandths of a revolution)
Strobe calibration support: variable strobe/VLS output across multiple ranges
Multiple output choices: pulse output plus optional serial/analogue variants depending on requirement
Traceable calibration: supplied with a calibration certificate

Key Benefits:

Reduces downtime: quick verification of tachometers and optical sensors without sending instruments away
Works across mixed fleets: suitable for checking “non-Compact” optical tachometers and stroboscopes as well as Compact models
Consistent results: stable update behaviour and over-range indication aid repeatable checks
Simple global deployment: one model for multiple regions thanks to the included universal PSU

Need help choosing or replacing a tachometer calibrator? Contact our team for technical advice, availability and pricing. We’ll help you confirm whether the MT25 is the right solution for your application.

€ 2.497,00

Order now

Applications: calibration/verification of optical tachometers, optical sensors and stroboscopes; suitable for pulse-driven instruments.
Display: 5-digit LED with auto-ranging and over-range indication.
Strobe output: variable FPM output across four ranges with fine control.
Outputs: LED drive and pulse output for instrument checking (options available).
Power: universal external PSU supplied (single model for multiple regions).

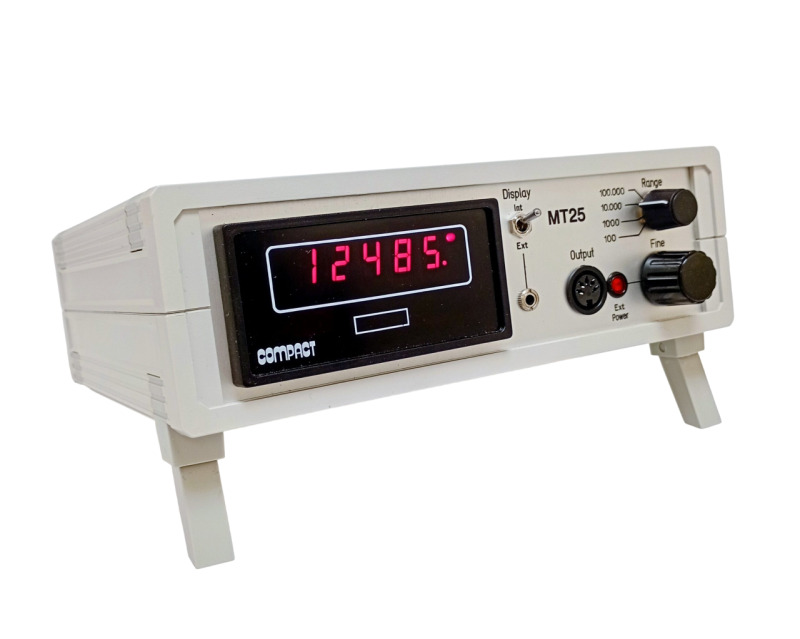

MT25 calibration unit
Instruction manual
Universal PSU (100–240 V input, 15 V DC output)

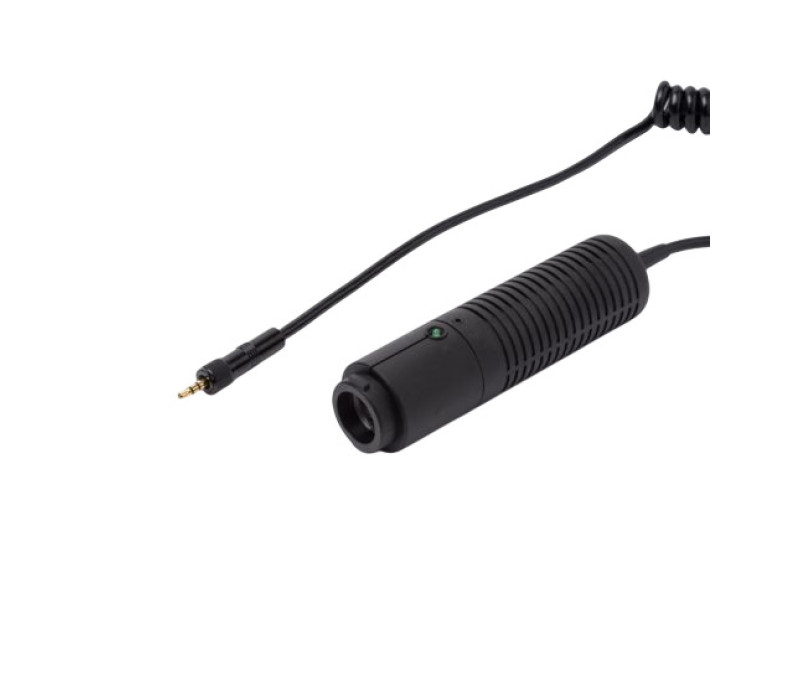

VLS5/J speed sensor (3.5 mm jack, 5 V DC)
External LED strobe and tachometer test lead
Output leads
Reflective tape

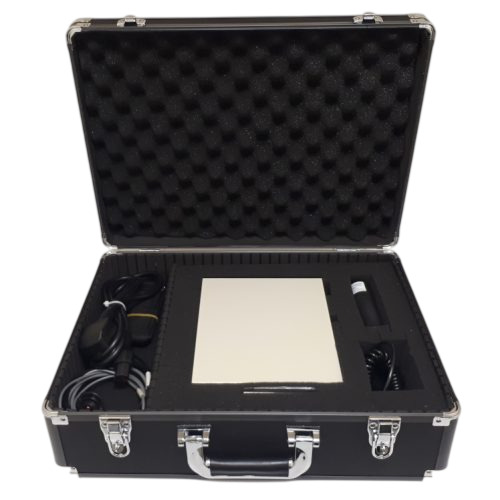

Carrying case
Certificate of calibration

Display:	5-digit LED
Display behaviour:	auto-ranging up to 99,999; over-range indicated by flashing at 99,999; if no pulses are detected the on-target indicator turns off and the display flashes after a delay while showing the last reading
Speed range:	3 to 99,000 rpm (selectable ranges)
Range selection:	4-position range selector
Fine adjustment:	multi-turn control for precise setting
Accuracy:	typical <0.01% ± 1 digit
Resolution:	±1 rpm minimum
Strobe / VLS output ranges:	3 to 99,999 FPM across four ranges (3–100 / 30–1,000 / 300–10,000 / 3,000–100,000)
Update time:	0.8 s typical
Inputs:	optical sensor input for VLS series and strobe calibration; TTL input support
Outputs:	optical LED drive for tachometer checking; pulse output (incl. open collector output option depending on configuration)
Sensor supply:	5 V DC
Power:	15 V DC, 4.2 W max (universal external PSU supplied)

Products

Item	Product	Price	Quantity	Action
140520	MT25 Optical Stroboscope and Tachometer Calibrator Unit with external universal PSU	No longer available

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
