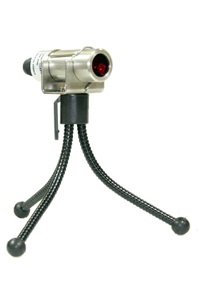

<b>Mounting Bracket MVLS-BR1 (plain housing Sensor)</b>

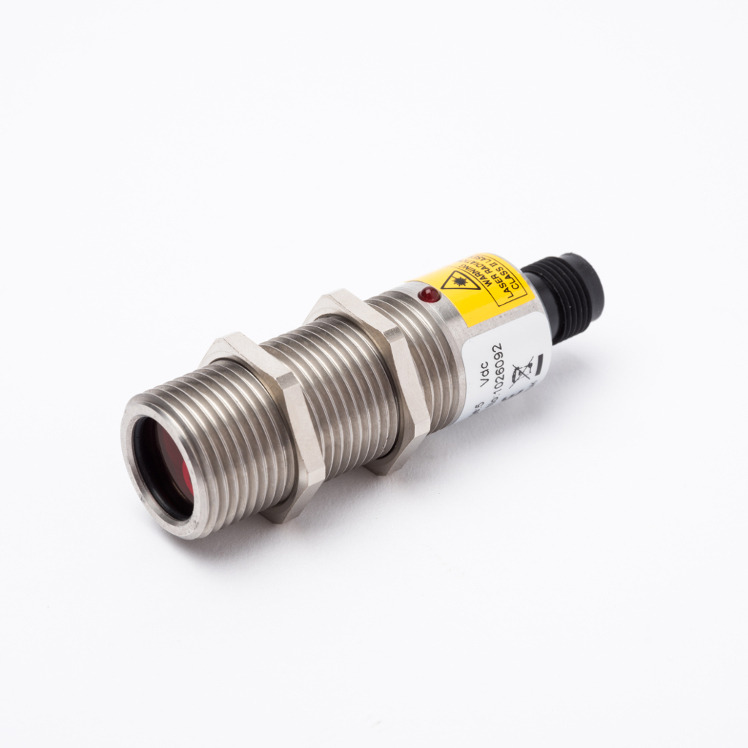

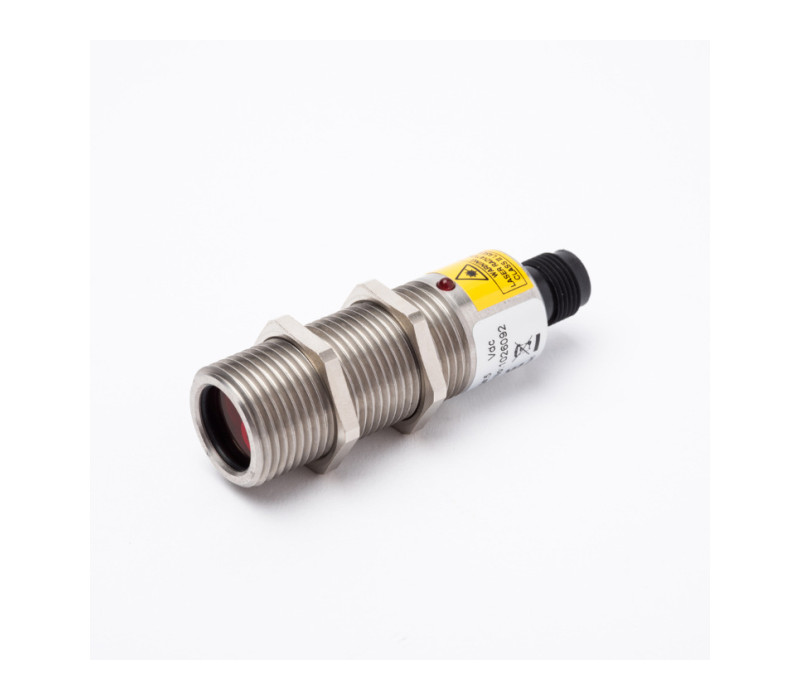

MiniVLS 112 Speed Sensor Threaded Housing (8-24vdc)

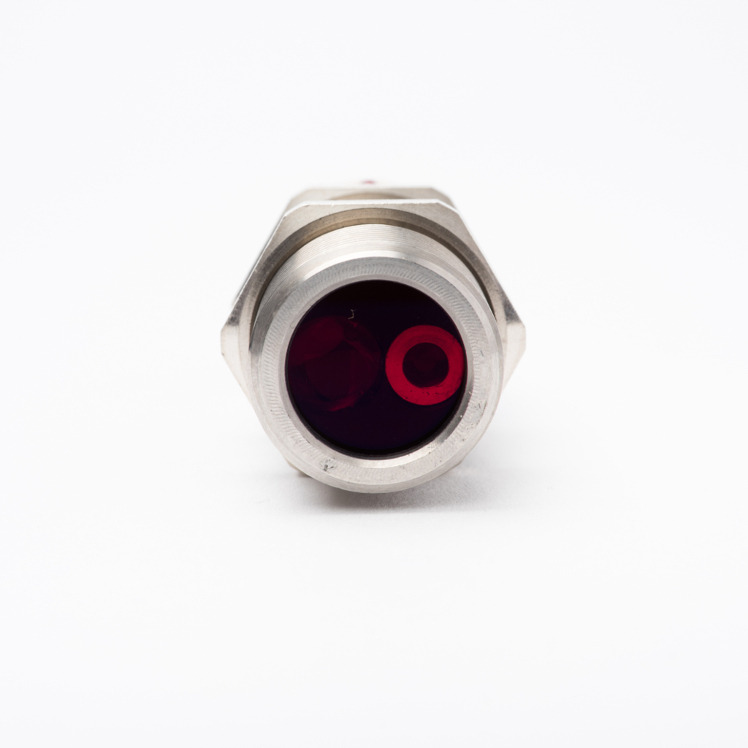

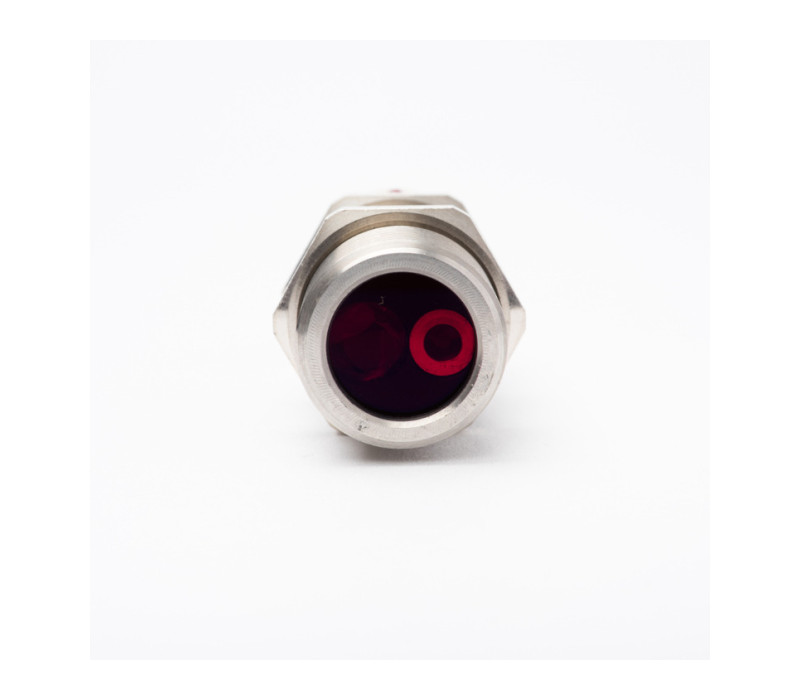

MiniVLS 112 Speed Sensor

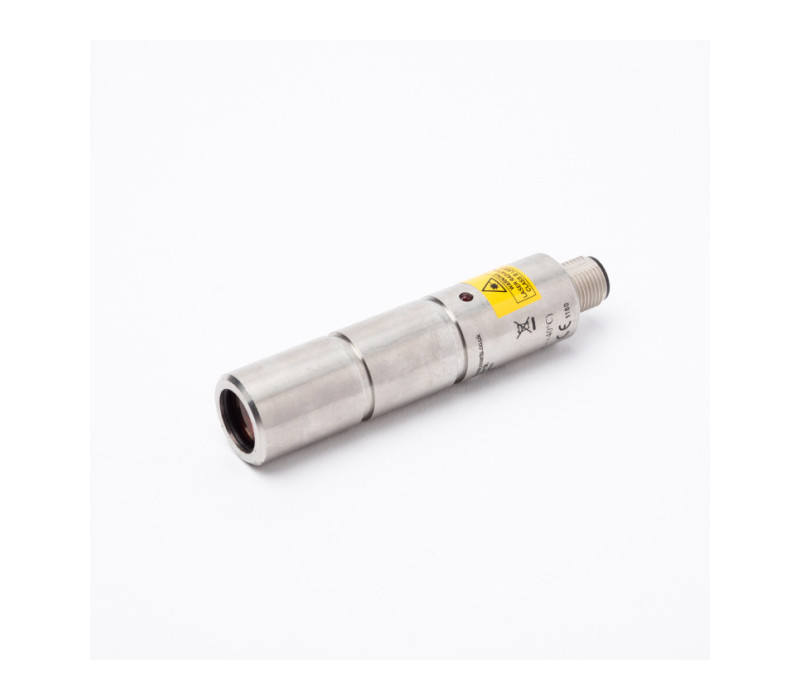

MiniVLS 211/ia Intrinsically Safe Optical Speed Sensor

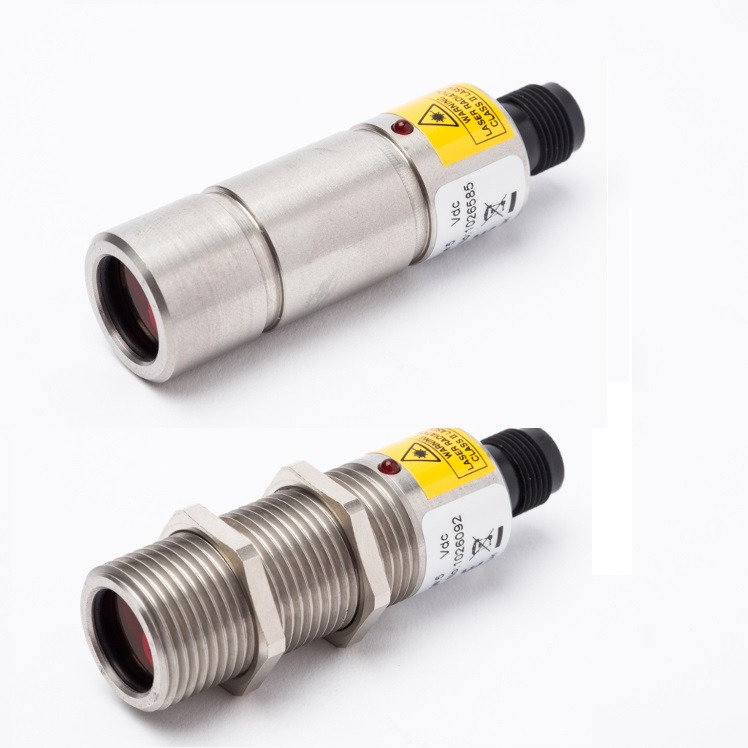

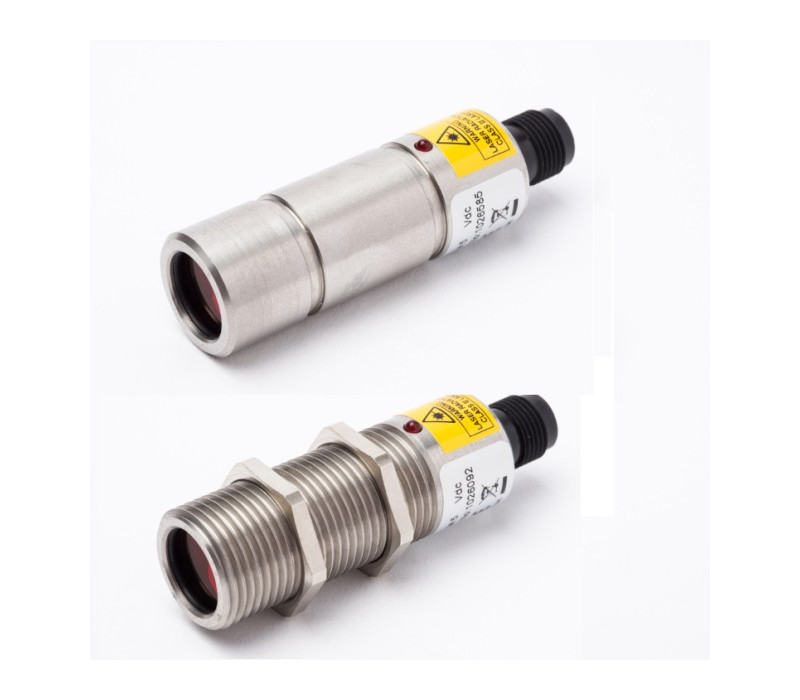

MiniVLS Laser Optical Speed Sensors

Name: MiniVLS Laser Optical Speed Sensors
SKU: 126821

The MiniVLS series Optical Sensors are primarily designed for speed related applications, including very high speed monitoring.

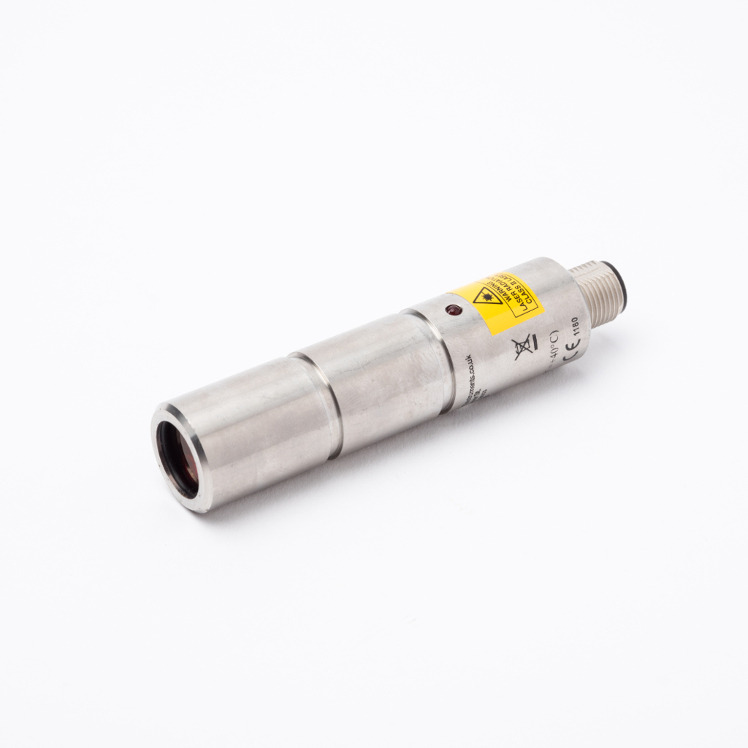

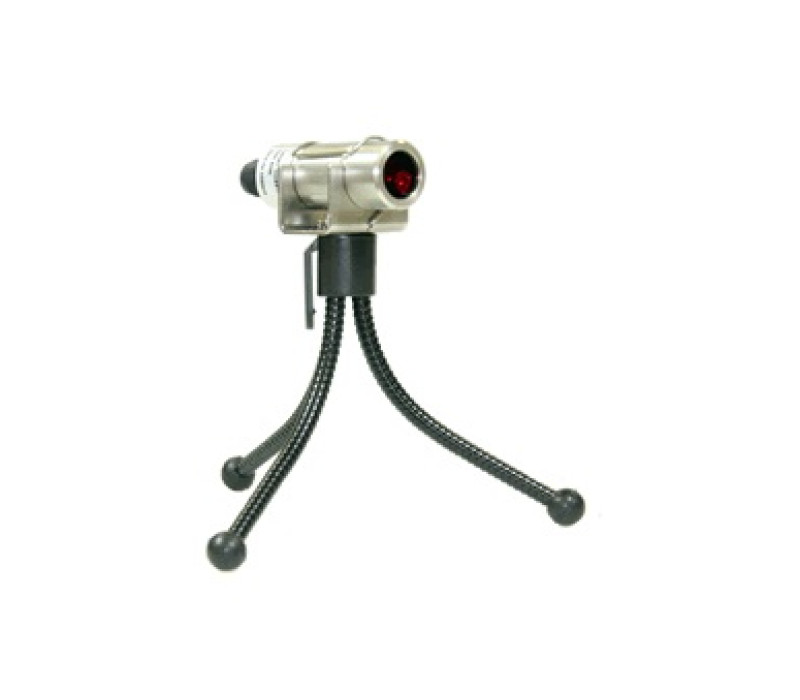

These high quality Sensors are housed in rugged stainless steel enclosures which are sealed to IP67 standard. They are engineered for easy mounting in either a proximity Sensor style housing or Plain version with grooved body which is designed to be used either hand held or with an optional mounting bracket which can be tripod mounted or fixed to a machine surface. They can be used with almost any pulse input monitoring equipment such as Digital Tachometers, Counters & rotation monitoring products, data collectors, including portable, panel mounted and bench style instruments. They are also compatible with most Condition Monitoring products.

Price from € 373,00

Order now

Widely used for research & development and test applications
Long optical range up to 2 metres with reflective tape or longer with retro-reflectors or special configurations
Wide angle of operation - up to 80°

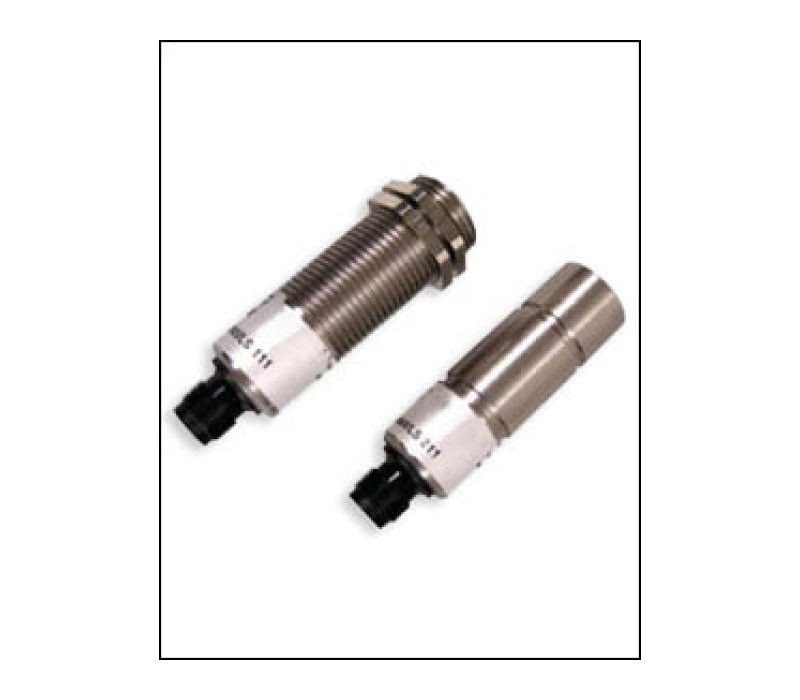

Threaded or Plain housing options
Reverse polarity & short circuit protected
Ideal for phase & speed monitoring balancing applications on rotating machinery
Operating frequency up to 250,000 rpm
On Target indicator standard
Integral Connector
Stainless Steel housing

Laser Optical Range	100 - 200mm
Laser Angle of Incidence	+/- 80°
Speed Range	0.1 - 250,000rpm
Power Input	5vdc or 8-24vdc @ 30 mA typically
Operating Temp	-10°C to +40°C
IP Rating	IP67
Housing Types	M20 threaded or Plain body + fixing slots
Material	Stainless Steel
Connections	Integral Connector
Cables	Several Options
Dimensions	Laser - D 20mm x L 70mm

MiniVLS accessoires

Datasheet MiniVLS

Products

Item	Product	Price
133180	MINIVLS111 - LSR Optical Sensor 5 vdc Td	€ 441,00
132259	MINIVLS112 - LSR Optical Sensor 8-24vdc Td	€ 441,00
131149	MINIVLS113 - LSR Sensor 6-12vdc – Threaded	€ 441,00
133599	MINIVLS211 - LSR Optical Sensor 5 vdc Plain Body	€ 468,00
133663	MINIVLS211/IA - LSR Sensor 5vdc -Type nL Laser Sensor - Intrisically Safe	€ 611,00
133450	MINIVLS212 LSR Sensor 8-24vdc - Plain	€ 441,00
131216	MINIVLS213 - Laser sensor 6-12v plain	€ 441,00
137926	MINIVLS311 - Optical Sensor 5 vdc Plain Body Wir Ends	€ 373,00
135706	MINIVLS312 - Plastic Body Optical Sensor 5 vdc	€ 373,00
137230	MINIVLS313 - USB Laser Speed Sensor / Tachometer	€ 441,00

Accessories

Item	Product	Price	Quantity	Action
133600	MVLS-BR1 Bracket	€ 97,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
