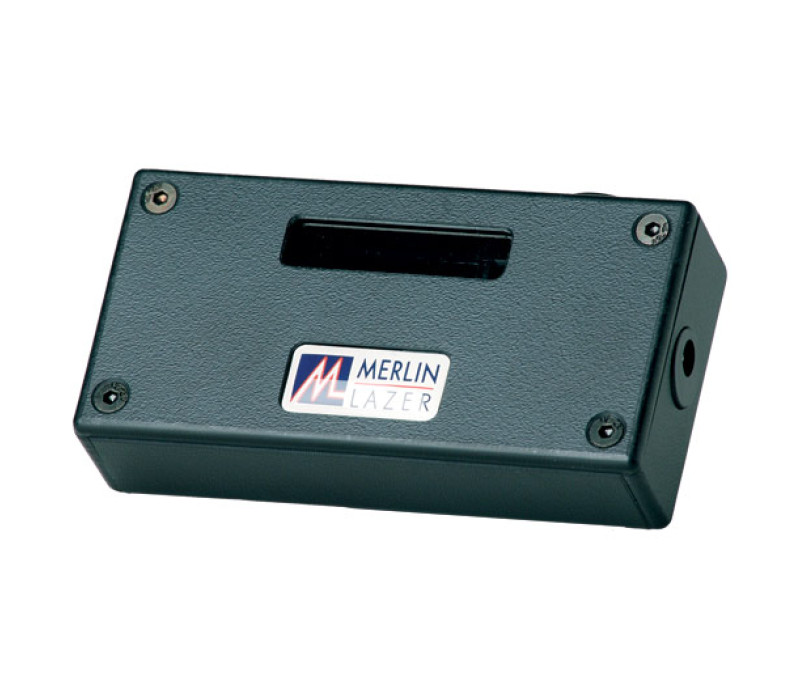

    Merlin TGI Merlin Toughened Glass Indicator

    Merlin TGI detects single or multipane toughened glass. The TGi can easily indicate whether glass is toughened or not and can detect toughened glass in both panes from one side.

    When the instrument is placed against the pane and the red button at the top of the gauge is pressed, 2 lines indicate analysis of single pane glass and 4 lines indicate double pane glass.

    Example 1: Single pane glass

    - Line A is the surface on which the Merlin TGi is placed.
    - Line B is the back wall of the pane.

    Example 2: Double pane glass

    - Line A is the surface on which the Merlin TGi is placed.
    - Line B is the back wall of the first pane on the inside.
    - Line C is the surface on the inside of the second pane.
    - Line D is the surface on the outside of the second pane.
    € 169,00
    Order now
    Complete Kit

    The Merlin TGi is delivered including:
    - Merlin TGi
    - Protective pouch
    - Instruction manual
    - Charger for internal battery
    Measurement modes
    1. Single Skin - Normal

      Both lines A and B remain blue

    2. Single Skin - Toughened

      Line A remains blue, line B changes colour

    3. Double Glazed - Both Panes Normal

      Lines A, B, C and D remain blue

    4. Double Glazed - First Paine Normal, Second Pane Toughened

      Lines A, B and C remain blue, line D changes colour

    5. Double Glazed - First Pane Toughened, Second Pane Normal

      Line A remains blue, line B changes colour, lines C and D change colour together (not independently of each other)

    6. Double Glazed - Both Panes Toughened

      Line A remains blue, line B changes colour; lines C and D change colour separately (ie independently of each other).


    Related Products

    Browse Related Products

    Merlin Lazer Glass Measurement Gauge

    Merlin Lazer Glass Measurement Gauge

    Merlin Low-E Coating Detector

    Merlin Low-E Coating Detector

    Merlin TGSV Merlin Lazer Toughened Glass Stress Viewer

    Merlin TGSV Merlin Lazer Toughened Glass Stress Viewer

    Merlin Kit -Merlin Lazer Glass Analysis Kit

    Merlin Kit -Merlin Lazer Glass Analysis Kit

    Order Now

    Products
    Item Product Price  Quantity Action
    133360Merlin TGi Toughened Glass Indicator € 169,00
    Accessories
    Item Product Price  Quantity Action
    133066Merlin Glass Analysis Kit (Merlin Lazer, TGi, Low-E) € 415,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
