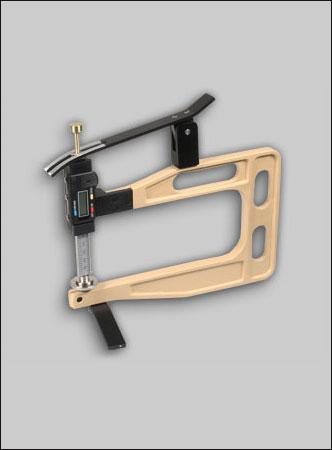

TG-50 Digital Thickness Gauges
The TG-50 digital thickness gauges provide accurate measurement of a wide range of materials, including leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood and plastics. Designed for consistent performance across the full 0–50 mm range, these gauges offer a precise resolution of 0.01 mm. Two models are available:
- TG-50-200: Standard version featuring a 200 mm jaw depth, suitable for most laboratory and industrial material samples.
- TG-50-300: Extended jaw depth of 300 mm for large-format or hard-to-access samples.
Key Features:
- RS-232 Output: Enables direct data transfer to PCs, printers or quality-control software.
- Lever-Operated Opening: Smooth sample handling with automatic closing for consistent pressure.
- Spring-Force Measurement: Provides uniform measuring pressure, ideal for sensitive materials.
- Zero Setting Button: Quick calibration before each measurement cycle.
- LCD Display: User-selectable units in millimetres or inches.
Key Benefits:
- Versatile Material Compatibility: Suitable for most flexible and semi-rigid materials used in industrial production and quality control.
- High Accuracy & Repeatability: Automatic closing mechanism and high-resolution electronics ensure reliable results.
- Ergonomic Workflow: Lever lifter assists repetitive measurement tasks and improves user efficiency.
- Two Jaw-Depth Options: Select between 200 mm and 300 mm versions to match your sample size and application requirements.
Contact us for assistance selecting the right TG-50 model or to request a quotation.
Features
- 0.01 mm Resolution: High-precision measurement throughout the entire 0–50 mm range.
- Calibration Certificate Included: Each unit is delivered verified and ready for use.
| Model | Range | Resolution | Jaw Depth |
|---|---|---|---|
| TG-50-200 | 0 - 50 mm | 0.01 mm | 200 mm |
| TG-50-300 | 0 - 50 mm | 0.01 mm | 300 mm |
| TG-75-350 | 0 - 75 mm | 0.01 mm | 350 mm |
| TG-100-400 | 0 - 100 mm | 0.01 mm | 400 mm |
To place the order, please specify the desired feeler, for example: TG-50-200-B for a gauge with feeler B. This means that NOT all feelers are included in the package!
 |
Feeler: A For hard leather, glass, metal sheets. |
 |
Feeler: B For wood, rubber, soft leather, foil, etc. |
 |
Feeler: C For soft rubber, felt, fleece. |
 |
Feeler: D For rubber rings, round materials. |
 |
Feeler: E For paper, cardboard, chipboard and fiberboard, and plywood. |
 |
Feeler: F For metal sheets, glass, round materials. |
 |
Feeler: G For very rigid materials. |
 |
Feeler: H For foams and insulating materials. |
 |
Feeler: I For very soft foams and insulating materials. |
 |
Feeler: M For rubber sheets, felt, soft materials. |
Specifications
| Resolution: | 0.01 mm |
| Measuring range: | 50 mm |
| Jaw depth: | TG-50-200: 200 mm TG-50-300: 300 mm |
| Measuring pressure: | 2 N |
| Measuring principle: | Self closing |
| Feeler shape: | A/B/C/D/E/F/G/H/I/M |
| Display: | LCD 7 mm high |
| Measuring system: | Sylvac |
| Weight, net (gross): | TG-50-200: 700 g (750 g) TG-50-300: 1000 g (1050 g) |
