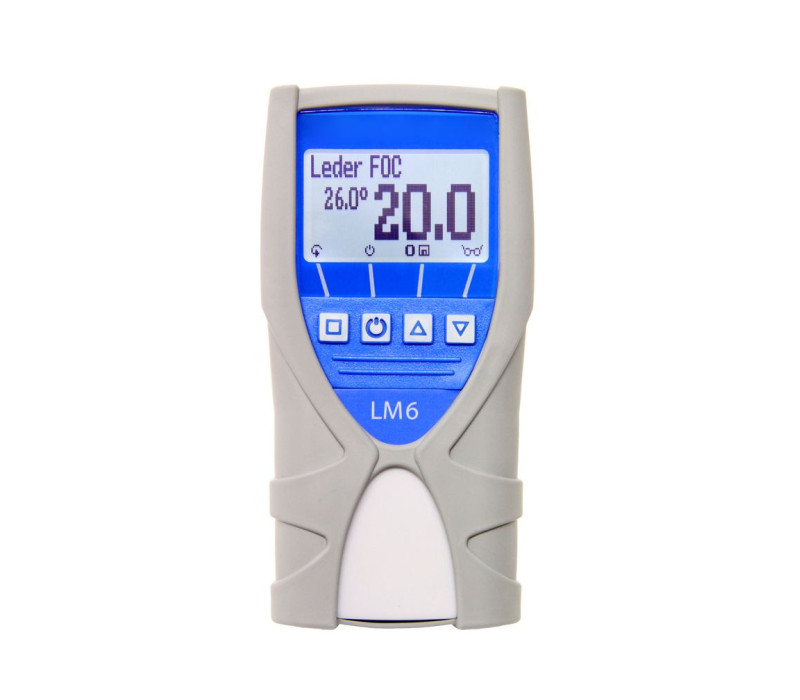

LM6 Portable Leather Moisture Meter

LM6 Portable Leather Moisture Meter

Name: LM6 Portable Leather Moisture Meter
SKU: 126310

Measuring Range: 3% to 65% Water Content

The LM6 was designed to quickly and easily determine the water content of different types of leather. The LM6 measures moisture non-destructively, measurements are taken by placing the instrument on the material with the back-side. The moisture percentage and temperature appear on the display within a few seconds.

For measuring leather during the whole production process as well as for finished leather products

The LM6 leather moisture meter is a handheld moisture meter for measuring the moisture of leather in a nondestructive manner.
It is well suited for all kinds of leather and various degrees of moisture - from wet to dry leather.
The LM6 can be used during the whole leather manufacturing process in the tannery as well as in the leather trade or in leather processing companies.

Handling / measuring procedure

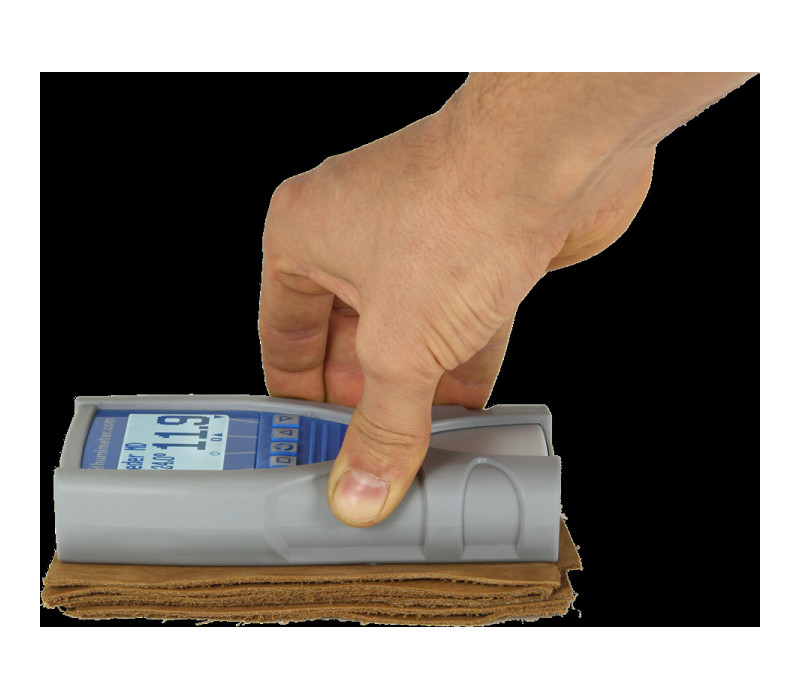

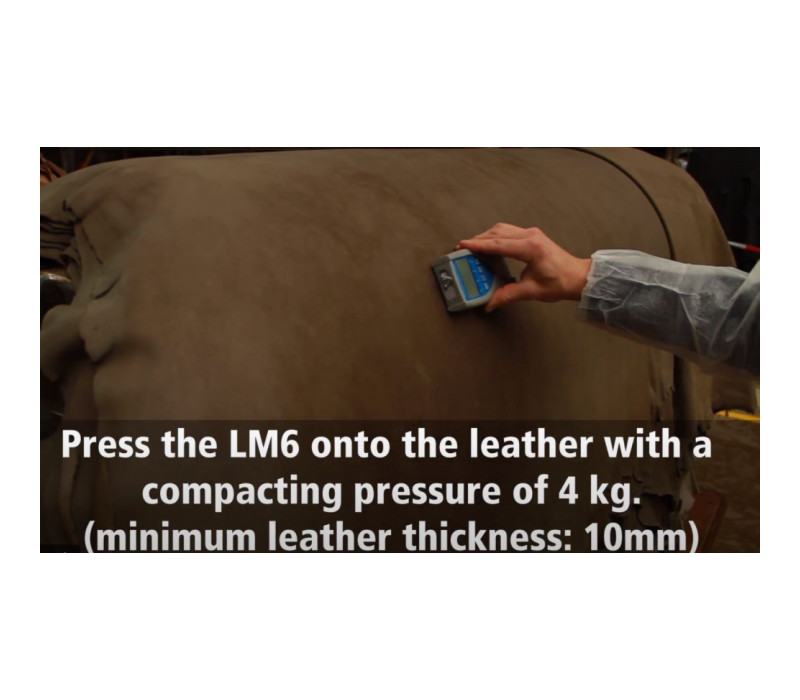

After selecting the appropriate calibration curve (depending on the leather density), press the humimeter LM6 on a leather pile with a thickness of at least 10mm.
The display immediately shows the absolute leather moisture as well as the temperature. The measuring procedure does not destroy the leather surface in any way. By effecting various measurements in different areas of the leather hide, the average water content can be determined immediately

Benefit from the non-destructive measuring method and optimise your drying costs as well as servicing times by detecting eventual moisture fluctuations or moisture spots in time. The measuring values can be stored on the device, further information like batch number can be added. Via the optional USB interface the measuring values can be transferred to a PC, and via LogMemorizer ® PC software the data can be archived, exported, processed or printed out.

Selection of calibration curves
Due to different manufacturing methods and different densities of the leather there is no standardised allocation of calibration curves.

In the list of calibration curves you can find information regarding manufacturing methods and density that enables a preselection of the calibration curve.
To ensure the best accuracy of your measurement, we recommend to carry out a comparison measurement by kiln-drying (norm DIN 53304) once:
1.   Take a leather pile of 10-15mm of the format A6 with average moisture content.
2.   Measure the water content of this leather pile using all available calibration curves and write down the measuring results of the different calibration curves.
3.   Take the 2 top leather pieces of the pile and carry out a reference measurement according to DIN 53304.
4. Compare the determined reference water content to the measuring results of the different calibration curves. Use the calibration curve with the measuring result nearest to the reference water content.

Price from € 835,00

Order now

Automatic temperature compensation for increased accuracy
Measurement within seconds without prior treatment of samples
Large backlit LCD display
Menu language in English, German, French, Italian, Spanish and Russian
Easy data storage for printing or analysis on PC (on LM6-USB only)

The LM6 is delivered as a complete kit including:
- LM6 Moisture Meter,
- Wooden Case,
- Test Plate,
- Batteries,
- User Manual.

The LM6-USB is delivered with the following:
- LogMemorizer Software,
- USB Data Transfer Cable.

Calibration Curves

Name	Calibration Curve	Density
Leather LD	Leather of low density	0,55 g/cm³
Leather CR	Leather chrome tanned	0,60 g/cm³
Leather MD	Leather of medium density	0,65 g/cm³
Leather FOC	Leather free of chrome, fire protection leather	0,70 g/cm³
Leather HD	Leather of high density	0,75 g/cm³
Leather VHD	Leather of very high density	0,80 g/cm³
Referentie	! Only for checking the instrument !
Selection of calibration curves- due to different manufacturing methods and different densities of the leather there is no standardised allocation of calibration curves

Measuring Range	3% to 65%
Resolution	0.1%
Temperature Range	-10 to 50°C
Temperature Resolution	0.1°C / 0.3°F
Temperature Units	can be set to °C and °F
Measuring Depth	5 mm
Data Logger	Automatic data log for 10.000 logs with measuring point report
Data Output (LM6-USB only)	USB interface (supplied with data transfer cable & software)
Power	4x 1.5 Volt AA batteries
Warranty	2 years

Products

Item	Product	Price	Quantity	Action
132044	AP-LM6 - Portable Leather Moisture Meter	€ 835,00
132893	AP-LM6-USB - Leather Moisture Meter with USB Output	€ 1.238,00

Accessories

Item	Product	Price
132022	Calibration Certificate - Factory calibration certificate protocol for material moisture meters	€ 136,00
139547	Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable)	€ 25,00
131808	Battery-Powered Thermal Printer - USB Meters	€ 465,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
