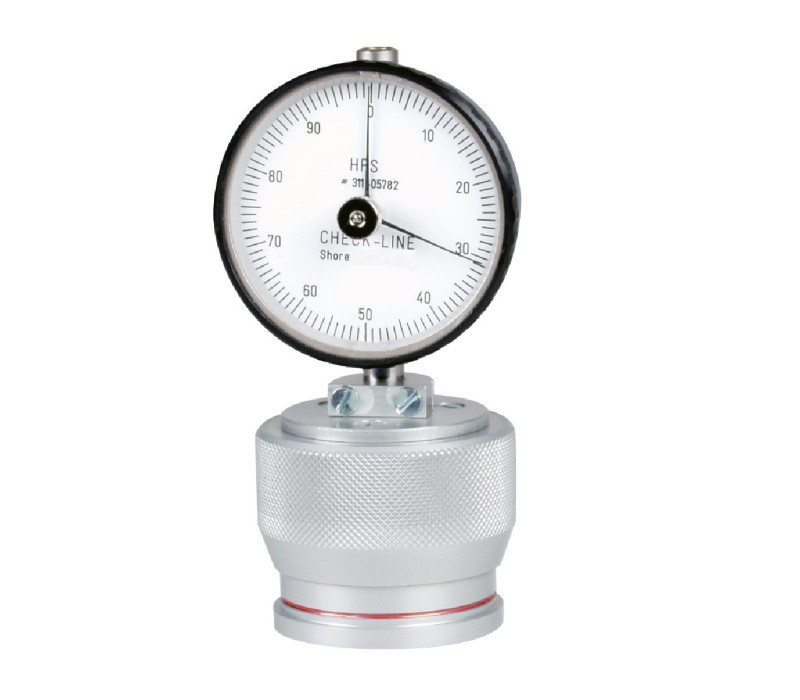

HPSAO Shore Durometer

Name: HPSAO Shore Durometer
SKU: 126923
Price: 498.00 EUR
Availability: PreOrder

Durometer according ISO 7619-1 for determining the Shore surface hardness of foams, steering wheels and inner linings of motor vehicles with hardness < 20 Shore A

€ 498,00

Order now

The spring loaded outer ring assures a constant measuring pressure and eliminates false readings due to difference between operators
Working face 44.5 mm Ø
Application range < 20 Shore A units
Flat bottom prevents tilting and improves the measuring accuracy
Adjustable Min./Max. indicator marks the highlight working range of the hardness tester
High repeatability

Operation

For measuring the hardness, the spring-loaded outer ring of the housing is pressed downwards until the edge of the ring meets the colored marking on the housing. This ensures a constant pressure and prevents measuring errors.

General:
The principle used to measure shore hardness is based on measuring the resistance force of the penetration of a pin into the test material under a known spring load. The amount of penetration is converted to hardness reading on a scale with 100 shore units.
As the depth of indentation is max. 2.5 mm the test material has to have a minimum thickness of 6 mm. If thickness is less, stack some samples till you reach the required thickness.

The HP series durometer is supplied as a complete kit with:

Durometer
User Manual
Foam-fitted carrying case.

A calibration certificate is optional.

HPSAO User Manual

Indentor	Ball, 5 mm diameter (R=2.5mm)
Depth of indentation	0 - 2.5 mm
Typical applications	Foams, steering wheels and inner linings of motor vehicles
Accuracy	± 1 hardness unit
Application range	< 20 Shore A
Standard	ISO 7619-1
Measuring spring force	0.55 - 8.065 N
Test pressure*	Approx. 12.5 N
Scale diameter	54 mm
Display range	0 - 100 Shore AO units
Working face	44.5 mm Ø = 15.5 cm²
Base plate	44.5 mm Ø
Weight, net (gross)	Approx. 300 g (500 g)
Dimensions	50 x 60 x 110 mm (LxWxH)

Y1 no header

* Spring load of outer ring to create constant pressure

Products

Item	Product	Price	Quantity	Action
133350	HPSAO Shore AO Durometer	€ 498,00

Accessories

Item	Product	Price	Quantity	Action
126401	PTS-HP Durometer Test Stand	€ 901,00
126498	HP-MEM - Memory Pointer for Durometer	€ 62,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
