HPSA-R For Nip / Rubber rollers and Cylindrical materials

Name: HPSA-R For Nip / Rubber rollers and Cylindrical materials
SKU: 126124

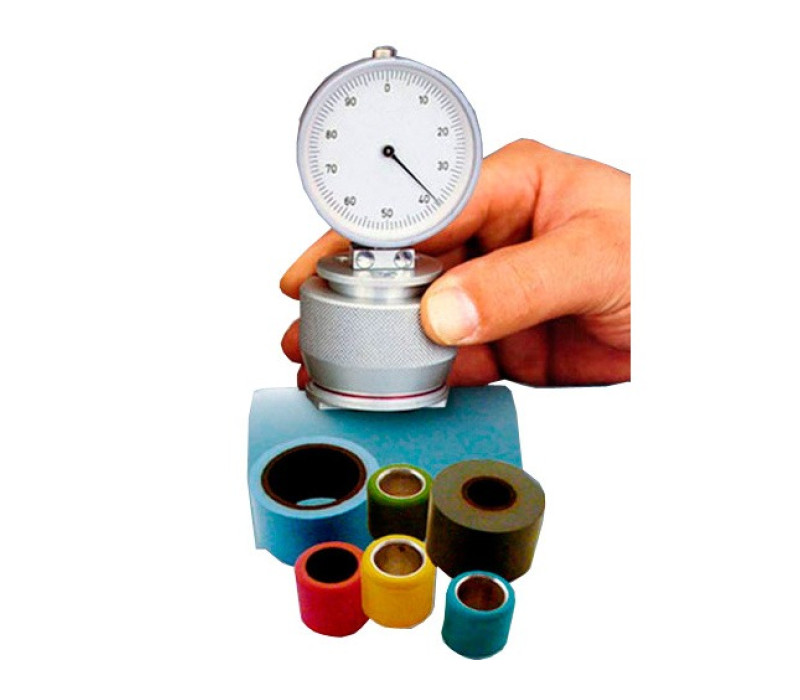

The HPSA-R# series shore A Durometers are designed to measure the hardness of rubber coated rollers and other cylindrical materials.
For cots, pressure rollers and many other rubber coated rollers, etc. The correct Shore A hardness of the cots is a critical factor to get the desired yarn structure and quality. As cots are abrasive, the hardness should be checked from time to time as they age.

3 Models:
HPSA-R20 - roller diameters up to 40mm
HPSA-R35 - roller diameters up to 70mm
HPSA-R55 - roller diameters up to 110mm

MODEL:

HPSA-R20-M
HPSA-R35-M
HPSA-R55-M

Shop now

Constant-pressure indicating system assures uniform test pressure eliminating false readings due to differences between operators.
Supplied in a foam-fitted carrying case.

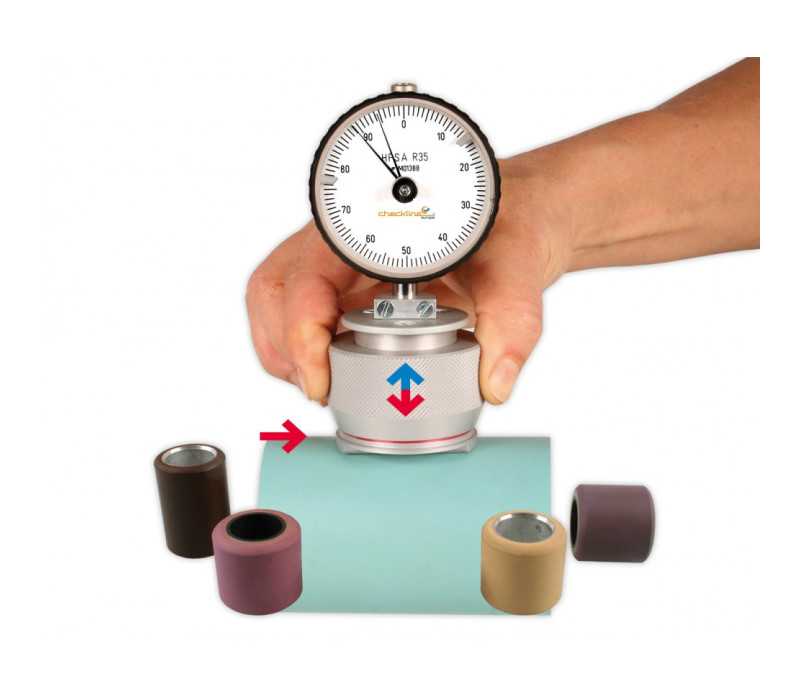

Operation is as easy as pressing the spring-loaded knurled aluminum shell down to the red line.

The HP series durometer is supplied as a complete kit with:

Durometer
User Manual
Foam-fitted carrying case.

A calibration certificate is optional.

Easy to operate

Measuring Suggestions

D1 no header

1.	Whenever possible, a Durometer measurement should be taken at least 12 mm (approx. 0.500") in from the edge of a sample, as the hardness characteristic of any sample tends to change at the edges.
2.	Whenever possible, the thickness of a sample should exceed 6 mm (approx. 0.250"). If the sample is thinner than this, then the sample can be backed with a sample of the same material to increase the thickness.
3,	Test Coupons or test blocks (rubber or plastic) should not be used for calibration verification. As all samples are subject to characteristic changes over time along with temperature and lighting conditions, the rated Shore value when supplied as new can and will vary with age. Proper calibration verification requires independent confirmation of the internal spring forces along with the verification of the pin displacement vs. the indicated value on the scale.

HPSA-R User Manual

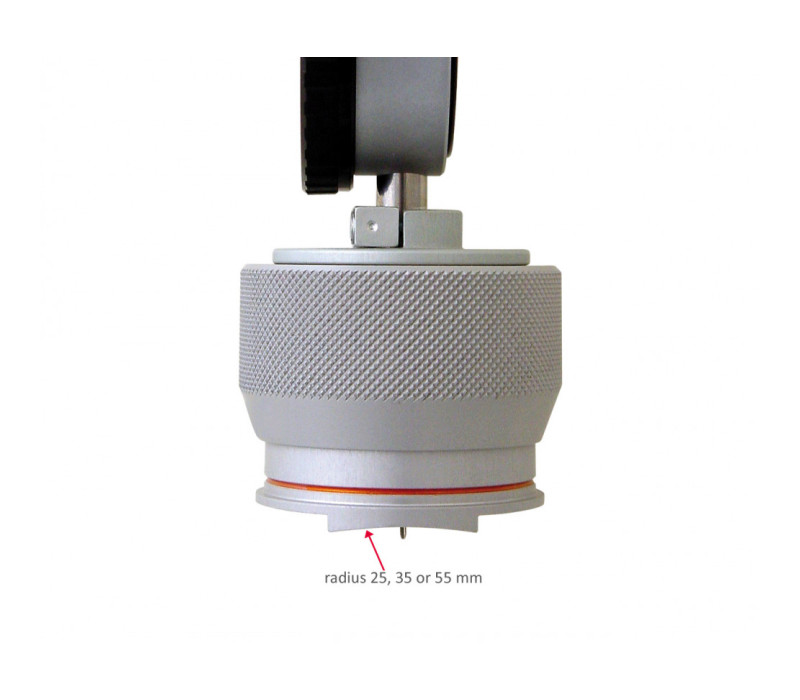

Work Face Radius:	HPSA-R20 - 20mm HPSA-R35 - 35mm HPSA-R55 - 55mm
Indenter:	Cone 35°, 1,3 mm Ø
Typical applications:	Hardness of elastomers and rubber etc.
Depth of indentation:	0 - 2,5 mm
Test pressure:	approx. 12,5 N
Measuring spring force:	0,55 - 8,065 N
Display range:	0 - 100 Scale
Scale diameter:	56 mm

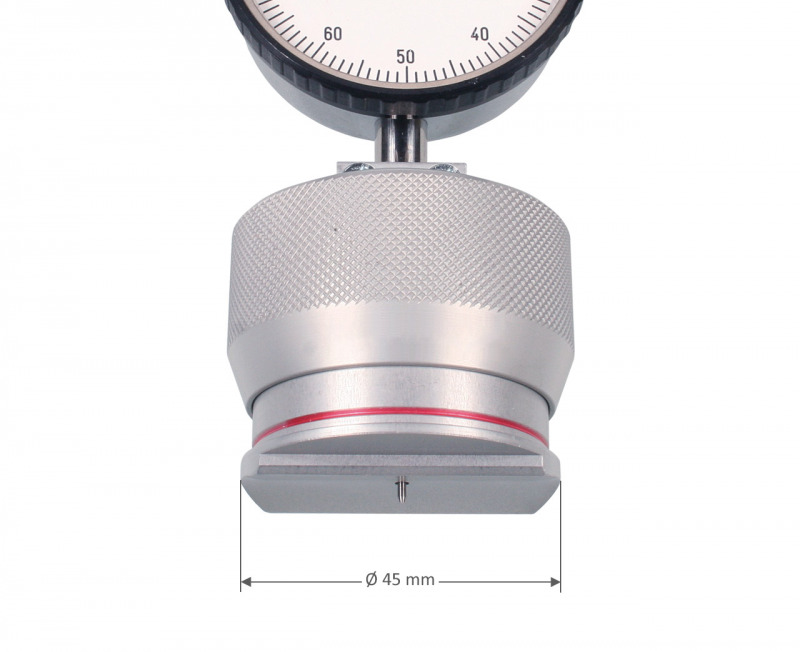

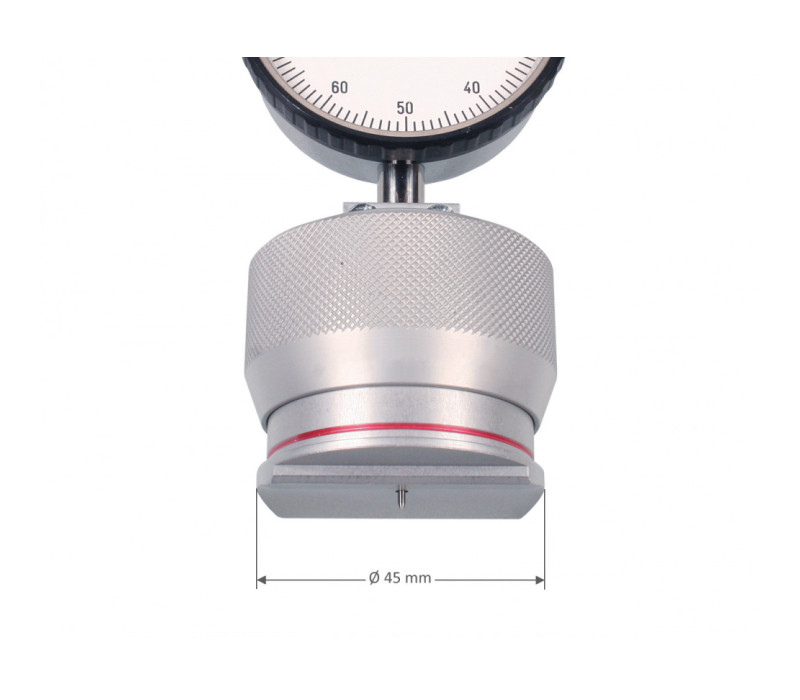

Working face:	16 mm Ø = 2 cm²
Weight, net (gross):	approx. 300 g (500 g)
Dimensions:	50 x 50 x 110 mm (L x W x H)
Warranty:	1 year

Products

Item	Product	Price
132784	HPSA-R20-M Shore A Durometer for roller ø < 40 mm	€ 593,00
130502	HPSA-R35-M Shore A Durometer for roller ø - 40 to 70 mm	€ 593,00
126707	HPSA-R55-M Shore A Durometer for roller ø - 70 to 110 mm	€ 593,00

Accessories

Item	Product	Price	Quantity	Action
126401	PTS-HP Durometer Test Stand	€ 901,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
