HP Textile Yarn Package Hardness Tester

HP-10F footer

HP-10F

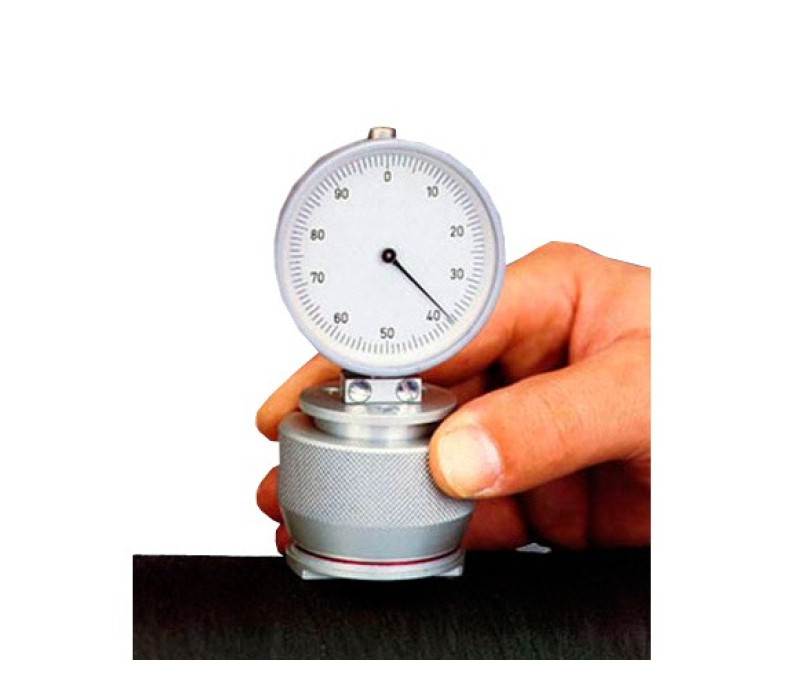

HP Textile Yarn Package Hardness Tester

The HP models accurately measure the winding density of textile bobbins, beams, spools, spindles, cones, quills, dye packages, rolls, etc.

€ 498,00

Shop now

Constant-pressure indicating system assures uniform test pressure eliminating false readings due to differences between operators
Supplied in a foam-fitted carrying case.

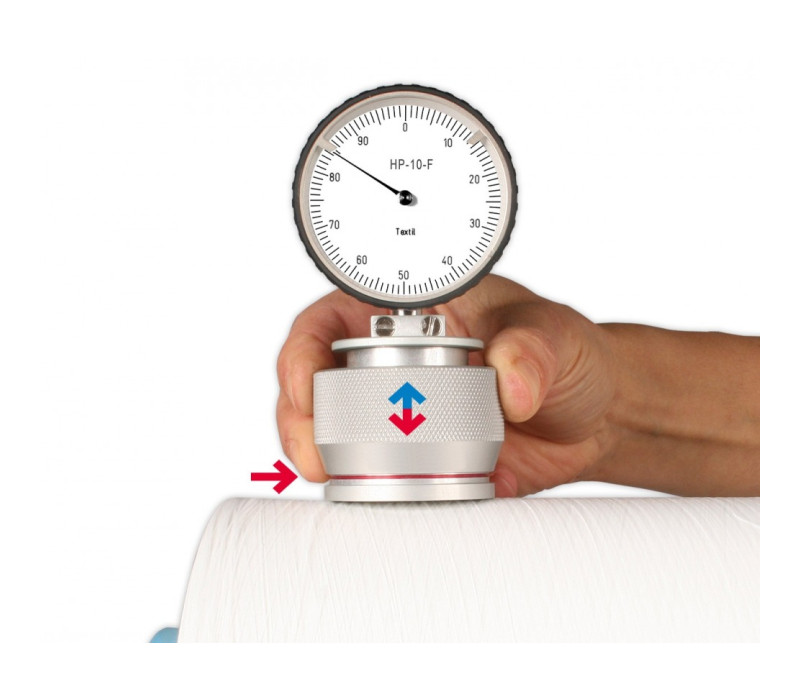

Operation is as easy as pressing the spring-loaded knurled aluminum shell down to the red line.
< 15" Yarn Package Diameter, use "regular" models

> 15" Yarn Package Diameter, use "F" models (i.e. HP-5F)

The HP series durometer is supplied as a complete kit with:

Durometer
User Manual
Foam-fitted carrying case.

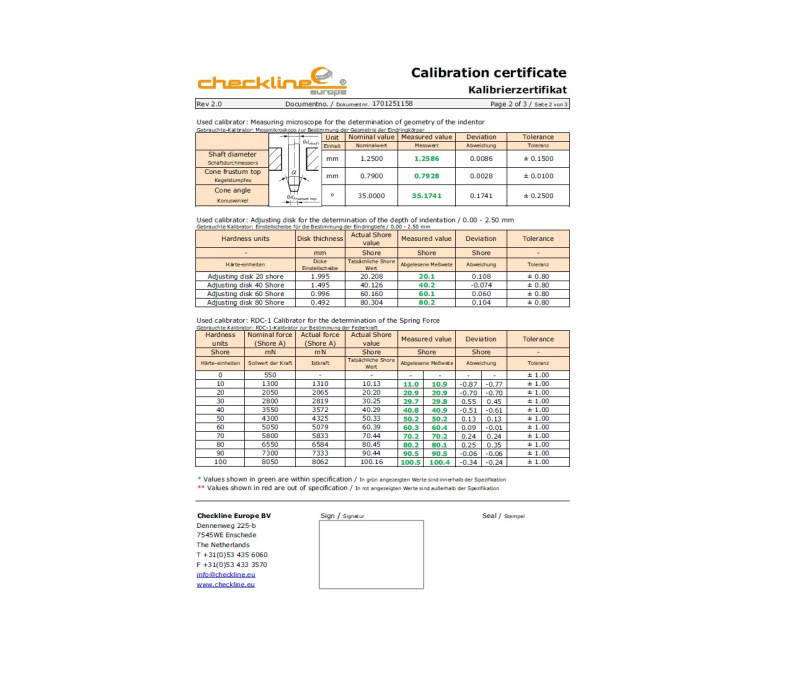

A calibration certificate is optional.

Ordering Guide

Model Number	Indenter Ball Size	Typical Application

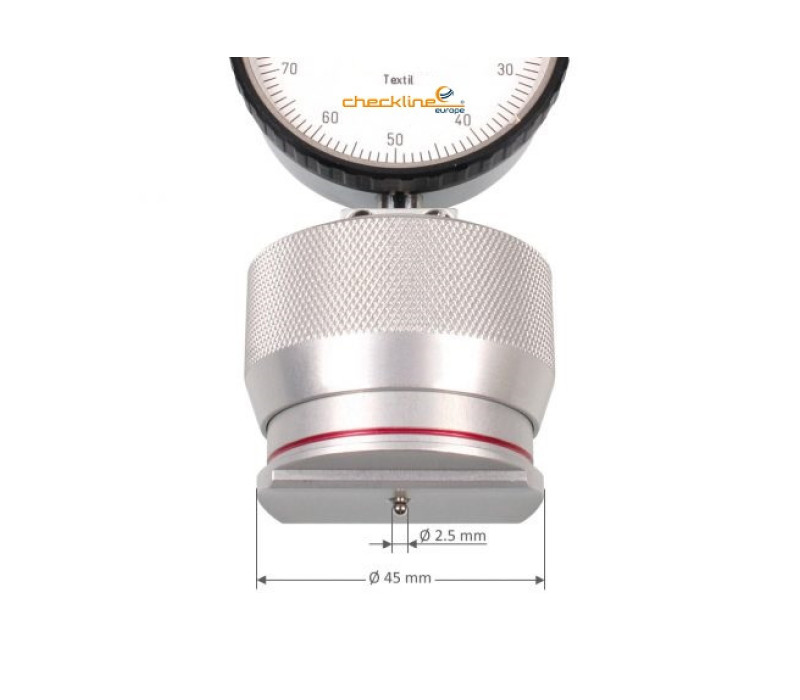

HP-2.5	2.5 mm	Closely wound synthetic, hard finish fibers and filaments.

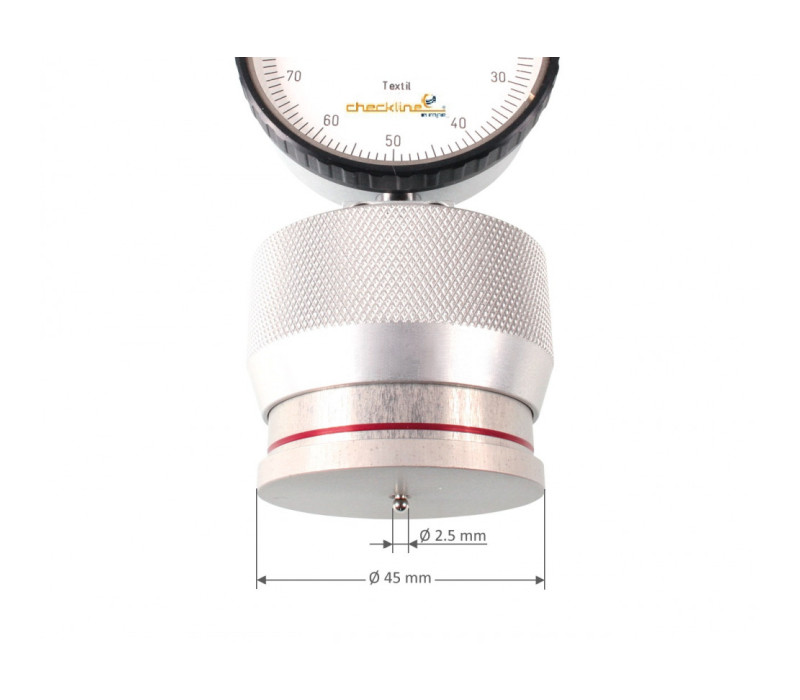

HP-2.5F	2.5 mm	Same as HP2.5, except with a flat base for large yarn packages over 15" (380 mm) in diameter.
HP-5	5.0 mm	Average yarns, threads, fibers, etc., wound with moderate winding density.
HP-5F	5.0 mm	Same as HP5, except with a flat base for large yarn packages over 15" (380 mm) in diameter.
HP-10	10.0 mm	Loosely wound spools of natural or synthetic yarns and fibers, bulky yarns.

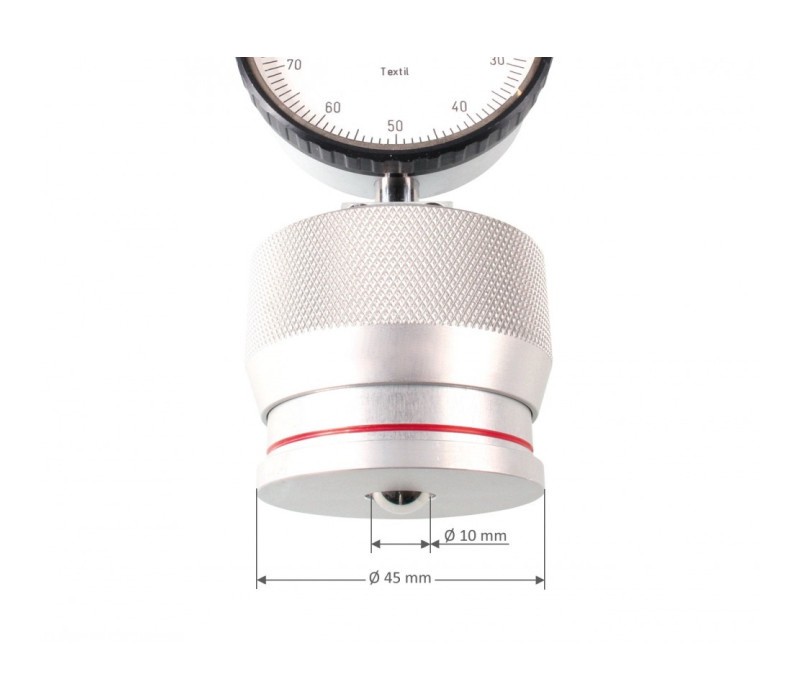

HP-10F	10.0 mm	Same as HP10, except with a flat base for large yarn packages over 15" (380 MM) in diameter.

HP Textile User Manual

Indenter:	Cone 35°, 1.3 mm Ø
Depth of indentation:	0 - 2.5 mm
Test pressure:	approx. 12.5 N
Measuring spring force:	0.55 - 8.065 N
Display range:	0 - 100 Scale
Scale diameter:	56 mm
Weight, net (gross):	approx. 300 g (500 g)
Dimensions:	50 x 50 x 110 mm (L x W x H)

Products

Item	Product	Price
130258	HP-2.5 Yarn Package Durometer, ball diameter 2.5 mm, Curved Working Face	€ 498,00
126787	HP-2.5-F Yarn Package Durometer, ball diameter 2.5 mm, Flat Working Face	€ 498,00
130308	HP-5 Yarn Package Durometer, ball diameter 5 mm, Curved Working Face	€ 498,00
130215	HP-5-F Yarn Package Durometer, ball diameter 5 mm, Flat Working Face	€ 498,00
130569	HP-10 Yarn Package Durometer, ball diameter 10 mm, Curved Working Face	€ 498,00
130550	HP-10-F Yarn Package Durometer, ball diameter 10 mm, Flat Working Face	€ 498,00

Accessories

Item	Product	Price

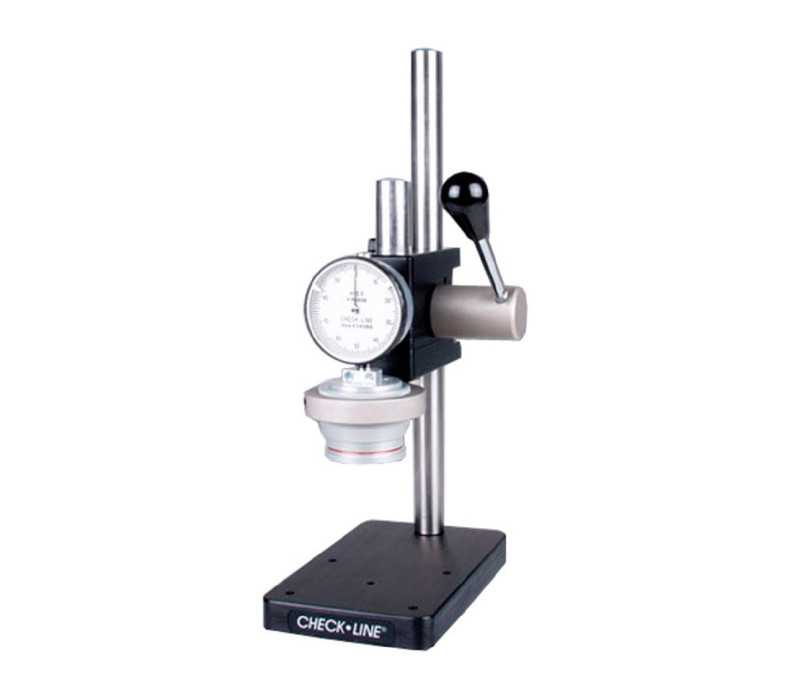

126401	PTS-HP Durometer Test Stand	€ 900,00
126498	HP-MEM - Memory Pointer for Durometer	€ 62,00
137003	HP-PR - Test block for Durometer Shore A with curved working face R20	€ 59,00
137004	HP-PT - Test block for Durometer Shore A with curved working face	€ 70,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
