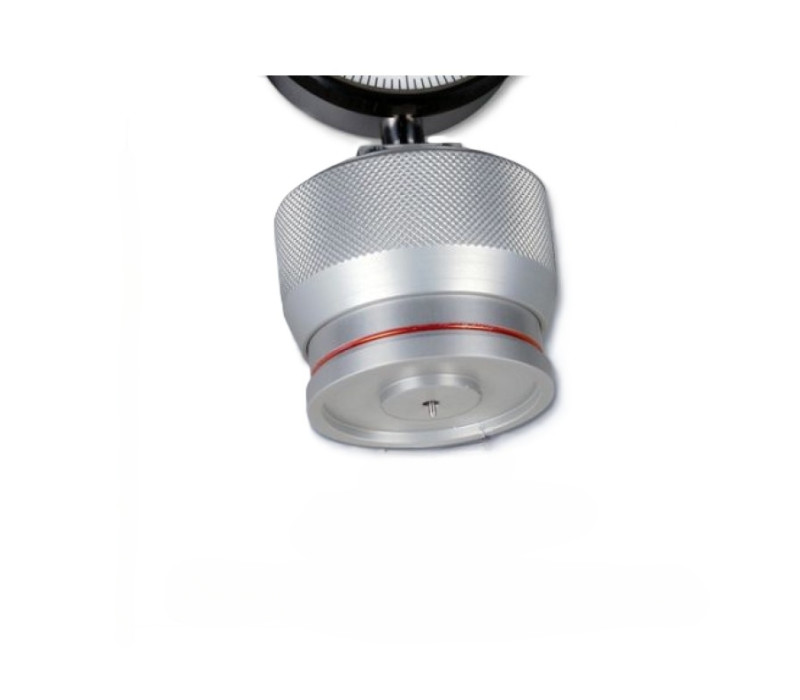

HPS Shore A pointer dimensions

HPS Shore D pointer dimensions

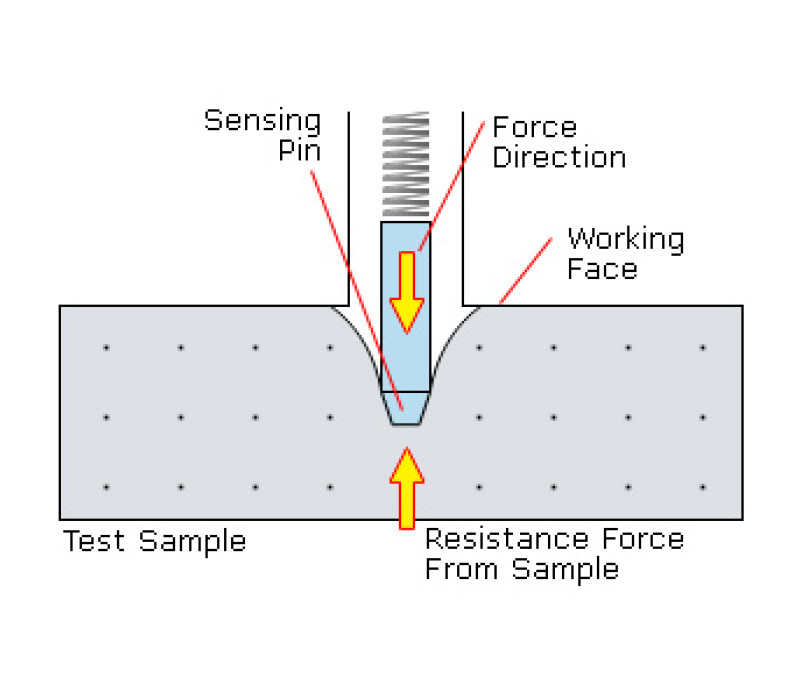

Durometer Principle Of Operation

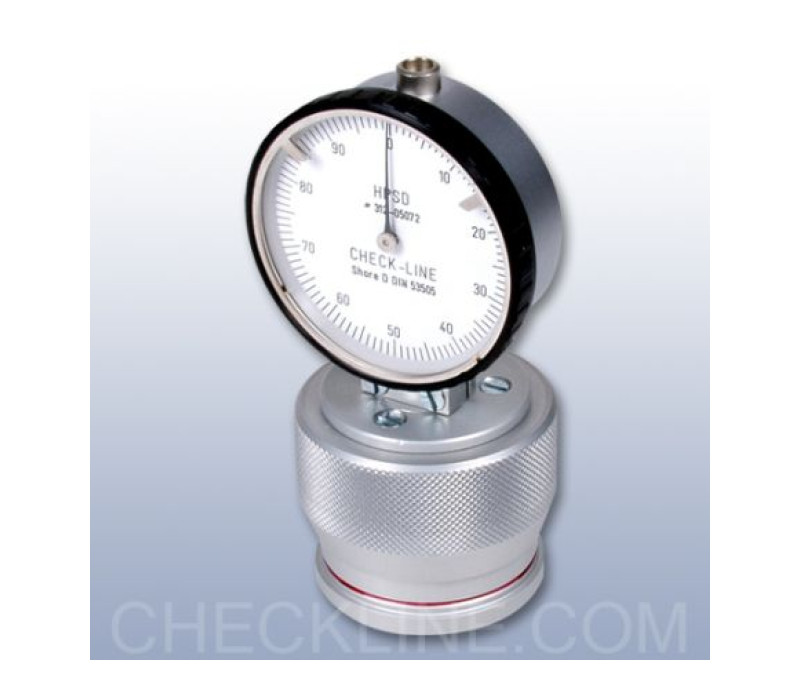

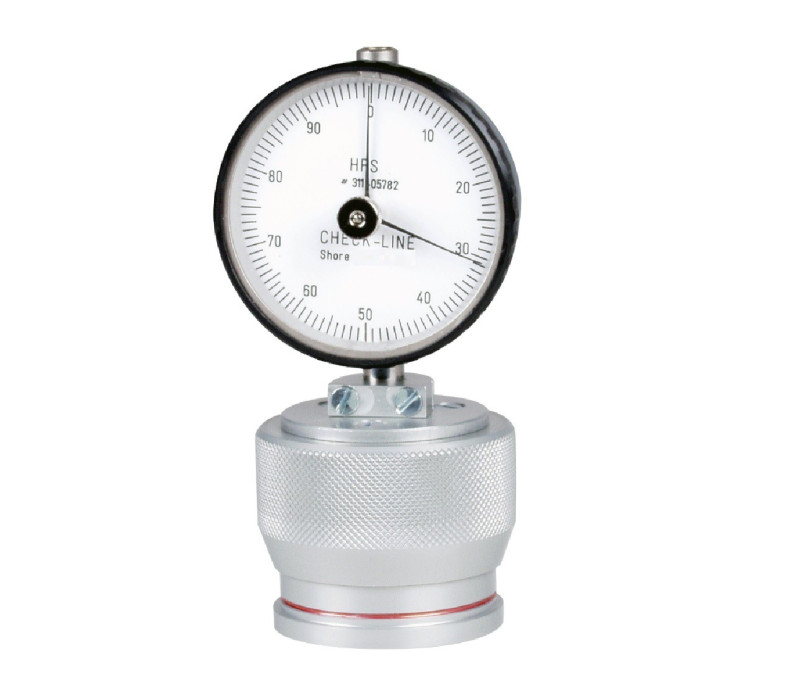

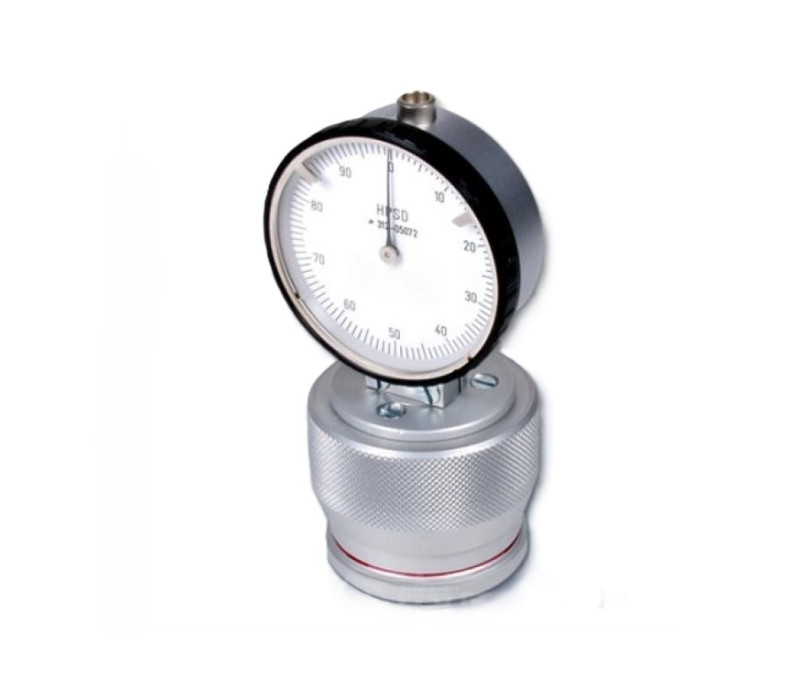

HP Series Shore Durometer

Name: HP Series Shore Durometer
SKU: 126157

The HPS Durometers measure the hardness and/or firmness of parts and test samples, e.g. rubber parts, plastic, elastic materials, textiles, printing rolls etc.

This unit is designed in accordance with ASTM and DIN quality standards which specifies the bottom contact area (working diameter), sensing pin configuration and internal spring forces. Additionally, the displacement of the sensing pin, relative to the dial indicator, is specified by these standards.

The HPS gauges work with an analog dial indicator calibrated for a range of 0-100 Shore units.

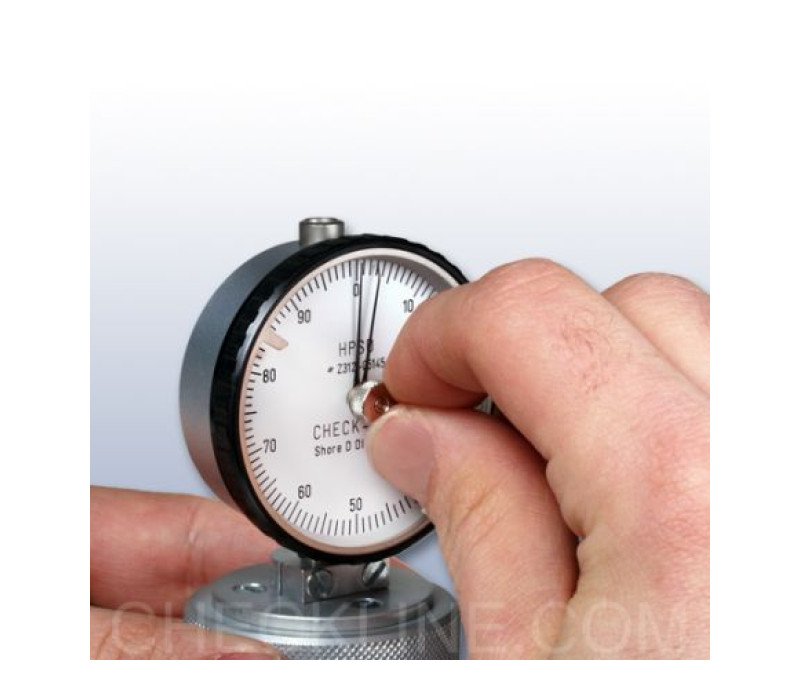

Min/Max markers are available to provide a visual indication of the acceptable hardness range.

All Checkline Durometers feature a unique spring-operator test pressure shell, which helps insure that similar test pressures are used for each measurement. This system significantly enhances the measurement repeatability, especially between different operators.

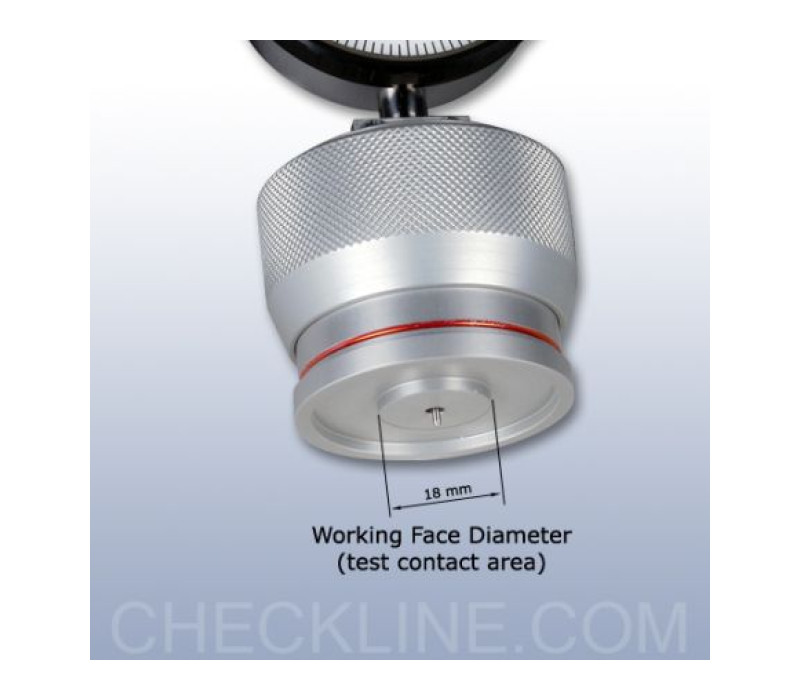

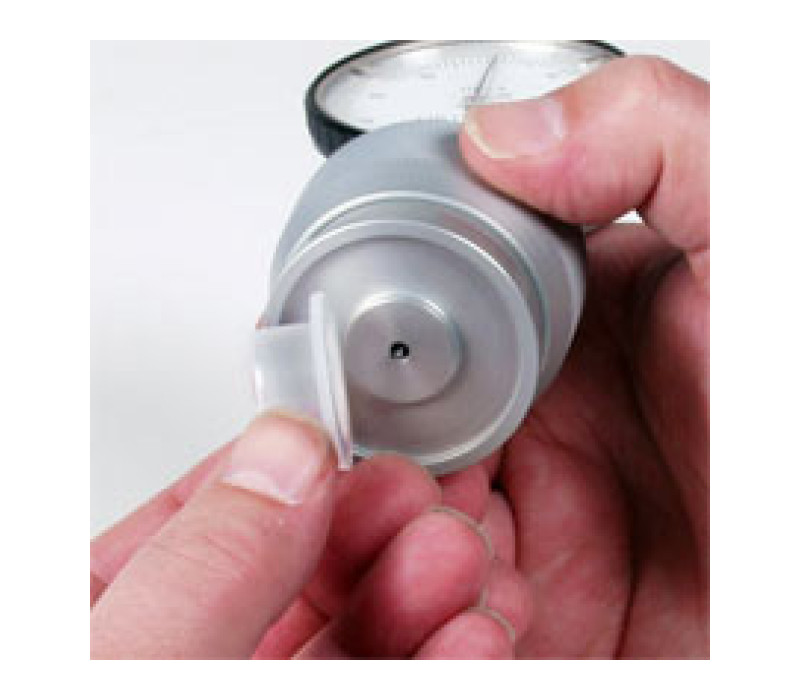

Oversized flat bottom surface makes the position of the working face (area of contact as specified in ASTM/DIN Standards) convenient and consistent which limits variability between operators.

Available Scales: A, B, C, D, DO, O

Conforms to ASTM D-2240.

MODEL:

Order now

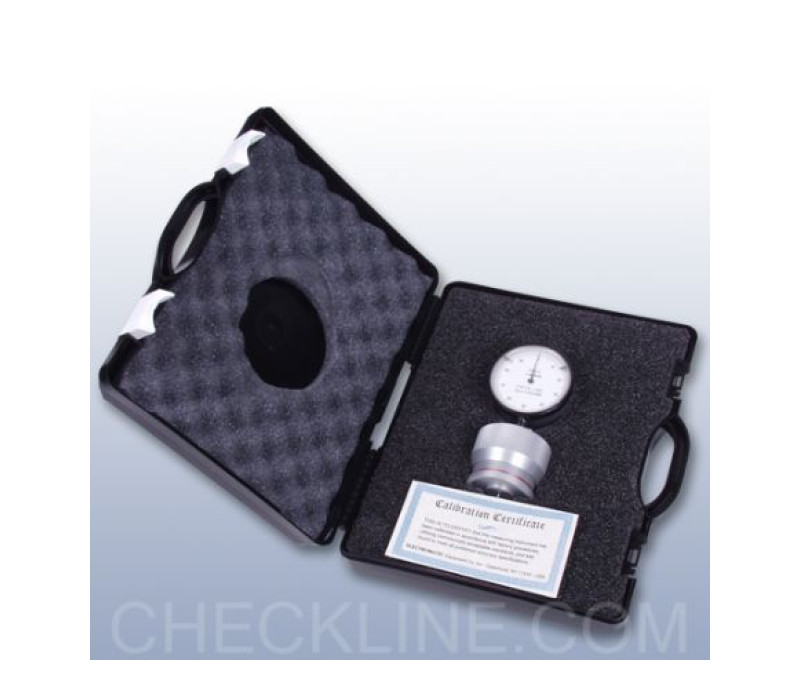

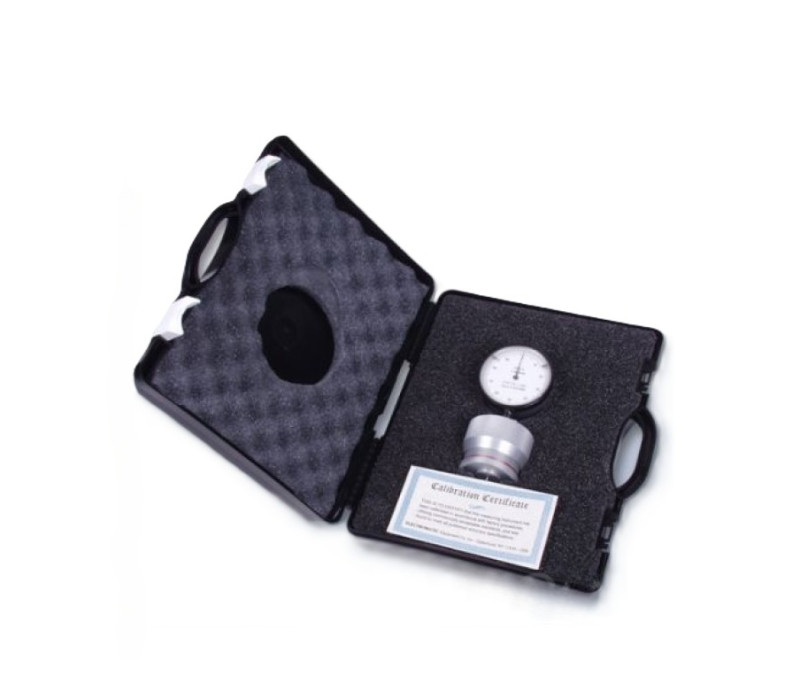

The HP series durometer is supplied as a complete kit with:

Durometer
User Manual
Foam-fitted carrying case.

A calibration certificate is optional.

Easy To Operate

Measuring Suggestions

1.	Whenever possible, a Durometer measurement should be taken at least 12 mm (approx. 0.500") in from the edge of a sample, as the hardness characteristic of any sample tends to change at the edges.
2.	Whenever possible, the thickness of a sample should exceed 6 mm (approx. 0.250"). If the sample is thinner than this, then the sample can be backed with a sample of the same material to increase the thickness.
3.	Test Coupons or test blocks (rubber or plastic) should not be used for calibration verification. As all samples are subject to characteristic changes over time along with temperature and lighting conditions, the rated Shore value when supplied as new can and will vary with age. Proper calibration verification requires independent confirmation of the internal spring forces along with the verification of the pin displacement vs. the indicated value on the scale.

Conformance to International Standards

Model	ASTM D2240	DIN 53505	ISO 868	ISO 7619
HP Series-A
HP Series-B
HP Series-C
HP Series-D
HP Series-DO
HP Series-O

Types	Indenter Shape	Force
A	Flat cone point, 35º Included Angle Soft rubber, plastics, and elastomers, printer's rolls	822 g
B	Sharp cone point, 30º Included Angle Harder elastomers and plastics. Paper and fibrous materials, Use above 93 Duro A.	822 g
C	Flat cone point, 35º Included Angle Medium hard elastomers and plastics. Also useful to avoid surface marks.	4536 g
D	Sharp cone point, 30º Included Angle Hard rubber and plastics such as thermoplastics, flooring and bowling balls.	4536 g
DO	3/32" Spherical Dense granular material, textile windings.	4536 g
O	3/32" Spherical Very soft elastomers, textile windings, soft granular materials. Use below 20 Duro A.	822 g
OO	3/32" Spherical Light foams, sponge rubber gels, animal tissue.	113 g

HP Series User Manual

Typical applications:	Hardness of elastomers and rubber etc.
Indenter:	Cone 35°, 1.3 mm Ø
Depth of indentation:	0 - 2.5 mm
Test pressure:	approx. 12.5 N
Measuring spring force:	0.55 - 8.065 N
Typical applications:	Hardness of plastic parts and hard rubber
Indenter:	Cone 30°
Depth of indentation:	0 - 2.5 mm
Test pressure:	approx. 50 N
Measuring spring force:	0.55 - 44.5 N
Typical applications:	Hardness of elastic materials, printing rolls, medium strength woven textiles made of nylon, orlan, perlon or rayon, etc.
Indenter:	Cone 3/32"
Depth of indentation:	0 - 2.5 mm
Test pressure	approx. 12.5 N
Measuring spring force:	0.55 - 8.065 N
Accuracy:	+/- 1 shore unit
Worldwide Standards:	According DIN 53505, ISO 7619, ISO 868, ASTM D 2240
Display range:	0 - 100 Scale
Scale diameter:	56 mm
Working face:	16 mm Ø = 2 cm²
Weight, net (gross):	approx. 300 g (500 g)
Dimensions:	50 x 50 x 110 mm (L x W x H)
Warranty:	1 year

Products

Item	Product	Price
126301	HPSA Shore A Durometer	€ 498,00
116301	HPSB Shore B Durometer	€ 498,00
126913	HPSC Shore C Durometer	€ 498,00
135651	HPSDO Shore DO Durometer	€ 498,00
126302	HPSD Shore D Durometer	€ 498,00
126303	HPSO Shore O Durometer	€ 498,00

Accessories

Item	Product	Price	Quantity	Action
126498	HP-MEM - Memory Pointer for Durometer	€ 62,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
