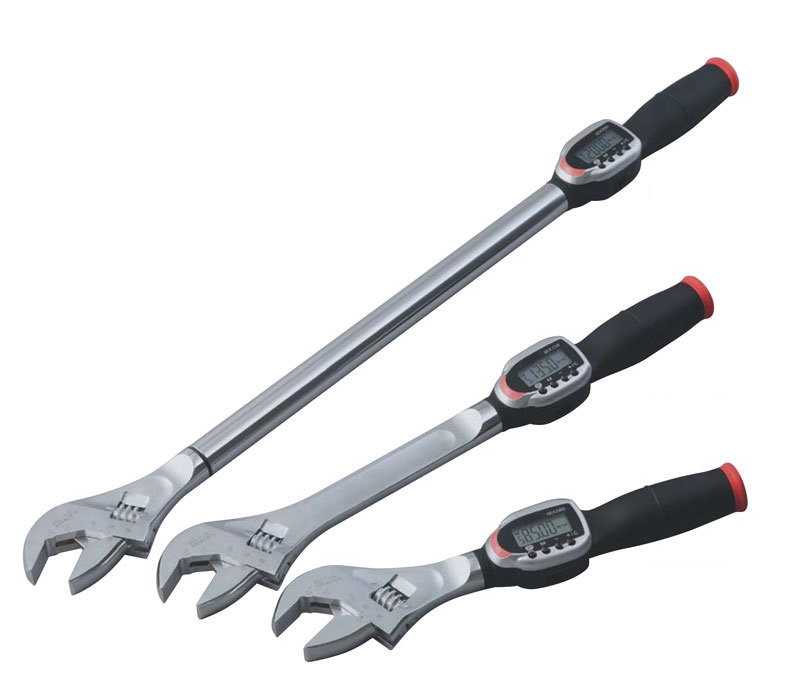

GEK Digital Torque Wrench with adjustable jaw

GEK Digital Torque Wrench with adjustable jaw

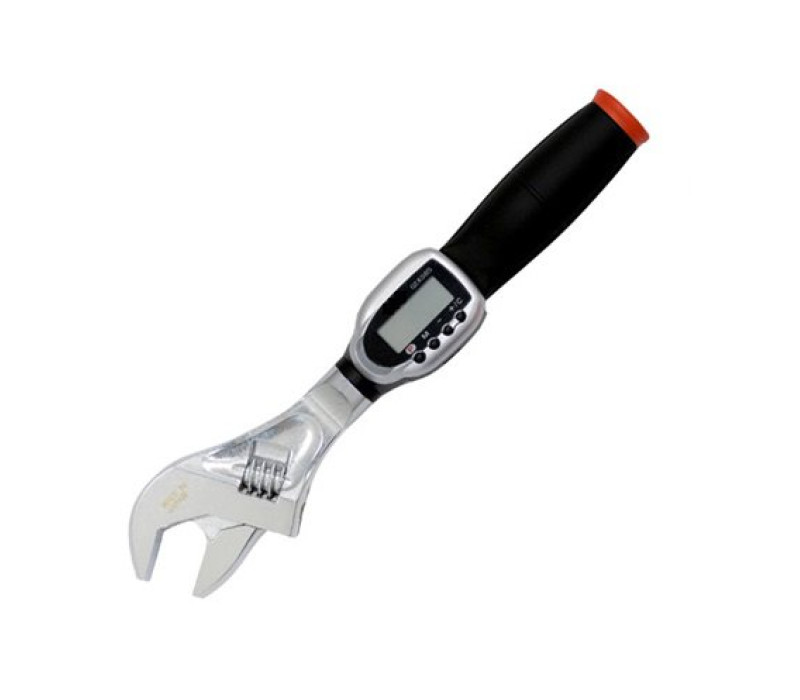

This Adjustable Torque Wrench can be used on places where a socket wrench cannot be used. The specially designed forged steel jaws maintain a constant working length at any opening position of the jaw. Regardless of the hand position the unique power sensor in the handle, accurately detects and analyzes load applied to the grip. The ergonomic grip helps keep the torque point in the center of your hand which assures greater accuracy in torque measurement.

The GEK Series Adjustable Torque Wrenches can measure in Peak mode, Peak with auto zero reset and Real time. 5 programmable torque presets stored in memory enable the user to check frequently used values. The presets alert the user with an pulsing signal at 90% and a continuous signal at 100% of the preset torque value using LED and audible indicators. Presets can be set from 10% of capacity.

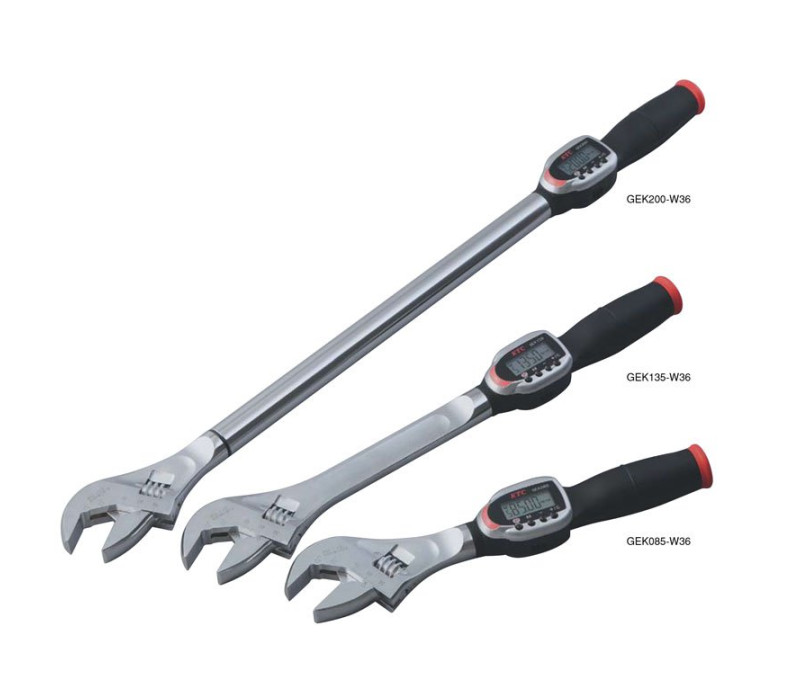

3 Models available:

GEK085-W36E: range 2.0 - 85.0 N-m (DISCONTINUED, out of stock)
GEK135-W36E: range 3.1 - 135.0 N-m (DISCONTINUED, limited stock)
GEK200-W36E: range 5.2 - 200.0 N-m (DISCONTINUED, limited stock)

High accuracy ±1.5% F.S. both CW and CCW directions
Selectable units, lbf-in, lbf-ft, kgf-cm, N-m
Peak, Peak with auto zero reset and Real Time modes
ISO-6789 Compliant
Adjustable Drive Size: 10~36mm

Specially Designed Jaws Maintain Consistent Working Length

Consistent working length, whether the jaws are open or closed, assures greater accuracy in measurement,

(measured from the bolt's rotational axis to the point where load is applied).

Digital Adjustable Wrench Ranges

Model	lbf-in	lbf-ft	kgf-m	N-m
GEK085-W36E	19.0 - 752.0	1.60 - 62.70	0.21 - 8.66	2.0 - 85.0
GEK135-W36E	28 - 1195	2.3 - 99.5	0.32 - 13.76	3.1 - 135.0
GEK200-W36E	46 - 1770	3.8 - 147.4	0.55 - 20.40	5.2 - 200.0

Accuracy	±1.5% F.S. both CW and CCW directions
Adjustable Drive Size	10~36 mm
Measuring units	Selectable lbf-in, lbf-ft, kgf-m, N-m
Data Memory	5 (storable Target torque values), 1 (Pass/Fail Mode)
Auto Shut OFF	Power automatically turns off after 2 minutes of non-use
Power	Lithium coin battery CR2354
Battery Life	Approx. 2 months (100 usages per day)
Measuring direction	CW with display facing you, CCW with display facing away from you
Warranty	1 year

The Digital Adjustable Torque Wrench comes with:

Calibration certificate traceable to NIST
Carrying case
Manual
Uses a lithium coin battery, Panasonic CR2354 (which is included)

Products

Item	Product	Price	Quantity	Action
135874	GEK135-W36E - Digital Adjustable Torque Wrench - 135 Nm
135875	GEK200-W36E - Digital Adjustable Torque Wrench - 200 Nm

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
