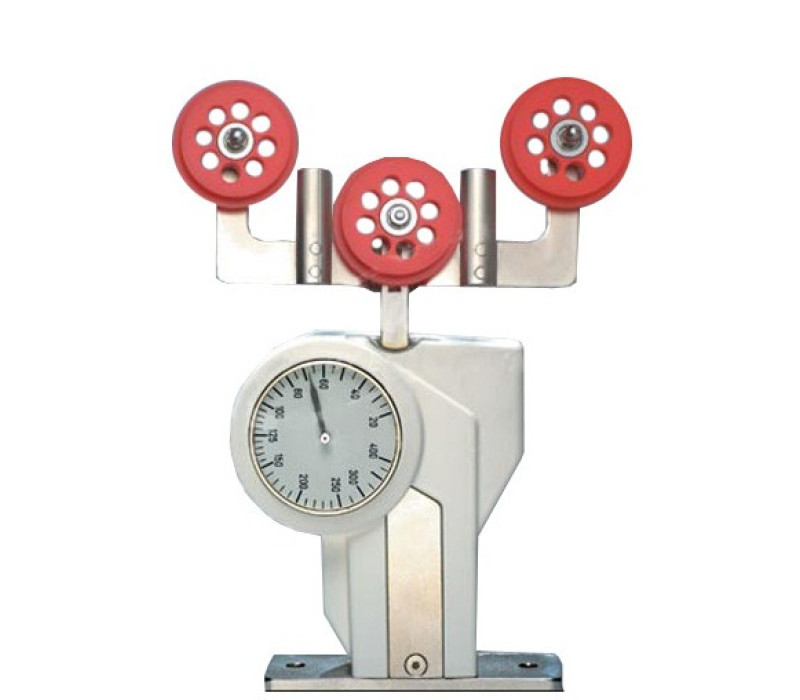

FX2S Optic Fiber Stationary Tension Meter

Name: FX2S Optic Fiber Stationary Tension Meter
SKU: 126836

Large diameter rollers and 100 mm spacing between outer rollers minimize damage to optic fibers and similar materials that cannot withstand a small bending radius.

Built-in mounting holes permit fixed installation for continuous in-line use.

Standard roller material is Delrin plastic or, optionally, aluminum (L).
Lightweight, low inertia 32 mm diameter rollers for speeds up to 2000 m/min or, optionally, up to 4000 m/min (K).
The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment.
Large bending radius assures gentle handling of the material being measured.
Built-in mounting holes permit fixed installation for continuous tension measurement.
Special guides on the bracket assembly permit easy material acquisition.

Tension Ranges

Model	Ranges	Width Measuring Head
FX2S-120	20-120 cN	140
FX2S-200	20-200 cN	140
FX2S-400	20-400 cN	140
FX2S-1000	50-1000 cN	140

Guide Rollers

Order Code	Line Speed ...m/min	Roller Material
Standard	4000	Plastic (PVC) red
Code L	4000	Hard coated aluminum

Accuracy	±1 % full scale or ±1 graduation on scale
Diameter of Scale	41 mm
Temperature Range	10 - 45 ºC
Air humidity	85 % RH, max
Housing material	Die-cast aluminum
Housing Dimensions	127 x 85 x 45 mm (LxWxH)
