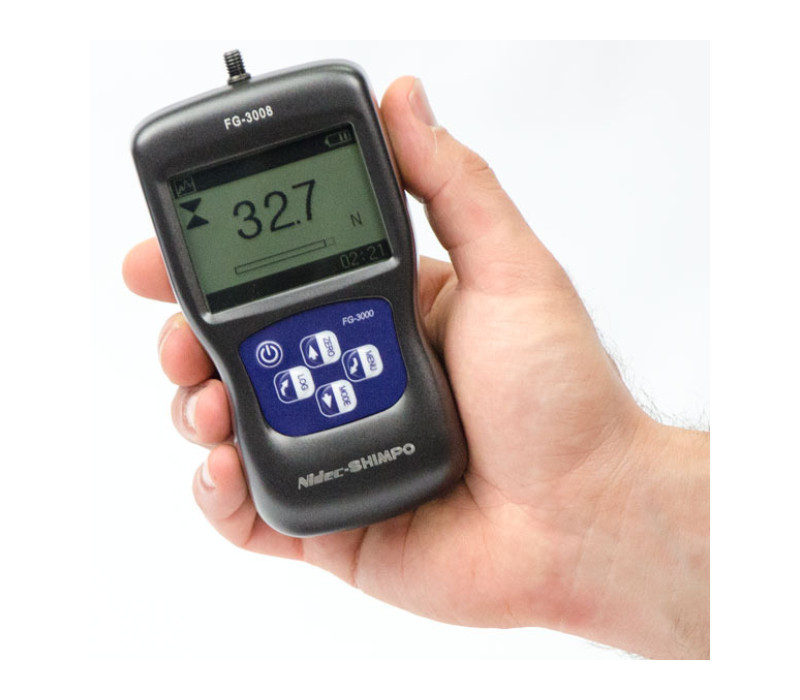

FG-3000 Series FG-3000 Series Digital Force Gauges

FG-3000 Series Digital Force Gauges

The Shimpo FG-3000 series by Checkline is the perfect solution for professionals in quality control, research & development, and industrial testing.
Designed for tensile and compressive force measurements, this advanced force gauge delivers precise, repeatable results across various applications.

Key Features:

Exceptional Accuracy: Measures forces with ±0.3% full-scale precision
Wide Measurement Range: Available in models supporting up to 1000N
User-Friendly LCD Display: Backlit screen with multiple viewing modes
Data Logging & Connectivity: Store results and transfer data via USB & RS-232 interface
Durable & Portable Design: Compact, robust construction for both mobile and stationary use

Special Features:

Versatile Testing Modes: Includes peak force measurement, real-time tracking, and preset limits
Comprehensive Accessories Included: Comes with multiple attachments and a sturdy carrying case

To find out more about how the FG-3000 series force gauges can fulfil your specific force measurement requirements, contact us.

Models

	Capacity	Resolution
FG-3003	2.2 Lb 1 Kg 10 N 35 oz	0.001 Lb 0.001 Kg 0.01 N 0.01 oz
FG-3005	11 Lb 5 Kg 50 N 180 oz	0.01 Lb 0.001 Kg 0.01 N 0.1 oz
FG-3006	22 Lb 10 Kg 100 N 350 oz	0.01 Lb 0.01 Kg 0.1 N 0.1 oz
FG-3007	44 Lb 20 Kg 200 N 700 oz	0.01 Lb 0.01 Kg 0.1 N 0.1 oz
FG-3008	110 Lb 50 Kg 500 N 1800 oz	0.1 Lb 0.01 Kg 0.1 N 1 oz
FG-3009	220 Lb 100 Kg 1000 N 3500 oz	0.1 Lb 0.1 Kg 1 N 1 oz

Supplied with Factory Calibration Certificate
NIST Traceable Calibration or ISO-17025 Certificate are optional
1000 Hz Sample Rate combined with +/-0.3% F.S. accuracy provides fast sampling producing great resolution and more accurate results
3 mode operation: Track, Peak & Preset Limits
180° reversible display, tension/compression icons, and vertical printed keypad allows usage as a portable gauge or mounted upside down on a test stand
Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing in Preset mode
500 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
Comparator output function provides user with easy Pass/Fail testing system integration capabilities
Multi-language and engineering unit’s selection provides flexible user options
Field Calibration capability eliminates the need to send to a lab for calibration
Free Data logging/graphing software provided, sample rate up to 60 readings/sec

The FG-3000 complete kit comes supplied with:

AC Adaptor/Charger
USB cable
6 Attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft
Foam fitted plastic carrying case
Calibration certificate

Model	FG-3000 (6 models)
Accuracy	± 0.3% F.S.
Selectable Units	N, kgf, ozf, and lbf. (Depending on Range)
Overload Capacity	150% of F.S. (LCD flashes beyond 110% of F.S.)
Measurement Method	Peak, Track, Preset
Data Sampling Rate	1000 Hz
Display	160*128 dot matrix LCD with Backlight
Display Update Rate	10 times/second
Memory	500 data
Set Point	Programmable high and low limits in Preset Mode
Power	3.6VDC 800mAH Ni-MH rechargeable batteries
Battery Life	Approximately 16 hours continuous use per full charge
Charger / Adaptor	Universal USB/BM charger, Input: 110 ~ 240VAC
Temperature Effects	0.03% FS per °C
Outputs	USB, RS-232; High & Low Limit NPN’s
Operating Temperature	-10 to 40°C
Storage Humidity	20 to 80% RH
Housing	Aluminum
Dimensions	140 x 71 x 35.5 mm
Product Weight	0.4 kg
Warranty	1-Year
