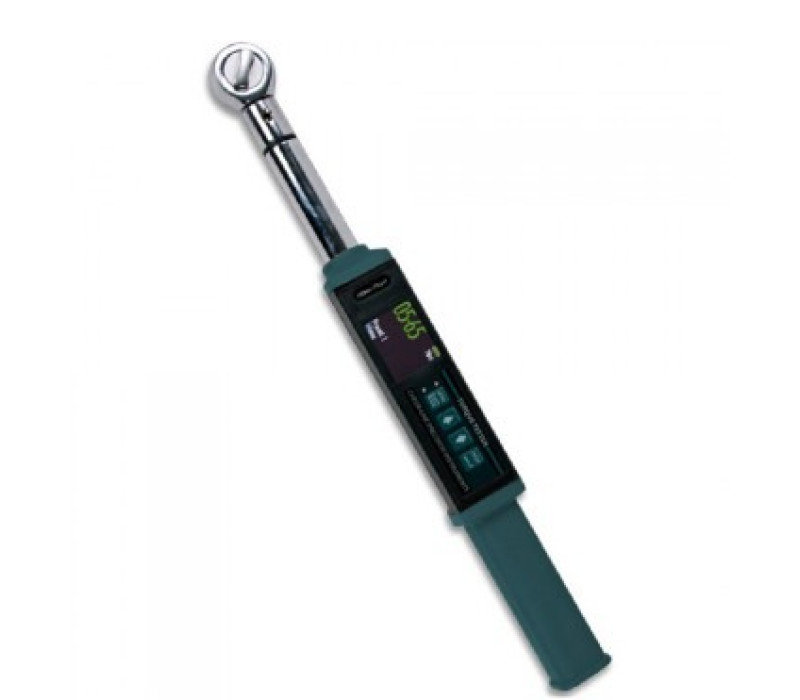

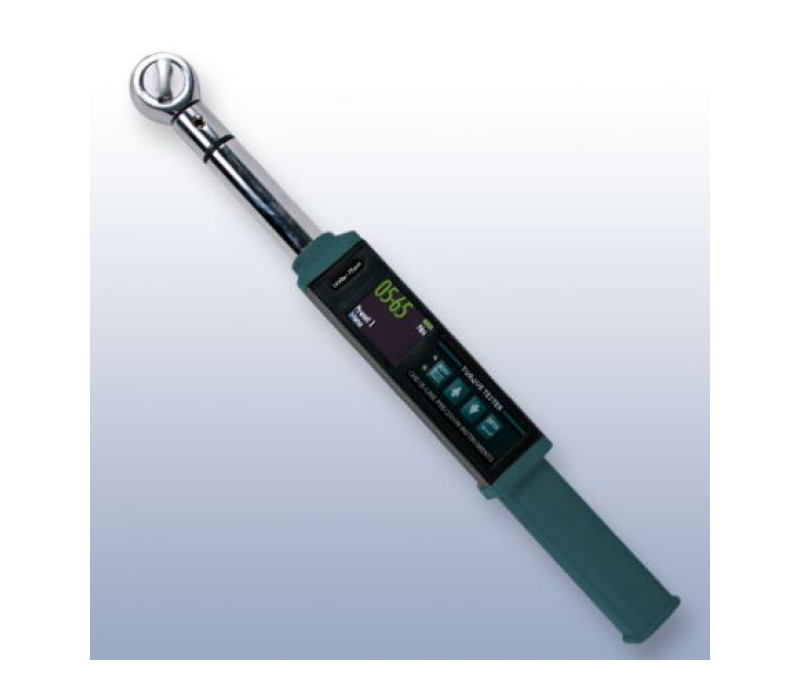

ETW-SP Digital Torque Wrench

Premium Digital Torque Wrench

Top of the line!

This high range digital torque wrench includes outstanding features such as bi-directional operation, peak measurement mode, memory, USB output, software and cable. In addition, this top of the line measurement device is also equipped with a multi-language menu, SPC & PLC output, programmable presets and a calibration reminder.

Request price >>

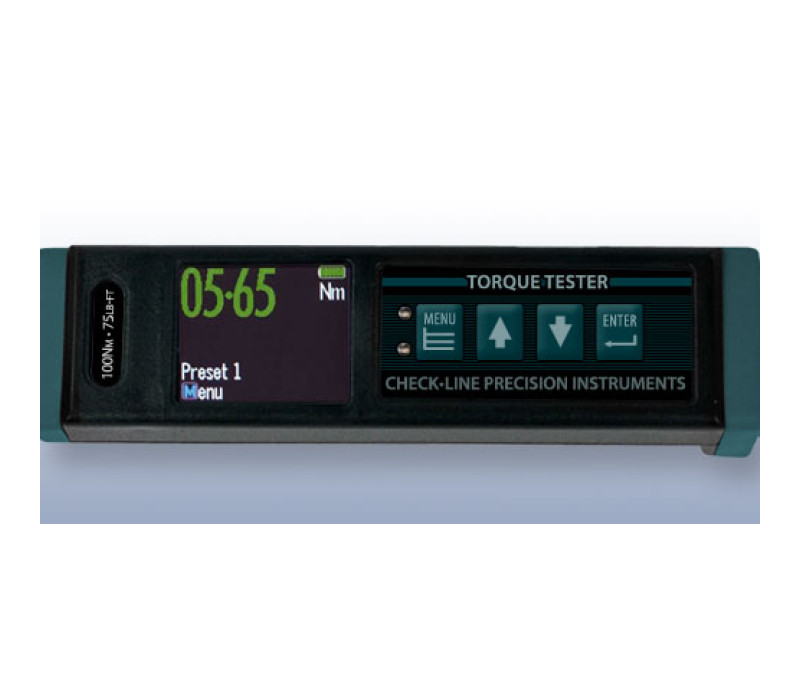

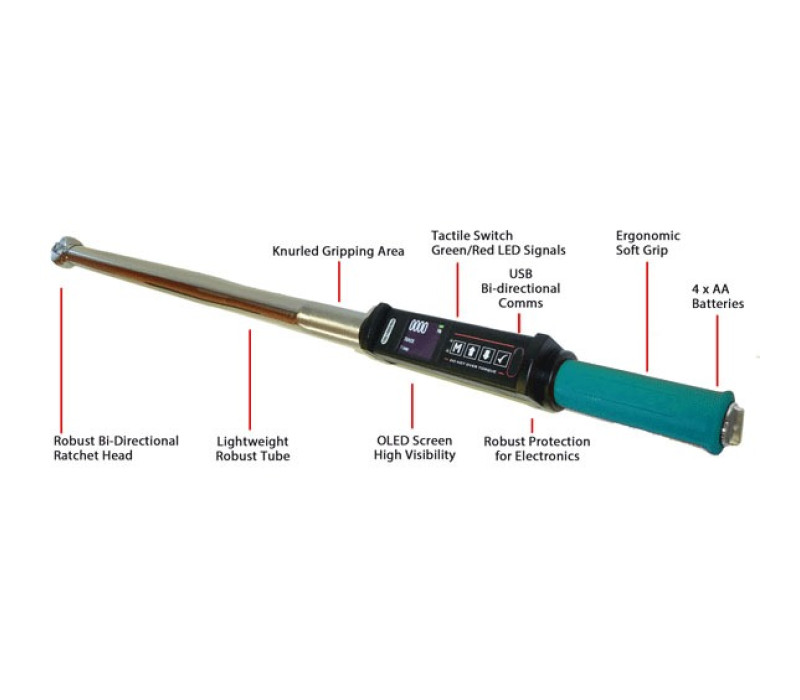

Large Color Organic LED (OLED) Display.
Robust Bi-Directional Ratchet Head
Ergonomic Soft Grip for comfort
Bi-Directional Accuracy better than 1%
Battery Life of over 180 hours
Traceable Calibration Certificate Included
Includes USB Output & Data Transfer / Analysis Software
1 Year Warranty
Over-Torque Warning On Display
Automatic Power Down
Automatic Zero Point Setting
Storage Capacity of 2000+ Measured Values

Model Comparison Chart

Feature Comparison Chart	EZ	PRO	SUPER
Language, Comms, Peak, Set, Recall, Upload, Clear	-
Date, Track, Presets, Units
Display: Large Organic LED
Units: N-m, N-cm, Kgf-m, Kgf-cm, Oz-in, Lb-in, Lb-ft
Alarms: Audible & Visual Signals
Automatic Zero Point Setting
Automatic Power Down
Over-torque: Warning system on display

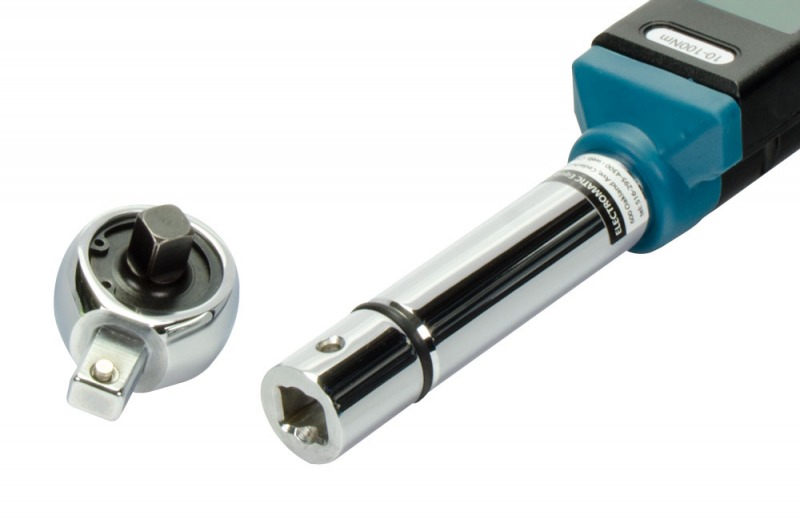

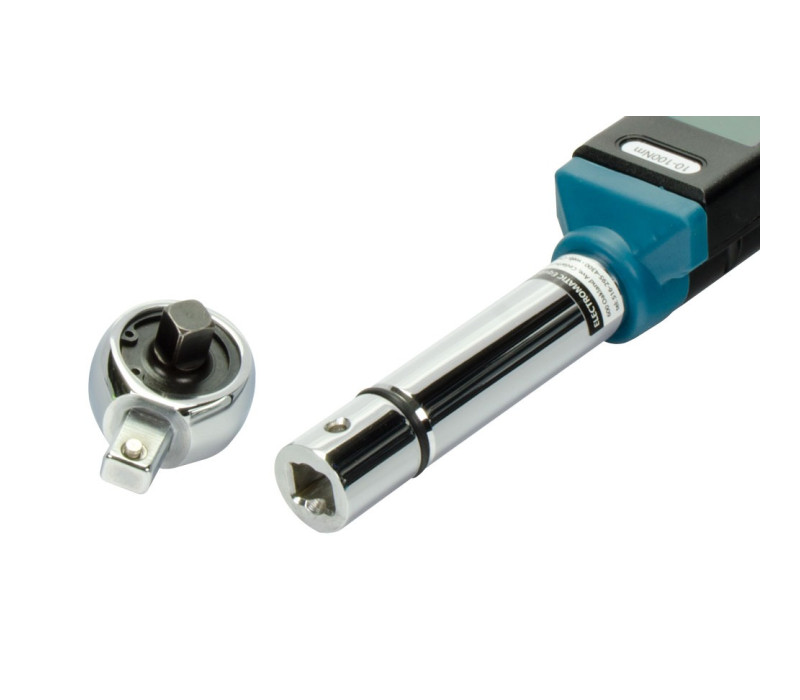

Interchangeable heads
Batteries: Lifespan of 180+ hours
Storage Capacity: 2000+	-
Languages: English Chinese, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish, others on request
Programmable presets: 99, via PC or directly on Wrench	-	-
Electronic Calibration: by date or numbers of measurements	-	-
Accuracy: better than 1% of actual reading LHS & RHS from 10% to 100% of specified range
Displays measurement: Starts from 2% of max
Windows Excel and SPC compatible	-	-
Comms: USB bi-directional communications	-
PLC Communications: Using ASCII or Binary transfer	-	-

Accuracy	CW - ±1% CCW - ±1% of indicated reading 10 - 100% of capacity (readings start at 2%)
Resolution	0.01 N-m / 0.1 in-lb / 0.01 ft-lb
Sampling Frequency	500 Hz (500 samples/sec)
Display Update Rate	4 Hz (4 times/sec)

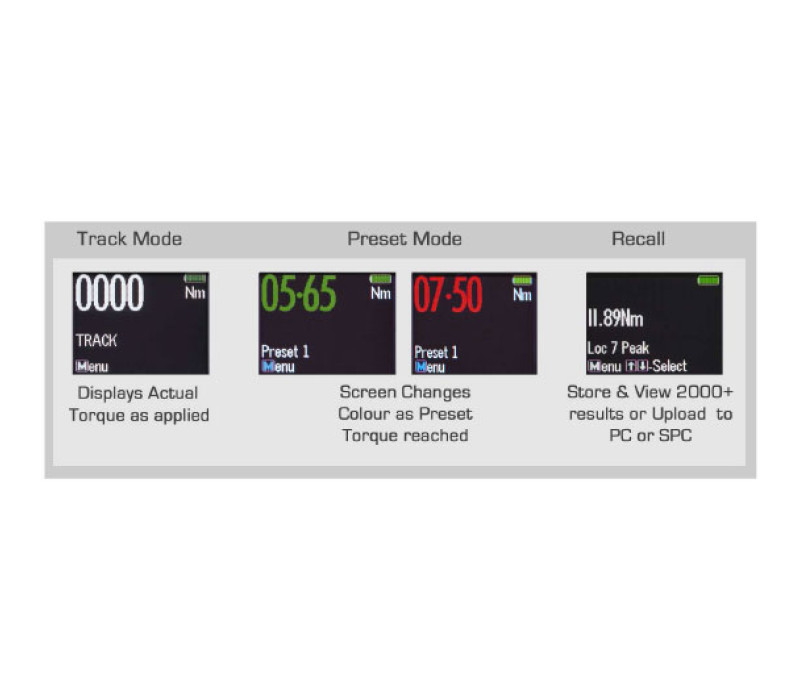

Operation Mode	Peak, Track, Preset
Unit selection	Lb-in, Lb-ft, N-m, N-cm, Kgf-m, Kgf-cm, Oz-in
Length	410 mm / 0,85 kg (Ranges 10 - 135) 625mm / 1,3 kg (Ranges 150 - 400) 1,2 m / 4 kg (Ranges 500 - 1000) 1,6 m / 6kg (Ranges 1500 - 2000)
Head Type	Robust Bi-Directional Ratchet
Battery	4 x AA
Battery Life	180+ hours
Operating Temperature	-10°C ~ 60°C
Storage Temperature	-20°C ~ 70°C
Humidity	Up to 90% non-condensing
Storage Capacity	2000+ values
Communication Port	USB bi-directional communication
PLC Communications	Using ASCII or Binary transfer
Languages	English, Chinese, French, German, Italian, Japanese, Polish Portuguese, Russian, Spanish, others on request
Calibration	Electronic, by date or number of measurements
Programmable presets	99, via PC or directly on Wrench
Warranty	1 year

Products

Item	Product
132183	ETW-SP-10 - Digital Torque Wrench - 10 Nm
132184	ETW-SP-20 - Digital Torque Wrench
132185	ETW-SP-50 - Digital Torque Wrench
132186	ETW-SP-100 - Digital Torque Wrench
132189	ETW-SP-200 - Digital Torque Wrench
132192	ETW-SP-340 - Digital Torque Wrench 34 - 340 N-m
132193	ETW-SP-600 - Digital Torque Wrench
132194	ETW-SP-800 - Digital Torque Wrench
132195	ETW-SP-1000 - Digital Torque Wrench
134787	ETW-SP-1500 - Digital Torque Wrench
132196	ETW-SP-2000 - Digital Torque Wrench

Accessories

Item	Product
132172	ETW-3/8 - 3/8" Drive for ETW series
139547	Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable)

All prices shown exclude VAT and shipping costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
