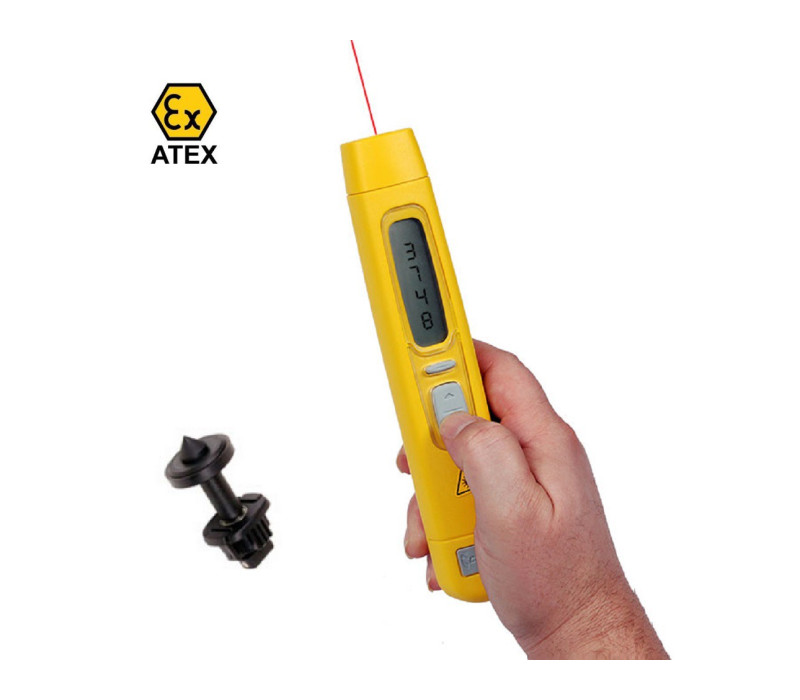

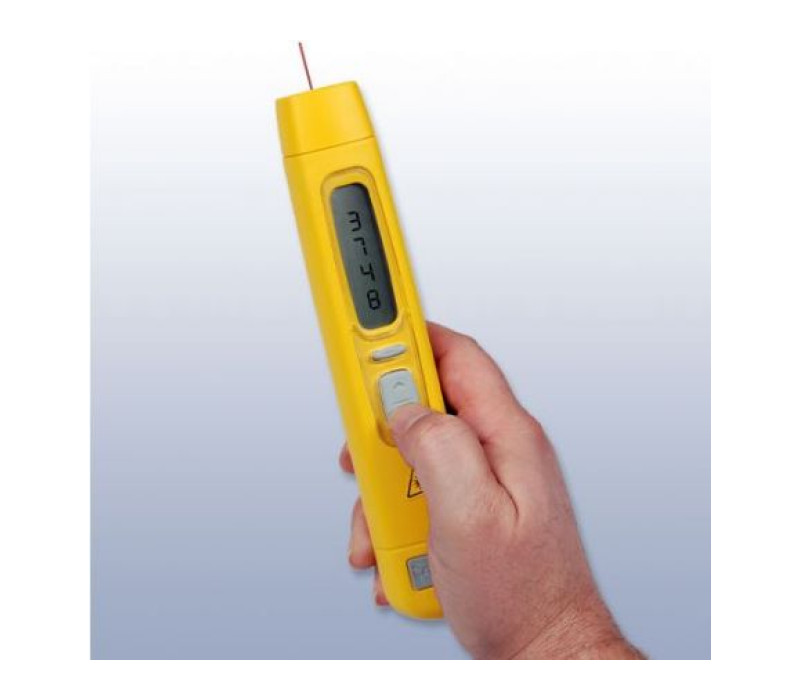

ET-2109LSR Intrinsically Safe Tachometer

ET-2109LSR Intrinsically Safe Tachometer

The new CHECK-LINE ET-2109 explosion proof tachometer is certified EEx ia IIC T4 - ATEX II 2 G to allow for use in a wide range of hazardous environments including petrochemical, Gas & volatile materials processing industries.
The simple 3 pushbutton operation and the large clearlyreadable display with over-head facility enables a wide, flexible field of application. This light-weight device provides an easy one handed operation and facilitates the carrying-out of measurements after which it can be stowed away in the tool box or jacket pocket.

Operation

ON button – Auto-Off after 1 min.
HOLD function for 1 min. after releasing button
Programming function using 3 buttons
Statistic functions (min, max, average)

Display

5 digit
large display
LOW-batt. display
pulse recognition
function mode

Note: The ET-2109LSR is not certified for use in Mines.

Price from € 713,00

Order now

Explosion-Proof Housing
Vertical display with 180° inversion capability
Memory holds last reading for 1 minute
Includes calibration certificate
Ex designation:
II 2 G EEx ia IIC T4

The ET-2109 is supplied as a complete kit

tachometer
reflective tape
contact adapter
calibration certificate
instruction manual (english)
all in a hard plastic carrying case

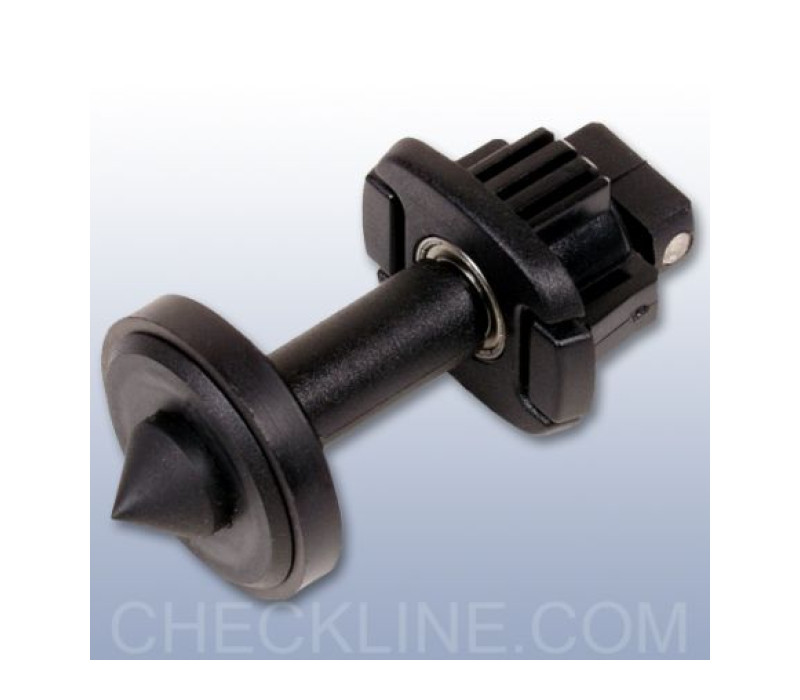

Combination Contact Adapter/Surface speed & length Adapter Included.

Ex designation:	2 G EEx ia IIC T4
EC-Certificate of Conformity:	Baseefa 01 ATEX 2301 X
Measuring system:	optical / laser reflection
Measuring Range	3.0 - 99,999 rpm 0.3 - 1,500.0 Meters or Yards/min (4,500 ft/min) or seconds
Optical Sensing Range	2 - 80" / 50 - 2000mm
Capture Mode	0.1 Sec
Count	0-99999 revs or length in linear
Time Interval	0-99999 seconds (auto)
Memory Hold	Holds last reading for 1 minute
On Target Indicator	Yes
Housing Material	High Flow ABS - Metalised
Batteries	4xAAA
Dimensions	21 L x 4 W x 3.5 D - cm
Measuring Wheel	Included, 0.1 meter circumference
Weight (kit)	0.4 Kg
Warranty	1 year
Sensing Distance	1 meter (39 inches)
Battery Life	6 hours continuous (shorter when using rechargeable type )
Display Update Rate	0.8 seconds/update (0.1 sec for Max Value capture)
Important!	IMPORTANT NOTE: These models must only be used with Duracell "Procell" batteries which are officially approved for this instrument. Use of other AA cells will invalidate I.S. Certification.

Products

Item	Product	Price	Quantity	Action
125972	A2109/LSR Intrinsically Safe Tachometer (ET-2109LSR)	€ 713,00
131122	A2109/LSR/002 - Advent Laser Tachometer with Pulse Output	€ 808,00

Accessories

Item	Product	Price	Quantity	Action
126135	10009S - Reflective Tape 4 Sheets 35 1/2	€ 15,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
