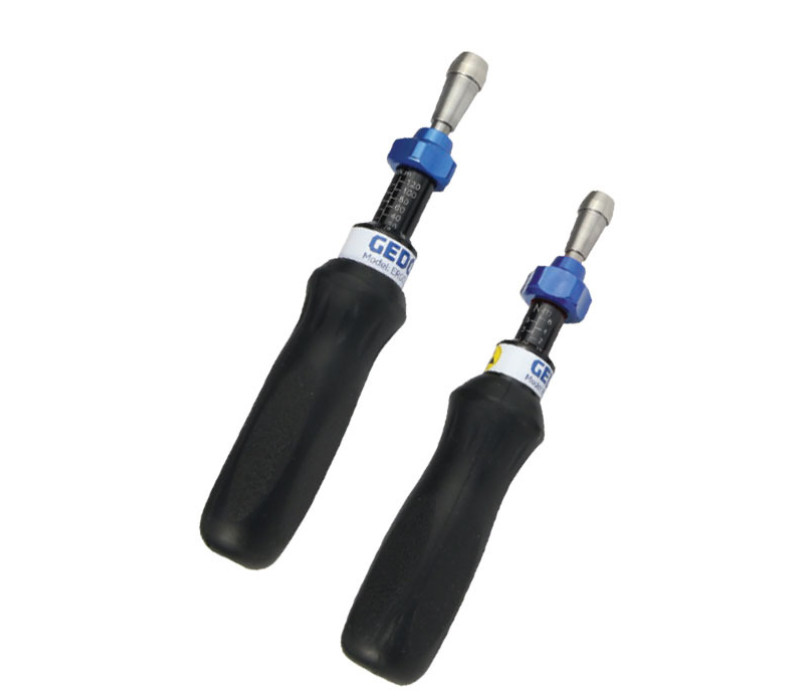

EMT Torque Screwdriver
Torque Limiting Screwdriver for production
The EMT Torque Screwdriver has been designed to exert a certain amount of torque. A bi-directional cam automatically releases once the set torque value has been reached, thus avoiding the risk of over-tightening.
Price from € 370,00
- Adjustment ring disengages to prevent incidental torque adjustment.
- The preferred and certified ranges of these tools is in accordance with the requirements if ISO 6789:2003 (+/- 6% of setting).
- Precision radial ball clutch and cam allows for automatic resetting.
- The “positive” locking system prevents incidental torque adjustment.
- Ergonomic rubber hand grip
- Micrometer adjustment allows for accurate tool setting.
- Color coded adjustment ring allow for differentiation of models.
- Removable T-bar on larger models provides extra leverage. Note - does not affect torque setting accuracy.
- ESD compliant (IEC 61340-5-1: 1998)
- NIST Traceable Calibration Certificate is optional
Tension Ranges
| Model | Ranges | Graduation | Drive | ||
|---|---|---|---|---|---|
| EMT/QSA 60z-M | 10 - 60 ozf.in | 1 ozf.in | 1/4” M/Sq. Dr. | ||
| EMT/QSA 60z-F | 10 - 60 ozf.in | 1 ozf.in | 1/4” F/Hex. Dr. | ||
| EMT/QSA 160z-M | 20 - 160 ozf.in | 1 ozf.in | 1/4” M/Sq. Dr. | ||
| EMT/QSA 160z-F | 20 - 160 ozf.in | 1 ozf.in | 1/4” F/Hex Dr. | ||
| EMT/QSA 4-M | 0.5 - 4 lbf.in | 0.1 lbf.in | 1/4” M/Sq. Dr. | ||
| EMT/QSA 4-F | 0.5 - 4 lbf.in | 0.1 lbf.in | 1/4” F/Hex Dr. | ||
| EMT/QSA 12-M | 2 - 12 lbf.in | 0.1 lbf.in | 1/4” M/Sq. Dr. | ||
| EMT/QSA 12-F | 2 - 12 lbf.in | 0.1 lbf.in | 1/4” F/Hex Dr. | ||
| EMT/QSA 50-M* | 10 - 50 lbf.in | 1 lbf.in | 1/4” M/Sq. Dr. | ||
| EMT/QSA 50-F* | 10 - 50 lbf.in | 1 lbf.in | 1/4” F/Hex Dr. | ||
| EMT/QSA 80-M* | 30 - 80 lbf.in | 1 lbf.in | 1/4” M/Sq. Dr. | ||
| EMT/QSA 80-F* | 30 - 80 lbf.in | 1 lbf.in | 1/4” F/Hex Dr. | ||
| EMT/QSN 40-M | 5 - 40 cN.m | 1 cN.m | 1/4” M/Sq. Dr. | ||
| EMT/QSN 40-F | 5 - 40 cN.m | 1 cN.m | 1/4” F/Hex Dr. | ||
| EMT/QSN 120-M | 20 - 120 cN.m | 1 cN.m | 1/4” M/Sq. Dr. | ||
| EMT/QSN 120-F | 20 - 120 cN.m | 1 cN.m | 1/4” F/Hex Dr. | ||
| EMT/QSN 600-M* | 1 - 6 N.m | 0.1 N.m | 1/4” M/Sq. Dr. | ||
| EMT/QSN 600-F* | 1 - 6 N.m | 0.1 N.m | 1/4” F/Hex Dr. | ||
| EMT/QSN 900-M* | 4 - 9 N.m | 0.1 N.m | 1/4” M/Sq. Dr. | ||
| EMT/QSN 900-F* | 4 - 9 N.m | 0.1 N.m | 1/4” F/Hex Dr. | ||
| * Supplied with Sliding T-Bar | |||||
