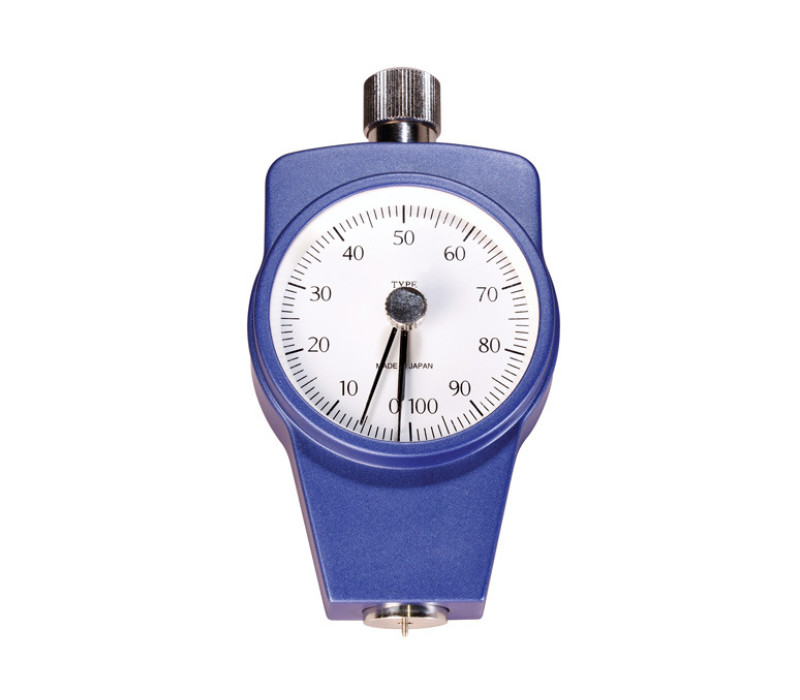

E2 hardness tester with Shore and Asker hardness scale

The E2 basic durometers provide quick hardness values on different materials depending on the selected scale. This hardness tester is available with Shore A, D, E scale as well as with Asker C scale.
The Shore scales conform to ASTM D-2240 and the Asker C scale to JIS K-7312.

A solid magnesium alloy housing protects the inside and provides a good usability. A peak indicator is optionally available for all models.

MODEL:

E2-A
E2-C
E2-D
E2-E

Shop now

Solid, easy to handle, magnesium alloy housing
Delivered with a NIST traceable calibration certificate
4 different scales available

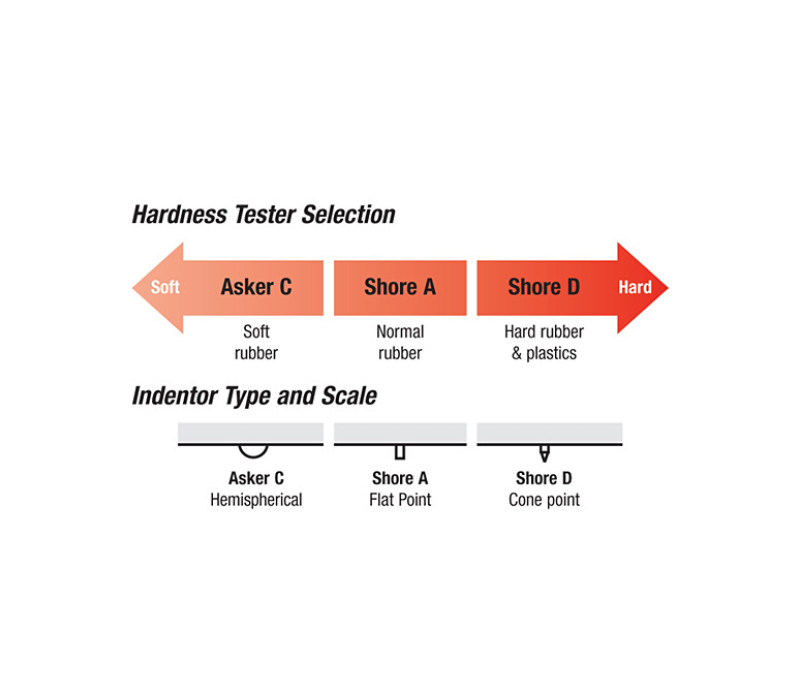

Selection Guide

Model	Scale	Indenter Geometry	Typical Application	Norm	Measuring Force
E2-A	Shore A	Flat Point	Standard rubber	ASTM D-2240	1 kg force
E2-D	Shore D	Cone Point	Hard rubber & plastic	ASTM D-2240	1 kg force
E2-E	Shore E	Hemispherical	Soft rubber	ASTM D-2240	5 kg force
E2-C	Asker C	Hemispherical	Soft rubber, sponges & foam	JIS K-7312	1 kg force

E2 durometer is delivered a complete kit:

E2 durometer with the choThe sen scale
Carrying case
NIST traceable 3-Point calibration certificate

Accuracy:	± 1 point

E2 Series Instruction Manual

Products

Item	Product	Price
137089	E2-A - Shore A Durometer	€ 481,06
136952	E2-C - Asker C Durometer	€ 481,06
137088	E2-D - Shore D Durometer	€ 481,06
137090	E2-E - Shore E Durometer	€ 481,06

Accessories

Item	Product	Price	Quantity	Action
137091	E2-PI - Peak Indicator Option for E2 durometers	€ 37,98

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
