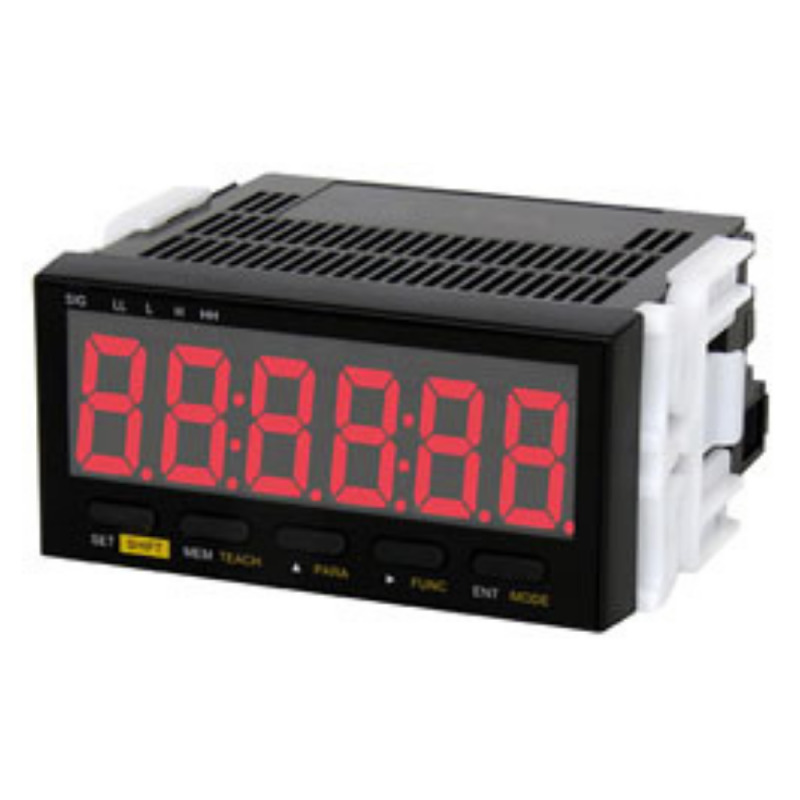

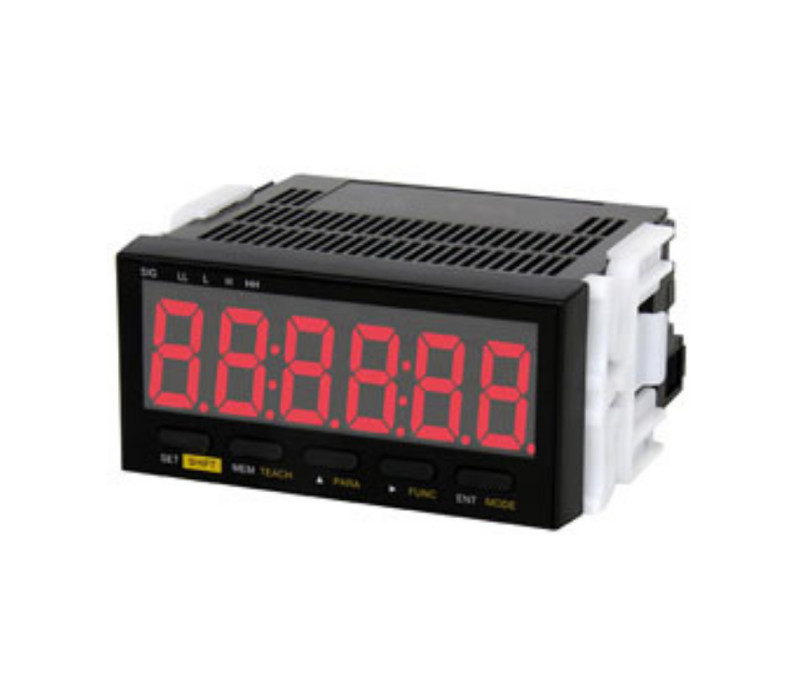

DT-501X Panel Meter Tachometer

Name: DT-501X Panel Meter Tachometer
SKU: 127619

The DT-501X Panel Meter Tachometer is a versatile, high-performance instrument engineered for precise measurement of speed, process rate, or elapsed time when paired with a compatible process speed sensor. Its compact design, featuring a 0.87” (22 mm) high, easy-to-read display and a shallow 3.6” (92 mm) panel depth, ensures seamless integration even in confined enclosures or tight panel spaces.

Broad Signal Compatibility

The DT-501X supports a wide array of standard input signals, including NPN, contact closures, and square or sine wave pulses. It can interface with devices such as pulse generators, proximity sensors, photoelectric sensors, magnetic sensors, rotary encoders, and NPN OC transistors, providing flexibility across a variety of industrial applications.

Multiple Measurement Modes

This tachometer offers four selectable operating modes to accommodate diverse monitoring needs:

Tachometer Mode: Measures rotational speed of motors and machinery.
Flowmeter Mode: Tracks volumetric flow rates.
Process Time Span Mode: Monitors durations of specific operations.
Elapsed Time Mode: Displays the inverse of the input signal, ideal for applications like oven conveyor timing.

An intuitive auto-teach scaling function streamlines setup by automatically matching the display to the input signal from the sensor, reducing configuration time and improving accuracy.

Optional Outputs for Automation

For enhanced automation and process control, the DT-501X can be equipped with analog, contact, or SSR outputs, allowing it to trigger alarms, control relays, or integrate with broader control systems.

Ideal Applications

The DT-501X is perfectly suited for industrial speed and timing applications, including:

Machining operation timing
Conveyor speed monitoring
Motor performance measurement
Volumetric flowrate tracking
Oven curing or processing elapsed time

For users looking to replace the DOPFVTR module, the DT-501XA-FVT variant provides a direct upgrade path.

Price from € 229,00

Order now

0.87 in (22 mm) high, 6-digit red LED display provides clear visibility of measurement values, even from longer viewing distances
Integrated sensor power supply eliminates the need for an external power source
Scalable programming gives user the flexibility to set up and monitor virtually any process
Selectable update time allows operator to speed up/slow down display changes
Built-in test mode allows quick verification of display segments and keypad functionality
Supports NPN open collector, contact inputs, and both square-wave and sine-wave signals
Teaching function auto-scales the display by inputting signal from sensor
NEMA 4X (IP66) front cover protection
Auto Zero function zeroes the display after the final signal initiates a preprogrammed time countdown
Max. Min. automatically stored into memory; quickly retrieved via keypad
1/8 DIN size with minimal depth of only 3.6" (92 mm)
FVT Modules provides 0-1, 1-5, 0-10 VDC or 4-20 mA Analog Output (switch-selectable)

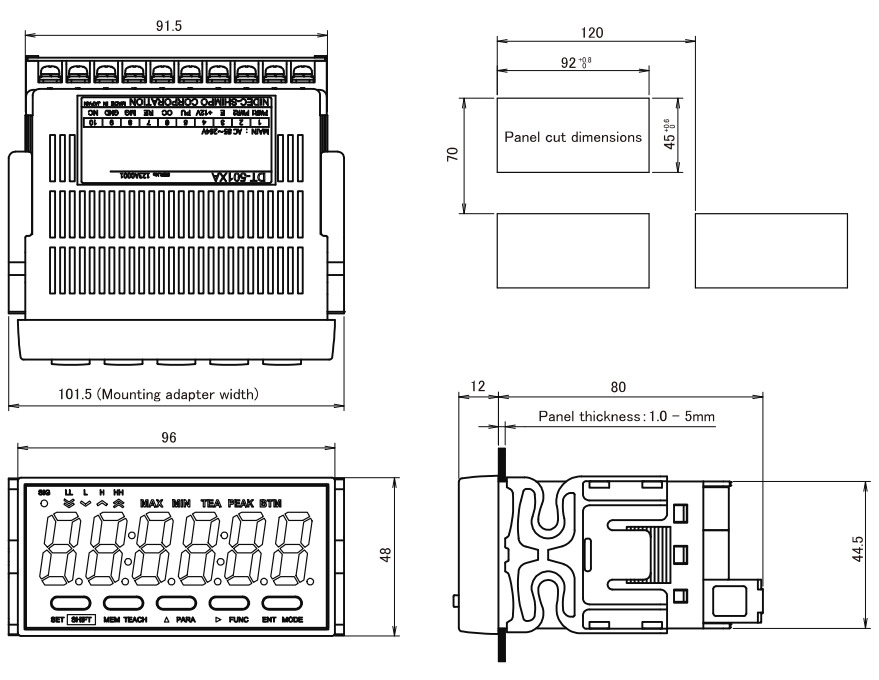

Dimensions

Front Panel

Width: 96 mm
Height: 48 mm

Overall Housing

Top width: 91.5 mm
Mounting adapter width: 101.5 mm
Depth (from panel front): 80 mm
Additional rear depth: 12 mm
Total depth: 92 mm

Panel Cut-Out

Width: 92 mm (+0.8 / 0)
Height: 45 mm (+0.6 / 0)

Panel Thickness

1.0 - 5 mm

Side Profile

Total height: 44.5 mm
Overall length including rear connector: 120 mm
Body height (rear section): 70 mm

DT-501X Data Sheet

Input Range	0.0067 Hz to 100 kHz in Tachometer, Flowmeter & Elapsed time modes; 10 ms to 3600 s in Time Span mode
Input Signal Characteristics	NPN open collector input: max. frequency 100 kHz / Contact input: max. frequency 20 Hz / Square wave input: max. frequency 30 kHz – Sine wave input (magnetic pickup): max. frequency 10 kHz
Display Range	Tachometer/Flowmeter: 0 – 999999; with 10-1 to 10-5 decimal point position selection
Elapsed Time	0:00:00 – 9:59:59 (hr., min., sec., base 60) ; or 0:00 to 999:99 (second: 1/100 sec, base 10 display)
Process Time Span	0:00:00 – 0:59:59 (hr., min., sec., base 60) or 0.00 – 999.99 sec. (second: 1/100 sec, base 10 display) with zero suppression function
Display	Red 7 segment 6 digit LED, numeral height of 0.87” (22 mm); negative (-) sign available
Accuracy	Tachometer/ Flowmeter & Elapsed Time: ± 0.008 % ± 1 digit; Process Time Span: ± 0.1 % ± 1 digit
Display Update Time	0.2, 0.5, 1, 2, 5, 10, 15, 30, 60 sec. selectabel in Tachometer, Flowmeter & Elapsed Time modes
Auto Zero Time	Tachometer & Flowmeter Modes: 0.1 to 150 Seconds; Elapsed Time & Time Span Modes: 0.1 to 3600 Seconds
Optional Outputs	NPN; contact relay; analog output: (selectable) 0-1, 1-5, 0-10 VDC & 4-20 mA
Power Requirement	85 – 264 VAC (50/60 Hz) Optional (9–35 VDC also available, DT-501XD)
Sensor Power Supply	12 VDC (100 mA)
Temperature Limits	32 – 113°F (0 – 45°C)
Humidity Limits	35 to 85% RH
Protection Class	Front Panel: NEMA 4X (IP66) ; Rear Terminal Block NEMA 1 (IP20)
Dimensions	3.8 x 1.9 x 3.6" (96 x 48 x 92 mm)
Weight	Product Weight: 0.44 lb (200 g) Package Weight: 0.73 lb (330 g)
Approvals	RoHS
Warranty	1 year
Included Accessories	Waterproofing O’ring, engineering unit decal sheet
Country of Origin	Japan

Products

Item	Product	Price
139492	DT-501XA Panel Meter Tachometer, 100-240 VAC Powered	€ 229,00
136105	DT-501XA-CPT Panel Meter Tachometer, 100-240 VAC Powered, Relay Output	€ 429,00
136638	DT-501XA-CPT-FVC Panel Meter Tachometer, 100-240 VAC Powered, Relay Output, Analog Output	€ 628,00
136643	DT-501XA-FVT Panel Meter Tachometer, 100-240 VAC Powered, Analog Output, Terminal Block Connection	€ 474,00
140308	DT-501XA-FVC Panel Meter Tachometer, 100-240 VAC Powered, Analog Output with 36 Pin Connection	€ 513,00

Accessories

Item	Product	Price
133991	SE-G2 Proximity Sensor	€ 154,00
137804	MP-10 - Magnetic Sensor	€ 197,00
136788	3030AN - Magnetic Pick-Up Sensor	€ 117,00
135436	CABLE-LS-S50MLR - Quick connector + cable 2 meter	€ 48,00
136283	MCS-655P Retro Reflective Sensor	€ 197,00

All mentioned prices are excluding VAT & excluding shipment costs.
