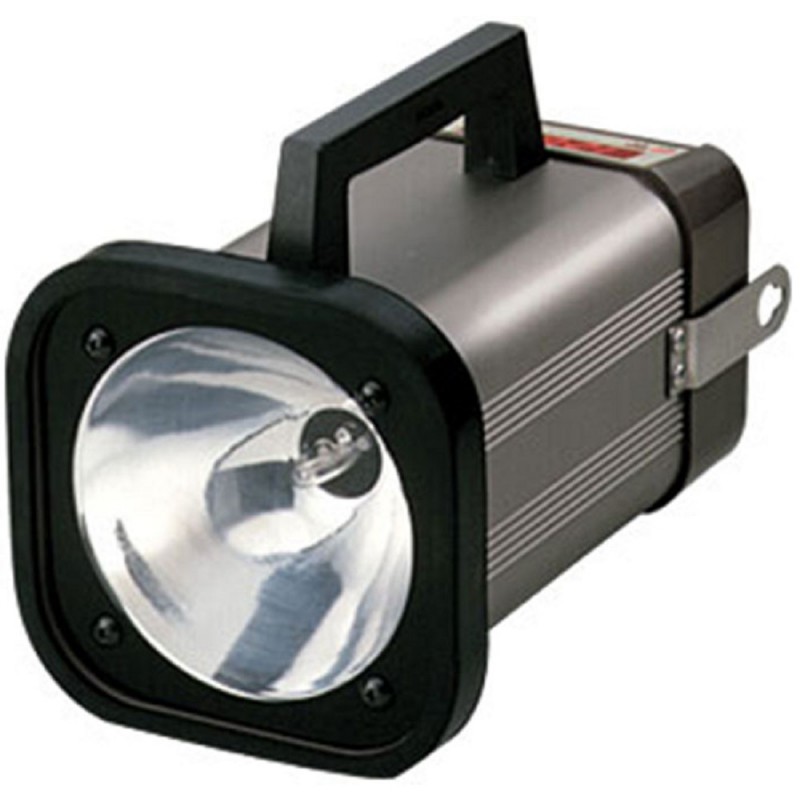

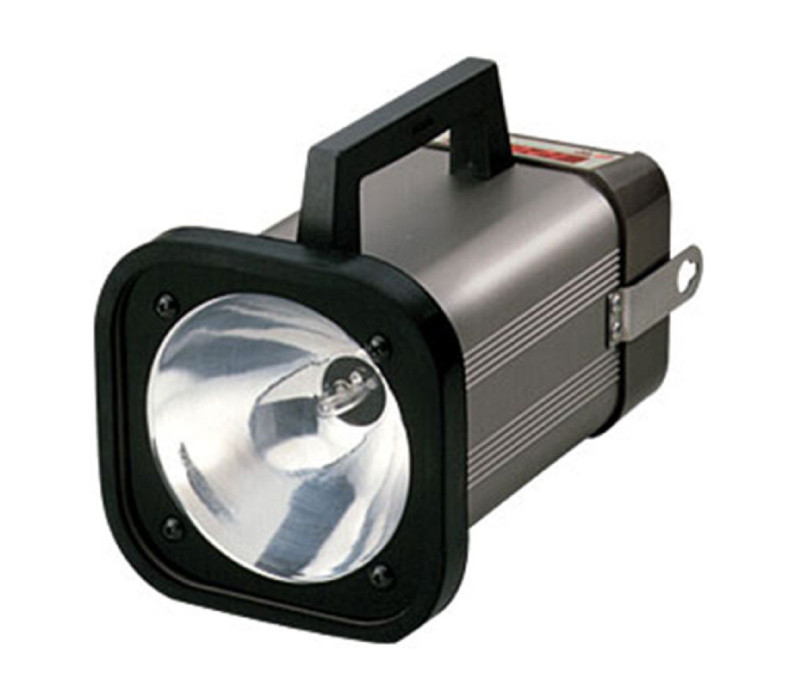

DT-315P Splashproof Digital Stroboscope with Internal Battery
LIMTED RANGE: 60.0-3.300 RPM/FPM
The DT-315P portable digital splashproof stroboscope is designed for use in the harshest manufacturing environments and meets the specifications of protection code IP65.
Designed for observing fast repeated motions and for determining RPM or inspection and observation of moving parts by "freezing" or "slowing down" the action.
The DT-315P strobe can be triggered by means of an external sensor (power supply for the sensor is provided by the stroboscope). The flashes can be delayed either in time or in rotation angle.
The DT-315P portable digital splashproof stroboscope is designed for use in the harshest manufacturing environments and meets the specifications of protection code IP65.
Designed for observing fast repeated motions and for determining RPM or inspection and observation of moving parts by "freezing" or "slowing down" the action.
The DT-315P strobe can be triggered by means of an external sensor (power supply for the sensor is provided by the stroboscope). The flashes can be delayed either in time or in rotation angle.
Features
- LIMITED RANGE: 60.0-3,300 RPM/FPM
- Hand-held or tripod operation
- Water & Dustproof housing (IP65)
- Easy-to-read LED display
- Accepts external trigger input and provides synchronizing pulse output
- Phase shift for best view and flash photography
- Powered by internal rechargeable battery
- Easy-to-operate controls

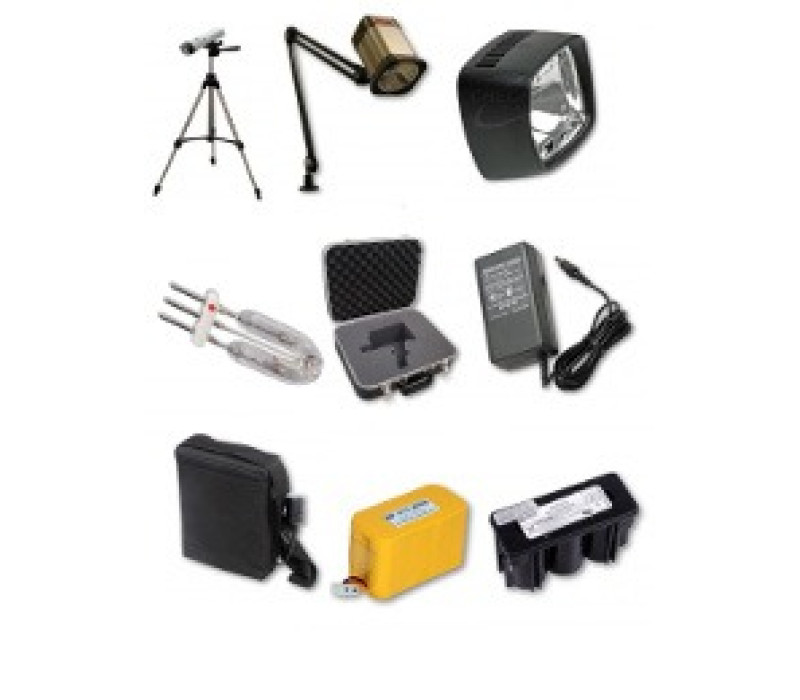

Accessories
Specifications
| Flash Range | 60.0-3,300 FPM |
| Accuracy | ± 1 digit |
| Delay Setter | Rotary Encoder |
| Display | 4 digits, 10mm high Red LED |
| Divide Ratio | 1/1, 1/2, 1/3, 1/4, 2/4 with shift |
| Input Signal | LO level: 0-0.4 VDC HI level: 2.5 - 12 VDC -- or open collector (npn) pulse width 50us min |
| Input Impedance | 47 ohms |
| Display Mode | Phase shift (degree), Tachometer |
| Flashtube | Xenon, max 10 W |
| Operating Temp | 0 to 40° |
| Power Requirements | 230 V AC (115 V can also be ordered) |
| Dimensions | 130 x 158 x 259 mm (WxHxL) |
| Weight | 2.1 Kg (4.6 lbs) |
| Warranty | 1 year |
